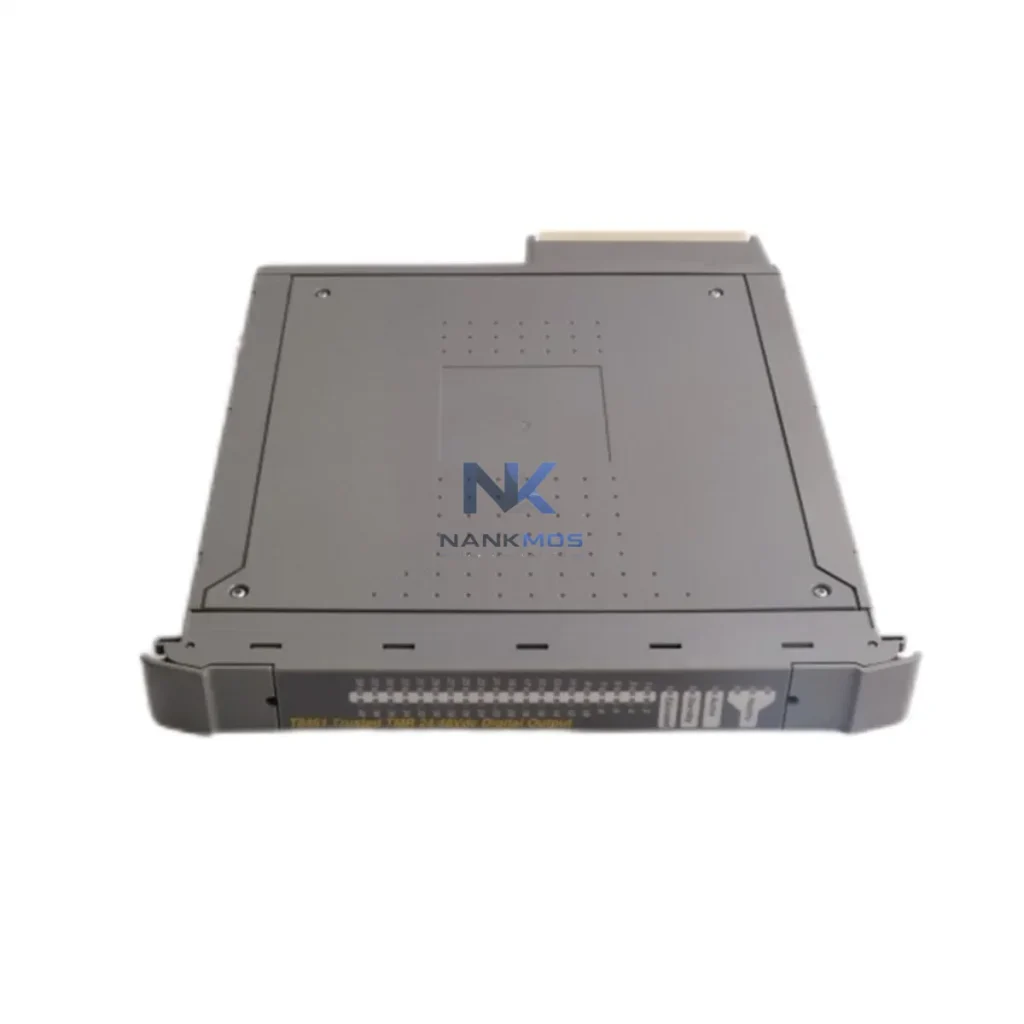

ICS Triplex T8461 Safety PLC Digital Output Module

Product Details

T8461 Product Description

The ICS Triplex T8461 TrustedTM TMR 24/48V DC Digital Output Module is a high-integrity safety output component engineered for Triple Modular Redundancy (TMR) architectures within the Trusted Series Safety PLC platform. Designed for mission-critical industrial environments — including oil and gas, petrochemical, power generation, and advanced manufacturing — the T8461 delivers deterministic, fault-tolerant digital output control across complex automation networks. Its architecture supports seamless integration into smart factory data chains, enabling real-time signal transmission, remote diagnostics, and transparent production-line monitoring from field device to enterprise system.

In modern industrial connectivity frameworks, the T8461 functions as a critical node in the output layer of a distributed safety and control architecture. Field actuators, solenoid valves, and motor starters receive voted, fault-tolerant commands from the Trusted Series controller chassis, with the T8461 ensuring that each output channel is independently verified across three redundant processing lanes before any control action is executed. This TMR voting mechanism eliminates single-point failures and sustains process continuity even under partial module degradation — a fundamental requirement for SIL 2 and SIL 3 certified safety instrumented systems.

The T8461 sits at the output execution layer of a fully connected industrial data chain. In a typical smart factory or process safety deployment, the data flow originates at the sensor and field instrument level — pressure transmitters, temperature sensors, and gas detectors feed live process values into the Trusted Series controller via companion input modules such as the ICS Triplex T8431 TMR Analog Input Module and the T8451 TMR Digital Input Module. These signals are processed through the Trusted Series CPU — for example, the T8100 Trusted TMR Processor — which applies safety logic and generates output commands directed to the T8461.

The T8461 then drives field actuators — solenoid valves, relay outputs, motor contactors — with voted, fault-tolerant 24/48V DC signals. Simultaneously, the Trusted Series chassis communicates upstream via a protocol gateway such as the T8830 Trusted Communications Gateway, which bridges the proprietary backplane bus to Modbus TCP, PROFIBUS DP, or OPC-UA, enabling real-time data exchange with SCADA platforms like Wonderware, Ignition, or Emerson DeltaV. HMI terminals connected to the SCADA layer receive live output status, channel diagnostics, and fault flags from the T8461, providing operators with full visibility into actuator states across the production line.

For remote monitoring and diagnostics, the SCADA gateway forwards T8461 channel data — including output voting status, fault detection flags, and module health indicators — to edge computing nodes or industrial IoT gateways such as the Moxa MGate MB3480 or equivalent Ethernet-to-serial converters. These edge devices aggregate data from multiple Trusted Series racks, variable frequency drives (VFDs), and remote I/O stations, then transmit structured data packets to cloud-based or on-premise data historians. Integration with Yokogawa CENTUM VP or ABB System 800xA DCS platforms is achievable through OPC-UA bridging, enabling cross-platform alarm management, trend visualization, and predictive maintenance workflows.

Industrial Ethernet switches — such as the Hirschmann RS20 or Moxa EDS-408A — provide the network backbone that connects Trusted Series controller racks, SCADA servers, engineering workstations, and remote I/O panels within a ring or star topology. This network architecture ensures sub-millisecond latency for safety-critical command transmission and supports VLAN segmentation to isolate safety networks from general plant networks, in compliance with IEC 62443 industrial cybersecurity standards.

Many industrial sites operating legacy safety systems face persistent challenges: protocol fragmentation between safety PLCs and DCS platforms, data silos that prevent real-time visibility into actuator states, and limited remote diagnostic capability for geographically distributed process units. The ICS Triplex T8461, deployed within the Trusted Series architecture, directly addresses these gaps.

Protocol Unification: By pairing the T8461 with the T8830 Communications Gateway, sites can bridge the Trusted Series backplane to Modbus TCP, PROFIBUS, or OPC-UA without modifying the safety application. This eliminates the protocol mismatch that commonly isolates safety systems from plant-wide SCADA and MES layers.

Data Silo Elimination: Real-time output channel status — including voted output state, fault detection, and module diagnostics — is made available to SCADA and historian systems, breaking down the information barrier between the safety layer and the process control layer. Operators gain a unified view of both safety and process data on a single HMI screen.

Remote Monitoring and Alarm Tracking: The T8461's built-in diagnostics continuously monitor output channel integrity and report fault conditions upstream. SCADA alarm management systems receive structured fault notifications, enabling maintenance teams to respond remotely before a process trip occurs. This capability is especially valuable for offshore platforms, remote pipeline stations, and unmanned substations where on-site intervention is costly.

Production Line Transparency and System Expansion: As plant capacity grows, additional T8461 modules can be added to existing Trusted Series racks without system shutdown, supporting hot-swap replacement and online expansion. The modular architecture scales from small ESD panels to large-scale integrated safety and control systems, maintaining data continuity and alarm traceability throughout the expansion process.

Q1: What communication protocols does the ICS Triplex T8461 support for SCADA integration? The T8461 operates on the Trusted Series proprietary backplane bus. For SCADA integration, the T8830 Trusted Communications Gateway translates backplane data to Modbus TCP, PROFIBUS DP, or OPC-UA, enabling direct connection to Wonderware, Ignition, Emerson DeltaV, and other SCADA platforms. Communication latency is deterministic and suitable for safety-critical applications.

Q2: Is the T8461 compatible with existing DCS and safety network architectures? Yes. The T8461 is designed for integration within IEC 61508 SIL 2/SIL 3 safety instrumented systems and is compatible with DCS platforms via OPC-UA or Modbus TCP gateways. It supports coexistence with ABB System 800xA, Yokogawa CENTUM VP, and Honeywell Safety Manager environments through standard protocol bridging.

Q3: How does the T8461 support remote diagnostics and predictive maintenance? The T8461 continuously performs self-diagnostics on each output channel, reporting fault flags, voting discrepancies, and module health data to the Trusted Series controller. This diagnostic data is forwarded via the communications gateway to SCADA historians and edge analytics platforms, enabling remote fault detection, trend analysis, and maintenance scheduling without requiring physical access to the module.

Q4: What are the warranty terms and pre-shipment testing procedures for the T8461? All ICS Triplex T8461 modules supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional performance. Each unit undergoes pre-shipment functional testing to verify output channel integrity, TMR voting operation, and communication interface performance before dispatch. In-stock units are available for immediate shipment with full test documentation upon request.
