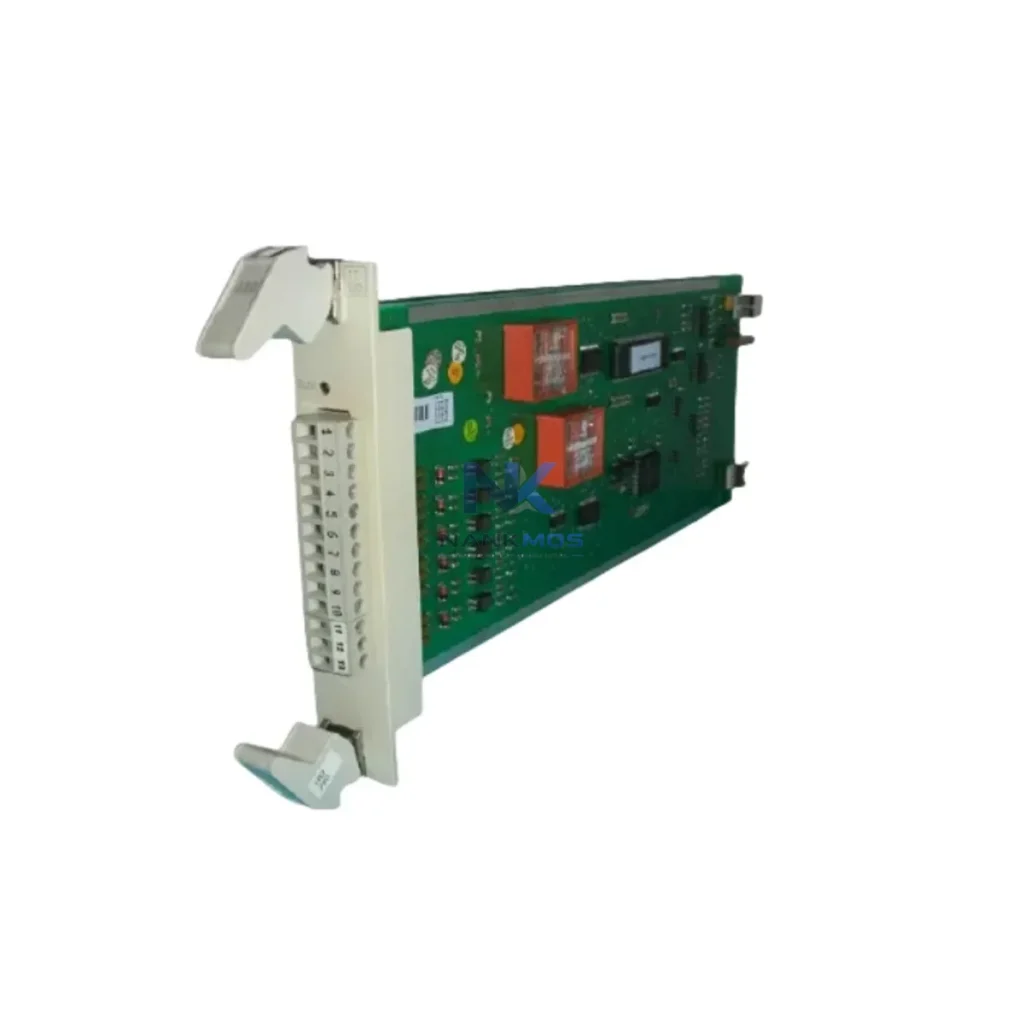

ICS Triplex T9084U Safety System Module

Product Details

T9084U Product Description

The ICS Triplex T9084U is a Triple Modular Redundancy (TMR) safety output module engineered for deployment within the Trusted™ safety-rated control architecture. Designed to meet IEC 61508 SIL3 requirements, this module delivers deterministic fault-tolerant output control across the most demanding industrial environments — from offshore platforms and petrochemical complexes to power generation facilities and critical infrastructure. Its role within the Trusted system is not merely functional; it is architectural. The T9084U anchors the output layer of a redundant safety instrumented system (SIS), ensuring that final control elements receive validated, voted signals even under single or dual fault conditions.

Within a complete Trusted TMR chassis, the T9084U operates in concert with the Trusted T8110 TMR processor module, which handles all logic execution and cross-channel voting. The processor communicates voted output commands to the T9084U via the Trusted backplane, maintaining synchronization across all three redundant channels. This tight integration between the CPU layer and the output layer is what enables the Trusted architecture to sustain SIL3 integrity without requiring external voting relays or additional safety logic layers. Engineers deploying the T9084U benefit from a fully integrated safety loop — from sensor input through logic processing to final actuator command — all within a single, validated platform.

The T9084U is designed for hot-swap replacement without process interruption, a critical capability in continuous-process industries where planned shutdowns are costly and unplanned trips are unacceptable. Its modular form factor fits directly into the Trusted T8100 series chassis, which supports mixed I/O configurations alongside communication modules such as the Trusted T8830 Modbus gateway and the T8840 PROFIBUS DP interface. These communication modules extend the T9084U's operational context into broader DCS and SCADA environments, enabling seamless integration with Honeywell Experion PKS, Yokogawa CENTUM VP, or Emerson DeltaV platforms via standardized fieldbus protocols.

Signal integrity across the T9084U's output channels is maintained through continuous self-diagnostics and cross-channel comparison. Each of the three redundant channels independently drives its output and simultaneously monitors the state of the other two. Any discrepancy triggers an internal diagnostic alarm without interrupting the voted output, allowing maintenance teams to identify and replace a degraded channel during live operation. This diagnostic transparency reduces mean time to repair (MTTR) and extends the overall proof-test interval, directly supporting IEC 61511 lifecycle compliance for safety instrumented functions (SIFs).

Power distribution within the Trusted chassis is handled by the T8150 power supply module, which provides isolated, redundant 24 VDC rails to all installed I/O modules including the T9084U. The power architecture ensures that a single power supply failure does not compromise output channel availability. For applications requiring enhanced power redundancy, dual T8150 units can be installed in the same chassis, with automatic load sharing and failover. This power layer design complements the T9084U's own channel redundancy, creating a multi-layer fault-tolerant architecture that satisfies the most stringent functional safety assessments.

In process control applications, the T9084U is commonly paired with Trusted T8431 or T8451 analog input modules that receive 4–20 mA signals from field transmitters — pressure, temperature, flow, and level instruments. These input modules feed validated process values to the T8110 processor, which executes the safety logic and issues output commands to the T9084U. The result is a closed-loop safety instrumented function with full TMR redundancy from field sensor to final element, with no single point of failure across the entire signal chain.

For HMI and operator interface integration, the Trusted architecture supports connection to Wonderware InTouch, FactoryTalk View SE, and other SCADA platforms via the T8830 Modbus TCP/IP gateway. Operators gain real-time visibility into T9084U channel health, output states, and diagnostic alarms without requiring direct access to the safety controller. This separation of the safety execution layer from the operator interface layer is a fundamental principle of IEC 61511 architecture, and the T9084U's design fully supports this separation through its hardware-enforced channel isolation.

Installation and commissioning of the T9084U follows the Trusted system's structured engineering workflow. Module insertion into the T8100 chassis triggers automatic configuration download from the T8110 processor, eliminating manual parameter entry and reducing commissioning errors. Loop testing can be performed channel by channel using the Trusted engineering workstation software, which provides forced output capability under password-controlled maintenance mode. This structured commissioning process reduces site engineering hours and accelerates the path from installation to validated SIL3 operation.

Long-term maintenance of the T9084U is supported by ICS Triplex's global spare parts network and NANKMOS's in-stock inventory program. Each unit shipped by NANKMOS undergoes pre-shipment functional verification, including channel output testing and diagnostic self-check confirmation, before dispatch. Units are supplied with full traceability documentation, supporting the asset management and proof-test records required by IEC 61511 lifecycle audits. The 12-Month Warranty covers all manufacturing defects and functional failures under normal operating conditions, providing procurement teams with the confidence to specify the T9084U as a long-term safety architecture component.

The T9084U achieves its full architectural value when deployed as part of a complete Trusted TMR safety platform. At the control layer, the Trusted T8110 TMR Processor Module executes all safety logic and manages cross-channel voting, issuing validated output commands to the T9084U via the Trusted backplane. The Trusted T8150 Redundant Power Supply Module provides isolated dual-rail 24 VDC power to the entire chassis, ensuring that power faults do not propagate to output channel availability.

At the input layer, the Trusted T8431 Analog Input Module and T8451 Analog Input Module receive 4–20 mA field signals from process transmitters, feeding validated values to the T8110 for safety function execution. Digital input signals are handled by the Trusted T9110 TMR Digital Input Module, which applies the same 2oo3 voting logic to incoming field contact states before passing them to the processor.

Communication integration is provided by the Trusted T8830 Modbus TCP/IP Gateway Module and the Trusted T8840 PROFIBUS DP Interface Module, which bridge the Trusted safety network to plant-level DCS and SCADA systems. These gateways allow the T9084U's output states and diagnostic data to be monitored in real time from Honeywell Experion PKS or Emerson DeltaV operator stations without compromising the safety layer's hardware isolation.

For applications requiring expanded I/O capacity, the Trusted T8100 Series Expansion Chassis can be connected via the Trusted inter-chassis bus, extending the system's output capacity while maintaining unified TMR architecture governance. Terminal modules and marshalling panels compatible with the Trusted system complete the field wiring layer, providing organized, labeled termination points for all T9084U output circuits.

Oil & Gas and Petrochemical: The T9084U is widely deployed in emergency shutdown (ESD) and high-integrity pressure protection (HIPPS) systems on offshore platforms and onshore refineries. Its SIL3 rating and TMR architecture satisfy the functional safety requirements of IEC 61511 for process safety instrumented functions, including compressor shutdown, blowdown valve control, and fire and gas system final elements.

Power Generation: In thermal and nuclear power plants, the T9084U controls turbine trip outputs, boiler protection system actuators, and reactor protection system final elements. Its deterministic TMR voting ensures that spurious trips are minimized while genuine fault conditions result in immediate, reliable actuator response — a balance critical to power plant availability and safety.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the T9084U to control chemical dosing pump shutdowns, overflow prevention valves, and high-level alarm actuators. The module's hot-swap capability is particularly valued in these continuously operating facilities, where maintenance windows are limited and process interruptions carry regulatory consequences.

Mining and Metallurgy: In mining conveyor systems, crusher protection circuits, and smelter process control, the T9084U provides the output reliability required for personnel safety systems. Its wide operating temperature range and robust diagnostic architecture make it suitable for the harsh electrical environments typical of heavy industrial sites.

Marine and Offshore: Shipboard safety systems and offshore platform control rooms deploy the T9084U for engine room emergency shutdown, ballast control, and dynamic positioning safety functions. Its compact modular form factor and TMR redundancy align with DNV and Lloyd's Register requirements for safety-critical marine control systems.

Q1: Is the T9084U compatible with existing Trusted T8100 series chassis already installed in the field? Yes. The T9084U is designed for direct insertion into any Trusted T8100 series TMR chassis without hardware modification. Upon insertion, the T8110 processor automatically downloads the module's configuration from the safety application database, eliminating manual parameter entry. Compatibility should be verified against the specific chassis firmware revision using the Trusted engineering workstation software prior to installation.

Q2: Can the T9084U be replaced during live plant operation without triggering a safety system trip? Yes. The T9084U supports hot-swap replacement under the Trusted architecture's TMR fault-tolerant design. When one of the three redundant channels is removed for replacement, the remaining two channels continue to provide 2oo2 voted output, maintaining the safety function. Full TMR integrity is restored automatically once the replacement module is inserted and the processor completes configuration synchronization. This procedure should be performed under a formal management of change (MOC) process in accordance with IEC 61511 requirements.

Q3: What warranty and supply continuity does NANKMOS provide for the T9084U? NANKMOS supplies the ICS Triplex T9084U with a 12-Month Warranty covering all manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional verification including channel output testing and diagnostic self-check confirmation before dispatch. NANKMOS maintains in-stock inventory of the T9084U and related Trusted system modules to support urgent replacement requirements, with global shipping capability to minimize site downtime. Full traceability documentation is provided with each unit to support IEC 61511 lifecycle audit requirements.
