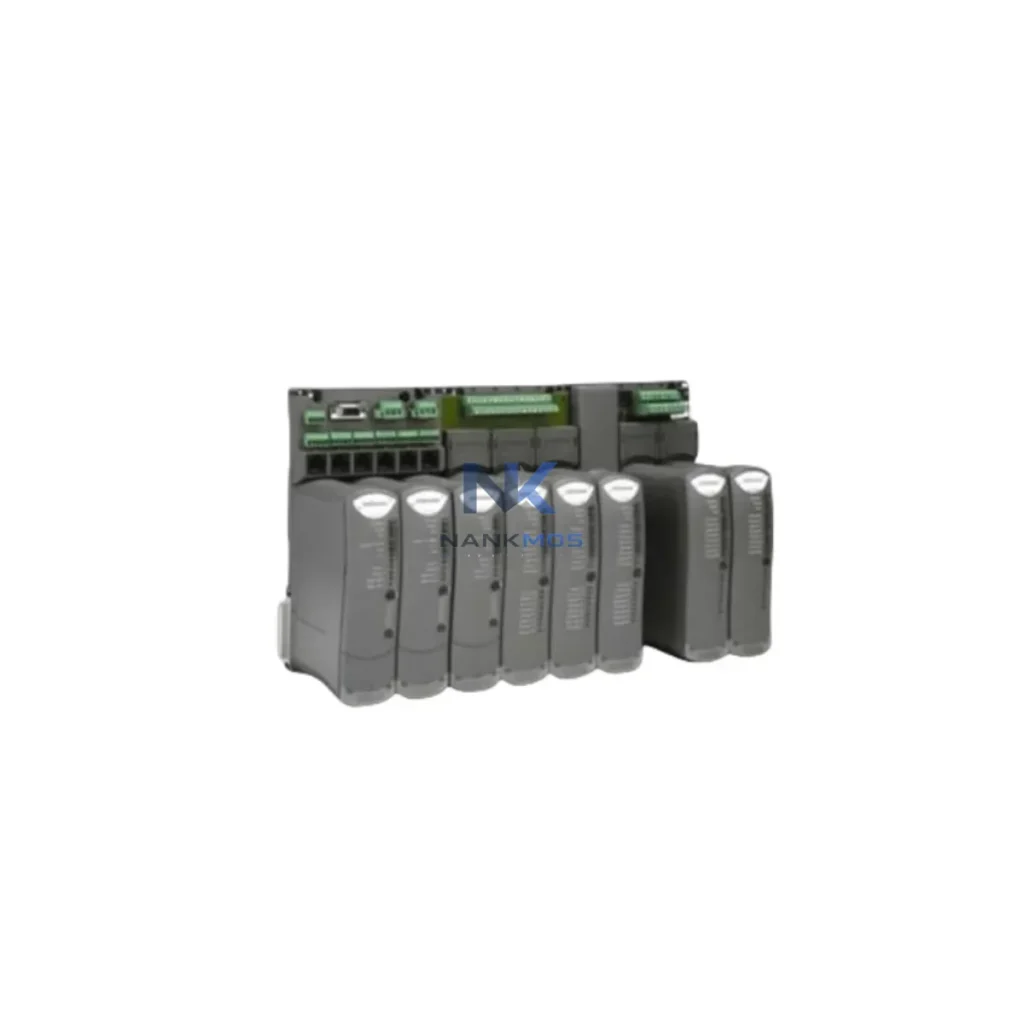

ICS Triplex T9901 Safety Input Module

Product Details

T9901 Product Description

The ICS Triplex T9901 is a high-integrity safety input module engineered for the Trusted TMR (Triple Modular Redundancy) platform — one of the most proven safety architectures in process automation and critical infrastructure. Designed to bridge field-level safety signals with upper-layer control and monitoring systems, the T9901 plays a central role in the industrial data chain: from raw signal acquisition at the sensor level, through protocol-compliant transmission, to real-time visualization in SCADA and HMI environments. In smart factory deployments where uptime, data integrity, and regulatory compliance are non-negotiable, the T9901 delivers the network-linked safety input performance that modern automation sites demand.

At its core, the T9901 accepts discrete safety inputs from field instruments — including pressure switches, temperature sensors, emergency stop circuits, and proximity detectors — and conditions those signals within the TMR voting architecture. This triple-redundant logic ensures that no single-point failure can propagate to a false trip or missed shutdown, making the module ideal for Safety Instrumented Systems (SIS) operating under IEC 61511 and IEC 61508 standards. The module integrates seamlessly into the ICS Triplex Trusted controller chassis, where it communicates with the central processing units via the Trusted backplane bus, enabling deterministic, low-latency data exchange across the safety network.

From a smart factory connectivity perspective, the T9901 is not an isolated safety device — it is a data source. Every input state change, diagnostic event, and module health status is available to the Trusted system's communication layer, which can interface with Modbus TCP/IP, OPC-UA, and PROFIBUS DP gateways for upstream SCADA integration. This means that operators monitoring a Wonderware InTouch HMI or an Ignition SCADA platform can receive live safety input status, alarm conditions, and diagnostic data from the T9901 in real time — without compromising the integrity of the safety loop itself.

In a fully connected smart factory or process plant, the ICS Triplex T9901 sits at the foundation of the safety data chain. Field instruments — such as Rosemount 3051 pressure transmitters, thermocouple assemblies, and solenoid valve feedback contacts — wire directly into the T9901's discrete input channels. The module conditions and validates these signals within the TMR voting logic before passing confirmed states to the ICS Triplex T9110 Trusted TMR Central Processing Unit, which executes the safety application logic.

The Trusted CPU communicates upstream via a dedicated ICS Triplex T8431 Modbus TCP Communication Module or an OPC-UA server interface, routing real-time safety data to the plant's DeltaV Safety Instrumented System controller or directly to a Honeywell Experion PKS DCS for integrated process and safety monitoring. At the SCADA layer, operators using Ignition by Inductive Automation or Wonderware System Platform can subscribe to T9901 input tags via OPC-UA, enabling live dashboards that display input states, diagnostic health, and trip history without any polling latency.

For remote sites — offshore platforms, pipeline stations, or unmanned substations — the Trusted system's data can be tunneled through an industrial Ethernet switch (such as a Hirschmann MACH104 or Moxa EDS-510A) to a 4G/LTE edge gateway, enabling remote diagnostics and alarm notifications to reach control room engineers or mobile devices in real time. This end-to-end data path — from the T9901 safety input, through the TMR processor, across the industrial network, and into the SCADA visualization layer — is the backbone of transparent, auditable, and remotely manageable safety automation.

When expanding the safety system, the T9901 pairs naturally with the ICS Triplex T9902 Safety Output Module for complete SIS loop closure, and with the T9310 Analogue Input Module for mixed discrete/analogue safety architectures. Power integrity for the chassis is maintained by redundant ICS Triplex T9920 Power Supply Modules, ensuring that network-connected safety data remains uninterrupted even during power source transitions.

Many industrial sites operate with fragmented safety and process data — safety systems that trip without traceable cause, input modules that provide no diagnostic visibility, and SCADA screens that show only binary on/off states with no context. The ICS Triplex T9901 addresses these data gaps directly.

Protocol fragmentation is resolved through the Trusted platform's gateway-ready architecture: whether your upper system speaks Modbus TCP, OPC-UA, or PROFIBUS DP, the T9901's data is accessible without custom middleware. Data silos between the safety layer and the process control layer are eliminated by exposing T9901 input diagnostics — channel health, input state, fault codes — as standard OPC tags consumable by any modern SCADA or historian platform.

Remote monitoring challenges at unmanned or geographically distributed sites are addressed through the Trusted system's network communication modules, which can relay T9901 status data over industrial Ethernet or serial links to centralized control rooms. Production line transparency is enhanced because every input event is time-stamped and logged within the Trusted system's SOE (Sequence of Events) recorder, giving maintenance engineers a precise audit trail for root cause analysis after any safety event.

Alarm management is improved because the T9901 distinguishes between process trips and module-level faults, allowing SCADA alarm rationalization systems to route notifications to the correct engineering team. And system expansion is straightforward: additional T9901 modules can be added to the Trusted chassis without reconfiguring the network topology, supporting phased plant expansions without downtime.

Q1: What communication protocols does the ICS Triplex T9901 support for SCADA integration? The T9901 itself communicates via the Trusted TMR backplane bus. For SCADA/HMI integration, the Trusted system uses dedicated communication modules (such as the T8431 Modbus TCP module or OPC-UA interface) to expose T9901 input data to external systems. This architecture keeps the safety network isolated while still providing full data visibility to process control and monitoring layers.

Q2: How does the TMR architecture affect network latency and data reliability? The Triple Modular Redundancy design uses 2oo3 voting logic, which means all three input channels are processed in parallel with deterministic cycle times. This eliminates single-point failures and ensures that input state data reaching the SCADA layer is always based on a validated, fault-tolerant consensus — not a single channel reading. Network latency from field input to SCADA tag update is typically within the scan cycle of the Trusted CPU, measured in milliseconds.

Q3: Can the T9901 be integrated into an existing DCS or process control network without disrupting the safety loop? Yes. The Trusted platform's communication architecture maintains strict separation between the safety execution layer (where T9901 operates) and the information layer (where SCADA/DCS reads data). Integration is read-only from the DCS perspective — the safety logic cannot be overridden by the process control network, preserving SIL 3 integrity while enabling full data sharing.

Q4: What does the 12-month warranty cover, and how is the T9901 tested before shipment? Every ICS Triplex T9901 unit supplied by NANKMOS is covered by a 12-month warranty against manufacturing defects and functional failures. Prior to shipment, each module undergoes functional verification testing to confirm input channel integrity, backplane communication, and diagnostic reporting. Units are sourced from verified supply channels and stored under controlled conditions to maintain long-term reliability. For critical SIS applications, we recommend requesting a pre-shipment test report — contact our team to arrange.
