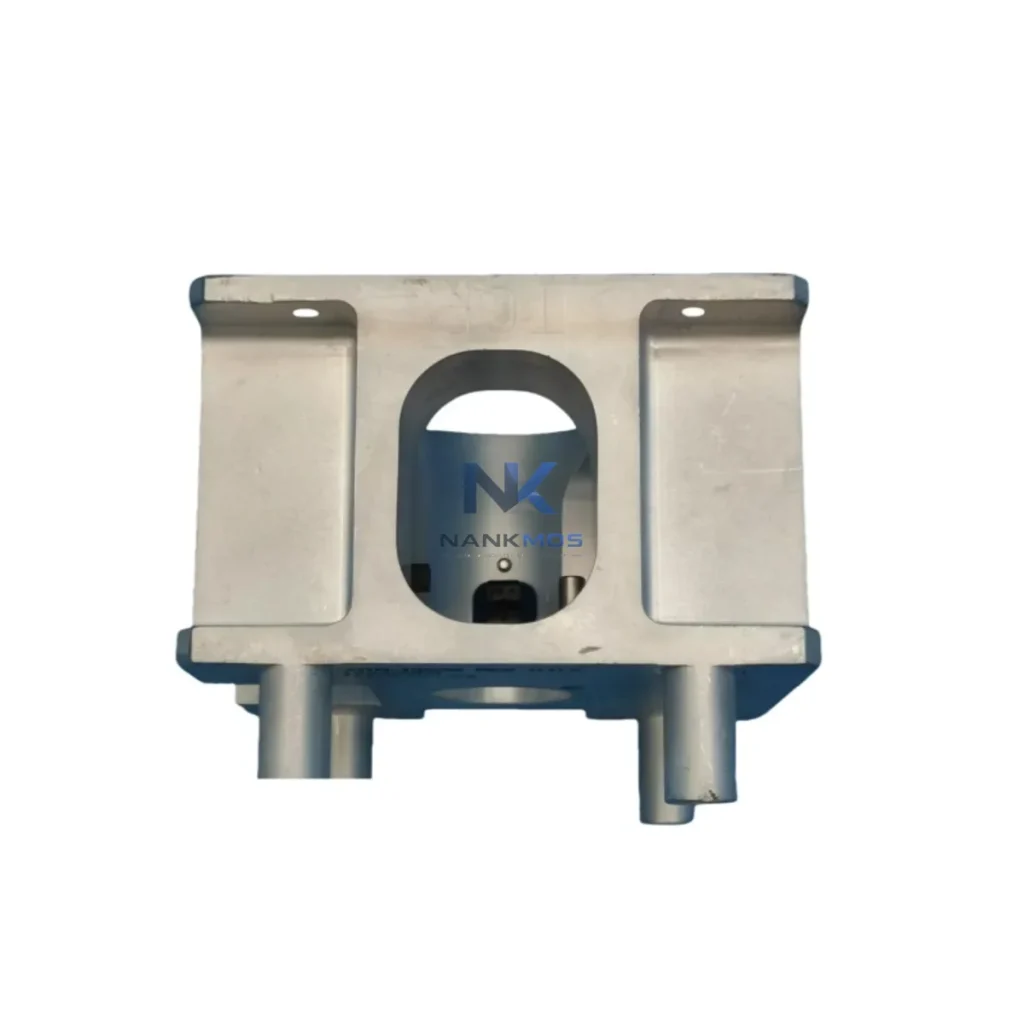

853-005949-002 E17284320 15-462-16 215 Product Description

The Lam Research 853-005949-002 (cross-reference: E17284320 / 15-462-16 / 215) is a high-precision Energy-Control End Point Detector engineered for semiconductor etch process environments where energy efficiency, process repeatability, and equipment uptime are mission-critical. Designed to integrate seamlessly into advanced plasma etch chambers, this detector delivers real-time endpoint signal acquisition that enables the process control system to terminate etch cycles at the precise moment the target layer is cleared — eliminating over-etch, reducing unnecessary plasma exposure, and directly cutting energy consumption per wafer pass.

In modern semiconductor fabs and precision manufacturing environments, uncontrolled etch duration is one of the most significant sources of wasted energy and yield loss. The 853-005949-002 addresses this by providing accurate optical emission spectroscopy (OES) or interferometric endpoint detection, feeding clean, low-latency signals to the chamber's PLC or process controller so that RF power, gas flow, and vacuum pump loads are terminated at the optimal moment — not a second too late.

The 853-005949-002 End Point Detector does not operate in isolation — it is a critical node in a tightly integrated, power-aware automation architecture. In a fully optimized etch cell, the detector's endpoint signal is consumed by the chamber's process PLC (such as a Siemens S7-300 or Allen-Bradley ControlLogix module), which immediately commands the RF power generator and gas mass flow controllers to shut down. This coordinated response eliminates the seconds of unnecessary plasma sustain that, multiplied across thousands of wafer cycles per day, represent measurable kilowatt-hour savings.

The detector interfaces with the chamber's I/O module to relay endpoint status flags to the fab's SCADA system — enabling real-time energy consumption logging, process trend analysis, and predictive maintenance scheduling. When integrated with a power monitoring module such as a Lam Research chamber energy meter or a third-party power quality analyzer, operators gain full visibility into RF energy delivered per etch cycle, allowing engineering teams to benchmark efficiency improvements and identify drift before it impacts yield.

On the drive side, the vacuum pump systems supporting the etch chamber — typically controlled by variable frequency drives (VFDs) — can be programmed to ramp down pump speed immediately upon endpoint detection, reducing both electrical load and mechanical wear. The 853-005949-002's low-latency trigger output makes this pump speed coordination reliable and repeatable. Similarly, the chiller and thermal management system serving the chamber can reduce cooling duty cycle when plasma exposure is shortened, further reducing facility energy overhead.

For facilities running Lam Research Kiyo or Flex etch platforms, the 853-005949-002 is a direct-fit replacement that maintains compatibility with the chamber's existing optical fiber assembly, spectrometer module, and endpoint software stack. The detector's signal chain connects to the platform's HMI, where process engineers can monitor endpoint curves, adjust detection thresholds, and review historical endpoint data — all without interrupting production.

At the production line level, the 853-005949-002 contributes to energy optimization in three compounding ways: it shortens individual process steps, it reduces equipment thermal stress, and it enables data-driven scheduling that minimizes idle power states.

Shorter process steps mean that each etch chamber completes its cycle faster, freeing the tool for the next wafer sooner. This improves wafer-per-hour throughput without increasing energy input — effectively reducing the energy cost per die. In high-volume manufacturing, even a 2–3% reduction in average etch time translates to significant energy savings across a fleet of etch tools running 24/7.

Reduced thermal stress extends the service life of chamber components including the electrostatic chuck (ESC), focus ring, and upper electrode assembly. Fewer thermal cycles mean fewer unplanned maintenance events, which in turn means fewer tool-down periods where idle heating and pumping systems consume energy without producing output. The 853-005949-002 thus contributes indirectly to predictive maintenance strategies by keeping process conditions within tighter bounds.

Data-driven scheduling becomes possible when endpoint detection data is systematically logged via SCADA. Engineering teams can identify which process recipes are consuming disproportionate energy, which chambers are drifting toward longer endpoint times (indicating consumable wear), and which shifts are operating most efficiently. This intelligence supports load management decisions — for example, scheduling high-energy etch recipes during off-peak utility rate windows — and feeds continuous improvement programs targeting overall equipment effectiveness (OEE).

All units supplied by NANKMOS are sourced from verified supply channels, undergo pre-shipment functional verification, and are backed by a 12-month warranty. Stock is maintained for rapid deployment to minimize tool downtime and keep production lines running at full capacity.

Q1: How does the 853-005949-002 reduce energy consumption in an etch process? By detecting the precise moment the target film layer is cleared, the detector triggers an immediate shutdown of RF power, process gases, and associated pump loads. This eliminates over-etch time — the period after the process objective is achieved but before the controller would otherwise stop the recipe — directly reducing energy consumed per wafer cycle.

Q2: Is the 853-005949-002 compatible with my existing Lam Research etch platform? The 853-005949-002 is designed for Lam Research etch chamber platforms and is cross-referenced as E17284320, 15-462-16, and 215. It maintains compatibility with the platform's optical fiber interface, spectrometer, and endpoint software. For specific platform compatibility confirmation, contact NANKMOS with your chamber model and current detector part number.

Q3: What is the replacement and testing process? NANKMOS supplies the 853-005949-002 pre-tested and ready for installation. Each unit undergoes functional verification prior to shipment. Replacement follows standard Lam Research field service procedures: the detector module is accessed via the chamber's optical port, the fiber connection is re-seated, and endpoint detection is validated using a test wafer run before returning the tool to production. No special calibration equipment is required beyond the chamber's existing endpoint software.

Q4: What warranty and supply continuity does NANKMOS provide? All 853-005949-002 units are covered by a 12-month warranty from the date of shipment. NANKMOS maintains inventory stock to support rapid fulfillment for both planned maintenance and emergency replacement scenarios. For volume procurement or scheduled maintenance programs, contact our team to discuss supply agreements that ensure continuity without lead-time risk.
