HONEYWELL 10012/1/2 Communication Gateway

Product Details

10012/1/2 Product Description

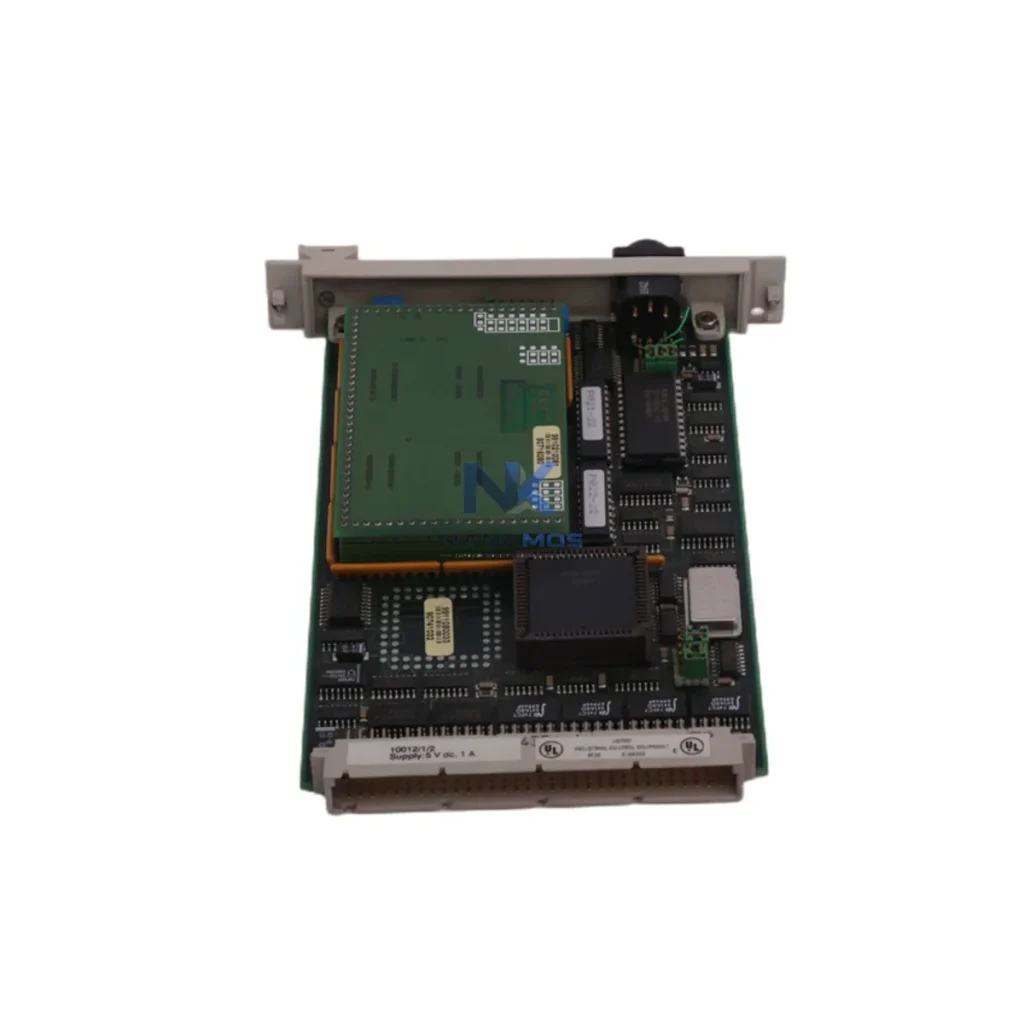

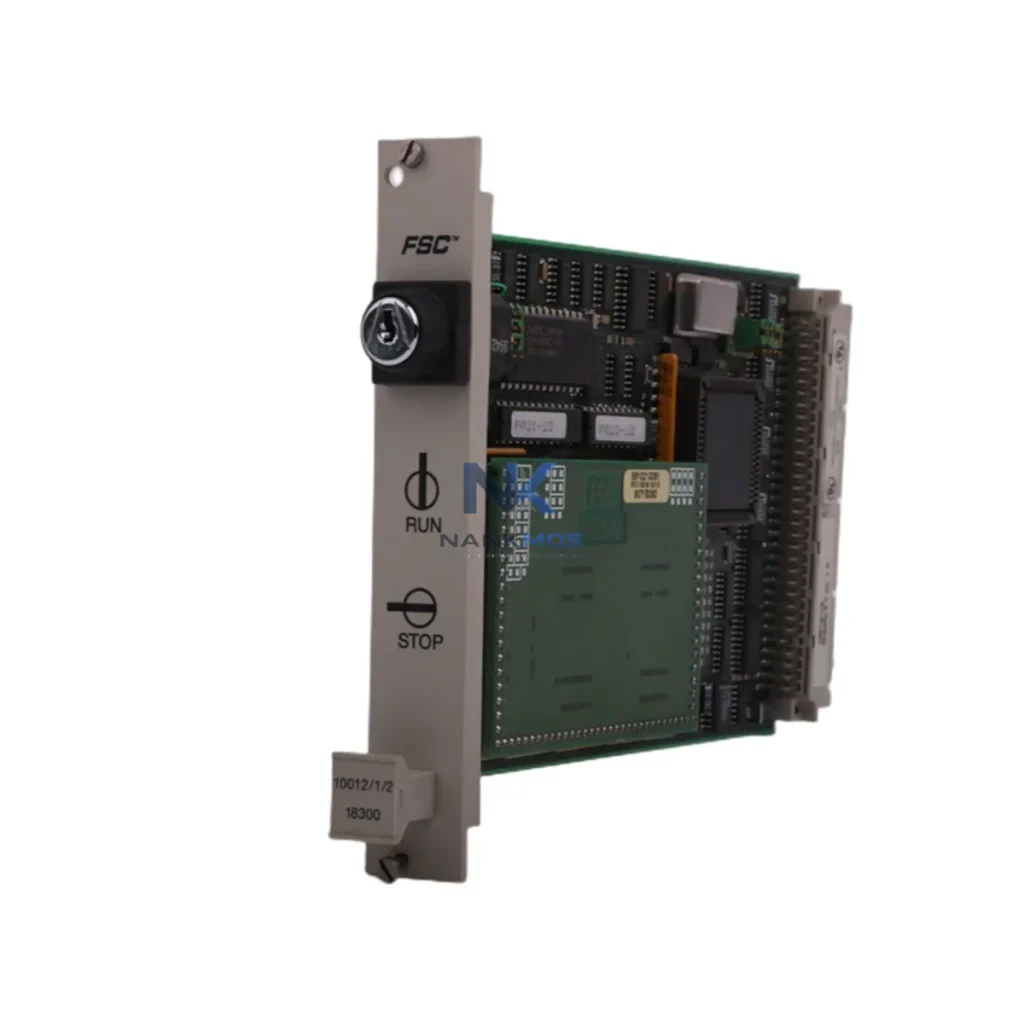

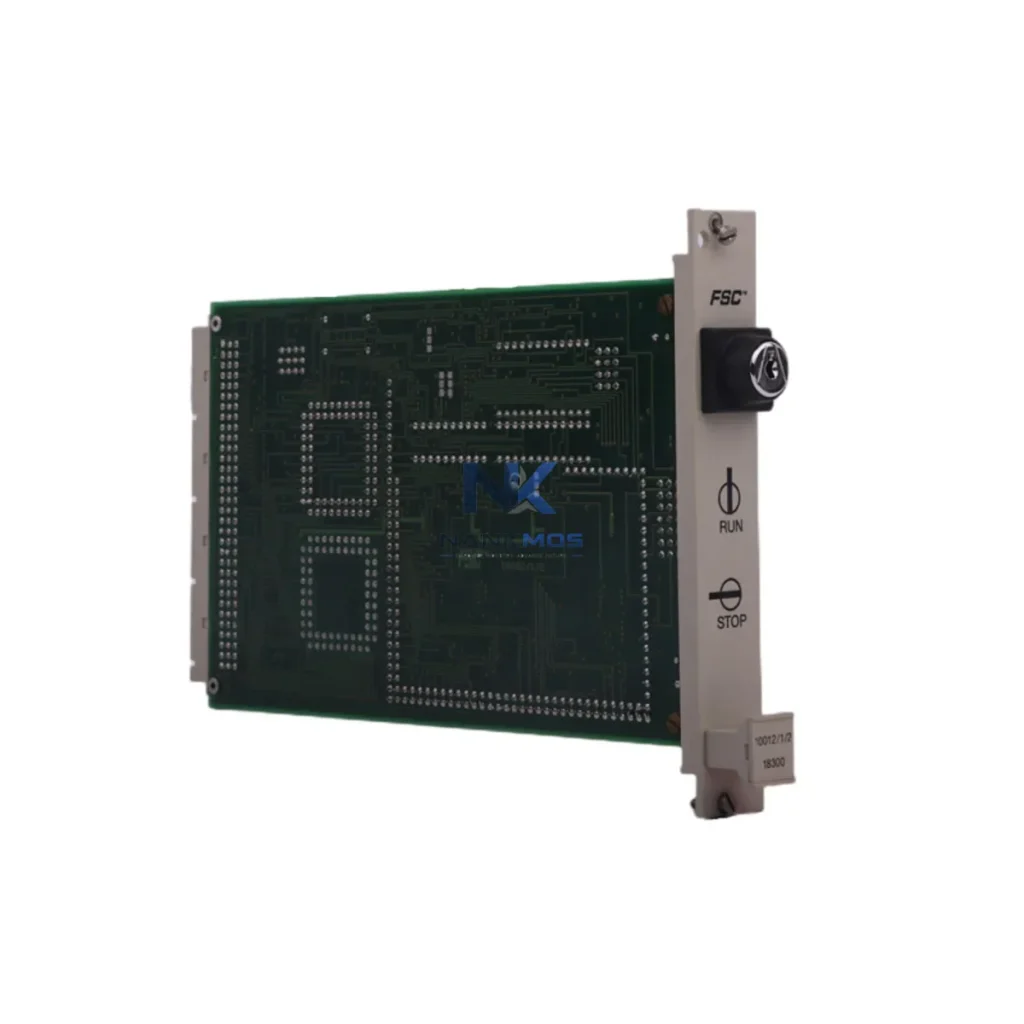

The HONEYWELL 10012/1/2 is a high-performance industrial network interface module engineered for the HC900 Hybrid Controller platform. Designed to bridge field-level devices and supervisory control systems, this gateway enables seamless protocol conversion between Modbus TCP, Modbus RTU, and PROFIBUS DP, forming a critical node in the smart factory data chain. From signal acquisition at the sensor layer to real-time visualization on SCADA dashboards, the 10012/1/2 ensures that every data point travels reliably across your automation network.

In modern industrial environments, the ability to unify heterogeneous communication protocols is no longer optional — it is the foundation of operational transparency. The HONEYWELL 10012/1/2 addresses this need directly, providing deterministic, low-latency data transfer between the HC900 process controller and upstream MES, SCADA, and HMI platforms. Whether your facility runs Honeywell Experion PKS, a third-party DCS, or a standalone SCADA server, this module integrates without architectural compromise.

The HONEYWELL 10012/1/2 sits at the intersection of field instrumentation and plant-wide data infrastructure. In a typical smart factory deployment, the data flow begins at the sensor and actuator layer — pressure transmitters, flow meters, temperature sensors, and motor-driven actuators — all feeding raw process values into the HC900 Hybrid Controller via hardwired I/O or distributed remote I/O racks. The 10012/1/2 module then aggregates these values and exposes them over Modbus TCP to the plant Ethernet backbone.

Upstream, Honeywell Experion PKS or a compatible SCADA server polls the gateway at configurable scan rates, pulling live process data for display on operator HMI panels. In parallel, the RS-485 Modbus RTU port connects legacy field devices — including older Honeywell UDC series controllers, standalone PID regulators, and serial-linked variable frequency drives — ensuring that no device is left as a data island. This dual-port architecture means the 10012/1/2 can simultaneously serve modern Ethernet-based supervisory systems and legacy serial field networks without requiring a separate protocol converter.

For facilities running PROFIBUS DP fieldbus segments, the 10012/1/2 acts as a DP master or slave, communicating with PROFIBUS-enabled remote I/O modules, intelligent motor control centers, and distributed valve islands. This is particularly valuable in process plants where PROFIBUS infrastructure is already installed and a full migration to Industrial Ethernet is not yet planned. The gateway bridges both worlds, allowing incremental modernization without production disruption.

At the edge layer, the 10012/1/2 can feed data to industrial edge computing gateways running IIoT middleware, enabling local analytics, anomaly detection, and condition-based maintenance triggers before data is forwarded to cloud or on-premise historian platforms. Combined with industrial managed Ethernet switches — such as those supporting PROFINET or EtherNet/IP ring topologies — the module participates in a resilient, redundant network architecture that minimizes single points of failure.

Alarm and event data generated by the HC900 controller is transmitted through the 10012/1/2 to SCADA alarm management systems, where operators receive real-time notifications on HMI screens or mobile dashboards. Remote diagnostics are supported via the Ethernet port, allowing maintenance engineers to interrogate module status, check communication health, and review error logs without physical access to the control panel — a critical capability for unmanned substations, remote pump stations, and geographically distributed process units.

Many industrial facilities operate with a patchwork of communication protocols accumulated over years of incremental expansion. A production line may include Modbus RTU devices installed a decade ago alongside newer PROFIBUS DP field instruments and a recently commissioned Ethernet-based SCADA system. Without a capable network interface module, these layers cannot exchange data efficiently, creating information silos that obscure process performance and delay fault response.

The HONEYWELL 10012/1/2 resolves these gaps by acting as a multi-protocol bridge within the HC900 architecture. Protocol inconsistency — one of the most common barriers to plant-wide transparency — is eliminated at the controller level rather than patched with external converters. This reduces wiring complexity, lowers the risk of communication timeouts, and simplifies network topology documentation.

Remote monitoring is another area where the 10012/1/2 delivers measurable value. Facilities that previously required on-site technicians to read local displays or connect laptops to serial ports can now access live process data, historical trends, and alarm logs through SCADA clients connected over the plant Ethernet network. This shift from reactive to proactive maintenance reduces unplanned downtime and extends equipment service intervals.

Production line transparency — the ability to see every process variable, every device status, and every alarm condition in real time — is the foundation of continuous improvement programs. The 10012/1/2 enables this transparency by ensuring that data from every connected device reaches the historian and analytics layer without gaps or delays. System expansion is equally straightforward: additional HC900 I/O modules, remote I/O racks, or new field devices can be added to the network without replacing the gateway, protecting the initial infrastructure investment.

Q1: What communication protocols does the HONEYWELL 10012/1/2 support, and is it compatible with third-party SCADA systems?The 10012/1/2 supports Modbus TCP, Modbus RTU, and PROFIBUS DP. These are industry-standard protocols supported by virtually all major SCADA platforms, including Wonderware, Ignition, iFIX, and Honeywell Experion PKS. Integration with third-party HMI and SCADA systems is straightforward using standard Modbus TCP drivers.

Q2: How does the module handle communication latency in time-sensitive process control applications?The 10012/1/2 is designed for deterministic, low-latency data exchange within the HC900 controller architecture. Cyclic data updates are synchronized with the controller scan cycle, ensuring that SCADA and HMI clients receive fresh process values at consistent intervals. For applications requiring sub-100ms response times, the Ethernet Modbus TCP interface is recommended over the serial RTU port.

Q3: Can the 10012/1/2 be used to connect legacy serial devices to a modern Industrial Ethernet network?Yes. The RS-485 Modbus RTU port allows legacy serial field devices — including older controllers, drives, and instruments — to be integrated into the HC900 system and exposed to the Ethernet network via the Modbus TCP interface. This eliminates the need for separate serial-to-Ethernet converters and simplifies network architecture.

Q4: What quality assurance and warranty terms apply to the HONEYWELL 10012/1/2 supplied by NANKMOS?Every unit is tested before shipment to verify communication functionality and hardware integrity. NANKMOS provides a 12-month warranty covering manufacturing defects and communication failures under normal operating conditions. In-stock units are available for immediate dispatch. For volume orders, lead time and pricing inquiries, contact [email protected] or call +86 18359268345.
