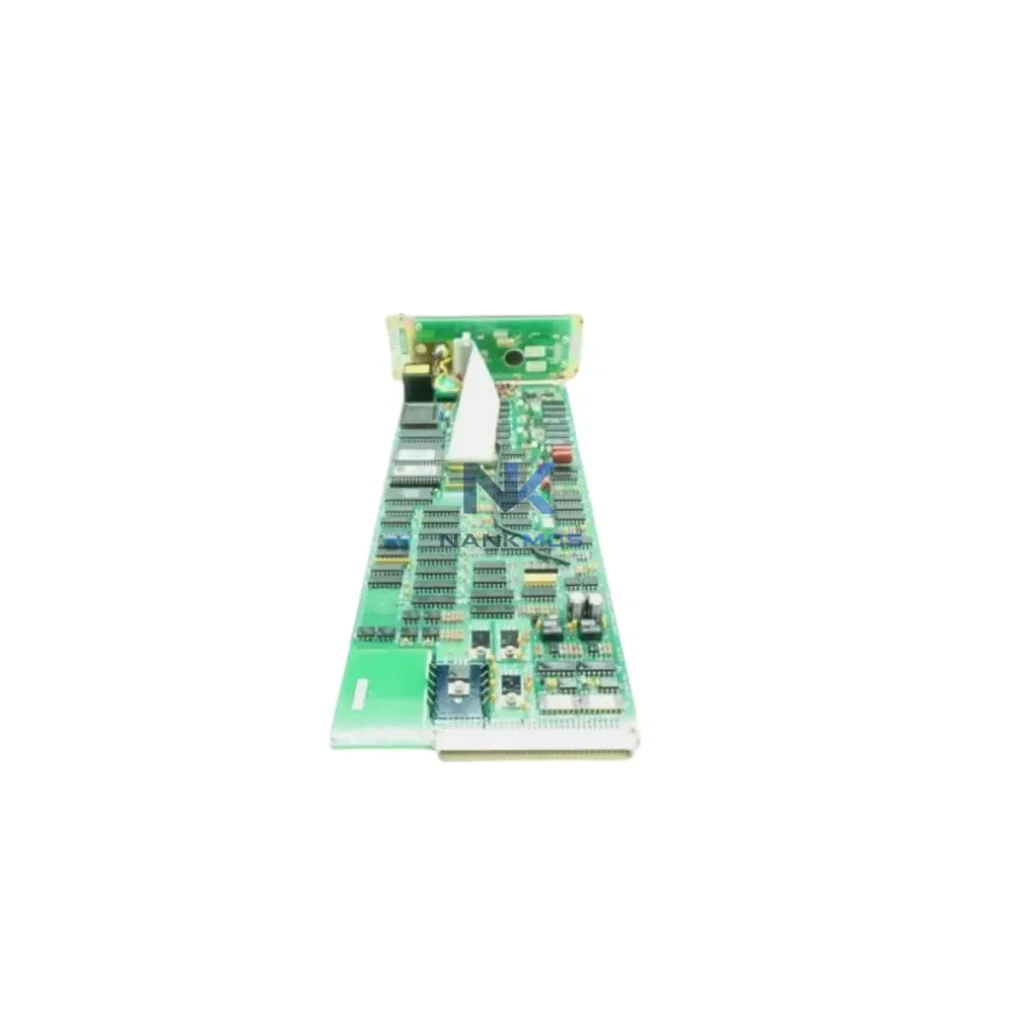

Entek 6622LS EC6622LS Vibration Monitor Module

Product Details

6622LS EC6622LS Product Description

The Entek EC6622LS is engineered as a precision vibration monitoring module within the IRD 6600 modular rack architecture — a platform purpose-built for continuous machinery protection in rotating equipment environments. Rather than functioning as a standalone instrument, the EC6622LS operates as a coordinated node within a layered control system, where signal acquisition, alarm management, power distribution, and communication all interact across a shared backplane infrastructure.

At the control layer, the EC6622LS interfaces with the IRD 6600 rack's central processing and communication modules, enabling real-time vibration data to be routed to plant-level DCS or SCADA systems. When paired with an Entek EC6600 Communication Gateway or equivalent Modbus/Ethernet bridge module, the vibration data stream becomes accessible to upstream PLC platforms — including Rockwell Automation ControlLogix or CompactLogix controllers — without requiring additional signal conditioning hardware. This direct integration reduces latency between field measurement and control-layer response, a critical factor in high-speed rotating machinery protection.

At the I/O and signal layer, the EC6622LS accepts inputs from eddy-current proximity probes (such as the Bently Nevada 3300 XL series or equivalent IRD-compatible probes) and seismic velocity transducers, providing dual-channel coverage per module slot. Buffered BNC outputs allow simultaneous connection to portable data collectors or spectrum analyzers — such as the IRD Mechanalysis 880 or equivalent handheld analyzers — enabling route-based data collection without interrupting continuous monitoring. This dual-path signal architecture supports both online protection and offline diagnostic workflows from a single installed module.

At the power layer, the EC6622LS draws regulated DC power from the IRD 6600 rack power supply module, which typically provides redundant power input capability. In critical applications such as turbine protection or compressor train monitoring, a redundant power supply configuration — using dual power modules within the same chassis — ensures that a single power source failure does not interrupt vibration monitoring continuity. This power redundancy design is consistent with API 670 machinery protection system recommendations for critical rotating equipment.

At the communication and integration layer, the EC6622LS alarm relay outputs can be wired directly to safety relay modules or industrial terminal blocks — such as Phoenix Contact or Weidmüller DIN-rail terminal assemblies — for hardwired trip logic integration. This allows the vibration monitor to participate in a hardwired safety interlock loop independently of the digital communication network, providing a deterministic protection layer that remains active even during network communication faults. For facilities operating Siemens SIMATIC S7 or ABB AC500 PLC platforms, the relay output interface provides a universal, protocol-agnostic integration path.

At the HMI and visualization layer, vibration trend data from the EC6622LS can be displayed on plant-floor HMI panels — including Weintek cMT series or Siemens SIMATIC HMI TP series — via the upstream DCS or SCADA data highway. Operators gain continuous visibility into vibration amplitude, phase, and alarm status without requiring dedicated vibration software at each workstation. This integration supports centralized condition monitoring dashboards that consolidate data from multiple EC6622LS modules across a multi-machine protection system.

At the maintenance and diagnostics layer, the EC6622LS module design supports hot-swap replacement within the IRD 6600 rack, minimizing planned downtime during module servicing. Paired with Entek EMONITOR Odyssey or equivalent condition monitoring software, historical vibration trend data can be archived and analyzed for predictive maintenance scheduling. This software-hardware integration transforms the EC6622LS from a protection device into a long-term asset health data source, supporting maintenance interval optimization and reducing unplanned outage risk across rotating equipment fleets.

Power Generation: In gas turbine and steam turbine protection systems, the EC6622LS provides continuous shaft vibration and bearing housing monitoring across multiple measurement planes. Integrated with turbine control systems via the IRD 6600 communication gateway, the module supports automatic trip initiation when vibration levels exceed API 670 danger thresholds — protecting high-value rotating assets from catastrophic failure during load transients or startup sequences.

Petrochemical Processing: Centrifugal compressor trains in ethylene, ammonia, and LNG processing facilities require continuous vibration monitoring across multiple stages. The EC6622LS supports multi-module rack configurations that cover compressor impeller, interstage bearing, and gearbox measurement points within a single IRD 6600 chassis, reducing panel space requirements while maintaining full API 670 compliance for critical service machinery.

Water Treatment and Pumping Stations: Large vertical turbine pumps and horizontal split-case pumps in municipal water infrastructure benefit from continuous vibration monitoring to detect impeller imbalance, cavitation onset, and bearing wear progression. The EC6622LS relay outputs integrate directly with pump motor control centers, enabling automatic standby pump switchover when primary pump vibration exceeds alert thresholds — supporting uninterrupted water supply continuity.

Mining and Mineral Processing: Ball mills, SAG mills, and conveyor drive systems in mining operations generate complex vibration signatures that require continuous monitoring to prevent unplanned downtime. The EC6622LS rugged industrial design and wide operating temperature range support deployment in harsh mining environments, where dust, vibration, and temperature extremes challenge standard instrumentation reliability.

Marine and Offshore Automation: Shipboard propulsion systems, auxiliary diesel generators, and offshore platform compressors require vibration monitoring systems that meet marine classification society requirements. The EC6622LS modular rack architecture supports compact panel installations within space-constrained machinery rooms, while the relay output interface provides direct integration with vessel automation and alarm management systems.

Packaging and Discrete Manufacturing: High-speed packaging lines and precision machining centers use vibration monitoring to detect spindle bearing degradation, gear mesh anomalies, and structural resonance conditions before they cause product quality defects or unplanned line stoppages. The EC6622LS supports integration with line PLC systems via relay outputs, enabling condition-based maintenance alerts to be incorporated into existing production management workflows.

Q1: Is the EC6622LS compatible with existing IRD 6600 rack configurations, and can it be added to an installed system without full rack replacement? Yes. The EC6622LS is designed as a plug-in module for the IRD 6600 modular rack platform. It occupies a standard module slot within the existing chassis and draws power from the rack's shared power supply module. No rack replacement is required for module addition or substitution, provided the rack power budget accommodates the additional module load. Slot assignment and channel configuration are performed via the rack's configuration interface, and the module supports hot-swap replacement in most IRD 6600 rack variants — minimizing planned downtime during maintenance or module upgrade activities.

Q2: How does the EC6622LS integrate with plant DCS or SCADA systems, and what communication protocols are supported? The EC6622LS transmits vibration data and alarm status via the IRD 6600 backplane bus to the rack's communication gateway module, which provides the DCS/SCADA interface. Depending on the gateway module installed, supported protocols typically include Modbus RTU, Modbus TCP/IP, and OPC DA/UA — enabling integration with major DCS platforms including Honeywell Experion, Emerson DeltaV, Yokogawa CENTUM, and ABB System 800xA. For facilities without a compatible gateway module, the EC6622LS analog 4–20 mA outputs and relay contacts provide a protocol-agnostic hardwired integration path to any DCS analog input card or safety relay module.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for EC6622LS supply? The 12-Month Warranty covers manufacturing defects, signal channel performance, relay output operation, and backplane interface integrity from the date of shipment. Warranty service includes module replacement or repair, with technical support available for installation verification and system commissioning. Stock availability is maintained for the EC6622LS to support urgent replacement requirements in critical machinery protection applications. Standard lead time for in-stock units is 3–7 business days for international dispatch. For project-volume requirements or scheduled maintenance programs, advance procurement planning is recommended to ensure continuous stock availability aligned with planned outage windows.
