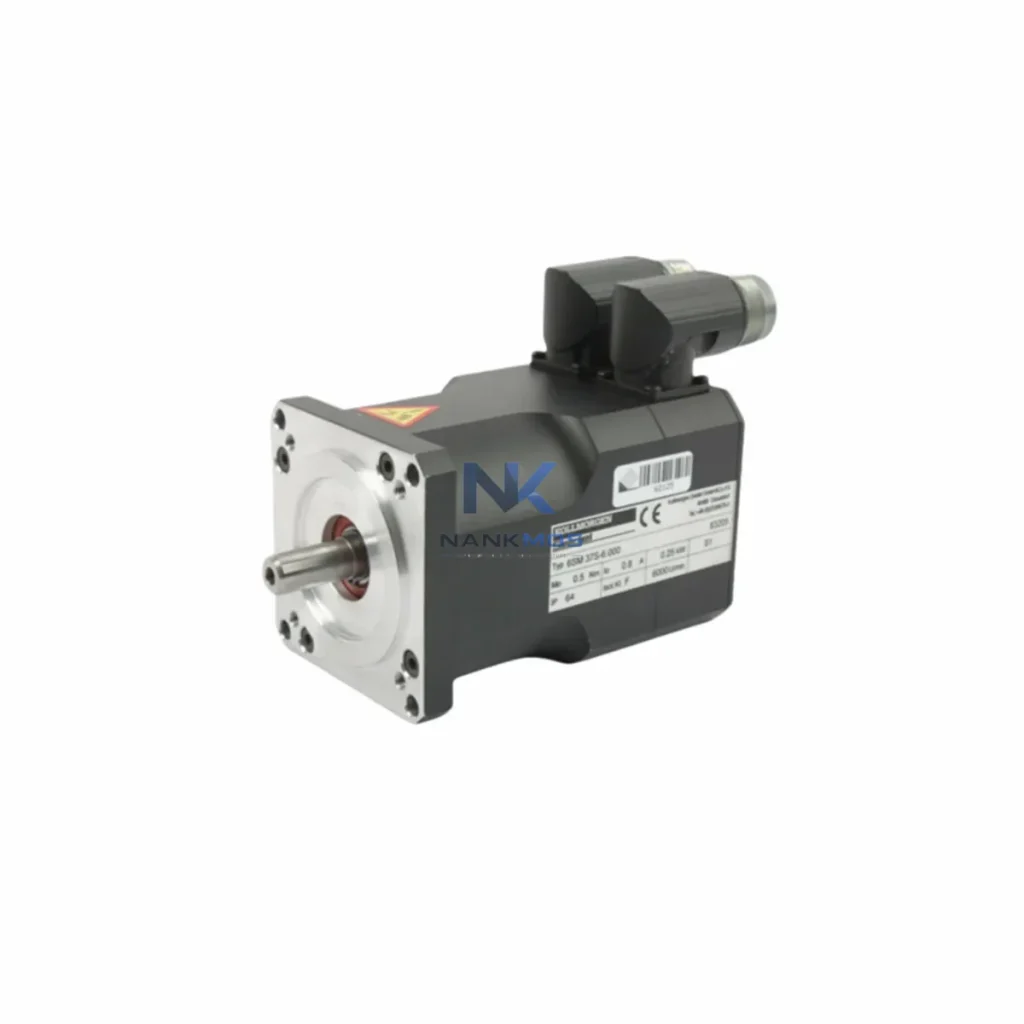

Kollmorgen 6SM37S-6000-G Servo Motor

Product Details

6SM37S-6000-G Product Description

The Kollmorgen 6SM37S-6000-G is a high-performance synchronous servo motor engineered for precision motion control within integrated industrial automation architectures. Designed as a core execution-layer component, this motor delivers consistent torque output, low cogging, and high dynamic response — making it an ideal fit for demanding applications across manufacturing, packaging, semiconductor handling, and process automation environments. Its system-matched design within the Kollmorgen 6SM series ensures seamless compatibility with the broader control stack, from the drive layer through to the supervisory control platform.

In modern industrial control architecture, no component operates in isolation. The 6SM37S-6000-G is engineered to function as part of a coherent, layered automation system — where the execution layer, drive layer, control layer, communication layer, and power layer must all operate in synchrony. This motor's electrical and mechanical characteristics are optimised to interface directly with Kollmorgen AKD series servo drives, enabling closed-loop torque, velocity, and position control with minimal tuning overhead. When paired with an AKD2G or AKD-P drive, the system achieves full auto-identification of motor parameters, reducing commissioning time and eliminating manual encoder configuration errors.

The 6SM37S-6000-G achieves its full performance potential when deployed within a complete Kollmorgen automation platform. At the drive layer, the Kollmorgen AKD2G servo drive provides the primary power conversion and closed-loop control interface, supporting STO (Safe Torque Off) and SBC (Safe Brake Control) safety functions that are essential for CE-compliant machine designs. The AKD2G's dual-axis capability allows two 6SM motors to share a single drive chassis, reducing panel footprint and simplifying wiring in multi-axis gantry or pick-and-place systems.

At the control layer, the Kollmorgen AKD PDMM (Programmable Drive Multi-axis Master) integrates motion sequencing directly into the drive, eliminating the need for a separate PLC in single-machine applications. For larger systems requiring centralised coordination, the 6SM37S-6000-G integrates cleanly with Beckhoff TwinCAT or Siemens SIMOTION motion controllers via EtherCAT, enabling synchronised multi-axis interpolation across 10 or more axes with sub-millisecond cycle times.

The communication layer is anchored by EtherCAT, which the AKD drive exposes natively. Industrial Ethernet switches such as the Hirschmann RS20 or Moxa EDS-308 provide the managed switching infrastructure required for deterministic EtherCAT topologies. For legacy PROFIBUS environments, a Kollmorgen AKD-B PROFIBUS gateway enables transparent integration without replacing existing PLC infrastructure.

At the I/O layer, Beckhoff EK1100 EtherCAT couplers paired with EL2004 digital output terminals and EL3062 analog input terminals provide the signal conditioning and discrete I/O required for limit switches, home sensors, and process feedback signals. These terminals mount directly on DIN rail adjacent to the AKD drive, keeping signal paths short and reducing susceptibility to EMI — a critical consideration in high-speed servo applications.

Power layer integrity is maintained through Kollmorgen AKD-C shared DC bus capacitor modules, which allow energy regenerated during deceleration to be redistributed across multiple drives rather than dissipated as heat. This architecture reduces overall energy consumption and eliminates the need for braking resistors in many applications. A Schaffner FN3258 line filter upstream of the drive cabinet ensures conducted EMC compliance and protects the 6SM37S-6000-G from mains-borne transients.

At the HMI layer, operator interaction is managed through a Siemens KTP700 Basic Panel or equivalent, connected via PROFINET to the supervisory PLC. Real-time axis status, fault codes, and position feedback from the 6SM37S-6000-G are surfaced through the AKD WorkBench commissioning tool during setup, and subsequently through the SCADA or HMI runtime during production. For safety-rated applications, a Pilz PNOZ m B0 safety relay monitors the STO input of the AKD drive, ensuring the 6SM motor cannot be energised during guarded access.

Packaging and Converting Lines: The 6SM37S-6000-G's high speed rating of 6000 RPM and compact 37 mm frame make it well-suited for registration control, web tension management, and cut-to-length applications in flexible packaging machinery. Its low inertia rotor enables rapid acceleration and deceleration cycles without exceeding drive current limits, supporting throughput rates that would stress larger-frame motors.

Semiconductor and Electronics Assembly: In pick-and-place and wafer-handling systems, the 6SM37S-6000-G provides the positional repeatability and smooth velocity profiles required for fragile component handling. EtherCAT synchronisation ensures that X, Y, and Z axes move in coordinated trajectories, eliminating the mechanical stress caused by asynchronous axis motion.

Power Generation and Energy Infrastructure: Servo-driven valve actuators and turbine governor systems in power plants benefit from the 6SM37S-6000-G's ability to maintain precise angular position under variable load conditions. The IP65 protection rating ensures reliable operation in humid or dusty turbine hall environments.

Water and Wastewater Treatment: Dosing pump drives, filter press actuators, and sluice gate controls in water treatment facilities require motors capable of sustained low-speed torque with high positional accuracy. The 6SM37S-6000-G's synchronous design delivers rated torque across the full speed range, including near-zero speed operation.

Metallurgy and Heavy Industry: In rolling mill auxiliary drives and continuous casting machine components, the 6SM37S-6000-G operates as part of a coordinated multi-axis system where speed synchronisation between adjacent axes is critical to product quality. The motor's thermal class F insulation supports operation in elevated ambient temperatures common in steel plant environments.

Q1: Is the 6SM37S-6000-G compatible with third-party servo drives, or is it restricted to Kollmorgen AKD series drives?The 6SM37S-6000-G is optimised for use with Kollmorgen AKD, AKD2G, and AKD-P series drives, which support automatic motor identification via the Kollmorgen SFD (Smart Feedback Device) protocol. While the motor's electrical characteristics (back-EMF constant, winding resistance, inductance) are compatible with generic servo drives that accept sinusoidal commutation, full auto-identification and one-cable operation are only available with native Kollmorgen drives. For third-party integration, motor nameplate data must be manually entered into the drive commissioning tool, and encoder signal compatibility must be verified against the drive's feedback input specification.

Q2: What commissioning steps are required when integrating the 6SM37S-6000-G into an existing EtherCAT network?Integration into an EtherCAT network is managed through the AKD drive's EtherCAT slave interface. The drive's ESI (EtherCAT Slave Information) file must be imported into the EtherCAT master configuration tool (e.g., TwinCAT System Manager or Sysmac Studio). Motor parameters are auto-populated via SFD on first power-up. The commissioning engineer then assigns PDO (Process Data Object) mappings for position, velocity, and torque references, configures the distributed clock synchronisation, and performs a phasing run to verify encoder alignment. Total commissioning time for a single axis in a pre-configured EtherCAT topology is typically 30–90 minutes.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims on the 6SM37S-6000-G?NANKMOS provides a 12-Month Warranty on the 6SM37S-6000-G covering manufacturing defects, winding failures, encoder faults, and bearing failures under normal operating conditions. The warranty period commences from the date of shipment. To initiate a warranty claim, contact NANKMOS at [email protected] with the order reference, motor serial number, and a description of the fault symptom. NANKMOS will issue a Return Merchandise Authorisation (RMA) and arrange collection or provide a prepaid return label depending on the shipment destination. Replacement units are dispatched from in-stock inventory upon receipt and inspection of the returned unit, minimising system downtime.
