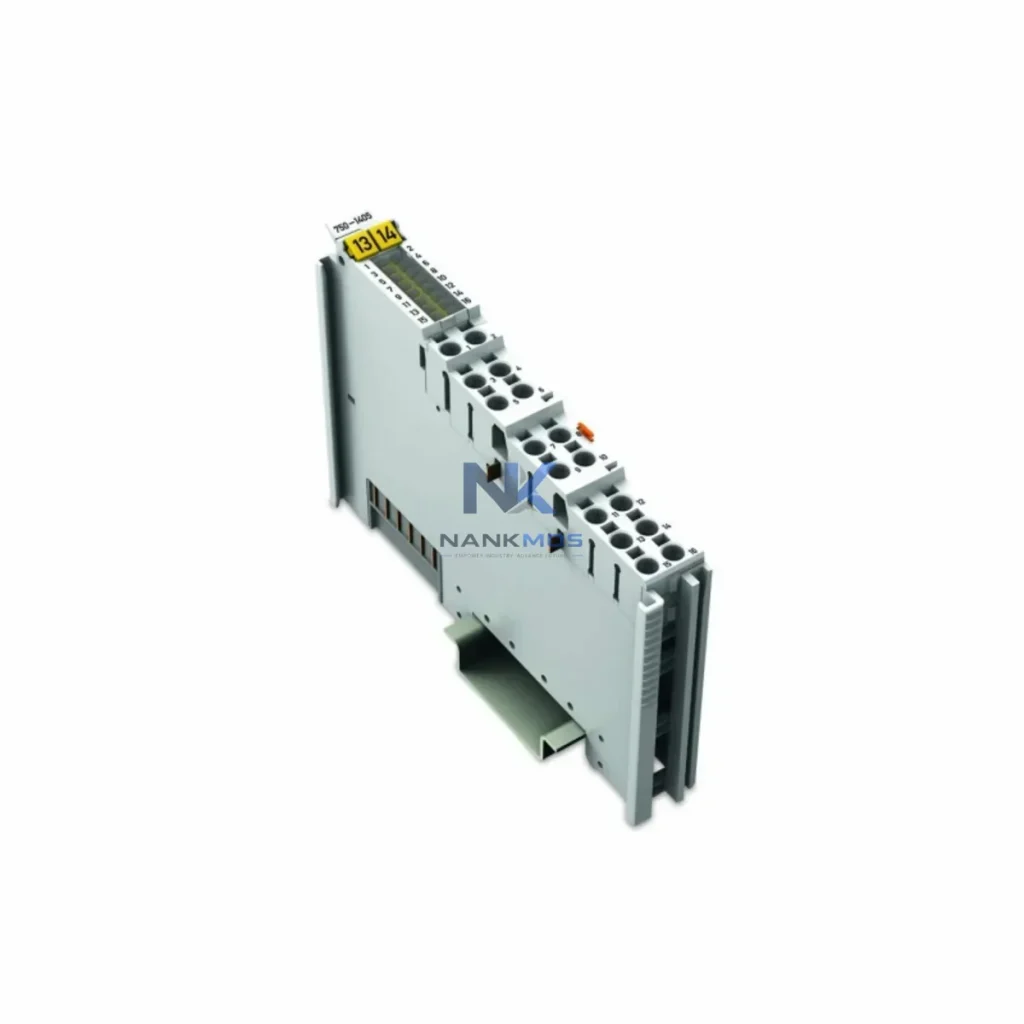

WAGO 750-1405 Digital Input Module

Product Details

750-1405 Product Description

The WAGO 750-1405 is a 16-channel digital input module engineered for seamless integration within the WAGO 750 Series modular PLC architecture. Designed to serve as a high-density signal acquisition layer in distributed control systems, this module delivers reliable, noise-immune digital signal capture across demanding industrial environments including manufacturing automation, energy management, petrochemical process control, water treatment, and semiconductor fabrication. Its compact form factor and fieldbus-transparent design make it an essential building block for scalable, maintainable, and diagnostically capable control architectures.

In a complete automation architecture, the 750-1405 occupies the I/O layer — the critical interface between field devices and the control logic executed by the CPU module. It works in direct coordination with the WAGO 750-8100 or 750-8202 PLC controller nodes, which process the digital states captured by this module and translate them into control decisions across the system. Signal integrity from field sensors, limit switches, proximity detectors, and pushbutton stations is preserved through the module's optocoupler isolation, ensuring that transient voltages and ground loops in the field wiring do not propagate into the control backplane.

The 750-1405 is mounted directly onto the WAGO 750 Series carrier rail system, connecting to adjacent modules through the internal WAGO-I/O-SYSTEM backplane bus. This architecture eliminates the need for external wiring between I/O modules and the CPU, reducing installation complexity and improving signal propagation reliability. Neighboring modules such as the 750-1504 analog input module, 750-1515 digital output module, and 750-1506 counter module can be combined on the same rack to build a comprehensive mixed-signal I/O station tailored to the specific demands of each control cabinet.

From a communication architecture perspective, the 750-1405 is fieldbus-agnostic at the module level — its digital input data is aggregated by the WAGO coupler or controller node and transmitted upstream via the configured fieldbus protocol. Depending on the coupler selected, the system can communicate over PROFIBUS DP, MODBUS TCP, EtherNet/IP, PROFINET, or CANopen, enabling the 750-1405 to serve as a front-end input device in virtually any industrial network topology. This flexibility supports both legacy system integration and modern IIoT-ready architectures without requiring hardware changes at the I/O level.

Power distribution within the 750 Series rack is managed by dedicated WAGO 750-602 or 750-610 power supply modules, which provide isolated 24 VDC to the I/O bus. The 750-1405 draws its operating power from this internal bus, simplifying cabinet wiring and ensuring that field-side power faults do not affect the control-side logic supply. For applications requiring redundant power architectures, the system supports dual-feed configurations at the coupler level, maintaining I/O availability even during single-supply failures.

In HMI-integrated architectures, the digital input states captured by the 750-1405 are typically surfaced on operator panels such as the WAGO 762 Series Touch Panel or third-party SCADA systems via OPC UA or MODBUS TCP data exchange. This allows operators to monitor field device status, alarm conditions, and process interlocks in real time, supporting rapid fault diagnosis and minimizing unplanned downtime. The module's channel-level LED status indicators also provide local diagnostic visibility directly at the cabinet, reducing the need for laptop-based diagnostic tools during commissioning and maintenance.

For applications requiring functional safety or redundant I/O, the 750-1405 can be deployed alongside WAGO 750-630 safety modules or paired with redundant coupler configurations to achieve the required Safety Integrity Level (SIL) or Performance Level (PL) for the application. This modular approach to safety architecture allows engineers to selectively apply redundancy only where required, optimizing both cost and system complexity.

Long-term maintainability is a core design principle of the 750 Series architecture. The 750-1405 supports hot-swap replacement in systems configured for it, and its CAGE CLAMP spring-clamp terminal technology ensures vibration-resistant, tool-free field wiring connections that remain secure over decades of thermal cycling. Spare module availability is supported through NANKMOS's global inventory network, with pre-shipment functional testing performed on every unit to verify channel integrity, isolation resistance, and bus communication before dispatch.

The 750-1405 achieves its full value when deployed as part of a cohesive WAGO 750 Series automation platform. A typical control station built around this module includes the WAGO 750-8202 PLC controller as the processing core, supported by the WAGO 750-602 power supply module for stable 24 VDC bus distribution. Digital output control is handled by the WAGO 750-1515 16-channel digital output module, which drives actuators, solenoid valves, and motor contactors based on the input states captured by the 750-1405. Analog signal acquisition is extended through the WAGO 750-1504 analog input module for process variables such as temperature, pressure, and flow. High-speed counting and encoder feedback is managed by the WAGO 750-1506 counter module, while communication to field devices over IO-Link is enabled by the WAGO 750-1661 IO-Link master module. For Ethernet-based network segmentation within the control cabinet, an industrial managed switch supporting PROFINET or EtherNet/IP ensures deterministic communication latency. The WAGO 762 Series HMI Touch Panel provides operator interface and alarm visualization, while WAGO 750-630 safety modules extend the architecture to SIL-rated functional safety zones. Signal conditioning between field instruments and the I/O bus is supported by WAGO 857 Series signal isolators, ensuring clean, interference-free input signals to the 750-1405 channels.

In discrete manufacturing environments, the 750-1405 captures status signals from conveyor limit switches, part-present sensors, and machine guard interlocks, feeding real-time machine state data to the PLC for sequencing and safety logic. In power distribution and energy management applications, it monitors breaker status, relay feedback, and protection relay trip signals across switchgear panels, enabling centralized SCADA visibility of substation I/O states. In petrochemical and process industries, the module acquires digital status from valve position feedback, pump run/stop signals, and emergency shutdown (ESD) system inputs, supporting both normal process control and safety instrumented system (SIS) architectures. In water and wastewater treatment plants, it monitors pump station status, level switch inputs, and flow switch signals across geographically distributed remote I/O stations connected via MODBUS TCP. In mining and metallurgy, the 750-1405 handles high-density digital input from conveyor belt monitoring systems, crusher status panels, and ventilation control interlocks in harsh, vibration-intensive environments. In packaging and material handling lines, it integrates with photoelectric sensors, inductive proximity switches, and barcode scanner trigger signals to support high-speed, multi-axis coordinated motion control architectures.

Q1: How many 750-1405 modules can be combined on a single WAGO 750 Series rack, and are there bus current limitations to consider?The WAGO 750 Series supports up to 64 I/O modules per coupler or controller node, subject to the internal bus current capacity of the selected coupler. Each 750-1405 draws a defined current from the internal 5 VDC bus; engineers should verify the total bus current consumption of all modules against the coupler's rated output to ensure stable operation. For high-density configurations, additional WAGO 750-610 power supply modules can be inserted mid-rack to extend bus current availability without requiring a second coupler.

Q2: Is the 750-1405 compatible with both legacy PROFIBUS-based architectures and modern PROFINET or EtherNet/IP systems?Yes. The 750-1405 is fieldbus-transparent at the module level — its compatibility with any specific fieldbus protocol is determined entirely by the coupler or controller node to which it is connected. By replacing the coupler (e.g., from a WAGO 750-303 PROFIBUS coupler to a 750-352 EtherNet/IP coupler) while retaining the same I/O modules, engineers can migrate an existing installation to a new network protocol without rewiring field devices or replacing I/O hardware. This makes the 750-1405 a long-term investment that survives control system modernization projects.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term spare parts availability for the 750-1405?Every 750-1405 unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment, covering functional defects in channel operation, bus communication, and isolation integrity. Pre-shipment testing verifies all 16 input channels, optocoupler isolation, and internal bus interface before dispatch. For long-term maintenance planning, NANKMOS maintains buffer stock of the 750-1405 and compatible 750 Series modules to support planned maintenance shutdowns, emergency replacements, and multi-unit project deployments with consistent lead times.
