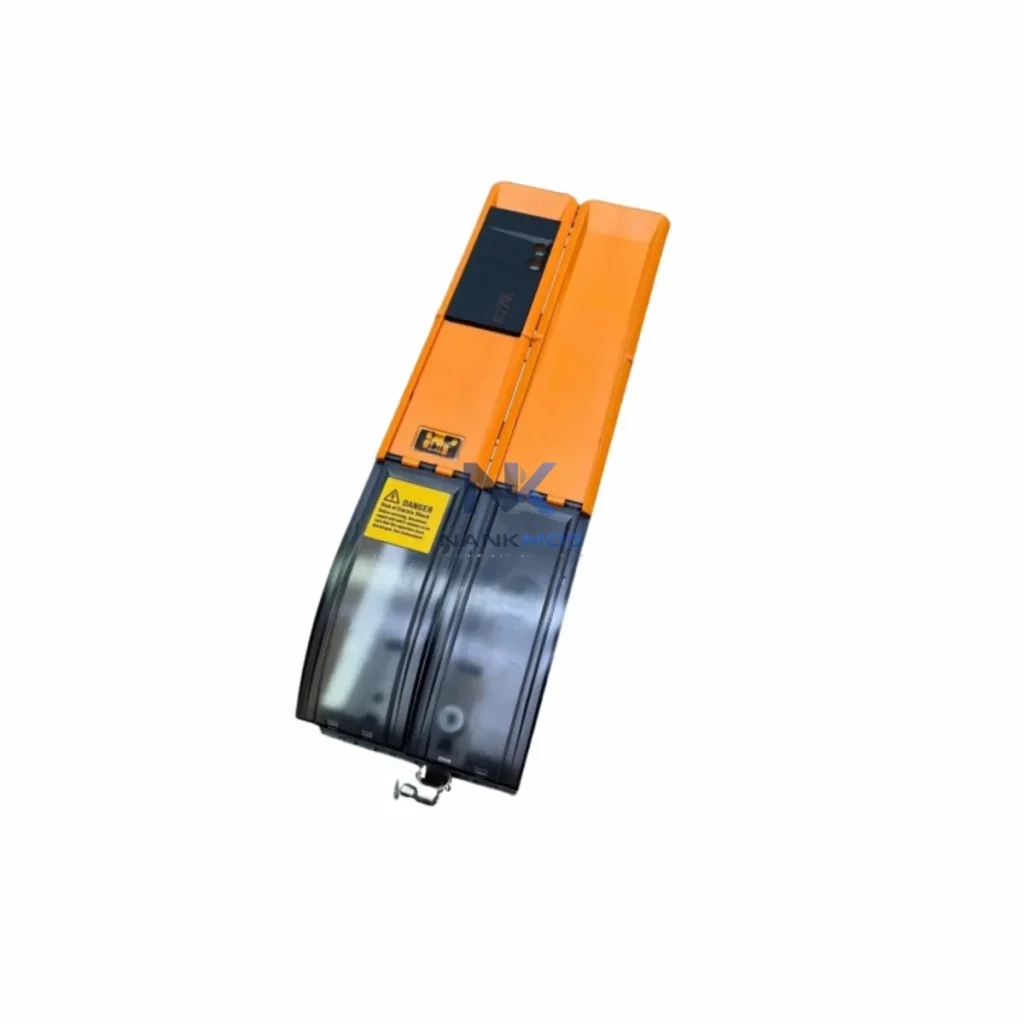

8BVI0220HCD8.000-1 Product Description

The B&R 8BVI0220HCD8.000-1 is a high-performance servo drive module within the ACOPOSmulti multi-axis drive system, engineered for seamless integration into layered industrial control architectures. Designed to operate as a coordinated node within B&R's unified automation platform, this drive module delivers precise motion control, deterministic communication, and scalable axis expansion — making it a cornerstone component for machine builders and system integrators who demand consistent performance across complex, multi-axis production environments.

Unlike standalone drives, the 8BVI0220HCD8.000-1 is purpose-built for contextual integration within a broader control hierarchy. It interfaces directly with B&R's POWERLINK real-time Ethernet backbone, synchronizing motion commands from the CPU layer down through the I/O and drive layers with microsecond-level determinism. This architecture eliminates timing jitter across axes, enabling coordinated multi-axis motion profiles that are essential in packaging lines, semiconductor handling, printing machinery, and precision assembly systems.

The 8BVI0220HCD8.000-1 achieves its full potential when deployed within a complete B&R ACOPOSmulti control architecture. At the CPU layer, a B&R X20CP1586 or X20CP3586 controller manages the motion program and coordinates all drive nodes via POWERLINK. The 8BVP0220HWD0.000-1 power supply module feeds the shared DC bus, enabling energy recovery between axes and reducing overall cabinet heat dissipation — a critical advantage in high-cycle-rate applications.

For multi-axis configurations, the 8BVI0220HCD8.000-1 shares the DC bus rail with companion drive modules such as the 8BVI0110HWD0.000-1 (lower current axis) and 8BVI0440HCD0.000-1 (higher torque axis), allowing a single power supply to serve multiple coordinated axes. The ACOPOSmulti backplane — model 8B0C0000.00-1 — provides the mechanical and electrical backbone, with plug-in module slots that simplify axis addition without rewiring.

At the I/O layer, B&R X20 I/O modules (e.g., X20DI9371 digital input, X20DO9322 digital output, X20AI4622 analog input) connect to the same POWERLINK network, delivering synchronized process data alongside motion commands in a single deterministic cycle. This eliminates the latency mismatch between motion and process I/O that plagues architectures using separate fieldbus layers.

For encoder and motor feedback, the 8BVI0220HCD8.000-1 supports EnDat 2.2 absolute encoders, enabling single-cable motor connections with 8LSA and 8LVA series servo motors. The integrated STO safety channel connects directly to the X20 safety controller (e.g., X20SL8100), satisfying IEC 62061 SIL 2 requirements without external safety relays — reducing panel wiring complexity and improving diagnostic transparency.

HMI integration is achieved through B&R Power Panel or Automation Panel series (e.g., 4PP045.0571-062), which communicate with the X20 CPU via Ethernet and display real-time axis status, fault codes, and production metrics. This closed-loop visibility from HMI to drive layer enables rapid fault isolation and minimizes unplanned downtime.

Packaging and Converting Lines: In high-speed packaging machinery, the 8BVI0220HCD8.000-1 drives servo axes for film feeding, cutting, sealing, and product registration. POWERLINK synchronization ensures all axes maintain phase alignment at cycle rates exceeding 400 ppm, with electronic camming profiles managed directly by the X20 CPU motion engine.

Semiconductor and Electronics Assembly: Precision pick-and-place and wafer handling systems require sub-micron positioning repeatability. The 8BVI0220HCD8.000-1, paired with EnDat 2.2 linear encoders and 8LVA frameless motors, delivers the stiffness and bandwidth needed for these applications, while POWERLINK's isochronous mode guarantees deterministic command delivery regardless of network load.

Printing and Label Machinery: Web tension control and register correction demand real-time torque and speed coordination across multiple driven rollers. The shared DC bus architecture allows regenerative energy from decelerating axes to be immediately consumed by accelerating axes, reducing energy consumption and eliminating braking resistor heat in enclosed cabinets.

Automotive and Metal Forming: Press transfer systems and robotic welding cells benefit from the 8BVI0220HCD8.000-1's high dynamic response and integrated STO safety, enabling safe zone entry without full system shutdown. The modular ACOPOSmulti rack design supports rapid axis replacement during scheduled maintenance windows, minimizing production interruption.

Process and Continuous Manufacturing: In chemical dosing, extrusion, and winding applications, the drive's torque control mode provides smooth, ripple-free output across the full speed range, protecting product quality in tension-sensitive processes.

Q1: Is the 8BVI0220HCD8.000-1 compatible with existing ACOPOSmulti racks and power supply modules? Yes. The 8BVI0220HCD8.000-1 is fully compatible with the ACOPOSmulti backplane system (8B0C series) and shares the DC bus with all standard ACOPOSmulti power supply modules (8BVP series). No additional interface hardware is required. The drive is recognized automatically by B&R Automation Studio upon POWERLINK network scan, simplifying commissioning in both new installations and retrofit expansions.

Q2: What encoder and motor types are supported, and how does this affect system architecture decisions? The 8BVI0220HCD8.000-1 supports EnDat 2.2 absolute encoders (single-cable), SinCos incremental encoders, and resolver feedback. For new installations, EnDat 2.2 with B&R 8LSA or 8LVA servo motors is recommended — it eliminates separate encoder cables, reduces connector count, and provides absolute position on power-up without homing routines. For retrofit applications with existing resolver-based motors, the drive's resolver interface ensures backward compatibility without motor replacement.

Q3: What warranty and supply assurance does NANKMOS provide for the 8BVI0220HCD8.000-1? NANKMOS provides a 12-Month Warranty on the 8BVI0220HCD8.000-1, covering functional defects under normal operating conditions. Every unit undergoes pre-shipment functional testing — including DC bus charge, POWERLINK communication verification, and STO channel validation — before dispatch. Global inventory availability supports urgent project timelines, with expedited shipping options for critical maintenance and production recovery scenarios. Contact [email protected] or +86 18359268345 for availability and lead time confirmation.
