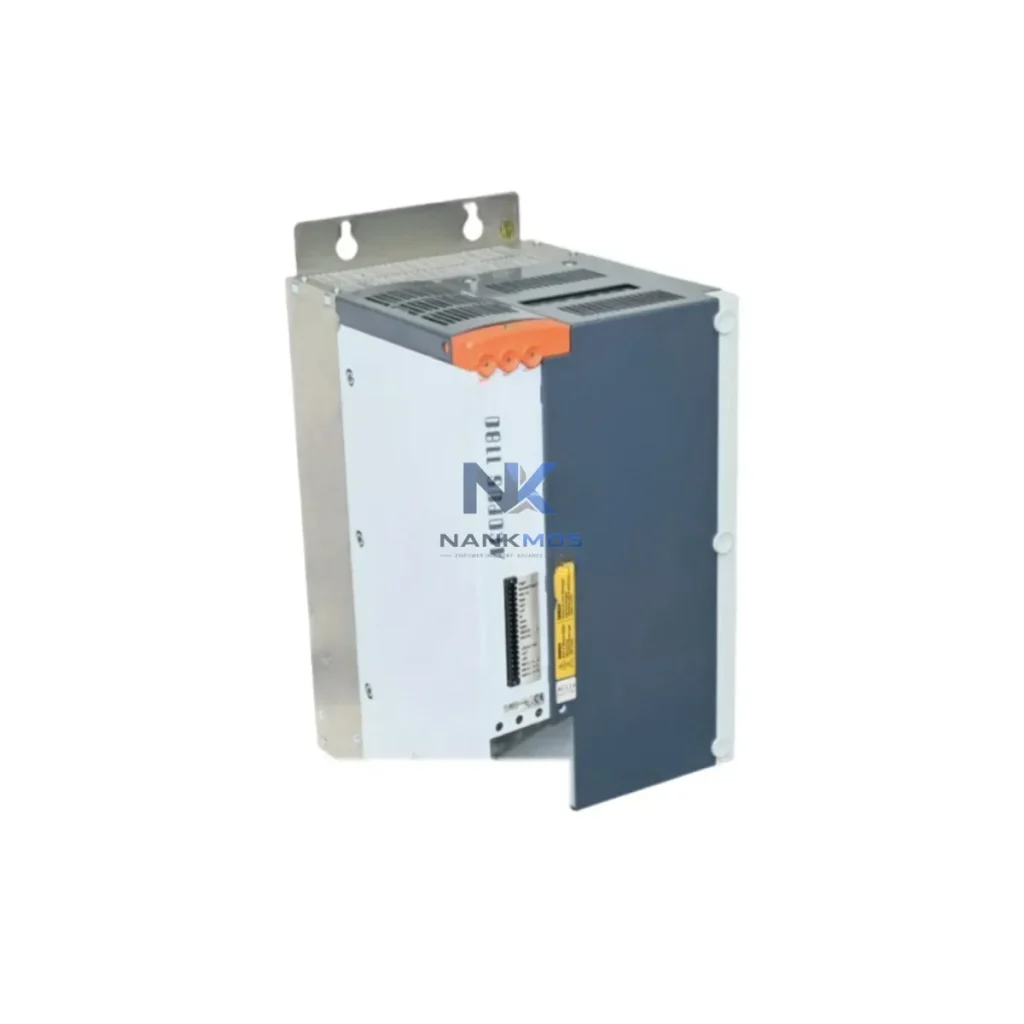

B&R (Bernecker & Rainer) 8V1180.001-2 Servo Drive

Product Details

8V1180.001-2 Product Description

The B&R 8V1180.001-2 is a high-performance ACOPOS series servo drive engineered for energy-conscious motion control in demanding industrial environments. Designed to deliver precise torque and velocity regulation across a wide power range, this drive plays a central role in reducing unnecessary energy consumption, minimizing thermal load on control cabinets, and sustaining consistent production line throughput. Whether deployed in packaging machinery, CNC machining centers, press lines, or automated assembly systems, the 8V1180.001-2 brings measurable efficiency gains to every axis it controls.

At its core, the 8V1180.001-2 integrates seamlessly into B&R's Automation Studio engineering environment, enabling engineers to configure motion profiles, energy recovery parameters, and real-time diagnostics from a single platform. The drive supports regenerative braking energy feedback, which captures deceleration energy and redistributes it across the DC bus — reducing net energy draw from the supply and lowering heat dissipation within the panel. This capability is especially valuable in multi-axis systems where coordinated motion creates frequent acceleration and deceleration cycles.

In smart factory deployments, the 8V1180.001-2 connects directly to B&R's X20 I/O system and X20CP controller platforms, enabling closed-loop feedback from encoders, resolvers, and EnDat 2.2 interfaces. This tight integration allows the PLC to dynamically adjust drive parameters in response to real-time load conditions — preventing over-torque events that waste energy and accelerate mechanical wear. When paired with the B&R ACOPOS P3 multi-axis power supply module, the 8V1180.001-2 benefits from shared DC bus architecture, further reducing total installed power requirements across the machine.

Deploying the B&R 8V1180.001-2 within a power-aware automation architecture requires careful coordination across multiple system layers. At the controller level, the B&R X20CP1584 or X20CP3586 PLC manages motion sequencing and energy state transitions, issuing real-time commands to the drive via POWERLINK — B&R's deterministic Ethernet protocol that ensures sub-millisecond cycle synchronization without the jitter that degrades energy efficiency in conventional fieldbus systems.

On the power supply side, the B&R 8B0C0160HWS0.000-1 ACOPOS capacitor module buffers regenerative energy during deceleration phases, preventing voltage spikes on the DC bus and allowing that energy to be reused by adjacent axes. This shared bus topology, common in multi-axis ACOPOS installations, can reduce total energy consumption by 15–30% compared to individual drive configurations with separate power supplies.

For load monitoring and power quality analysis, the 8V1180.001-2 can be integrated with B&R's mapp Energy software component, which aggregates consumption data from multiple drives and I/O nodes into a unified energy dashboard accessible via the B&R HMI T50 or VC4 visualization panels. This gives production engineers real-time visibility into per-axis energy consumption, enabling targeted optimization of motion profiles and idle-state power management.

The drive also interfaces with B&R X20AI4622 analog input modules to receive process feedback signals — such as load cell readings or pressure transducer outputs — allowing the servo system to adapt torque output dynamically rather than running at fixed setpoints. This adaptive control strategy eliminates the energy waste associated with constant-torque operation under variable load conditions. When combined with B&R X20DO9322 digital output modules for auxiliary equipment control (fans, brakes, clamps), the 8V1180.001-2 becomes the energy-aware hub of a fully coordinated motion cell.

For facilities requiring SCADA integration, the 8V1180.001-2's data can be surfaced via the B&R OPC UA server embedded in the X20 controller, enabling seamless connection to Wonderware, Ignition, or Siemens WinCC SCADA platforms without additional protocol converters. This transparency supports ISO 50001 energy management compliance by providing auditable, timestamped energy consumption records at the drive level.

In high-throughput production environments, the 8V1180.001-2 contributes to energy optimization at three distinct levels: motion profile efficiency, thermal load reduction, and predictive maintenance readiness.

At the motion profile level, Automation Studio's integrated cam profile editor allows engineers to design S-curve acceleration and deceleration ramps that minimize peak current draw — the primary driver of energy spikes and transformer oversizing. By smoothing the torque envelope across each motion cycle, the 8V1180.001-2 reduces RMS current demand, which directly lowers I²R losses in motor windings and drive output stages. In a typical 10-axis packaging line running 24/7, this optimization alone can reduce annual energy consumption by thousands of kilowatt-hours.

Thermal load reduction is achieved through the drive's high switching efficiency and integrated thermal management. The 8V1180.001-2 operates at up to 97% efficiency at rated load, meaning less than 3% of input power is dissipated as heat. This reduces the cooling burden on the control cabinet, lowering the duty cycle of cabinet air conditioners or heat exchangers — a secondary energy saving that is often overlooked in system-level energy audits. In hot climates or high-ambient-temperature facilities, this thermal efficiency directly extends the service life of adjacent components including capacitors, contactors, and I/O modules.

Predictive maintenance readiness is built into the ACOPOS platform through continuous monitoring of motor current signatures, encoder feedback quality, and drive temperature trends. Anomalies that indicate bearing wear, coupling misalignment, or winding degradation are detected early — before they cause unplanned downtime that disrupts production line rhythm and forces energy-intensive restart sequences. When integrated with B&R's mapp Cockpit condition monitoring tool, maintenance teams receive actionable alerts that allow scheduled interventions during planned stops, preserving both equipment utilization rates and energy efficiency targets.

Every 8V1180.001-2 unit shipped by NANKMOS is pre-shipment tested under load conditions to verify output current linearity, encoder interface integrity, and communication protocol handshake. This ensures that the drive performs to specification from day one, eliminating the energy waste and production disruption associated with field commissioning failures. All units are covered by a 12-month warranty and are available from in-stock inventory for immediate dispatch.

Q1: What energy savings can I expect from deploying the B&R 8V1180.001-2 in a multi-axis system? In shared DC bus configurations using the ACOPOS P3 architecture, regenerative braking energy from decelerating axes is redistributed to accelerating axes in real time. Depending on the motion profile and number of axes, this can reduce net energy draw from the mains supply by 15–30%. Additional savings come from optimized S-curve motion profiles and adaptive torque control, which reduce peak current demand and I²R losses throughout the drive cycle.

Q2: Is the 8V1180.001-2 compatible with third-party PLCs and SCADA systems? The 8V1180.001-2 is natively optimized for B&R X20 controller platforms and POWERLINK communication. For integration with third-party PLCs or SCADA systems, Modbus TCP connectivity is available via a protocol gateway, and OPC UA data exposure is supported through the B&R X20 controller's embedded server. This enables compatibility with Siemens, Rockwell, Schneider, and other automation platforms without replacing the drive hardware.

Q3: Can the 8V1180.001-2 replace an existing ACOPOS drive in a running production line? Yes. The 8V1180.001-2 is a direct form-fit-function replacement within the ACOPOS family for drives of equivalent power class. Parameter migration is supported via Automation Studio's drive configuration export/import function, minimizing reconfiguration time. NANKMOS recommends verifying the DC bus voltage range and feedback interface type (EnDat 2.2 vs. resolver) before installation to ensure full compatibility with the existing motor and encoder combination.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted? The 12-month warranty covers manufacturing defects, component failures, and performance deviations from published specifications under normal operating conditions. Pre-shipment testing at NANKMOS includes output current verification at multiple load points, encoder interface handshake confirmation, POWERLINK communication validation, and thermal cycling to screen for latent component weaknesses. A test report is available upon request. In-stock units are dispatched within 1–3 business days of order confirmation.
