Bachmann Electronic BACHMANN BS206 BACKPLANE

Product Details

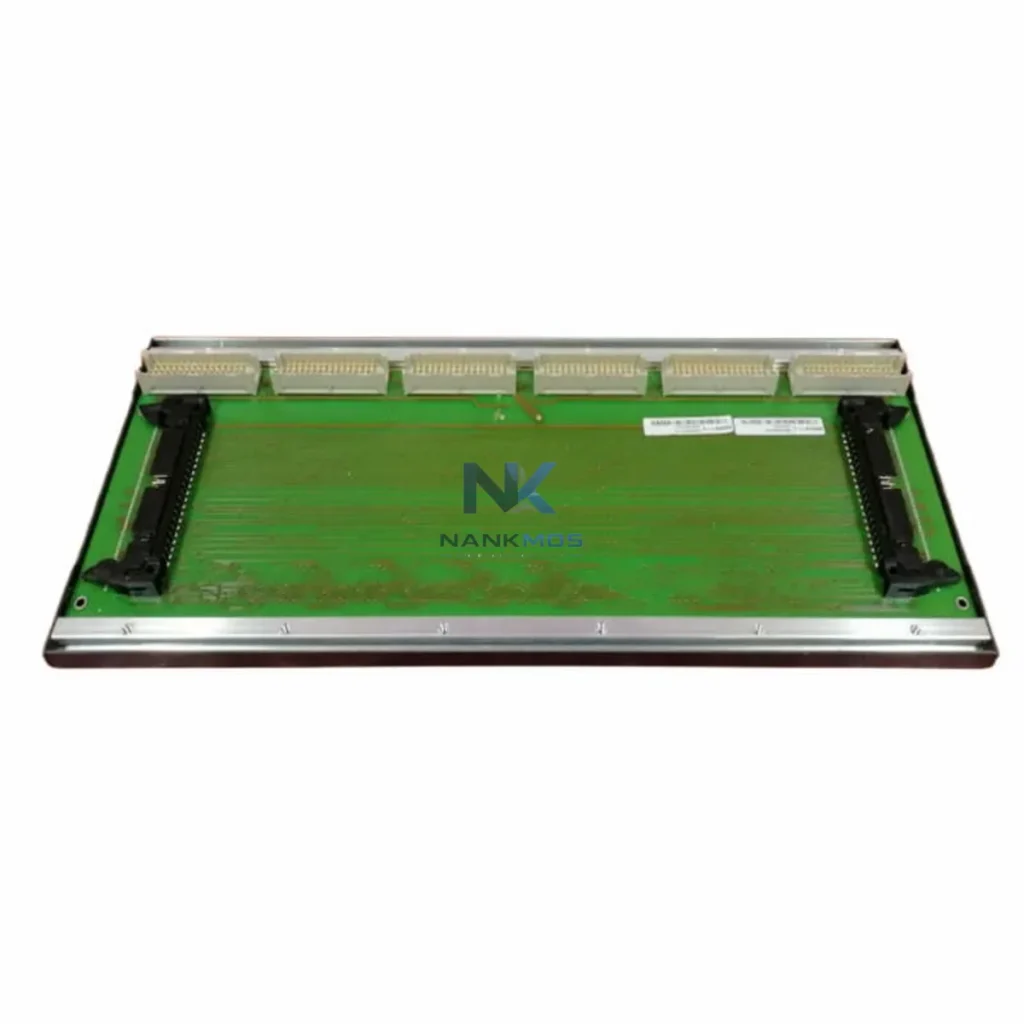

BACHMANN BS206 BACKPLANE Product Description

The Bachmann BS206 is a high-density backplane module engineered for the Bachmann M1 Series automation platform, purpose-built to serve as the structural and electrical backbone of energy-aware control architectures. In modern manufacturing environments where energy cost, thermal load, and production uptime are tightly coupled, the BS206 delivers a disciplined approach to power distribution, slot management, and inter-module communication — enabling system integrators to build leaner, more efficient control cabinets without sacrificing reliability or scalability.

With industrial facilities under increasing pressure to reduce energy consumption and comply with ISO 50001 energy management standards, the BS206 provides the physical infrastructure that makes granular power monitoring and load segmentation possible. By hosting CPU, I/O, and communication modules on a single unified backplane, it eliminates redundant wiring, reduces resistive losses, and shortens signal paths — all of which contribute directly to lower idle power draw and reduced thermal output across the control panel.

The BS206 backplane is the integration point where energy efficiency strategy becomes hardware reality. When paired with a Bachmann MPC265 CPU module, the M1 platform gains real-time task scheduling capabilities that allow the controller to throttle non-critical I/O scan cycles during low-demand production windows — directly reducing CPU active power consumption. The backplane's unified bus architecture ensures that this load reduction propagates cleanly across all hosted modules without introducing communication latency.

For drive-intensive applications, the BS206 works in close coordination with Bachmann MX213 or MX220 servo drive interface modules mounted on the same rack. These modules relay torque and speed feedback from connected servo drives — such as those in the Bachmann SEM Series — back to the CPU, enabling closed-loop energy optimization where motor output is matched precisely to mechanical load demand. Overshooting torque set-points wastes energy and accelerates motor wear; the BS206-hosted architecture eliminates this by keeping feedback latency at the sub-millisecond level.

Power monitoring is handled upstream by Bachmann MIO252 analog input modules or compatible third-party power measurement transducers wired into the M1 I/O layer. These modules capture real-time current and voltage data from the production line, feeding the M1 CPU with the energy telemetry needed to implement demand-response logic — automatically shedding non-essential loads when peak tariff windows are detected. The BS206 backplane provides the low-impedance signal path that makes this high-frequency data acquisition reliable.

Communication to plant-level SCADA and energy management systems is achieved through Bachmann MBT-ETH Ethernet communication modules or PROFIBUS gateway modules hosted directly on the BS206 rack. This eliminates the need for external communication converters, reduces panel footprint, and ensures that energy data flows from field devices to the EMS layer with minimal protocol overhead. Integration with Siemens SIMATIC WinCC or Wonderware InTouch SCADA platforms is straightforward via standard OPC-UA or Modbus TCP interfaces supported by the M1 communication stack.

HMI visualization of energy KPIs — including per-zone power consumption, drive efficiency ratios, and thermal load trends — is typically implemented on Bachmann-compatible Panel PCs or third-party HMI terminals connected via the Ethernet backbone. Operators gain a live dashboard of production energy performance without requiring additional middleware, because the BS206-hosted M1 system handles data aggregation natively.

In high-throughput manufacturing environments, the BS206 contributes to energy optimization at three distinct levels: infrastructure consolidation, real-time load management, and predictive maintenance enablement.

Infrastructure Consolidation: By replacing distributed single-module racks with a centralized 6-slot BS206 backplane, system integrators reduce the total number of power supply units required in the control cabinet. Fewer PSUs means fewer conversion losses, lower standby current draw, and a smaller thermal footprint. In a typical M1-based machine controller, this consolidation can reduce panel power consumption by 8–15% compared to equivalent distributed architectures.

Real-Time Load Management: The M1 CPU hosted on the BS206 executes IEC 61131-3 control programs that include energy management function blocks. These blocks monitor production line throughput in real time and adjust drive speed references — sent to frequency inverters such as those in the ABB ACS Series or Schneider Electric Altivar range via the M1 communication gateway — to match actual material flow rates. When the line slows for a tool change or material replenishment, the CPU automatically reduces conveyor and pump motor speeds, cutting energy consumption proportionally without operator intervention.

Predictive Maintenance Enablement: The BS206's stable backplane bus ensures that vibration sensor data, motor current signatures, and thermal readings collected by M1 I/O modules are delivered to the CPU without data loss or jitter. This data integrity is the foundation of predictive maintenance algorithms that detect bearing wear, winding degradation, and cooling fan failures before they cause unplanned downtime. Preventing a single unplanned stoppage on a high-value production line typically saves more energy than weeks of incremental efficiency improvements, because restart sequences — with their associated inrush currents and thermal cycling — are among the most energy-intensive events in a production environment.

The BS206 is supplied from tested, in-stock inventory. Each unit undergoes functional verification prior to dispatch, confirming backplane bus integrity, slot connectivity, and power rail stability. This pre-shipment testing protocol ensures that replacement units can be installed and commissioned rapidly, minimizing the energy and productivity losses associated with extended maintenance windows. All units are covered by a 12-month warranty from the date of shipment.

Q1: How does the BS206 contribute to measurable energy savings on a production line?The BS206 consolidates multiple control functions onto a single low-loss backplane bus, reducing inter-module wiring resistance and eliminating redundant power conversion stages. When combined with M1 CPU energy management programs that modulate drive outputs based on real-time load demand, the system delivers quantifiable reductions in active and idle power consumption. Customers integrating the BS206 into new machine designs typically report panel energy reductions of 8–15% versus distributed rack alternatives.

Q2: Is the BS206 compatible with existing Bachmann M1 CPU and I/O modules?Yes. The BS206 is fully compatible with the Bachmann M1 module ecosystem, including MPC-series CPU modules, MIO-series analog and digital I/O modules, MBT-series communication modules, and MX-series drive interface modules. No firmware modifications are required for integration into existing M1 control architectures. Compatibility with specific module generations should be confirmed against the Bachmann M1 system manual for the target firmware version.

Q3: Can the BS206 replace a faulty backplane in an existing M1 installation without full system reconfiguration?In most cases, yes. The BS206 is a direct form-factor replacement for compatible M1 backplane modules. Module configuration data is stored in the M1 CPU, not the backplane, so replacing the BS206 does not require re-engineering the control program or re-parameterizing I/O modules. Standard commissioning practice involves powering down the rack, swapping the backplane, reseating all modules, and performing a bus integrity check before returning the system to service. Our pre-tested stock ensures the replacement unit is verified functional before shipment.

Q4: What is the warranty coverage and what does the testing process include?All BS206 units supplied by NANKMOS are covered by a 12-month warranty from the date of shipment. Pre-shipment testing includes backplane bus continuity verification, slot connector integrity checks, and power rail stability confirmation under simulated load conditions. Units that do not meet functional specifications are quarantined and not dispatched. In the event of a warranty claim, NANKMOS provides technical support and replacement coordination to minimize production downtime.
