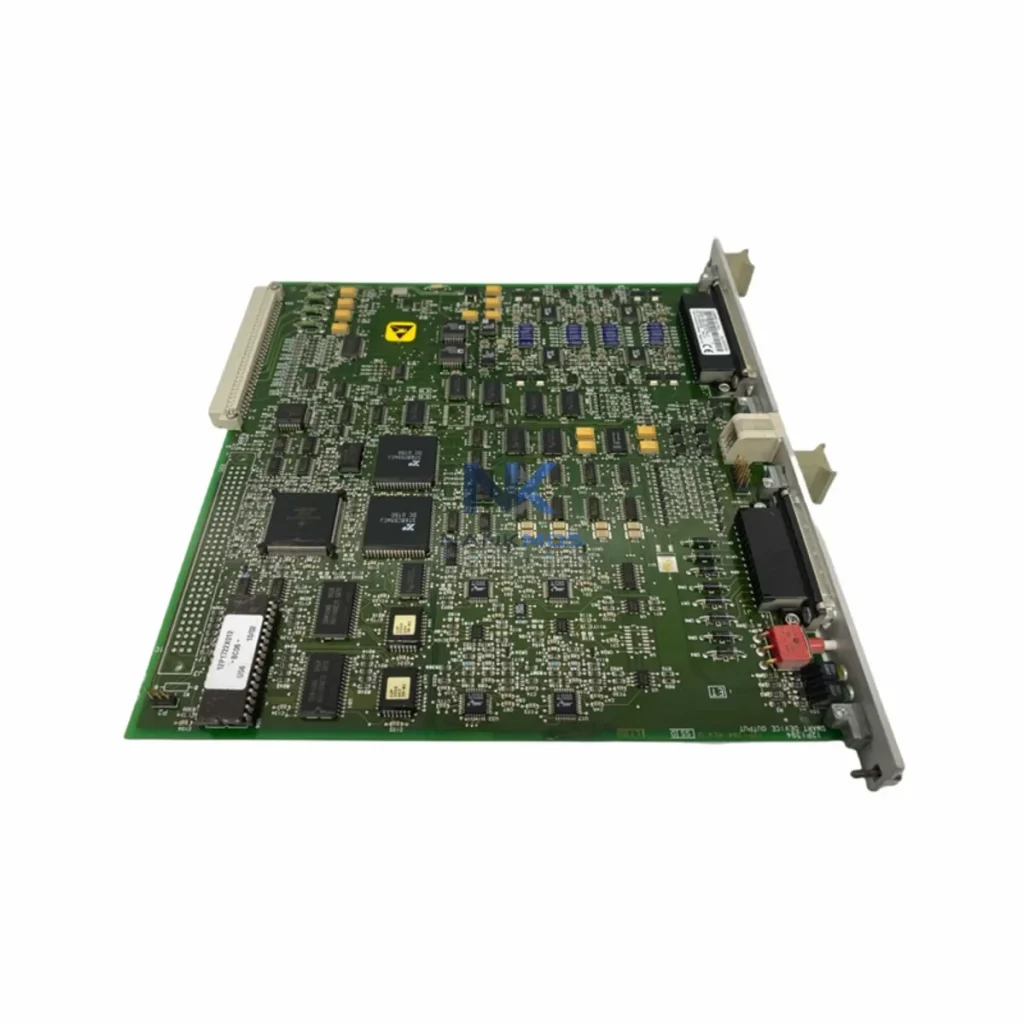

Fisher CL6828X1-A1 12P1395X062 Safety Output Module

Product Details

CL6828X1-A1 12P1395X062 Product Description

The Fisher CL6828X1-A1 (full SKU: CL6828X1-A1 12P1395X062) is a precision-engineered Safety Output Module designed for deployment within the Emerson DeltaV SIS (Safety Instrumented System) platform. Purpose-built for safety-critical process environments, this module delivers deterministic output control, redundant signal integrity, and seamless integration across layered industrial control architectures. Whether deployed in a greenfield SIS installation or integrated into an existing DeltaV control backbone, the CL6828X1-A1 provides the reliability, diagnostics depth, and long-term maintainability demanded by modern functional safety engineering.

At NANKMOS, every Fisher CL6828X1-A1 unit is sourced, inspected, and dispatched with full traceability. Each module undergoes pre-shipment functional verification and is backed by our 12-Month Warranty, ensuring your safety architecture remains operationally sound from commissioning through sustained production cycles.

The Fisher CL6828X1-A1 does not operate in isolation — its true engineering value emerges when viewed as a coordinated node within a complete DeltaV SIS control architecture. In a fully integrated safety platform, the CL6828X1-A1 Safety Output Module interfaces directly with the DeltaV SIS Logic Solver (such as the CL6895X1-A1 or CL6896X1-A1 series), which executes the safety application logic and drives output commands to field actuators through this module.

At the power layer, the DeltaV SIS Power Supply Module (e.g., KJ4001X1-BA1) provides stable, redundant DC power to the SIS carrier chassis, ensuring that the CL6828X1-A1 and co-located I/O modules maintain uninterrupted operation even during single-point power faults. Redundant power configurations are strongly recommended in SIL 3 architectures to eliminate power as a common-cause failure source.

On the input side, the DeltaV SIS Digital Input Module (e.g., CL6724X1-A1) and Analog Input Module (e.g., CL6714X1-A1) collect process signals from field transmitters, pressure switches, and safety sensors. These signals are processed by the logic solver, which then commands the CL6828X1-A1 to energize or de-energize final elements — including solenoid valves, motor contactors, and emergency shutdown actuators — based on the evaluated safety function.

For communication transparency between the SIS and the Basic Process Control System (BPCS), the DeltaV SIS to DeltaV BPCS Gateway enables bidirectional status exchange without compromising SIS independence. This architecture supports real-time safety state visibility on DeltaV DCS operator workstations and DeltaV Operate HMI displays, allowing control room operators to monitor SIS trip states, bypass conditions, and diagnostic alarms without direct SIS intervention.

At the field termination layer, DeltaV SIS Marshalling Panels and IS (Intrinsically Safe) Barriers — such as Zener barriers or galvanic isolators — condition field wiring before signals reach the CL6828X1-A1 carrier. In hazardous area installations (Zone 1 / Zone 2, Class I Div 1), IS barriers are mandatory to prevent ignition-capable energy from reaching the field device. The CL6828X1-A1's fail-safe output design ensures that on loss of power or logic solver communication, outputs default to the safe state, consistent with IEC 61511 requirements.

For larger SIS installations requiring expanded I/O capacity, the DeltaV SIS Remote I/O Carrier and SIS I/O Extension Modules allow the CL6828X1-A1 to be deployed in distributed marshalling cabinets, reducing field cable runs and improving signal integrity across large plant footprints. This modular expansion capability is particularly valuable in refinery, LNG, and offshore platform applications where control room-to-field distances are significant.

Maintenance and lifecycle management are further supported by the DeltaV SIS Partial Stroke Testing (PST) capability, which allows proof testing of final elements — including those driven by the CL6828X1-A1 — without requiring a full process shutdown. Combined with the module's integrated diagnostics and the DeltaV SIS Audit Trail logging function, engineering teams can demonstrate ongoing SIL compliance and maintain complete maintenance records for regulatory inspection.

Oil & Gas and Petrochemical: In upstream and downstream hydrocarbon processing, the Fisher CL6828X1-A1 is deployed as the final output driver for Emergency Shutdown (ESD) systems, High Integrity Pressure Protection Systems (HIPPS), and Burner Management Systems (BMS). Its SIL 2/3 rating and fail-safe output architecture meet the stringent functional safety requirements of IEC 61511 for process industries. Typical final elements include solenoid-operated shutdown valves, blowdown valves, and compressor trip relays.

Power Generation and Utilities: In gas turbine control, boiler protection, and substation automation, the CL6828X1-A1 provides reliable trip output for turbine overspeed protection, boiler drum level ESD, and transformer protection schemes. Its deterministic response time and high diagnostic coverage make it suitable for applications where spurious trip rates must be minimized while maintaining required SIL performance.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the CL6828X1-A1 to control chemical dosing shutoffs, pump protection trips, and overflow prevention systems. The module's robust self-diagnostics reduce the need for frequent manual proof testing, lowering operational maintenance burden in facilities with limited instrumentation staffing.

Mining and Minerals Processing: In conveyor protection systems, crusher overload protection, and ventilation safety interlocks, the CL6828X1-A1 delivers reliable output control in environments characterized by vibration, dust, and wide ambient temperature variation. Its backplane-powered design eliminates field wiring complexity at the module level, simplifying cabinet layout in mobile and semi-permanent mining installations.

Marine and Offshore: Offshore platform SIS architectures require modules certified for marine environmental conditions. The CL6828X1-A1's robust construction and Emerson DeltaV SIS platform certification support deployment in fire and gas (F&G) systems, wellhead control panels, and process shutdown systems on FPSOs and fixed platforms.

Pharmaceutical and Fine Chemicals: In batch process safety systems and reactor protection, the CL6828X1-A1 supports validated SIS architectures compliant with GAMP 5 and 21 CFR Part 11 requirements. Its integration with DeltaV's audit trail and electronic batch record capabilities simplifies regulatory validation documentation.

Q1: Is the Fisher CL6828X1-A1 compatible with existing DeltaV SIS installations, and can it be hot-swapped during operation? The CL6828X1-A1 is designed for the Emerson DeltaV SIS platform and is compatible with DeltaV SIS I/O carriers and chassis within the same generation. Hot-swap capability depends on the specific carrier configuration and the SIS application's bypass and maintenance override provisions. In most DeltaV SIS architectures, module replacement can be performed under a documented maintenance bypass procedure without requiring a full system shutdown, provided the safety function is appropriately managed during the maintenance window. Always consult the DeltaV SIS Hardware Reference Manual and your site's Management of Change (MOC) procedure before performing module replacement on a live SIS.

Q2: What proof testing interval is recommended for the CL6828X1-A1 to maintain SIL 2 compliance, and does NANKMOS provide replacement modules for scheduled proof test cycles? Proof test intervals for the CL6828X1-A1 are determined by the SIL verification calculation for the specific safety function, typically performed using tools such as exSILentia or SERH. For SIL 2 applications, proof test intervals commonly range from 1 to 5 years depending on the overall PFDavg budget allocation. NANKMOS maintains in-stock inventory of the CL6828X1-A1 to support scheduled proof test replacement programs, with pre-shipment functional testing and 12-Month Warranty coverage on all supplied units. Contact our technical team to establish a supply agreement aligned with your plant's proof test schedule.

Q3: How does NANKMOS ensure the authenticity and functional integrity of the Fisher CL6828X1-A1, and what documentation is provided with each shipment? Every Fisher CL6828X1-A1 supplied by NANKMOS undergoes incoming inspection and pre-shipment functional verification. Units are sourced through controlled supply channels with full traceability to original manufacturer documentation. Each shipment is accompanied by a test report, packing list, and warranty certificate confirming the 12-Month Warranty coverage period from the date of dispatch. For projects requiring additional documentation — including material certificates, country of origin declarations, or third-party inspection — NANKMOS can accommodate these requirements upon request. Our quality process is designed to support your site's incoming inspection and SIS lifecycle management requirements under IEC 61511 Clause 11.
