Braun E1691 Power Supply Module

Product Details

E1691 Product Description

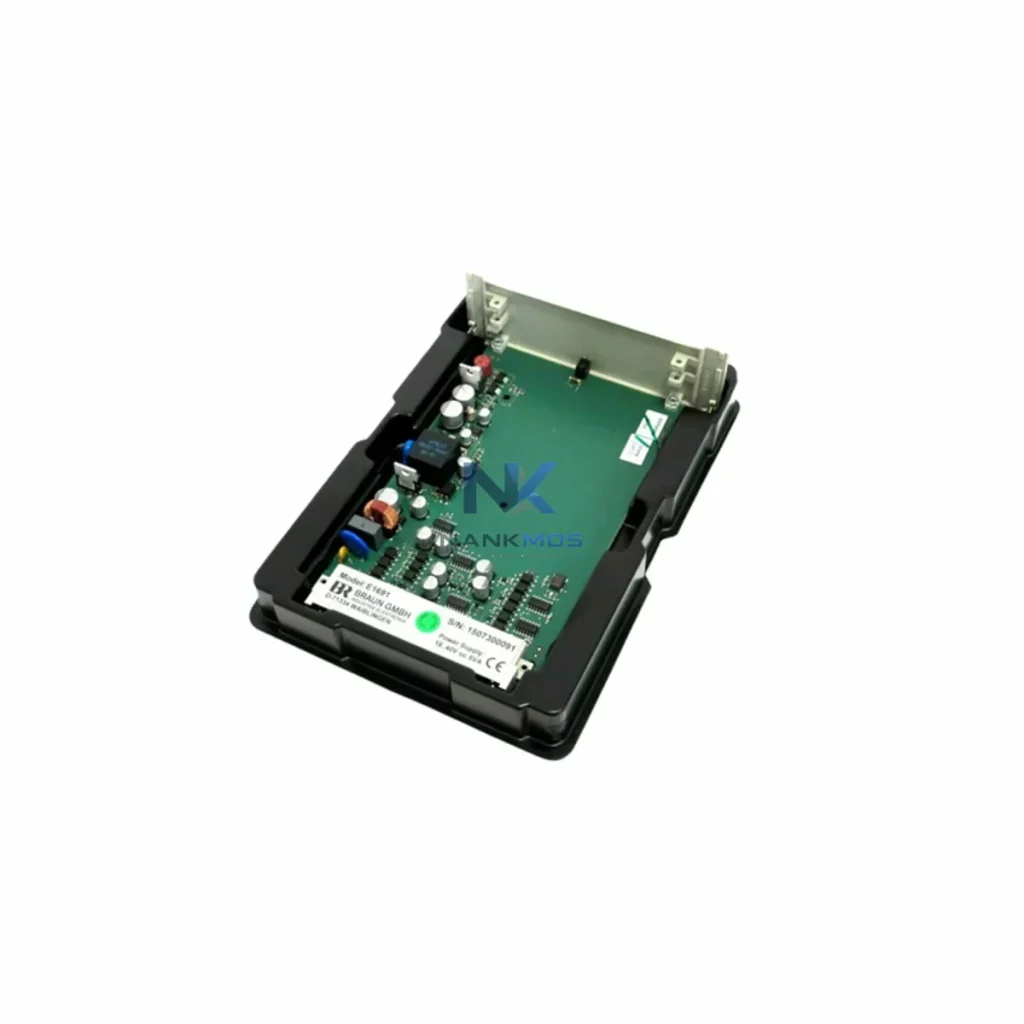

The Braun E1691 is a dedicated power supply module engineered for seamless integration within the Braun E1000 distributed control system (DCS) architecture. Designed to deliver stable, conditioned 24 VDC power across multi-rack control cabinets, the E1691 serves as the foundational power layer that enables consistent operation of CPUs, I/O modules, communication gateways, and HMI subsystems within demanding industrial environments. Its architecture-matched design ensures that every downstream module receives clean, regulated power — eliminating voltage fluctuation as a source of diagnostic uncertainty and reducing mean time to repair across the full control platform.

In modern industrial automation, power supply integrity is not a peripheral concern — it is the backbone of system reliability. The E1691 addresses this by providing a tightly regulated output with built-in overload protection, short-circuit immunity, and thermal management suited for continuous-duty operation in process industries. Whether deployed in a simplex configuration or as part of a redundant power architecture, the E1691 integrates directly into the E1000 backplane without additional signal conditioning, reducing cabinet footprint and wiring complexity.

The E1691 is purpose-built for Contextual Integration within the Braun E1000 control platform, where power delivery, signal integrity, and system diagnostics are treated as interdependent layers rather than isolated functions. In a fully configured E1000 rack, the E1691 supplies regulated power to the Braun E1131 CPU module, which executes the primary control logic and manages inter-module communication via the internal backplane. Alongside the CPU, the Braun E1521 digital input module and Braun E1522 digital output module rely on the E1691's stable 24 VDC rail to ensure deterministic I/O response times — a critical requirement in high-speed process control and safety interlock applications.

For analog signal chains, the Braun E1531 analog input module and Braun E1532 analog output module demand low-ripple power to maintain 4–20 mA signal accuracy across long cable runs. The E1691's regulated output directly supports this requirement, reducing the need for external signal isolators in standard installations. In communication-intensive architectures, the Braun E1711 PROFIBUS DP gateway and Braun E1721 Modbus TCP communication module draw their operating power from the same backplane rail, ensuring that fieldbus communication remains uninterrupted even during transient load events on the control cabinet.

For HMI integration, the Braun OP270 operator panel is typically co-located in the same control cabinet and powered from a dedicated 24 VDC branch derived from the E1691 output, maintaining operator interface availability independent of field device load fluctuations. In redundant power configurations, a second E1691 unit operates in parallel, with automatic load sharing and seamless failover — ensuring zero-interruption power continuity for the Braun E1131R redundant CPU and associated I/O racks. The Braun E1000 backplane bus coupler coordinates power distribution across multi-rack expansions, with the E1691 serving as the primary power source for each rack segment.

Process Manufacturing & Chemical Plants: In continuous process environments — including petrochemical refineries, pharmaceutical batch reactors, and specialty chemical plants — the E1691 provides the stable power foundation required for 24/7 DCS operation. Its wide-range AC input accommodates variable grid conditions common in remote industrial sites, while its redundant configuration capability ensures that a single power supply failure does not interrupt critical process control loops.

Power Generation & Utilities: Thermal power stations, hydroelectric facilities, and grid substations deploy the E1691 within E1000-based protection and control panels. The module's short-circuit immunity and thermal protection are particularly valued in high-fault-energy environments, where power supply robustness directly impacts plant availability and grid stability.

Water & Wastewater Treatment: Municipal water treatment facilities and industrial effluent systems rely on the E1691 to power E1000 PLCs managing pump sequencing, dosing control, and SCADA communication. The module's DIN rail mounting and compact form factor simplify integration into space-constrained control panels typical of pump stations and remote lift stations.

Mining & Metallurgy: In ore processing, smelting, and materials handling applications, the E1691 supports E1000 control systems managing conveyor drives, crusher sequencing, and furnace temperature regulation. Its operating temperature range and robust protection class ensure reliable performance in dusty, high-vibration environments.

Packaging & Discrete Manufacturing: High-speed packaging lines and assembly systems require deterministic power delivery to maintain synchronization between servo drives, vision systems, and safety PLCs. The E1691's low-ripple output and fast transient response support these demanding cycle-time requirements within E1000-based machine control architectures.

Q1: Can the Braun E1691 operate in a redundant power configuration with automatic failover? Yes. Two E1691 units can be connected in a 1+1 parallel redundant configuration using the E1000 backplane power bus. In this arrangement, both units share the load equally under normal conditions. If one unit fails or is removed for maintenance, the second unit assumes full load without interruption to the control system. This configuration is recommended for all critical process control and safety-related E1000 installations.

Q2: Is the E1691 compatible with all E1000 series I/O and CPU modules, and does it require any additional configuration? The E1691 is designed for native Contextual Integration with the full Braun E1000 module family, including E1131/E1131R CPUs, E1521/E1522 digital I/O, E1531/E1532 analog I/O, and E1711/E1721 communication modules. No additional power conditioning or configuration is required — the module is recognized automatically by the E1000 backplane bus upon installation. Firmware compatibility should be verified against the E1000 system release notes for installations involving mixed-generation hardware.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for replacement units? The Braun E1691 is supplied with a 12-Month Warranty covering manufacturing defects, component failures, and performance deviations from published specifications under normal operating conditions. Warranty claims are processed through NANKMOS with direct coordination with the Braun service network. Replacement units are maintained in stock for rapid dispatch, with standard lead times of 3–7 business days for most regions. Expedited shipping options are available for critical plant maintenance scenarios. Contact [email protected] or +86 18359268345 for warranty registration and spare parts availability.
