GE (General Electric) HE693PBS105

Product Details

HE693PBS105 Product Description

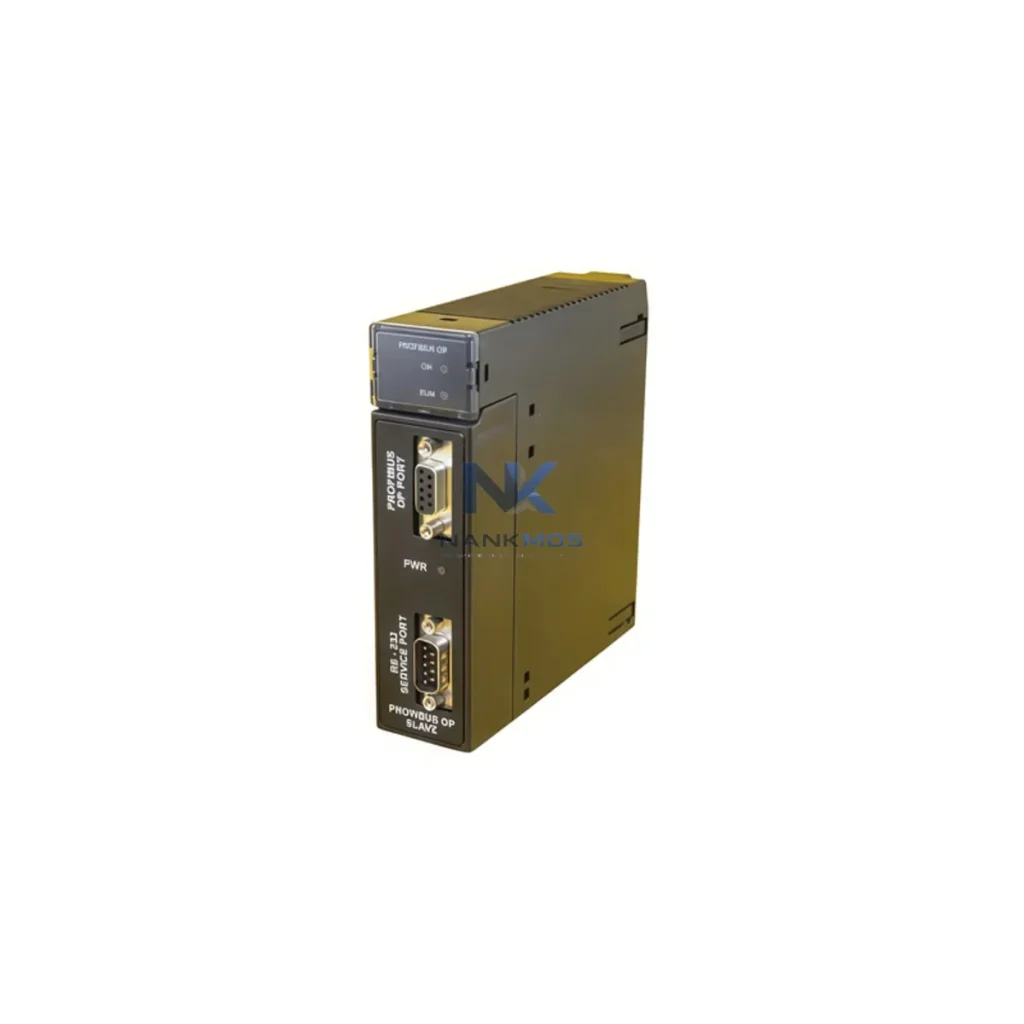

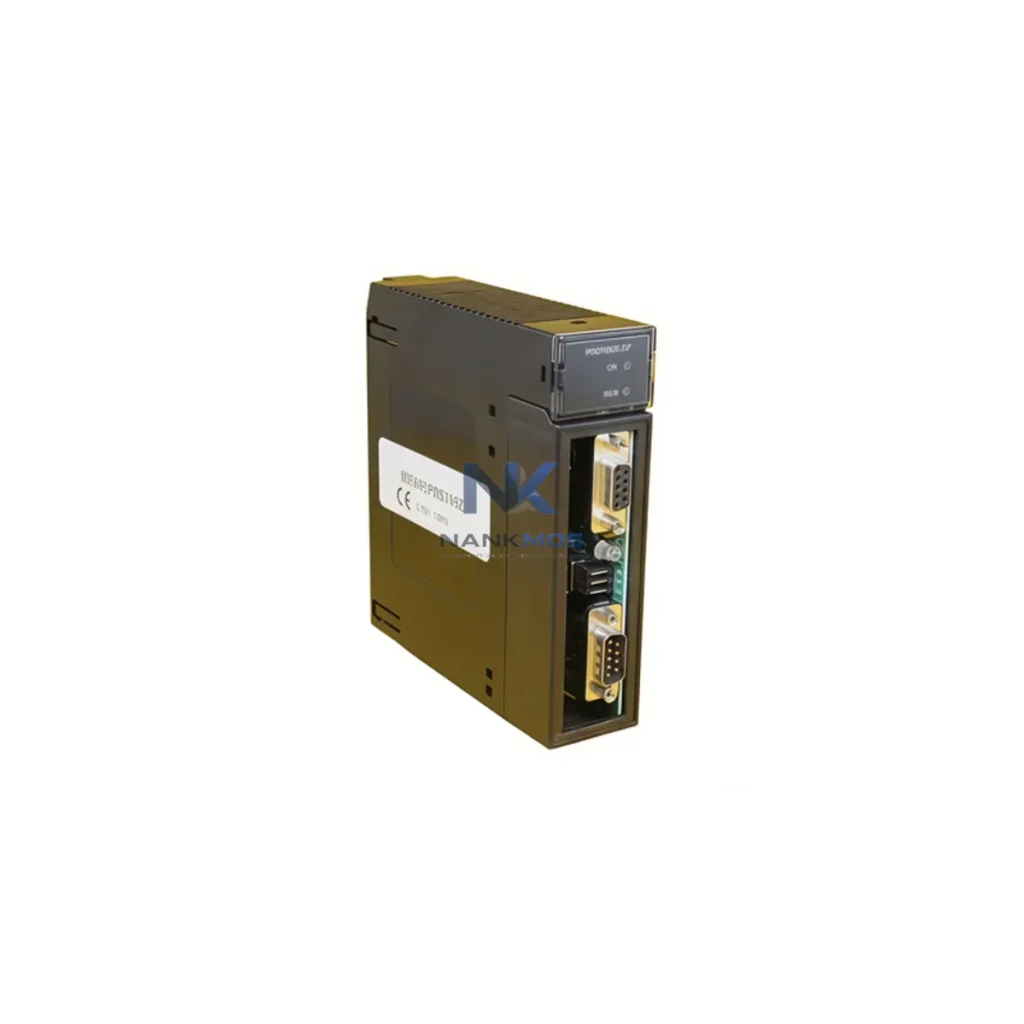

The GE HE693PBS105 is a PROFIBUS-DP Slave Communication Module engineered for seamless integration within the GE Series 90-30 programmable logic controller platform. Designed to extend the communication reach of the 90-30 rack architecture, this module enables deterministic, high-speed data exchange between the PLC backplane and PROFIBUS-DP master devices — including distributed I/O stations, variable frequency drives, intelligent field instruments, and remote HMI panels. In modern industrial automation environments where system consistency, signal integrity, and long-term maintainability are non-negotiable, the HE693PBS105 delivers a proven, architecture-aligned solution that supports both greenfield deployments and legacy system expansions.

The HE693PBS105 does not operate in isolation — its value is fully realized when positioned within a coherent, layered automation architecture. At the control layer, the module interfaces directly with Series 90-30 CPUs such as the IC693CPU374 and IC693CPU364, which provide the processing backbone for ladder logic execution, PID loop management, and inter-module coordination. The backplane itself — typically an IC693CHS391 (5-slot) or IC693CHS397 (10-slot) chassis — serves as the physical and electrical integration point, distributing both power and I/O bus signals across all installed modules.

At the power layer, the IC693PWR321 or IC693PWR330 power supply modules provide regulated 5 VDC and 24 VDC rails to the rack, ensuring stable operation of the HE693PBS105 and co-resident I/O modules under variable load conditions. Discrete and analog I/O modules — including the IC693MDL645 (16-point 24 VDC input) and IC693ALG221 (analog voltage input) — share the same backplane bus, allowing the CPU to correlate PROFIBUS network data with local field signals in a unified scan cycle.

On the communication layer, the HE693PBS105 connects the 90-30 rack to a PROFIBUS-DP network segment, where it operates as a slave node under the supervision of a DP master — which may be a dedicated PROFIBUS master module, a PC-based SCADA gateway, or a higher-level DCS controller. This architecture supports integration with distributed I/O blocks such as the GE VersaMax PROFIBUS Remote I/O modules, enabling physical I/O expansion beyond the local rack without additional CPU overhead. Variable frequency drives supporting PROFIBUS-DP — such as those in the GE AF-600 FP series — can be parameterized and monitored directly through the network, reducing wiring complexity and enabling centralized diagnostics.

At the HMI layer, operator interface terminals configured as PROFIBUS-DP slaves or connected via serial gateway to the 90-30 CPU provide real-time visualization of process variables sourced through the HE693PBS105. Signal isolation modules and terminal blocks at the field wiring layer protect the backplane from transient voltages and ground loops, preserving signal fidelity across long cable runs. For redundancy-critical applications, the architecture may incorporate dual-CPU configurations or hot-standby communication paths, with the HE693PBS105 contributing to network-level redundancy by maintaining slave node availability during CPU switchover events.

The HE693PBS105 is deployed across a broad spectrum of industrial sectors where PROFIBUS-DP remains the dominant fieldbus standard for deterministic, real-time communication.

In manufacturing and assembly automation, the module enables coordinated motion and I/O control across multi-station production lines, where PROFIBUS-DP master controllers poll distributed slave nodes — including servo drives, pneumatic valve islands, and vision system interfaces — within a single network scan. The HE693PBS105 ensures that the Series 90-30 PLC participates as a fully compliant slave node, receiving setpoints and returning status data with cycle-time consistency.

In power generation and electrical substation environments, the module supports integration with protection relays, energy meters, and switchgear controllers that communicate over PROFIBUS-DP. The deterministic communication model reduces the risk of data collision and latency spikes that could compromise protection coordination logic.

In petrochemical and refinery process control, the HE693PBS105 connects the Series 90-30 platform to PROFIBUS-DP field instruments — including smart transmitters, positioners, and flow computers — enabling continuous process variable acquisition and valve control within a unified fieldbus segment. This reduces the need for point-to-point 4–20 mA wiring and simplifies loop commissioning.

In water and wastewater treatment facilities, the module supports remote pump station control and SCADA integration, where PROFIBUS-DP networks link distributed RTU panels to central control rooms. The HE693PBS105 enables the 90-30 PLC to participate in these networks as a data source or actuator controller, supporting both manual override and automated sequence logic.

In mining, metallurgy, and heavy industry, the module's robust backplane integration and wide operating temperature range make it suitable for control panels installed in harsh environments, where vibration, dust, and thermal cycling are routine operational conditions.

Q1: Is the HE693PBS105 compatible with all Series 90-30 CPU modules and rack configurations? The HE693PBS105 is designed for use within the GE Series 90-30 rack system and is compatible with standard IC693 chassis configurations, including 5-slot and 10-slot backplanes. It operates as a PROFIBUS-DP slave and communicates with the CPU via the internal I/O bus. Compatibility with specific CPU firmware revisions should be verified against the GE Fanuc Series 90-30 Hardware Reference Manual. All units supplied by NANKMOS are tested for backplane communication integrity prior to shipment.

Q2: How does the HE693PBS105 support long-term maintenance and system diagnostics in an active production environment? The module supports standard PROFIBUS-DP diagnostic messaging, allowing the DP master to poll slave status, detect communication faults, and log node-level errors without interrupting the production scan cycle. This enables maintenance teams to identify degraded nodes, cable faults, or configuration mismatches during live operation. NANKMOS provides a 12-Month Warranty on all HE693PBS105 units, with pre-shipment functional testing to ensure out-of-box reliability and minimize unplanned downtime during installation or replacement.

Q3: What is the typical lead time and inventory availability for the HE693PBS105? NANKMOS maintains stock of the HE693PBS105 to support urgent replacement and planned maintenance schedules. Standard orders are processed and dispatched within 1–3 business days, with expedited shipping available for critical production environments. Each unit undergoes outgoing quality inspection and is covered by a 12-Month Warranty from the date of shipment. For volume procurement, system integrator pricing, or contextual integration support, contact NANKMOS directly to discuss project-specific requirements.
