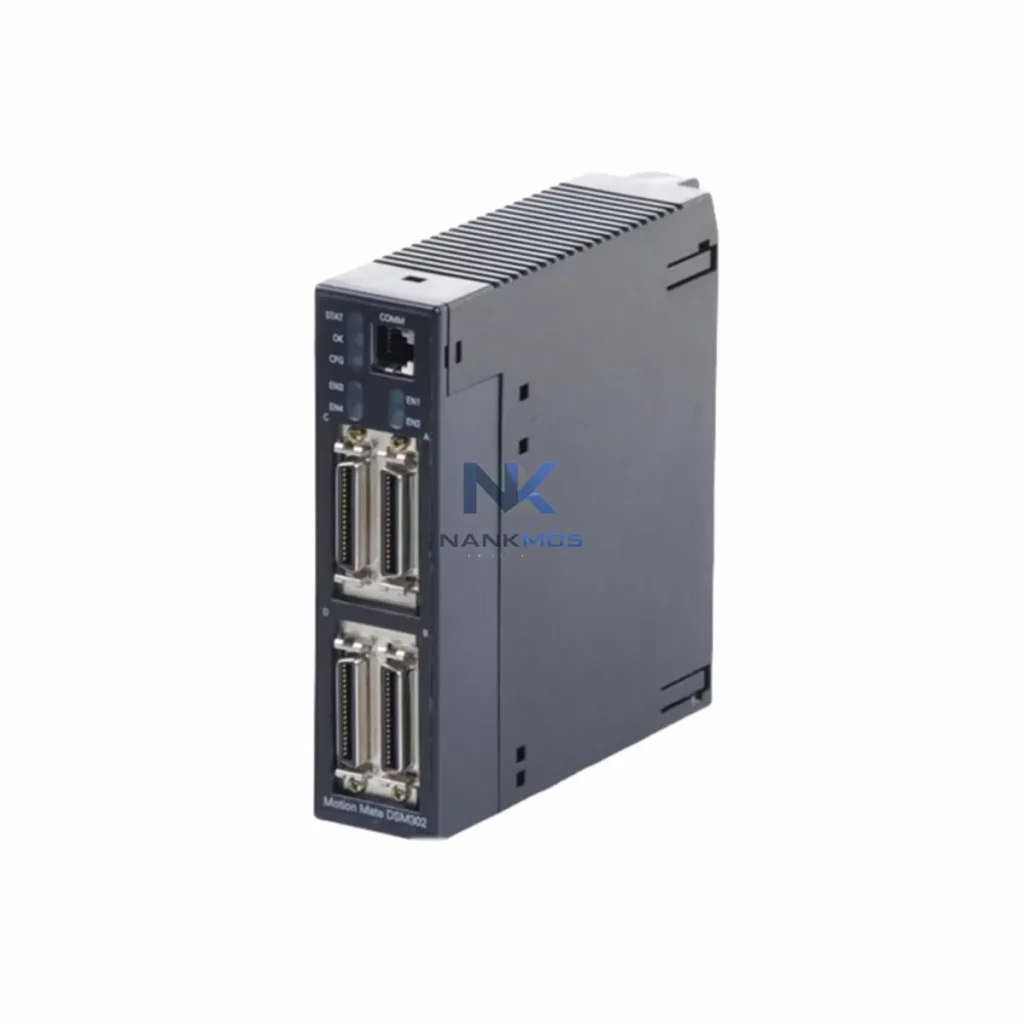

GE Automation (General Electric) IC693DSM302

Product Details

IC693DSM302 Product Description

The GE IC693DSM302 is a two-axis Digital Servo Module (DSM) engineered for the GE Series 90-30 PLC platform, delivering precision motion control with a strong focus on energy efficiency, load management, and production line throughput optimization. Designed for demanding industrial environments, the IC693DSM302 coordinates servo axis positioning, velocity profiling, and torque regulation — enabling factories to eliminate unnecessary motor run-time, reduce reactive power losses, and maintain consistent machine cycle rates across multi-axis production cells.

In smart manufacturing environments where energy cost and equipment utilization are key performance indicators, the IC693DSM302 serves as the motion intelligence layer between the PLC controller and the servo drive system. By executing pre-programmed motion profiles directly on the module — independent of the main CPU scan cycle — it reduces control latency, minimizes over-travel and overshoot events, and ensures that servo drives operate within their optimal efficiency bands rather than hunting or dwelling at partial load.

The IC693DSM302 does not operate in isolation — its energy efficiency value is fully realized when integrated within a coordinated automation architecture. In a typical Series 90-30 control cabinet, the module shares the backplane with digital and analog I/O modules such as the IC693MDL655 discrete input module and IC693ALG222 analog output module, which feed real-time process signals into the motion controller for adaptive velocity adjustment. The IC693CPU374 or IC693CPU364 CPU module manages the overall PLC program while delegating axis-level motion tasks to the DSM, freeing CPU bandwidth and reducing unnecessary polling cycles that would otherwise increase system power draw.

On the drive side, the IC693DSM302 interfaces with servo amplifiers via analog command signals, enabling tight integration with GE-compatible servo drive systems. When paired with a power monitoring module — such as the IC693APU300 or a third-party power quality analyzer on the same panel bus — operators can correlate axis motion events with real-time energy consumption data, identifying which motion profiles consume the most power and optimizing acceleration/deceleration ramps accordingly. Reducing jerk and peak current draw during axis start-up directly lowers thermal stress on both the drive and the motor, extending mean time between failures (MTBF).

For HMI visibility, the IC693DSM302 status registers are accessible through GE Proficy HMI/SCADA — iFIX or CIMPLICITY — via SRTP protocol, allowing operators to monitor axis position, fault codes, and motion state in real time. This integration supports predictive maintenance workflows: abnormal torque demand or repeated fault events can trigger alarms before a mechanical failure causes unplanned downtime. The module also works alongside IC693CMM321 or IC693CMM311 communications modules for broader network connectivity, enabling remote diagnostics and energy reporting through plant-level SCADA or MES systems.

In multi-axis production cells, the IC693DSM302 coordinates with encoder feedback devices and proximity sensors wired through the I/O subsystem to implement electronic gearing and cam profiles — techniques that synchronize multiple axes without mechanical linkages, reducing friction losses and the energy overhead of maintaining mechanical synchronization under varying load conditions.

One of the most significant sources of energy waste in automated production lines is imprecise motion control: motors that overshoot target positions, drives that hunt at partial load, and axes that remain energized during idle periods between production cycles. The IC693DSM302 addresses each of these inefficiencies through its onboard motion processor, which executes trapezoidal and S-curve velocity profiles with high repeatability, ensuring that servo drives reach target positions with minimal overshoot and settle quickly without oscillation.

By maintaining tight position and velocity control, the module reduces the frequency and duration of corrective motion events — each of which draws additional current from the drive and generates heat in the motor windings. Lower thermal load translates directly into reduced cooling requirements for the control cabinet and the machine enclosure, lowering HVAC energy consumption on the factory floor. In high-cycle applications such as pick-and-place systems, packaging machines, and press feeders, these savings compound across thousands of cycles per shift.

The IC693DSM302 also supports programmable motion sequences that can be triggered by production line events — part-present signals from photoelectric sensors, conveyor index pulses, or PLC output commands — ensuring that axes are only in motion when mechanically required. This event-driven motion architecture eliminates the common practice of running servo drives continuously at low speed as a "ready" state, which wastes energy and accelerates bearing wear. Combined with drive enable/disable logic managed through the Series 90-30 I/O system, the module enables a structured power-down sequence during line stoppages, shift changes, and scheduled maintenance windows.

For production planners and energy managers, the result is a measurable improvement in Overall Equipment Effectiveness (OEE): fewer unplanned stops due to motion faults, more consistent cycle times, and lower energy cost per unit produced. The IC693DSM302 is fully tested under load conditions prior to shipment, and each unit is backed by a 12-Month Warranty, ensuring that replacement or support is available without additional cost should any issue arise within the warranty period. In-stock availability means minimal lead time, supporting just-in-time maintenance strategies and reducing the risk of extended downtime while waiting for a replacement module.

Q1: How does the IC693DSM302 contribute to measurable energy savings on a production line? The IC693DSM302 reduces energy consumption by executing precise motion profiles that minimize overshoot, eliminate unnecessary motor run-time, and allow servo drives to operate within their peak efficiency range. In high-cycle applications, optimized acceleration and deceleration ramps lower peak current demand, reducing both energy cost and thermal stress on drive components. When integrated with a power monitoring module on the same panel, energy consumption per motion cycle can be logged and benchmarked over time.

Q2: Is the IC693DSM302 compatible with existing Series 90-30 PLC configurations and third-party servo drives? The IC693DSM302 is designed for the GE Series 90-30 backplane and is compatible with the IC693 CPU family, including the IC693CPU374 and IC693CPU364. It outputs a standard ±10 V analog command signal, which is compatible with most servo amplifiers that accept analog velocity or torque commands. For full functionality, GE-compatible servo drives with encoder feedback are recommended. Consult the module's installation manual for drive pairing specifications before substituting third-party drives.

Q3: What is the recommended replacement or upgrade path if the IC693DSM302 is discontinued or unavailable? For applications requiring a direct replacement, a tested and verified IC693DSM302 from certified inventory is the preferred option to maintain program compatibility and avoid re-commissioning costs. For new designs or major line upgrades, migration to a more current GE motion platform — such as the PACSystems RX3i with DSM314 — may offer expanded axis count and enhanced energy reporting capabilities. Our team can advise on compatibility and migration scope based on your existing Series 90-30 configuration.

Q4: What testing and warranty coverage is included with the IC693DSM302? Every IC693DSM302 unit is functionally tested under operational conditions prior to shipment, verifying axis command response, encoder feedback processing, and fault detection circuits. The module is covered by a 12-Month Warranty from the date of purchase, covering defects in materials and workmanship. In-stock units are available for immediate dispatch, supporting urgent maintenance requirements and minimizing production downtime.
