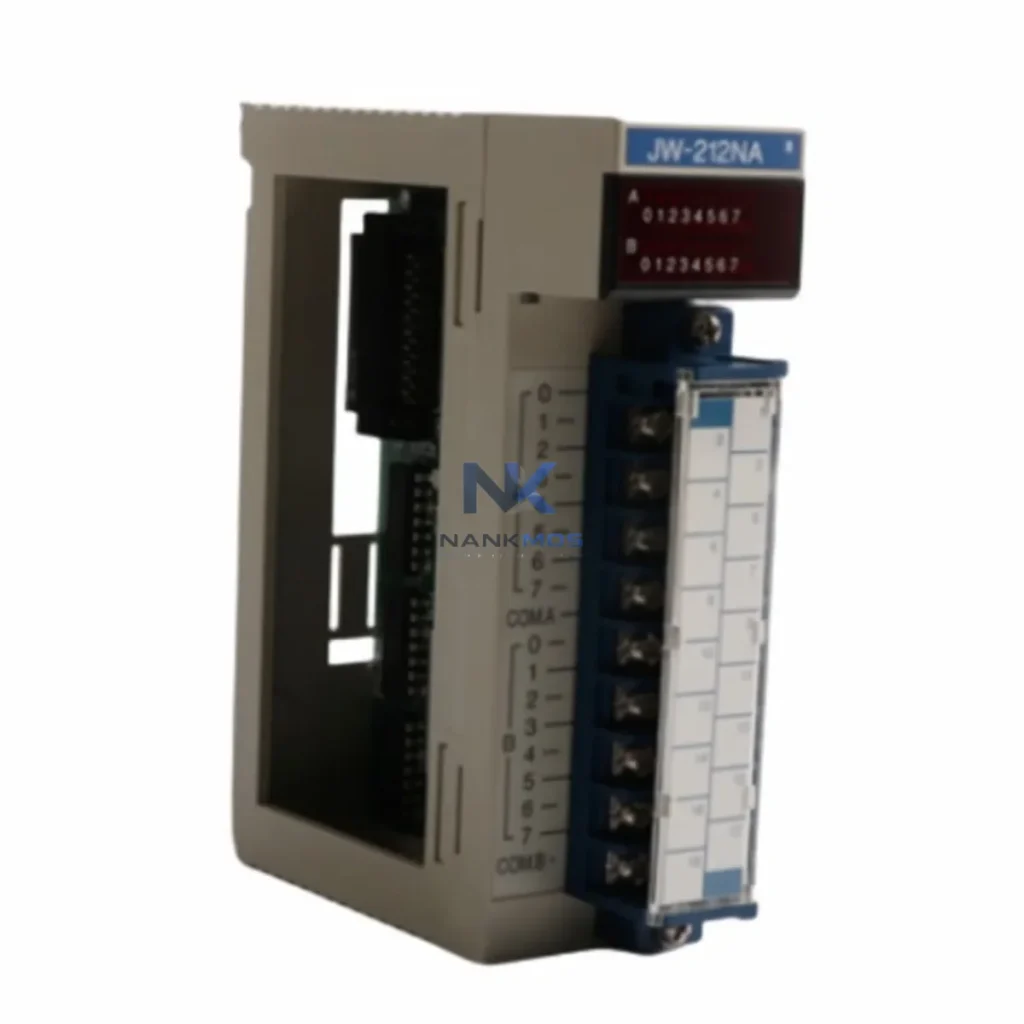

Sharp JW-212NA DC Input Module

Product Details

JW-212NA Product Description

The Sharp JW-212NA is a precision DC input module engineered for the JW Series programmable controller platform, delivering reliable digital signal acquisition at the field device layer of modern industrial networks. Designed for demanding manufacturing environments, the JW-212NA serves as a critical data entry point in the automation data chain — capturing discrete signals from sensors, proximity switches, push-button stations, and field instruments, then transmitting structured digital data upstream to the JW Series CPU for real-time processing, logic execution, and system-wide coordination.

In smart factory architectures, the integrity of field-level data acquisition directly determines the quality of every downstream decision — from PLC ladder logic execution to SCADA alarm management and MES production reporting. The JW-212NA addresses this requirement with stable DC input performance, deterministic scan-cycle response, and seamless integration within the JW Series backplane ecosystem, ensuring that signal data flows without interruption from the plant floor to the control room.

The JW-212NA occupies the signal acquisition layer of a multi-tier industrial data architecture. Field devices — including inductive proximity sensors, photoelectric sensors, limit switches, and digital output transmitters — connect directly to the JW-212NA terminal block, delivering discrete ON/OFF state data into the JW Series I/O bus. The module's backplane interface transfers this data to the JW Series CPU (such as the JW-21MN or JW-22MN) within each scan cycle, enabling the controller to execute ladder logic, update output coils, and trigger downstream actions in real time.

At the network communication layer, the JW Series CPU aggregates input data from multiple I/O modules — including the JW-212NA for DC inputs and companion modules such as the JW-222NA for DC outputs — and exposes this data through its serial communication ports. Industrial gateways and protocol converters then bridge the JW Series proprietary bus to standard industrial Ethernet protocols such as Modbus TCP, PROFINET, or EtherNet/IP, enabling upstream SCADA systems, HMI panels, and MES platforms to access real-time field data without direct hardware modification to the PLC rack.

In distributed automation sites, the JW-212NA supports I/O expansion across multiple racks, allowing engineers to scale digital input capacity as production lines grow. Remote I/O configurations — where JW Series expansion racks are installed close to field devices and connected to the main CPU rack via the JW Series I/O link — reduce field wiring costs and improve signal integrity over long cable runs. This architecture is particularly effective in assembly lines, conveyor systems, and process control panels where sensor density is high and cabinet space is limited.

For SCADA and HMI integration, the JW Series CPU communicates with supervisory platforms via RS-232C or RS-485 serial links, using the JW Series computer link protocol or third-party Modbus RTU drivers. HMI panels — including Sharp's own JW Series-compatible display units or third-party panels from leading automation vendors — read input register values sourced from the JW-212NA in real time, displaying machine state, cycle counts, fault indicators, and production metrics on operator screens. This data path from field sensor through JW-212NA to HMI display forms the foundational visibility layer of any smart factory deployment.

Edge computing nodes and industrial IoT gateways installed at the panel level can subscribe to JW Series CPU data via serial or Ethernet bridges, forwarding time-stamped input state records to cloud analytics platforms or on-premise data historians. This enables long-term trend analysis, predictive maintenance modeling, and OEE (Overall Equipment Effectiveness) calculation based on actual field signal data captured by modules like the JW-212NA — connecting the physical production environment to digital factory intelligence systems.

Protocol Fragmentation: Many legacy automation sites operate mixed-protocol environments where JW Series PLCs coexist with newer Siemens S7, Mitsubishi MELSEC, or Omron CJ Series controllers. The JW-212NA, as part of the JW Series I/O platform, integrates cleanly within its native protocol domain while industrial gateways handle cross-protocol translation at the network boundary — eliminating data silos between legacy and modern control systems without requiring full PLC replacement.

Data Islands and Production Transparency: When field signals remain trapped within a PLC's local I/O scan and are never surfaced to SCADA or MES, production managers lose visibility into machine state, cycle times, and fault events. The JW-212NA, connected to the JW Series CPU's communication interface, ensures that every discrete input state is available for upstream data collection — enabling production dashboards, shift reports, and real-time OEE monitoring that transform isolated machine data into actionable factory intelligence.

Remote Monitoring and Alarm Tracking: In multi-site or geographically distributed manufacturing operations, remote access to PLC I/O data is essential for rapid fault diagnosis. By routing JW Series CPU data through industrial Ethernet gateways to remote SCADA servers or cloud monitoring platforms, maintenance engineers can view the real-time state of JW-212NA input channels from any location — identifying sensor failures, wiring faults, or process anomalies without dispatching on-site personnel for initial diagnosis.

System Expansion Without Disruption: As production capacity grows, the JW Series I/O expansion architecture allows additional JW-212NA modules to be added to existing racks or new expansion racks to be connected to the main CPU — scaling digital input capacity incrementally without modifying existing wiring or reprogramming the base control logic. This modular expansion model protects the initial automation investment while accommodating future production requirements.

Q1: What communication protocols does the JW-212NA support for SCADA integration? The JW-212NA is a DC input module that communicates via the JW Series proprietary backplane bus to the JW Series CPU. The CPU then exposes field data — including input states from the JW-212NA — to SCADA systems via RS-232C or RS-485 serial links using the JW Series computer link protocol or Modbus RTU. For Ethernet-based SCADA integration, an industrial protocol gateway bridges the serial CPU port to Modbus TCP or EtherNet/IP networks.

Q2: How does the JW-212NA perform in high-noise industrial environments, and what is its network stability? The JW-212NA is designed for industrial-grade operation with DC input filtering to suppress electrical noise from motor drives, variable frequency drives (VFDs), and switching power supplies commonly found in manufacturing environments. Its backplane bus communication is deterministic and scan-cycle synchronized, ensuring stable, repeatable data transfer to the JW Series CPU without packet loss or communication timeouts that can affect Ethernet-based field devices.

Q3: Can the JW-212NA be used in remote I/O configurations for distributed factory layouts? Yes. The JW Series platform supports I/O expansion racks that can be installed remotely from the main CPU rack using the JW Series I/O link. The JW-212NA can be installed in these remote expansion racks, allowing digital input signals from distributed field devices to be collected locally and transmitted to the main CPU over the I/O link — reducing long-distance field wiring and improving signal integrity in large-footprint production facilities.

Q4: What warranty and pre-shipment testing does the JW-212NA include? Every JW-212NA unit supplied by NANKMOS is covered by a 12-month warranty and undergoes functional testing prior to shipment. In-stock units are available for immediate dispatch to support urgent project timelines and unplanned maintenance requirements. For procurement inquiries, technical compatibility verification, or volume orders, contact NANKMOS directly at [email protected] or +86 18359268345.
