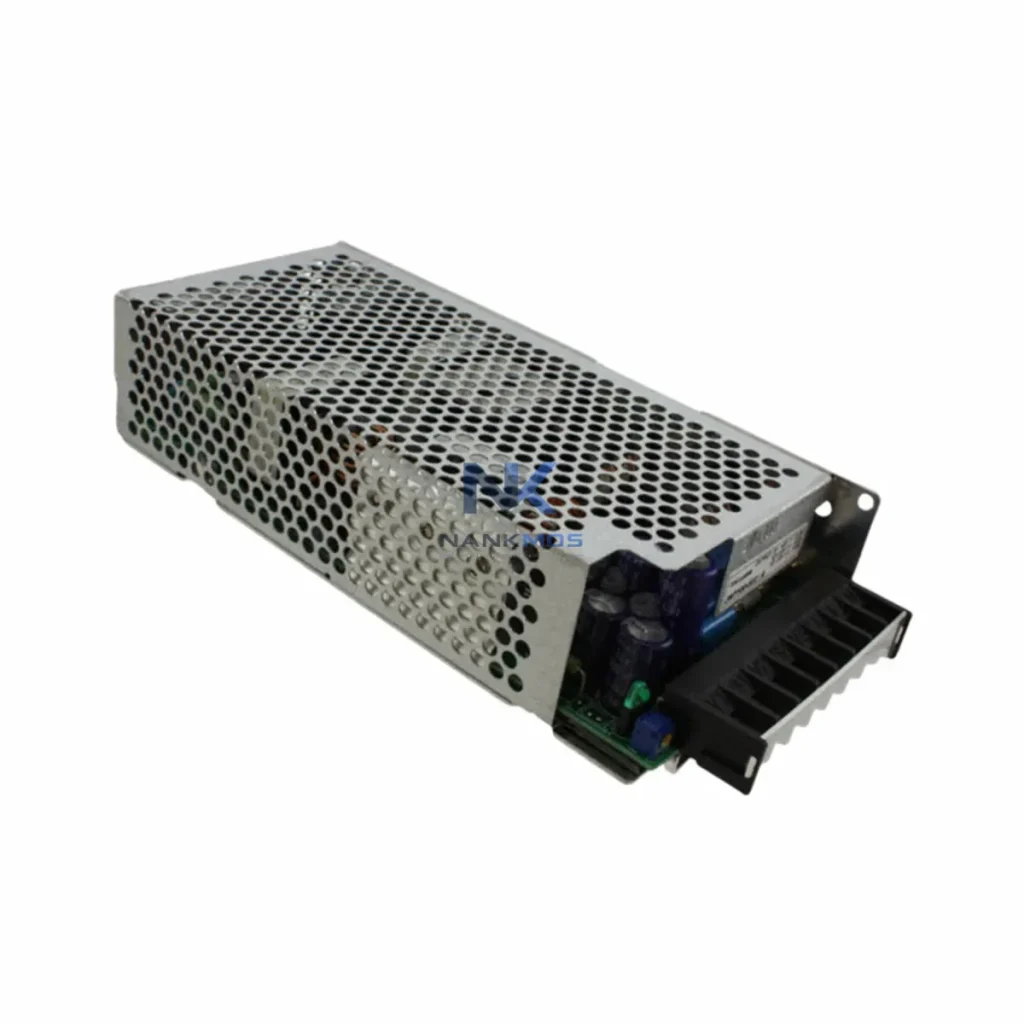

TDK-Lambda JWT100-522/B JWT100522B Power Supply Module

Product Details

JWT100-522/B JWT100522B Product Description

The TDK-Lambda JWT100-522/B is a high-efficiency, multi-output AC-DC power supply engineered for energy-conscious industrial automation environments. Rated at 100W total output with dual regulated DC rails, this JWT series unit delivers stable, low-ripple power to control panels, PLC racks, servo amplifier auxiliary circuits, and distributed I/O nodes — making it a cornerstone component in any power-aware automation strategy. Designed and manufactured in Japan to TDK-Lambda's exacting quality standards, the JWT100-522/B combines compact DIN-rail form factor with robust thermal management, enabling continuous operation in demanding factory environments without excessive heat dissipation or energy waste.

In modern smart production lines, unregulated or inefficient power distribution is one of the most overlooked sources of energy loss. The JWT100-522/B addresses this directly: its high power-conversion efficiency minimises resistive losses, reduces thermal load on control cabinets, and lowers the aggregate energy draw of the automation layer — contributing measurably to facility-wide energy KPIs and carbon reduction targets.

The JWT100-522/B is rarely deployed in isolation. In a typical smart factory control architecture, it supplies regulated DC power to a Mitsubishi Electric MELSEC Q-series PLC CPU rack, where it supports the logic controller and communication bus simultaneously. Alongside it, a Siemens SITOP PSU100S may handle 24 V DC distribution for field devices, while the JWT100-522/B covers the ±15 V analogue rails required by signal-conditioning modules and precision sensor interfaces.

On servo and drive systems, the JWT100-522/B provides clean auxiliary power to the control boards of Yaskawa Σ-7 series servo drives and Omron G5 servo amplifiers, ensuring that encoder feedback circuits and safety relay logic remain stable even during main bus voltage fluctuations. This separation of control power from main drive power is a recognised best practice for reducing electromagnetic interference and protecting sensitive motion-control electronics.

For energy monitoring integration, the JWT100-522/B can power the acquisition front-end of Schneider Electric PowerLogic PM5000 series power meters and Carlo Gavazzi EM24 energy analysers, which feed real-time kWh, power factor, and demand data into the plant SCADA system. When paired with a Moxa NPort 5000 series serial device server or a Beckhoff EL6001 RS-232 terminal, these energy meters communicate seamlessly over Modbus RTU or Modbus TCP, enabling the SCADA historian to log consumption trends and trigger load-shedding routines automatically.

In distributed I/O architectures, the JWT100-522/B supplies power to Phoenix Contact Axioline F I/O modules and Wago 750-series fieldbus couplers, both of which aggregate digital and analogue signals from field sensors — including temperature transmitters, pressure transducers, and current transformers — before forwarding structured data to the PLC over PROFIBUS DP or EtherNet/IP. Stable, low-ripple supply voltage is critical here: voltage sag or ripple on the I/O bus can cause spurious input transitions, leading to false alarms, unplanned stops, and wasted energy from unnecessary restart cycles.

At the HMI layer, the JWT100-522/B supports Weintek cMT series HMI panels and Proface GP4000 series operator terminals, which display real-time energy dashboards, production OEE metrics, and alarm histories. Operators can monitor per-zone power consumption and adjust setpoints directly from the HMI, closing the loop between energy data and production decisions without requiring a separate engineering workstation.

Reducing energy consumption on a production line is not solely a matter of selecting efficient motors or variable-frequency drives — it requires a stable, efficient power infrastructure at every layer of the control hierarchy. The JWT100-522/B contributes to this goal in several concrete ways.

Reduced thermal load: The JWT series switching topology dissipates significantly less heat than equivalent linear power supplies. In a densely populated control cabinet, lower heat generation means reduced demands on cabinet cooling systems — fans run less frequently, air conditioning setpoints can be raised, and the overall thermal budget of the panel is improved. This translates directly into lower auxiliary energy consumption and extended component lifespans.

Stable production rhythm: Voltage instability at the control layer is a leading cause of nuisance trips and unplanned micro-stoppages. By delivering tightly regulated output voltages with low ripple and fast transient response, the JWT100-522/B ensures that PLC scan cycles, servo position loops, and communication bus timing remain consistent — preserving the production line's designed cycle time and preventing the energy waste associated with restart sequences and scrap generation.

Predictive maintenance readiness: The JWT100-522/B's built-in output voltage monitoring and alarm output (where fitted) can be wired to a PLC digital input, enabling the control system to detect power supply degradation before it causes a line stoppage. This supports condition-based maintenance strategies, reducing both unplanned downtime and the energy penalty of emergency restarts.

Load management: In multi-zone production lines, the JWT100-522/B can be deployed per control zone, allowing zone-level power isolation during scheduled idle periods. When a zone is not in production, its JWT100-522/B can be de-energised via a controlled relay, eliminating standby losses from downstream I/O modules, sensors, and communication interfaces — a simple but effective load management technique that compounds across a large facility.

All units supplied by NANKMOS are sourced from authorised distribution channels, undergo outgoing inspection and functional testing prior to dispatch, and are covered by a 12-Month Warranty. In-stock units ship within 1–3 business days, minimising production line downtime caused by component shortages.

Q1: How does the JWT100-522/B contribute to measurable energy savings on a production line? The JWT100-522/B's high-efficiency switching design reduces conversion losses compared to linear power supplies of equivalent output rating. Lower losses mean less heat generated inside the control cabinet, reducing the load on cabinet cooling systems and lowering total facility energy consumption. When deployed across multiple control zones, the cumulative efficiency gain is significant and can be quantified via the plant energy management system.

Q2: Is the JWT100-522/B compatible with my existing PLC and drive systems? Yes. The JWT100-522/B provides standard regulated DC output voltages compatible with the auxiliary power requirements of most major PLC platforms (Mitsubishi, Siemens, Omron, Rockwell) and servo drive control boards (Yaskawa, Panasonic, Delta). Its universal AC input (85–264 V AC) ensures compatibility with both 100 V and 200 V AC supply systems without modification.

Q3: What is the recommended replacement or upgrade path if my current power supply is failing? The JWT100-522/B is a direct form-factor replacement for earlier JWT series units and is dimensionally compatible with standard DIN-rail mounting arrangements. If upgrading from a lower-efficiency predecessor, no wiring changes are typically required beyond verifying output voltage and current ratings against the load. NANKMOS technical support can assist with cross-reference verification prior to ordering.

Q4: What does the 12-Month Warranty cover, and what is the testing process before shipment? All JWT100-522/B units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failure under normal operating conditions. Prior to dispatch, each unit undergoes outgoing functional testing including output voltage verification, load regulation check, and visual inspection. Units that do not meet specification are quarantined and not shipped. In the event of a warranty claim, NANKMOS provides replacement or repair support with minimal lead time to reduce production impact.
