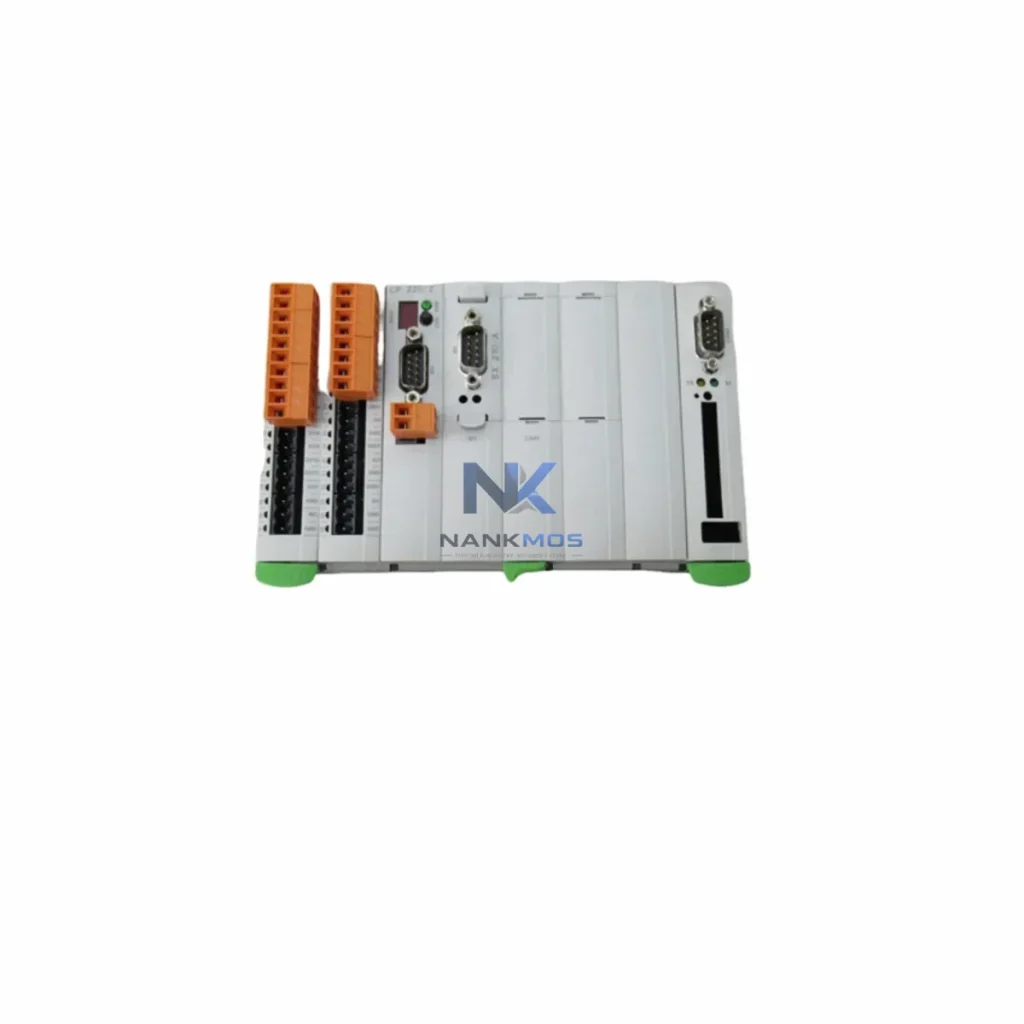

KEBA K2-200 Programmable Controller

Product Details

K2-200 Product Description

The KEBA K2-200 is engineered as the central intelligence node within the KeMotion automation platform, a tightly integrated ecosystem where every layer — from power supply to field device — is designed to operate in coordinated synchrony. Understanding the K2-200's role requires viewing it not as a standalone controller, but as the architectural anchor that binds together the control, I/O, communication, HMI, and drive layers into a unified, deterministic system.

At the control layer, the K2-200 executes IEC 61131-3 compliant logic and motion programs with real-time determinism, managing multi-axis interpolation and coordinated motion sequences that are essential in robotic assembly, CNC machining, and precision handling applications. Its EtherCAT master capability enables sub-millisecond cycle synchronisation across all connected slave devices, ensuring that axis commands, I/O updates, and safety signals are processed within a single deterministic scan cycle.

The I/O layer is extended through KEBA's modular EtherCAT I/O terminals and KeMotion I/O bus modules, which connect directly to the K2-200's fieldbus backbone. Digital input modules, analog output modules, and thermocouple acquisition modules can be added incrementally without architectural redesign, supporting scalable machine configurations from compact single-axis systems to complex multi-station production lines. This modularity is a core advantage of the KeMotion platform — the K2-200 accommodates expansion without requiring a controller upgrade.

At the drive layer, the K2-200 interfaces natively with KEBA's KeMotion servo drives and inverter units via EtherCAT, enabling closed-loop position, velocity, and torque control with high-resolution encoder feedback. The tight coupling between the K2-200 and the drive layer eliminates the latency and jitter that would otherwise arise from cross-vendor communication stacks, resulting in smoother motion profiles, reduced settling times, and improved path accuracy in multi-axis applications.

The communication layer is equally well-considered. The K2-200 supports PROFINET and CANopen in addition to EtherCAT, allowing it to integrate into broader plant networks where SCADA systems, MES platforms, and OPC-UA data aggregators require structured data exchange. This multi-protocol capability means the K2-200 can serve as both a machine controller and a data source within Industry 4.0 architectures, feeding real-time production metrics upward to supervisory systems without requiring additional gateway hardware.

At the HMI layer, the K2-200 pairs with KEBA's KeTop and CP series operator panels, which provide touch-based visualisation, parameter adjustment, and diagnostic access directly at the machine. The shared data model between the K2-200 and the HMI eliminates the need for manual variable mapping, reducing commissioning time and the risk of configuration errors. Operators gain immediate visibility into axis states, alarm histories, and production counters through a consistent interface that mirrors the controller's internal data structures.

Safety integration is handled through KEBA's certified safety modules, which connect to the K2-200 via the KeMotion safety bus. Emergency stop circuits, safety door monitoring, two-hand control, and speed monitoring functions are managed within the same architectural framework as the standard control logic, simplifying the safety validation process and reducing the documentation burden during CE marking and functional safety assessments.

For power distribution, the KeMotion system relies on KEBA's regulated 24 V DC power supply modules, which provide stable, filtered power to the K2-200 and its associated I/O and communication modules. Proper power architecture — including redundant supply configurations for critical applications — ensures that the K2-200 maintains operational continuity even under transient load conditions or single-point supply failures.

Long-term maintenance efficiency is a defining characteristic of the KeMotion platform. The K2-200 supports online diagnostics, firmware updates, and project backup/restore functions that allow maintenance engineers to perform corrective and preventive actions without extended machine downtime. Spare part availability, supported by NANKMOS's global sourcing network, ensures that replacement units can be sourced and validated within the 12-Month Warranty period and beyond, protecting the customer's capital investment in the KeMotion architecture.

The KEBA K2-200 finds application across a broad spectrum of industrial sectors where precision motion control, deterministic communication, and modular architecture are non-negotiable requirements.

In manufacturing and assembly automation, the K2-200 manages multi-axis robotic arms, gantry systems, and servo-driven pick-and-place units on automotive and electronics production lines. Its coordinated motion capability ensures that complex assembly sequences — involving simultaneous linear, rotary, and interpolated movements — are executed with the repeatability and speed that modern manufacturing demands.

In packaging and material handling, the K2-200 controls servo-driven conveyor systems, filling stations, labelling units, and palletising robots. The controller's ability to synchronise multiple axes in real time allows packaging lines to maintain precise product spacing, fill volumes, and label registration across variable product formats without manual retooling.

In CNC machining and woodworking, the K2-200's multi-axis interpolation engine supports 3- to 5-axis machining centres, plasma cutting tables, and router systems. The controller's high-resolution position feedback processing and short cycle times translate directly into improved surface finish quality and dimensional accuracy.

In process control and energy management, the K2-200's PROFINET and OPC-UA connectivity allows it to participate in plant-wide energy monitoring architectures, where real-time consumption data from drives, motors, and auxiliary systems is aggregated and analysed to identify efficiency improvement opportunities.

In special-purpose machinery for the medical device, semiconductor, and precision optics industries, the K2-200's deterministic control and low-jitter EtherCAT communication support the ultra-precise motion profiles required for wafer handling, lens grinding, and catheter assembly applications.

Q1: Is the KEBA K2-200 compatible with third-party EtherCAT slave devices, and how does this affect system architecture design? The K2-200 operates as a standard EtherCAT master and is compatible with any EtherCAT slave device that conforms to the ETG (EtherCAT Technology Group) standard. This includes third-party I/O terminals, servo drives, encoders, and safety modules from vendors such as Beckhoff, Omron, and Kollmorgen. When integrating third-party slaves, the ESI (EtherCAT Slave Information) file for each device must be imported into the KeMotion engineering environment to enable correct process data mapping. NANKMOS recommends validating third-party device compatibility during the commissioning phase and maintaining a tested spare unit on-site to minimise downtime risk. All K2-200 units supplied by NANKMOS are covered by a 12-Month Warranty, providing assurance during the integration and validation period.

Q2: What redundancy options are available for the K2-200 in high-availability control architectures? The KeMotion platform supports redundancy at the power supply level through dual 24 V DC supply configurations with diode-ORing modules, ensuring that a single PSU failure does not interrupt controller operation. At the communication level, EtherCAT's cable redundancy mode — where the network is wired in a ring topology — allows the K2-200 to maintain full fieldbus communication even if a single cable segment is severed. For applications requiring controller-level redundancy, KEBA's architecture supports hot-standby configurations in conjunction with appropriate system design. NANKMOS maintains in-stock inventory of K2-200 units and associated KeMotion modules to support rapid replacement in the event of hardware failure, backed by the standard 12-Month Warranty.
