Trio Motion Technology MC405 P826 Motion Controller

Product Details

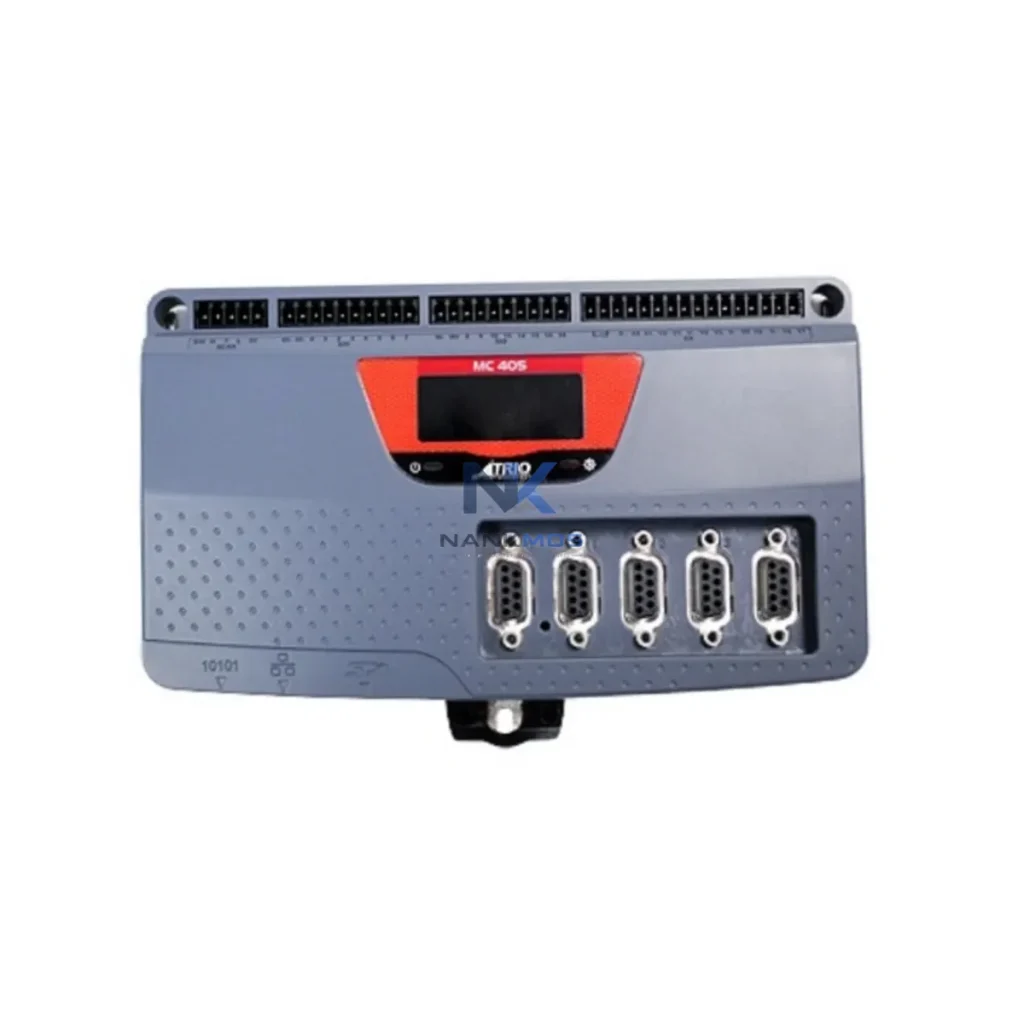

MC405 P826 Product Description

The TRIO MC405/P826 is a high-performance EtherCAT-based motion controller engineered for seamless integration across the full industrial data chain — from field-level sensors and servo drives to PLC controllers, SCADA platforms, and enterprise MES systems. Designed by Trio Motion Technology, the MC405/P826 delivers deterministic real-time communication, multi-axis coordinated motion, and robust network connectivity that forms the backbone of modern smart factory architectures.

In today's connected manufacturing environment, the ability to move data reliably from the machine level to the supervisory level is not optional — it is the foundation of operational transparency. The MC405/P826 addresses this need by combining EtherCAT high-speed fieldbus communication with flexible I/O expansion, enabling engineers to build tightly synchronized automation cells that feed live process data into SCADA dashboards, HMI panels, and cloud-based analytics platforms without latency or data loss.

The MC405/P826 sits at the heart of a layered smart factory data architecture. At the field level, it communicates directly with EtherCAT-compatible servo drives and stepper drives — such as the Trio Flex+ servo drive family — using a single EtherCAT cable that carries both motion commands and encoder feedback with sub-millisecond synchronization. This eliminates the traditional wiring complexity of analog ±10V command signals and pulse-direction interfaces, replacing them with a single deterministic digital bus.

Upstream from the drives, the MC405/P826 connects to distributed remote I/O modules — including EtherCAT I/O slices compatible with Beckhoff EK1100 coupler infrastructure — to aggregate digital and analog signals from proximity sensors, photoelectric sensors, pressure transducers, and temperature transmitters across the production line. These signals are processed in real time by the MC405 motion engine, which executes coordinated multi-axis cam profiles, electronic gearing, and interpolated path following without relying on an external PLC scan cycle.

For sites that operate mixed-protocol environments, the MC405/P826 can be paired with a Moxa MGate MB3270 or similar Modbus-to-EtherCAT gateway to bridge legacy Modbus RTU devices — such as older variable frequency drives (VFDs), flow meters, and energy analyzers — into the EtherCAT network. This protocol conversion layer ensures that no field device is left as a data island, and all process variables are visible to the supervisory layer.

At the SCADA and HMI level, the MC405/P826 exposes its internal registers and axis status variables via Modbus TCP, allowing Ignition SCADA, Wonderware InTouch, or Siemens WinCC to poll live position, velocity, torque, and alarm data at configurable update rates. Operators viewing a Weintek MT8000 or Proface GP4000 HMI panel can monitor axis states, trigger motion programs, and acknowledge faults without requiring a separate PLC intermediary — the MC405/P826 handles both motion execution and communication server functions simultaneously.

For edge computing and IIoT integration, the MC405/P826 can feed data to an industrial edge gateway — such as an Advantech WISE-5000 series or a Moxa UC-8100 edge computer — which aggregates data from multiple MC405 controllers across a production floor and publishes structured JSON payloads to MQTT brokers or OPC-UA servers. This enables cloud-based dashboards in platforms like Microsoft Azure IoT Hub or AWS IoT Greengrass to display real-time KPIs, OEE metrics, and predictive maintenance alerts derived from actual axis performance data.

Industrial managed switches — such as the Hirschmann SPIDER series or Moxa EDS-400 series — provide the network backbone that connects MC405 controllers, remote I/O nodes, HMI panels, and edge gateways within a VLAN-segmented industrial Ethernet topology. Redundant ring configurations using RSTP or MRP protocols ensure that a single cable fault does not interrupt production, maintaining the continuous data flow that smart factory transparency depends on.

Protocol Fragmentation: Many automation sites operate a mix of EtherCAT servo systems, Modbus RTU legacy instruments, and CANopen safety modules. The MC405/P826 addresses this by acting as a native EtherCAT master while simultaneously serving Modbus TCP data to SCADA clients — eliminating the need for a separate protocol converter in many single-controller applications.

Data Silos and Production Transparency: When motion controllers operate in isolation without network connectivity, production managers have no visibility into cycle times, reject rates, or axis health trends. The MC405/P826 breaks down these silos by making all internal motion variables — position error, following error, program state, I/O status — available as Modbus registers that any SCADA or MES system can read continuously.

Remote Monitoring and Diagnostics: Maintenance engineers can connect to the MC405/P826 remotely via the Trio Motion Motion Perfect software over a standard TCP/IP network, inspect live axis oscilloscope traces, review program execution logs, and upload corrected motion programs — all without requiring physical access to the control cabinet. This capability dramatically reduces mean time to repair (MTTR) for motion-related faults.

Alarm Tracking and Escalation: The MC405/P826 generates structured fault codes for following errors, drive faults, communication timeouts, and program exceptions. These fault codes can be mapped to SCADA alarm tables, enabling automatic SMS or email notifications to maintenance teams when critical thresholds are exceeded — closing the loop between machine-level events and human response.

System Scalability: As production capacity grows, additional EtherCAT axes and I/O nodes can be added to the MC405/P826 network without rewiring the control cabinet. The EtherCAT topology supports hot-connect segments in some configurations, and the MC405 programming environment allows modular motion program libraries to be reused across multiple machine variants — reducing engineering time for new production lines.

Q1: What is the communication cycle time of the MC405/P826 EtherCAT network, and does latency affect motion synchronization? The MC405/P826 operates with an EtherCAT cycle time configurable from 250 µs to 4 ms depending on axis count and I/O node density. At 1 ms cycle time with up to 8 axes, jitter is typically below 1 µs, which is sufficient for high-precision coordinated motion applications including electronic cam, flying shear, and registration control. Communication latency does not affect motion synchronization because EtherCAT uses distributed clocks (DC) to align all nodes to a common time reference.

Q2: Is the MC405/P826 compatible with third-party EtherCAT drives and I/O modules from other manufacturers? Yes. The MC405/P826 implements the EtherCAT master stack conforming to IEC 61158 and supports standard CoE (CANopen over EtherCAT) device profiles. It is compatible with EtherCAT-compliant servo drives, stepper drives, and I/O modules from manufacturers including Beckhoff, Omron, Panasonic, and Delta, provided the device ESI (EtherCAT Slave Information) file is imported into the Motion Perfect configuration tool.

Q3: How does the MC405/P826 support remote diagnostics and what network infrastructure is required? Remote diagnostics are performed via the Trio Motion Perfect software connecting over standard TCP/IP Ethernet. No dedicated remote access hardware is required beyond a managed industrial switch with appropriate VLAN and firewall rules. Engineers can view live axis data, oscilloscope traces, and program variables from any networked PC. For WAN-based remote access, a VPN router or industrial cellular gateway provides secure connectivity without exposing the controller directly to the internet.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing performed? Every MC405/P826 unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Pre-shipment testing includes power-on verification, EtherCAT communication link test, I/O channel continuity check, and firmware version confirmation. Units that fail any test criterion are quarantined and not shipped. Warranty coverage includes repair or replacement for manufacturing defects and component failures under normal operating conditions. For warranty claims or technical support, contact [email protected].
