PHOENIX CONTACT MINI MCR-SL-RPS-I-I 2864422

Product Details

MINI MCR-SL-RPS-I-I 2864422 Product Description

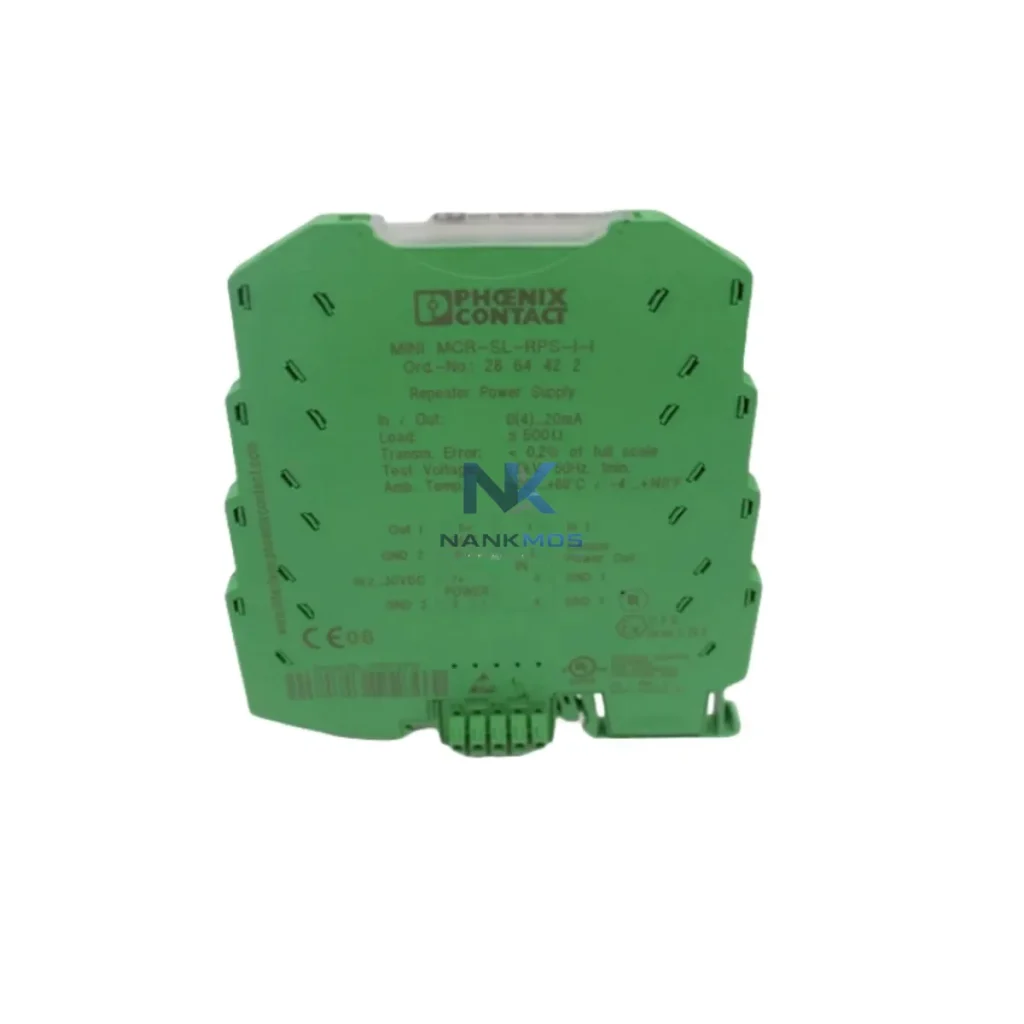

The Phoenix Contact MINI MCR-SL-RPS-I-I 2864422 is a compact DIN-rail-mounted repeater power supply engineered for high-integrity analog signal conditioning across industrial automation networks. Designed within the trusted MINI MCR-SL series, this module delivers galvanically isolated 4–20 mA loop power and signal repetition, enabling reliable data transmission between field instruments, PLC input cards, remote I/O stations, and SCADA systems — even across long cable runs or electrically noisy environments.

In modern smart factory architectures, the integrity of analog signal chains is foundational. From pressure transmitters and flow sensors on the production floor to distributed control nodes and centralized HMI dashboards, every data point must arrive accurately and without interference. The MINI MCR-SL-RPS-I-I 2864422 sits at the heart of this chain, ensuring that 4–20 mA signals sourced from field devices are cleanly repeated, galvanically isolated, and delivered to downstream automation components without ground loops or common-mode noise distortion.

In a fully connected smart factory, the MINI MCR-SL-RPS-I-I 2864422 functions as a critical signal integrity node within the analog data acquisition layer. Consider a typical process automation scenario: a pressure transmitter or temperature sensor on the production line generates a 4–20 mA signal representing a real-time process variable. This signal must travel through junction boxes, cable trays, and marshalling panels before reaching a PLC analog input module — such as a Phoenix Contact AXL F AI4 I EF or a Siemens S7-300 SM 331 analog input card. Over long cable distances or in environments with variable-frequency drives (VFDs) and motor starters generating electromagnetic interference, signal degradation is a real risk.

The MINI MCR-SL-RPS-I-I 2864422 intercepts this signal path, providing galvanic isolation and clean signal repetition. It powers passive two-wire transmitters via its loop supply function, eliminating the need for separate field power supplies. The repeated, isolated output is then fed cleanly into the PLC or remote I/O system — for example, a Phoenix Contact Axioline F remote I/O station or a Wago 750-series analog input module — where it is digitized and forwarded via PROFIBUS DP, PROFINET, or Modbus TCP to the plant SCADA or DCS platform.

At the SCADA layer — whether running on a Siemens WinCC, Ignition by Inductive Automation, or Wonderware System Platform — operators receive clean, accurate process values for real-time monitoring, trend analysis, and alarm management. The absence of ground loops and common-mode noise, ensured by the MINI MCR-SL-RPS-I-I 2864422's 3-way galvanic isolation, directly reduces nuisance alarms and false readings that would otherwise compromise production decisions.

For distributed architectures involving edge gateways — such as a Phoenix Contact FL mGuard industrial security router or a Moxa MGate protocol gateway — the clean analog signals conditioned by the MINI MCR-SL-RPS-I-I 2864422 can be further digitized and forwarded to cloud-based MES or ERP platforms via OPC-UA or MQTT. This enables full data visibility from field sensor to enterprise dashboard, supporting predictive maintenance, OEE tracking, and energy monitoring across the smart factory.

In panel-building applications, the MINI MCR-SL-RPS-I-I 2864422 is frequently installed alongside Phoenix Contact MINI MCR-SL-UI-UI universal signal conditioners and MINI MCR-SL-PT100 temperature converters, forming a complete signal conditioning rail within marshalling cabinets. Its compact DIN-rail footprint and plug-in terminal design simplify installation and future maintenance, reducing panel wiring time and supporting rapid commissioning on new production lines.

Protocol Inconsistency: Many brownfield plants operate mixed analog and digital signal environments. The MINI MCR-SL-RPS-I-I 2864422 bridges passive two-wire transmitters into active 4–20 mA loops compatible with modern PLC and remote I/O analog input cards, eliminating signal incompatibility without requiring field device replacement.

Data Islands and Signal Isolation: Ground potential differences between field cabinets and control rooms are a persistent source of measurement error. The 3-way galvanic isolation of the MINI MCR-SL-RPS-I-I 2864422 breaks ground loops completely, ensuring that each analog channel delivers an independent, accurate signal — critical for multi-loop process control and safety instrumented systems.

Remote Monitoring and Production Transparency: By ensuring signal integrity at the field level, the MINI MCR-SL-RPS-I-I 2864422 supports reliable data acquisition for SCADA and HMI systems. Operators gain accurate, real-time process visibility across distributed production sites, enabling proactive alarm response and reducing unplanned downtime.

Alarm Tracking and System Expansion: Clean, isolated analog signals reduce nuisance alarms caused by electrical noise. As production lines expand, additional MINI MCR-SL-RPS-I-I 2864422 modules can be added to the DIN rail without rewiring existing infrastructure, supporting scalable system growth with minimal engineering effort.

Pre-Shipment Testing and Inventory Assurance: Every MINI MCR-SL-RPS-I-I 2864422 unit supplied by NANKMOS undergoes pre-shipment functional testing to verify signal isolation, loop power output, and transmission accuracy. In-stock availability ensures rapid deployment for maintenance replacements, panel upgrades, and new project commissioning.

Q1: Is the MINI MCR-SL-RPS-I-I 2864422 compatible with HART communication?A: The MINI MCR-SL-RPS-I-I 2864422 is designed for 4–20 mA analog signal repetition and isolation. Its signal path is transparent to superimposed HART signals in many installations, though HART pass-through performance should be verified against the specific transmitter and host system configuration. For dedicated HART multiplexer applications, Phoenix Contact offers complementary HART interface modules within the MINI MCR-SL series.

Q2: Can this module power passive two-wire transmitters directly?A: Yes. The MINI MCR-SL-RPS-I-I 2864422 includes a loop power supply function that energizes passive two-wire (current loop) transmitters, eliminating the need for a separate field power supply. This simplifies wiring and reduces panel component count in distributed I/O installations.

Q3: How does galvanic isolation improve network stability in smart factory environments?A: In industrial environments with variable-frequency drives, motor starters, and long cable runs, ground potential differences between equipment can introduce common-mode noise into analog signal loops. The 3-way galvanic isolation of the MINI MCR-SL-RPS-I-I 2864422 breaks these ground loops, preventing noise from corrupting process values and reducing false alarms in SCADA and DCS systems.

Q4: What warranty and supply assurance does NANKMOS provide for this module?A: NANKMOS supplies the Phoenix Contact MINI MCR-SL-RPS-I-I 2864422 with a 12-month warranty covering manufacturing defects and functional performance. All units are pre-shipment tested and held in verified in-stock inventory, supporting rapid delivery for maintenance, panel build, and new project requirements.
