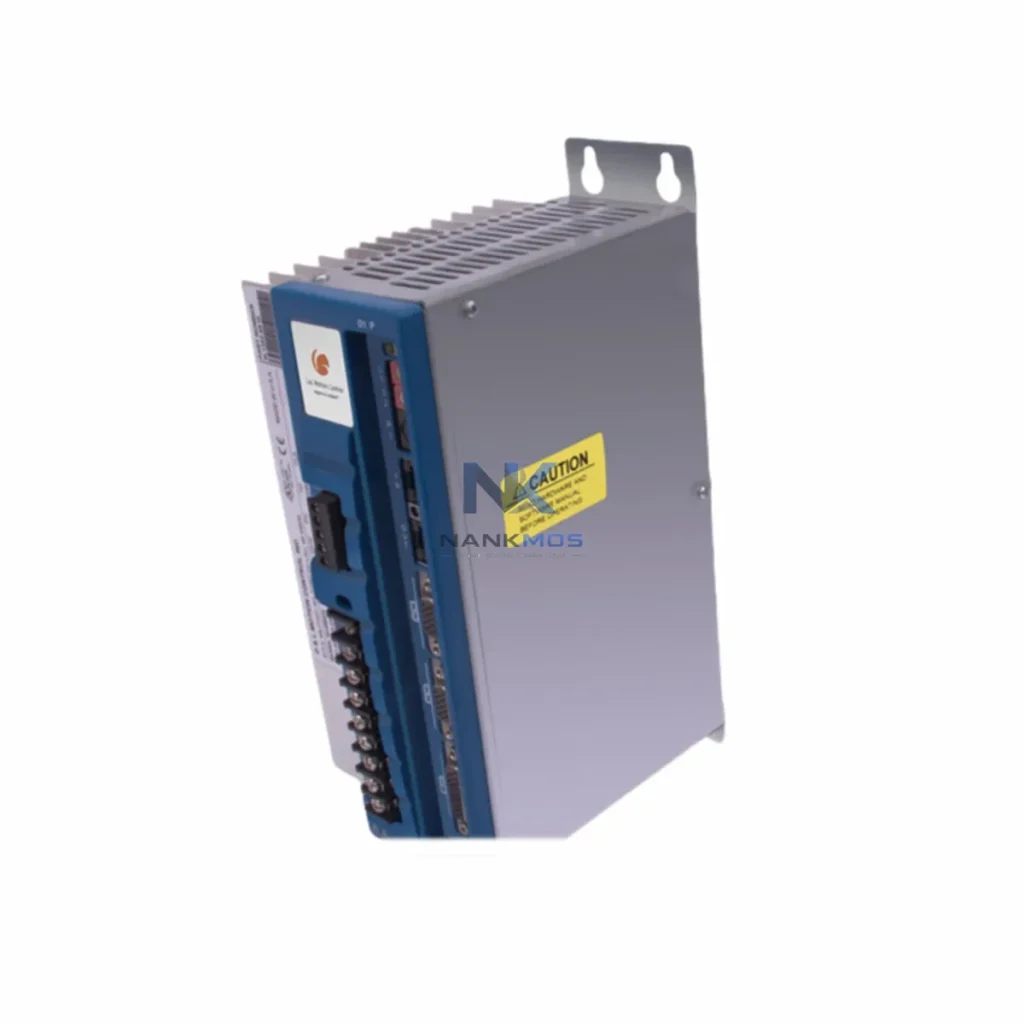

Rexroth MMC-SD-1.0-230-DN CNC Motion Controller

Product Details

MMC-SD-1.0-230-DN Product Description

The Rexroth MMC-SD-1.0-230-DN is a high-performance CNC motion controller engineered for energy-conscious industrial environments. As part of Rexroth's proven MMC (Multi-Media Card) Series, this controller delivers precise multi-axis coordination while actively contributing to energy reduction strategies across smart production lines. Operating at 230V AC input with DeviceNet (DN) fieldbus integration, the MMC-SD-1.0-230-DN is purpose-built for factories seeking to reduce idle-state power consumption, optimize drive utilization, and maintain consistent production throughput without sacrificing motion accuracy.

In a modern smart factory, energy efficiency is not a post-process consideration — it is embedded into the control architecture from the ground up. The Rexroth MMC-SD-1.0-230-DN serves as the central coordination node for multi-axis motion, interfacing directly with Rexroth IndraDrive C series servo drives to manage torque demand and regenerative braking energy recovery. When paired with the Rexroth HMI IndraControl VEP series operator panels, production engineers gain real-time visibility into axis load profiles, enabling proactive adjustments that prevent energy spikes during high-inertia acceleration phases.

The DeviceNet fieldbus backbone of the MMC-SD-1.0-230-DN allows seamless integration with distributed I/O modules such as the Rexroth Inline I/O system, enabling granular control over peripheral device activation. Rather than keeping all field devices energized throughout a shift, the controller can sequence device wake-up and shutdown in alignment with the production recipe, dramatically reducing parasitic loads. This strategy is further enhanced when the MMC-SD-1.0-230-DN operates alongside Rexroth IndraDyn servo motors, whose low-loss winding designs complement the controller's drive-enable scheduling to minimize copper and iron losses during low-demand intervals.

For facilities running PROFIBUS DP networks alongside DeviceNet segments, the MMC-SD-1.0-230-DN supports gateway configurations that allow it to communicate with legacy Siemens SIMATIC S7 PLCs or Schneider Electric Modicon M340 controllers, preserving existing infrastructure investments while introducing energy-aware motion sequencing. Power monitoring modules — such as dedicated energy measurement units installed on the main distribution panel — can feed consumption data back to the SCADA layer, where the MMC-SD-1.0-230-DN's cycle data is correlated against kWh readings to identify inefficient motion profiles. This closed-loop energy feedback architecture is a cornerstone of ISO 50001-aligned manufacturing operations.

Production line energy waste typically originates from three sources: unnecessary axis motion during idle periods, excessive drive heating from poorly tuned current loops, and uncoordinated startup sequences that cause demand spikes on the facility power grid. The Rexroth MMC-SD-1.0-230-DN addresses all three through its integrated motion program scheduler, adaptive feedrate override, and drive-enable sequencing logic.

By executing pre-programmed energy-saving routines during scheduled downtime windows — such as shift changes or material replenishment stops — the controller can place connected IndraDrive units into a low-power standby state, reducing thermal output and extending drive IGBT service life. This directly lowers the cooling load on the electrical cabinet, reducing HVAC energy consumption in the production area. Thermal load reduction is particularly significant in high-density automation cells where multiple servo axes operate in close proximity.

The MMC-SD-1.0-230-DN also supports adaptive production pacing. When upstream sensors — such as photoelectric presence detectors or vision system triggers — signal a reduced part flow rate, the controller can automatically scale axis velocities and acceleration ramps to match actual throughput demand rather than running at maximum rated speed. This velocity-demand matching reduces RMS current draw across all connected servo axes, lowering both energy consumption and mechanical wear simultaneously. The result is a measurable improvement in Overall Equipment Effectiveness (OEE) and a reduction in unplanned downtime caused by thermally-induced drive faults.

For facilities implementing predictive maintenance programs, the MMC-SD-1.0-230-DN's diagnostic data outputs — accessible via the DeviceNet network or through the IndraWorks engineering software — provide axis load history, following error trends, and drive temperature logs. These datasets feed directly into condition monitoring platforms, enabling maintenance teams to schedule interventions before failures occur, eliminating the energy and productivity losses associated with emergency stops and unplanned repairs. All units are supplied from verified inventory, subjected to outgoing functional testing, and covered by a 12-Month Warranty to ensure reliable deployment in critical production environments.

Q1: What measurable energy savings can the MMC-SD-1.0-230-DN deliver on a typical CNC production line? Actual savings depend on the existing baseline, but facilities implementing drive-enable sequencing and adaptive feedrate control through the MMC-SD-1.0-230-DN typically report 10–25% reductions in motion-system energy consumption during partial-load production periods. The greatest gains are observed in multi-axis cells where previously all axes remained energized regardless of active machining demand.

Q2: Is the MMC-SD-1.0-230-DN compatible with existing Rexroth IndraDrive and IndraMotion systems? Yes. The MMC-SD-1.0-230-DN is designed for native integration within the Rexroth IndraMotion MTX CNC platform and communicates with IndraDrive C and IndraDrive M series drives via SERCOS III or DeviceNet. It is also compatible with third-party drives and PLCs through standard DeviceNet and PROFIBUS DP gateway configurations, making it suitable for mixed-vendor automation environments.

Q3: What is the recommended replacement or upgrade path if the MMC-SD-1.0-230-DN is being retired from an existing system? For systems requiring a direct form-fit-function replacement, verify the firmware version and axis license count of the existing unit before sourcing a replacement. Rexroth's IndraMotion MTX platform supports backward-compatible parameter migration, allowing configuration files from the outgoing controller to be loaded onto the replacement unit with minimal re-commissioning effort. Contact our technical team for compatibility verification prior to ordering.

Q4: What does the 12-Month Warranty cover, and how is the unit tested before shipment? Every MMC-SD-1.0-230-DN unit undergoes functional verification testing prior to dispatch, including power-on self-test, communication interface validation, and axis enable/disable cycle checks. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. Units are available from verified stock with typical lead times confirmed at the time of order. Contact [email protected] or +86 18359268345 for stock availability and warranty claim procedures.
