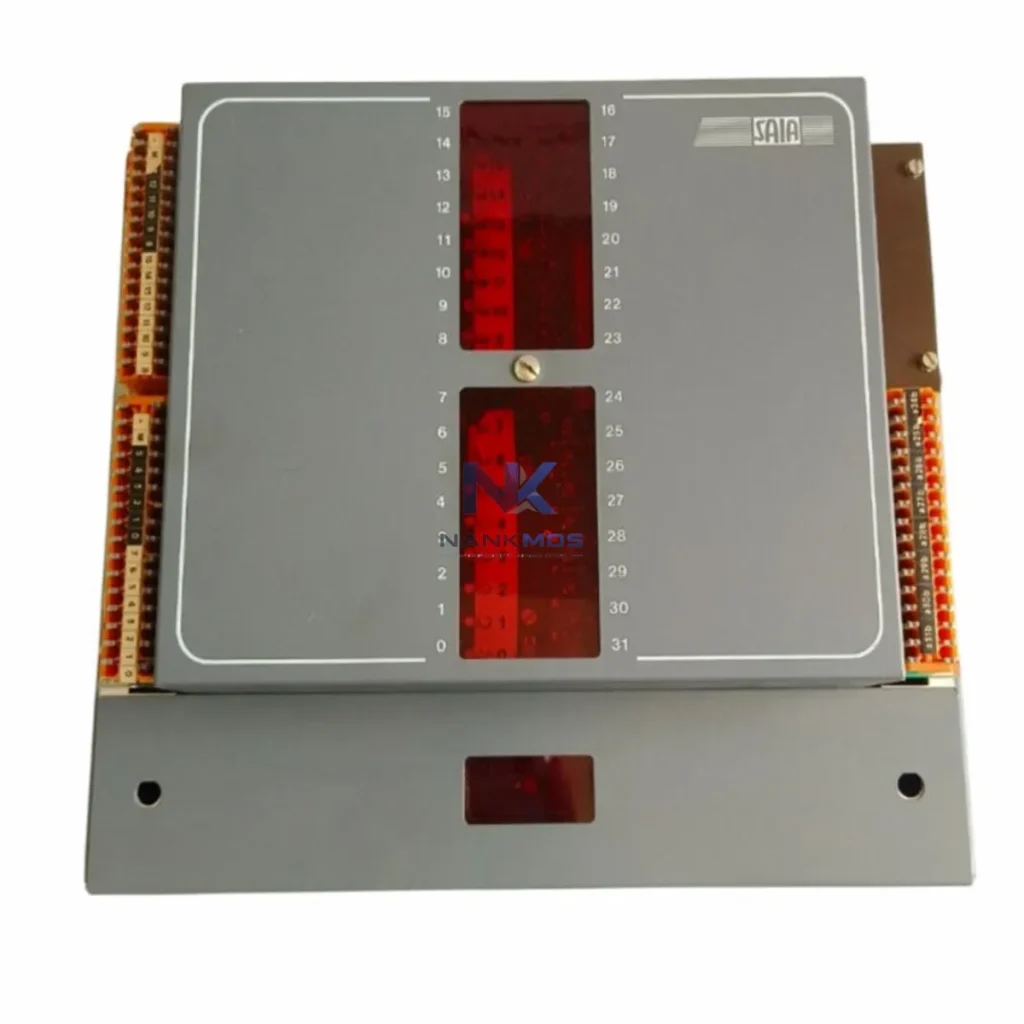

SAIA PCA1.M41M4 Processor Module

Product Details

PCA1.M41M4 Product Description

The SAIA PCA1.M41M4 is a high-performance processor module engineered for the SAIA PCD PCA1 control platform, delivering deterministic scan-cycle execution, robust I/O coordination, and seamless contextual integration across multi-layer industrial automation architectures. Designed for system integrators and OEM panel builders who demand consistent control performance, the PCA1.M41M4 serves as the computational backbone of distributed and centralized PLC deployments in demanding process and discrete manufacturing environments.

With its compact form factor, native backplane communication, and support for SAIA's S-Bus and Ether-S-Bus protocols, the PCA1.M41M4 enables tight coupling between the control layer, I/O layer, and communication layer — reducing latency, improving diagnostic transparency, and simplifying long-term maintenance workflows. Its architecture supports modular expansion, allowing engineers to scale I/O density and communication capability without redesigning the core control cabinet layout.

The PCA1.M41M4 CPU is most effective when deployed as part of a fully coordinated SAIA PCD PCA1 automation platform. In a complete control cabinet architecture, the CPU module operates in conjunction with the PCA1.W5 backplane rack, which provides the physical and electrical foundation for all installed modules. Power distribution is managed by a dedicated PCA1.N100 or PCA1.N200 power supply module, ensuring stable 24 VDC delivery to the CPU and all peripheral I/O cards under varying load conditions.

On the I/O layer, the PCA1.M41M4 coordinates with PCA1.E16x digital input modules and PCA1.A16x digital output modules for discrete signal acquisition and actuation. For analog process variables — temperature, pressure, flow — PCA1.B4x analog input modules feed real-time process data directly into the CPU's scan cycle, enabling closed-loop PID control without external signal conditioning hardware.

Communication integration is achieved through PCA1.F2x Ether-S-Bus communication modules or PCA1.F1x serial S-Bus interface cards, which extend the PCA1 platform's reach to remote I/O stations, SCADA systems, and HMI terminals. For operator interface, SAIA PCD7.D series HMI panels connect natively via Ether-S-Bus, providing real-time visualization of process variables, alarm management, and recipe handling without requiring third-party protocol converters.

In redundancy-critical applications, the PCA1.M41M4 can be paired with a PCA1.M4xR redundancy CPU module in a hot-standby configuration, ensuring zero-downtime switchover for continuous process industries. Terminal connectivity is standardized through SAIA PCA1 plug-in terminal blocks, which support tool-free wiring changes during maintenance cycles — a significant advantage in high-availability panel environments.

For drive integration, the PCA1.M41M4 communicates with SAIA frequency inverters or third-party drives via Modbus RTU over RS-485, enabling coordinated motor speed control within the same PG5 programming environment. Industrial Ethernet switches — such as the SAIA PCD7.T series managed switches — complete the network layer, providing VLAN segmentation and port mirroring for network diagnostics without disrupting live production traffic.

Manufacturing & Assembly Lines: The PCA1.M41M4 manages multi-axis sequencing, conveyor synchronization, and quality inspection triggers in automotive and electronics assembly plants. Its deterministic scan cycle ensures precise timing coordination between robotic end-effectors, vision systems, and reject mechanisms.

Power Distribution & Utilities: In medium-voltage switchgear panels and substation automation, the PCA1.M41M4 handles protection relay coordination, load shedding logic, and SCADA data aggregation via Ether-S-Bus. Its wide operating temperature range supports outdoor enclosure installations in utility environments.

Water & Wastewater Treatment: The CPU's analog I/O coordination capability makes it well-suited for pump station control, chemical dosing automation, and effluent monitoring in municipal water treatment facilities. Modbus TCP connectivity enables integration with existing SCADA infrastructure without gateway hardware.

Oil, Gas & Petrochemical: In hazardous area panel designs (with appropriate Ex-rated enclosures), the PCA1.M41M4 controls valve sequencing, compressor protection, and pipeline pressure management. Its redundancy-ready architecture supports SIL-aligned safety instrumented system designs.

Packaging & Material Handling: High-speed discrete I/O processing enables the PCA1.M41M4 to manage servo-driven packaging lines, palletizing robots, and barcode verification stations with sub-millisecond response times. Integration with SAIA HMI panels provides operators with real-time OEE dashboards and batch reporting.

Mining & Metallurgy: Robust construction and wide temperature tolerance allow deployment in ore processing plants, conveyor drive control panels, and smelter automation systems where vibration, dust, and thermal cycling are constant operational challenges.

Q1: Is the PCA1.M41M4 compatible with existing PCD PCA1 backplane racks and I/O modules already installed in my control cabinet? Yes. The PCA1.M41M4 is designed for native slot compatibility with the PCA1 backplane family. It integrates directly with PCA1.W5 and similar rack configurations, and communicates with all standard PCA1 digital and analog I/O modules via the internal backplane bus. No additional interface adapters are required for same-generation hardware. For mixed-generation deployments, verify firmware compatibility via SAIA PG5 project settings before commissioning.

Q2: What programming tools and communication protocols are supported for system commissioning and long-term maintenance? The PCA1.M41M4 is programmed using SAIA PG5, which supports all five IEC 61131-3 languages (IL, ST, FBD, LD, SFC). Online diagnostics, force tables, and data monitoring are available natively within PG5 without additional licensing. For SCADA integration, the module supports S-Bus, Ether-S-Bus, and Modbus RTU/TCP, enabling connection to most industrial SCADA and DCS platforms. Firmware updates are performed via PG5 or the onboard Ethernet port, minimizing downtime during maintenance windows.

Q3: What warranty and supply assurance does NANKMOS provide for the PCA1.M41M4? All PCA1.M41M4 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify CPU initialization, backplane communication, and I/O bus integrity. In-stock inventory is maintained to support urgent project timelines, with global shipping available. For volume procurement, long-term supply agreements and reserved stock arrangements are available — contact [email protected] or +86 18359268345 for details.
