VAT PM-6 650PM-24CG-ADK4 T208 , 722B11TCD2FA RAS16

Product Details

PM-6 650PM-24CG-ADK4 T208 , 722B11TCD2FA RAS16 Product Description

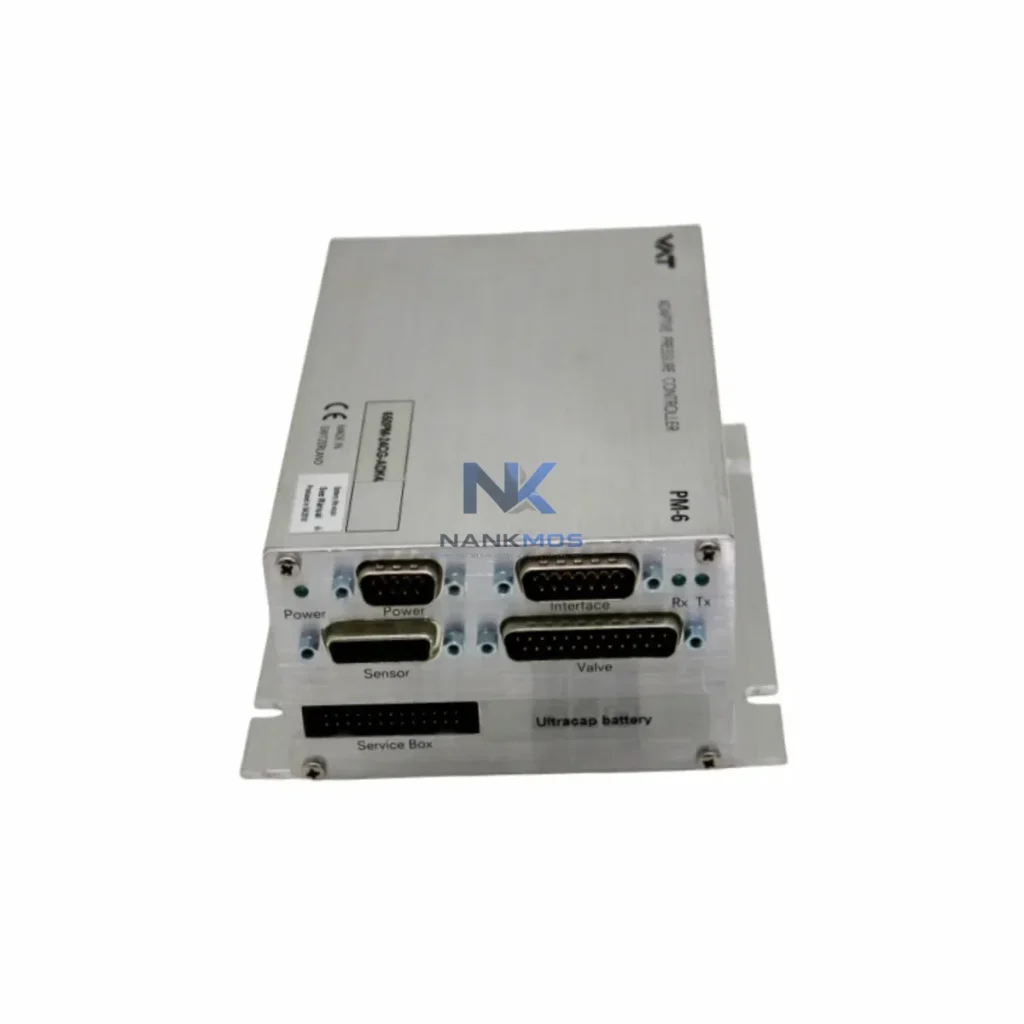

The VAT PM-6 650PM-24CG/ADK4/T208 (SKU: PM-6 650PM-24CG-ADK4 T208, 722B11TCD2FA RAS16) is a high-performance adaptive pressure controller from VAT's Series 650 platform, engineered for precision vacuum and pressure regulation in demanding industrial automation environments. With its integrated industrial network interface, this unit bridges the gap between field-level process instrumentation and upper-layer control systems — enabling real-time data exchange, remote diagnostics, and seamless SCADA/HMI integration across the full smart factory data chain.

In modern semiconductor fabrication, chemical processing, and precision manufacturing facilities, pressure control is no longer an isolated loop. The VAT PM-6 650PM-24CG/ADK4/T208 is designed to participate actively in the plant-wide data architecture — from signal acquisition at the process chamber, through protocol-standardized communication to the PLC controller layer, and onward to enterprise-level monitoring dashboards. This connectivity-first design philosophy makes it a natural fit for Industry 4.0 deployments where every field device must contribute to the digital twin and operational transparency of the production line.

The VAT PM-6 650PM-24CG/ADK4/T208 sits at the intersection of process control and industrial data networking. In a typical smart factory deployment, the data flow begins at the process chamber or vacuum system, where the Series 650 pendulum gate valve modulates pressure in real time. The PM-6 controller reads the capacitance manometer or Pirani gauge signal — often sourced from instruments such as the MKS Baratron 627D or Pfeiffer CMR 362 — and computes the adaptive control output to maintain the pressure setpoint with sub-millisecond response.

This process value, along with valve position, alarm status, and diagnostic data, is then transmitted upstream via the ADK4 PROFIBUS DP interface module to the plant's PLC controller layer. In Siemens TIA Portal environments, the VAT PM-6 integrates directly as a PROFIBUS slave device, allowing the Siemens S7-300 or S7-1500 PLC to read and write setpoints, trigger recipe changes, and monitor valve health — all within the same PLC program that manages the broader process sequence. For facilities running Modbus RTU backbones, the same ADK4 module supports RS-485 multi-drop topologies, enabling co-existence with Schneider Electric Modicon M340 or Rockwell Automation ControlLogix platforms without additional protocol converters.

At the network transport layer, the PROFIBUS DP signal is aggregated by an industrial managed switch — such as the Hirschmann RS20 or Moxa EDS-308 — which provides deterministic, noise-immune data delivery across the factory floor. These switches feed data to the SCADA gateway layer, where systems such as Wonderware InTouch or Ignition by Inductive Automation collect, historize, and visualize the pressure control data alongside other process variables. Operators at the HMI station — typically a Siemens TP1200 Comfort Panel or equivalent — can view real-time pressure trends, acknowledge alarms, and adjust setpoints without leaving the control room.

For facilities adopting edge computing architectures, the VAT PM-6 data stream can be routed through an industrial edge gateway — such as the Moxa UC-8112 or Advantech WISE-5000 — which pre-processes the data locally and publishes it to cloud platforms via MQTT or OPC-UA. This enables predictive maintenance algorithms to analyze valve wear patterns, pressure drift trends, and communication latency anomalies before they escalate into unplanned downtime. Remote I/O modules, such as the Beckhoff EL6731 PROFIBUS master terminal, can further extend the network reach to distributed process points without running dedicated fieldbus cables to each instrument.

The result is a fully connected pressure control node that contributes live, structured data to every layer of the smart factory stack — from the field device through the control network, to the SCADA historian, and ultimately to the enterprise MES or ERP system. The VAT PM-6 650PM-24CG/ADK4/T208 is not simply a valve controller; it is a data-generating asset in the industrial IoT ecosystem.

Many industrial facilities face persistent challenges when integrating legacy pressure control equipment into modern, networked automation architectures. The VAT PM-6 650PM-24CG/ADK4/T208 directly addresses the most common pain points encountered by automation engineers and plant managers:

Protocol Fragmentation: Sites running mixed PROFIBUS and Modbus environments often struggle with data silos where pressure controllers cannot communicate with the dominant PLC platform. The ADK4 interface module on the VAT PM-6 supports both PROFIBUS DP and Modbus RTU, eliminating the need for standalone protocol converters and reducing network complexity. A single VAT PM-6 unit can serve as a native node on either bus topology, ensuring that pressure data reaches the control system without translation latency or data loss.

Remote Monitoring Gaps: In multi-chamber semiconductor or coating systems, operators historically had to walk the production floor to check valve status and pressure readings. With the VAT PM-6's network interface active, all process values, valve positions, and fault codes are continuously available at the SCADA workstation and HMI panel. Alarm events are time-stamped and logged automatically, enabling root-cause analysis of pressure excursions without relying on operator memory or paper logs.

Production Line Transparency: The VAT PM-6 supports recipe-based setpoint management via the PLC, allowing process engineers to define and store multiple pressure profiles for different product runs. When a recipe is activated at the MES level, the setpoint is pushed automatically to the PM-6 controller, eliminating manual entry errors and ensuring process repeatability across shifts and operators.

System Scalability: As production capacity expands, additional VAT Series 650 valves and PM-6 controllers can be added to the PROFIBUS segment without redesigning the network architecture. The PROFIBUS DP standard supports up to 126 addressable nodes per segment, providing ample headroom for future expansion. Combined with managed industrial switches and redundant network paths, the VAT PM-6 scales gracefully from single-chamber pilot lines to full-scale multi-tool production environments.

Q1: What communication protocols does the VAT PM-6 650PM-24CG/ADK4/T208 support, and is it compatible with my existing PLC platform? The VAT PM-6 with ADK4 interface module supports PROFIBUS DP and Modbus RTU over RS-485. It is compatible with Siemens S7 series, Schneider Modicon, Rockwell ControlLogix, and other major PLC platforms that support these standard industrial protocols. GSD files for PROFIBUS configuration are available for TIA Portal and Step 7 integration.

Q2: How does the VAT PM-6 handle communication latency and network stability in high-cycle production environments? PROFIBUS DP operates at up to 12 Mbit/s with deterministic cycle times, typically achieving sub-10ms update rates for process values and setpoints. The VAT PM-6 ADK4 module is designed for continuous industrial duty, with built-in watchdog functions that revert the valve to a safe position if network communication is interrupted — ensuring process safety even during network faults.

Q3: Can the VAT PM-6 be integrated into a SCADA or HMI system for remote diagnostics and alarm management? Yes. Via the PROFIBUS DP or Modbus RTU interface, all process values, valve status, error codes, and diagnostic data are accessible to SCADA platforms such as Wonderware, Ignition, WinCC, and iFIX. Alarm thresholds can be configured at the SCADA level, and historical data logging enables trend analysis and predictive maintenance workflows without any additional hardware.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the VAT PM-6 650PM-24CG/ADK4/T208? All VAT PM-6 650PM-24CG/ADK4/T208 units supplied by NANKMOS carry a 12-month warranty from the date of shipment. Each unit undergoes a full functional test — including pressure control loop verification and network communication test via the ADK4 interface — before dispatch. Verified inventory is maintained for rapid order fulfillment, with global shipping available. For procurement inquiries, contact [email protected] or +86 18359268345.
