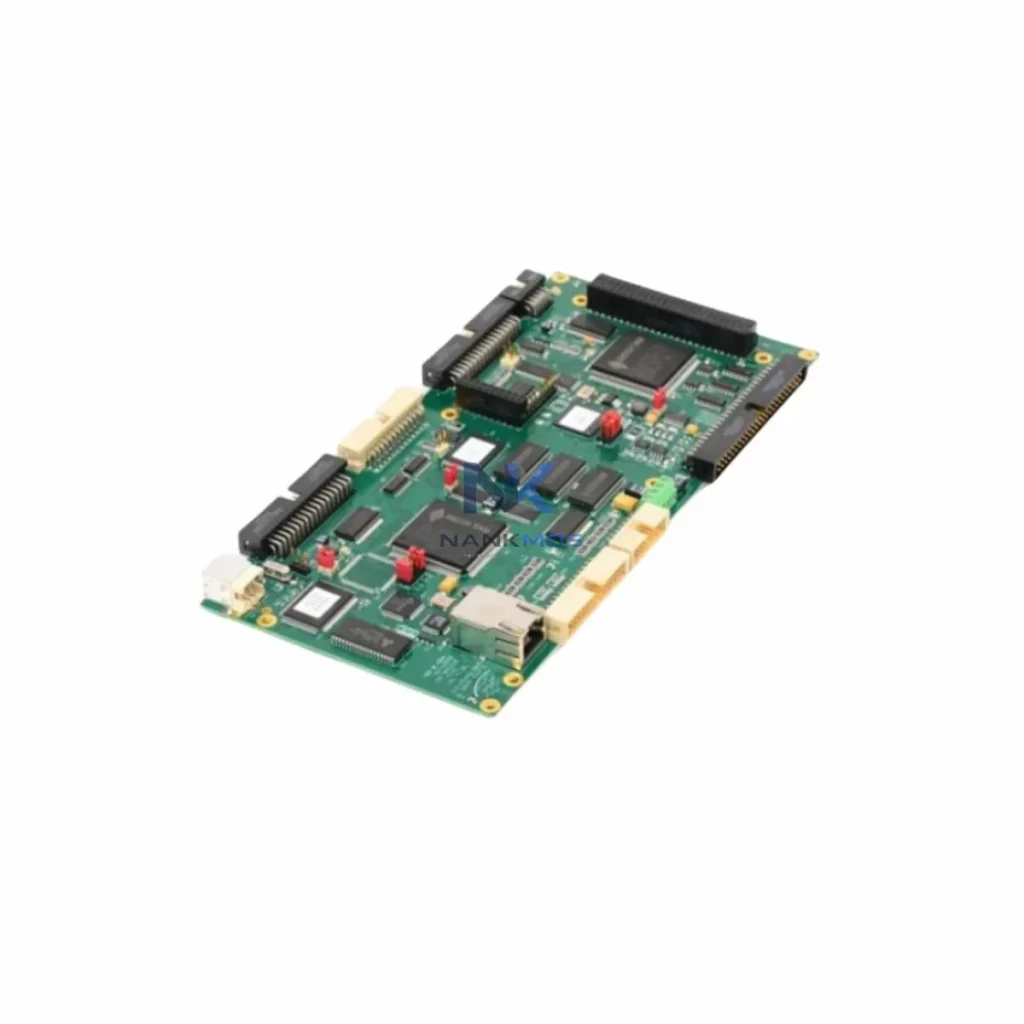

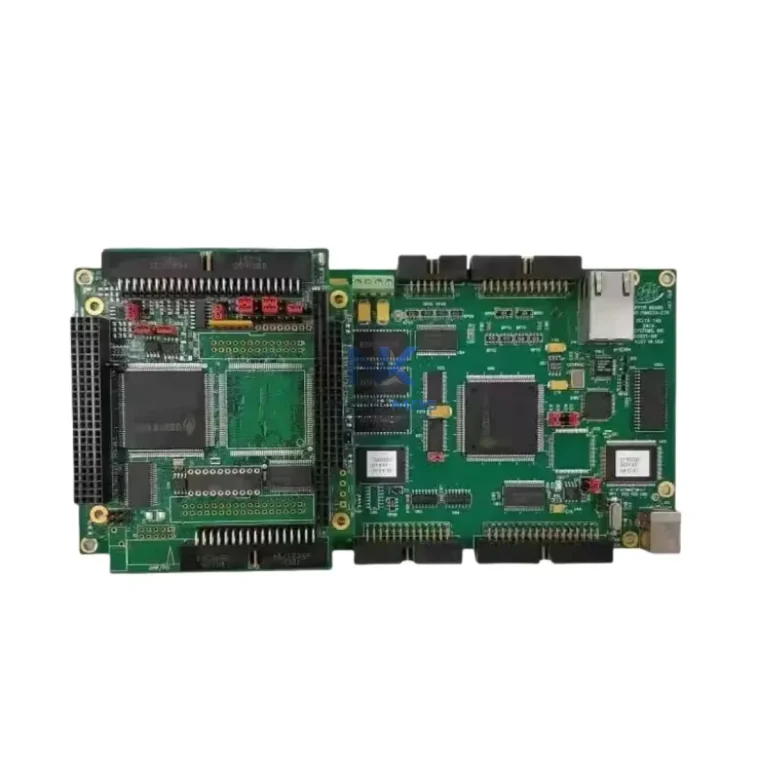

Delta Tau PMAC2A-ETH Ethernet Motion Controller

Product Details

PMAC2A-ETH Product Description

The Delta Tau PMAC2A-ETH is a high-performance Ethernet motion controller designed to bridge the gap between advanced multi-axis motion systems and modern industrial data networks. Built on the proven PMAC2A architecture, the PMAC2A-ETH integrates TCP/IP Ethernet communication directly into the motion control layer, enabling seamless data exchange between servo drives, CNC controllers, robotic actuators, and upper-level SCADA or MES platforms. In smart factory environments where real-time data visibility and remote diagnostics are no longer optional, the PMAC2A-ETH delivers the network-linked intelligence that modern automation sites demand.

In a fully connected smart factory, the PMAC2A-ETH operates as the critical Ethernet gateway between the motion control layer and the plant-wide data infrastructure. At the field level, servo drives and encoder feedback modules feed real-time position, velocity, and torque data into the PMAC2A controller core. The PMAC2A-ETH then transmits this motion data over a standard TCP/IP Ethernet backbone — the same network that carries signals from Delta Tau PMAC2A-PC104 expansion boards, remote I/O modules, and distributed sensor arrays.

Upstream, industrial Ethernet switches — such as managed Layer 2 switches supporting IEEE 802.3 — route the PMAC2A-ETH data packets to HMI panels and SCADA servers without latency bottlenecks. Operators monitoring a Wonderware InTouch or Ignition SCADA platform can view live axis positions, program execution states, and fault registers directly from the PMAC2A-ETH's network interface. This eliminates the need for dedicated serial communication converters or proprietary fieldbus adapters that historically isolated motion controllers from plant-level data systems.

For multi-machine production lines, the PMAC2A-ETH integrates alongside Delta Tau Turbo PMAC2 controllers and PMAC2A-PC host interface cards, forming a coordinated motion network where each axis group reports status to a central MES database. Edge computing gateways — positioned between the Ethernet switch and the cloud historian — can buffer PMAC2A-ETH data streams during network interruptions, ensuring no motion event or alarm record is lost. This architecture supports the Delta Tau PMAC2A Clipper and PMAC2A Ultralite variants operating in parallel cells, all sharing the same Ethernet segment and SCADA namespace.

At the power and signal conditioning layer, industrial DIN-rail power supplies provide stable 24 VDC to the PMAC2A-ETH and its associated I/O expansion racks. Proximity sensors, linear encoders, and analog transducers connected to Delta Tau ACC-24E2 or ACC-28E accessory boards feed raw process signals into the PMAC2A motion engine, which the PMAC2A-ETH then makes available to remote diagnostic tools over the network. This complete signal chain — from physical sensor to cloud dashboard — is what defines the PMAC2A-ETH's role as a smart factory data link, not merely a motion controller.

Many industrial sites still operate motion controllers in isolation — no network visibility, no remote access, and no structured alarm history. The PMAC2A-ETH directly addresses these data gaps by converting the PMAC2A's internal motion bus into a standard TCP/IP data stream that any SCADA, MES, or OPC-UA server can consume.

Protocol fragmentation is one of the most common integration barriers on automation floors. Legacy PMAC2A systems often relied on RS-232 or proprietary parallel interfaces that could not communicate with modern Ethernet-based control networks. The PMAC2A-ETH resolves this by providing a native Ethernet port that speaks TCP/IP — the universal language of industrial data networks — without requiring protocol converters or middleware gateways.

Data silos between motion controllers and production management systems are eliminated when the PMAC2A-ETH is deployed. Real-time axis data, program counters, and fault codes become accessible to plant-level dashboards, enabling production managers to track OEE metrics, cycle times, and downtime events without manual data entry or post-shift reporting delays.

Remote monitoring and diagnostics become practical with the PMAC2A-ETH's Ethernet connectivity. Maintenance engineers can connect to the PMAC2A controller from a remote workstation or VPN-secured laptop, upload new motion programs, read diagnostic registers, and clear fault conditions — all without physical access to the machine cabinet. This capability is especially valuable for multi-site manufacturers and OEM machine builders who need to support installed equipment across geographically distributed facilities.

Production line transparency improves significantly when PMAC2A-ETH data is integrated into a unified SCADA namespace. Alarm events generated by the motion controller — following errors, limit switch trips, amplifier faults — are timestamped and logged to a central historian, enabling root-cause analysis and predictive maintenance scheduling. System expansion is equally straightforward: additional PMAC2A-ETH nodes can be added to the Ethernet network without rewiring, supporting phased capacity increases as production demands grow.

Q1: What communication protocol does the PMAC2A-ETH use, and is it compatible with standard industrial networks? The PMAC2A-ETH uses TCP/IP over standard 10/100 Mbps Ethernet, making it fully compatible with industrial LAN infrastructure, managed Ethernet switches, and VPN-secured remote access systems. No proprietary network hardware is required.

Q2: Can the PMAC2A-ETH integrate with SCADA and HMI systems from third-party vendors? Yes. Because the PMAC2A-ETH communicates over TCP/IP, it can exchange data with SCADA platforms such as Ignition, Wonderware, and FactoryTalk, as well as HMI panels that support Ethernet-based data acquisition. OPC server middleware can be used to bridge PMAC2A-ETH data into OPC-DA or OPC-UA namespaces for broader system integration.

Q3: How does the PMAC2A-ETH support remote diagnostics and what network latency should be expected? The PMAC2A-ETH supports remote diagnostics via standard TCP/IP connections, allowing engineers to read controller registers, monitor axis states, and upload programs remotely. On a well-managed industrial LAN, communication latency is typically under 5 ms, which is sufficient for diagnostic and supervisory tasks. Real-time motion control commands should be issued locally for latency-sensitive applications.

Q4: What warranty coverage is included, and has the unit been tested before shipment? Every PMAC2A-ETH unit supplied by NANKMOS includes a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes outgoing quality inspection and functional verification before shipment, ensuring that the Ethernet interface, motion control core, and I/O connections meet Delta Tau's original performance specifications.
