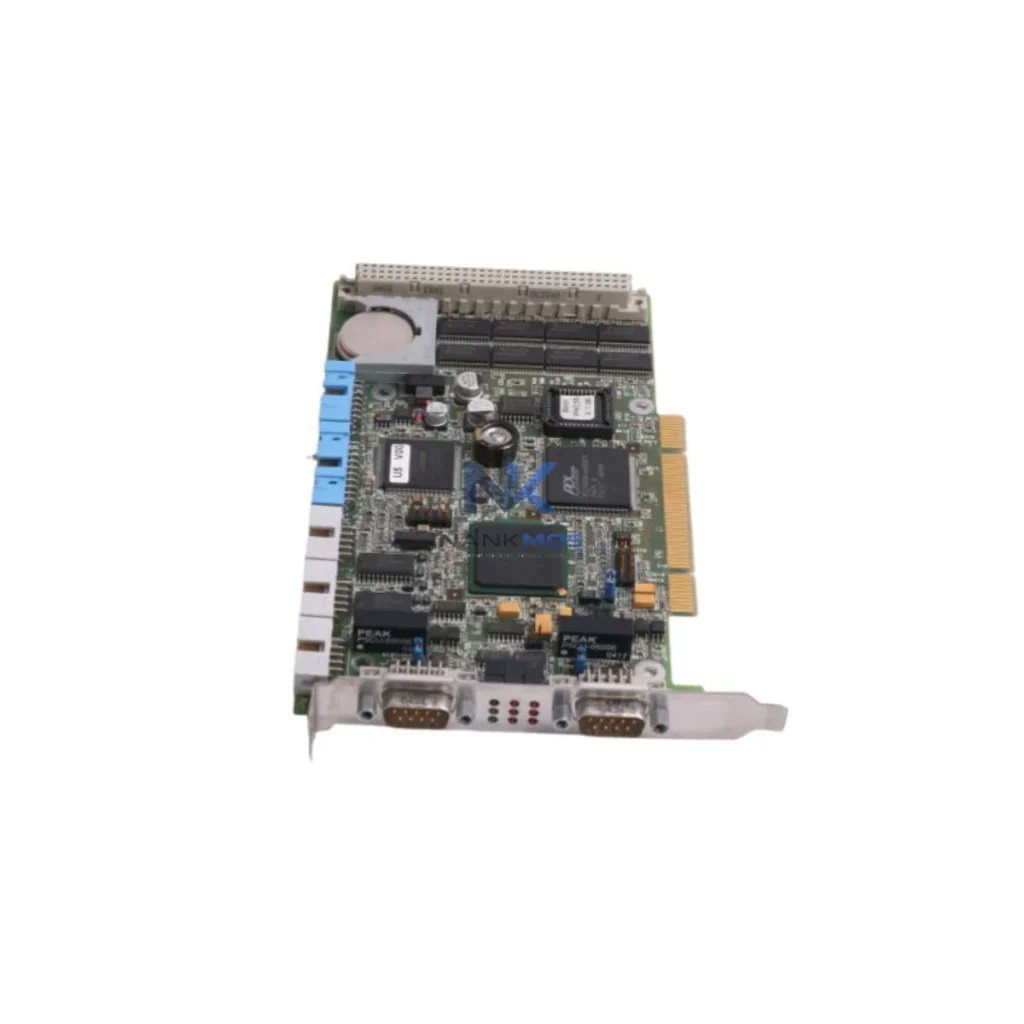

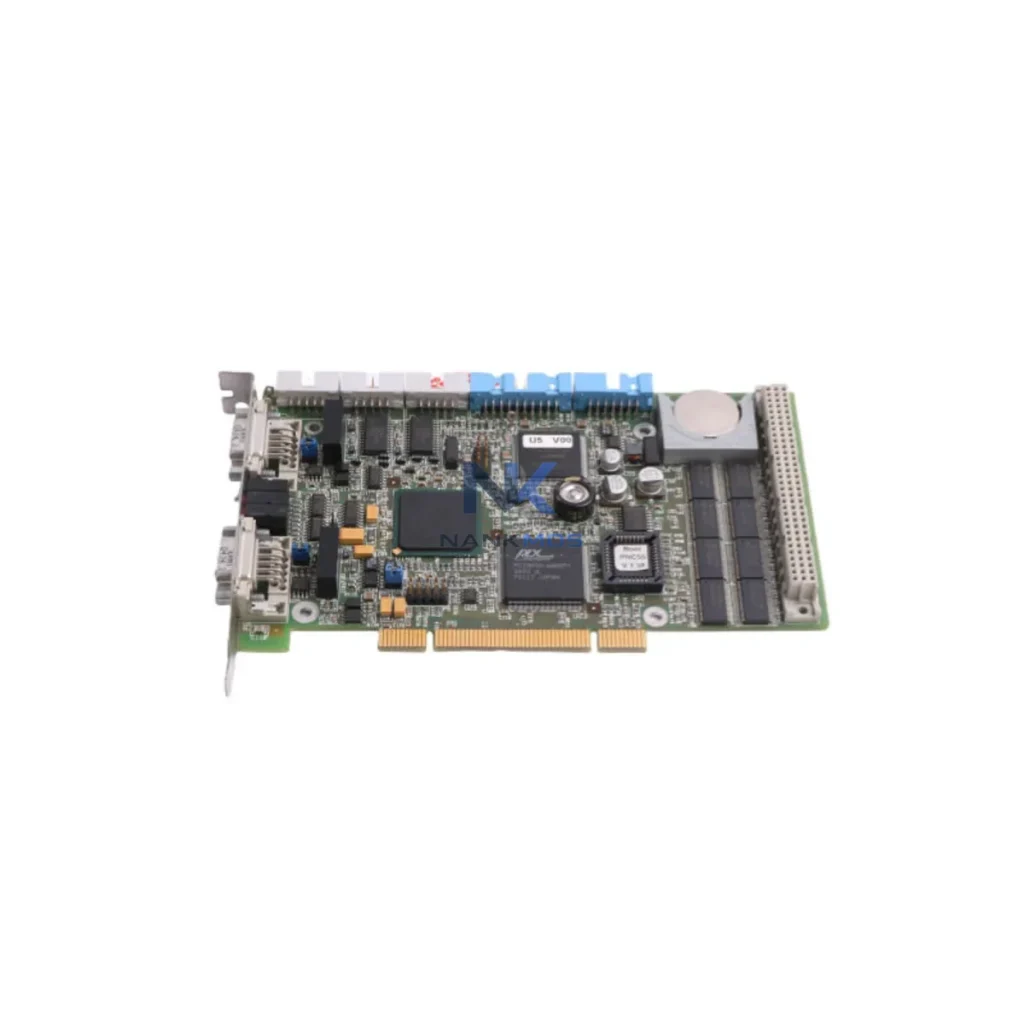

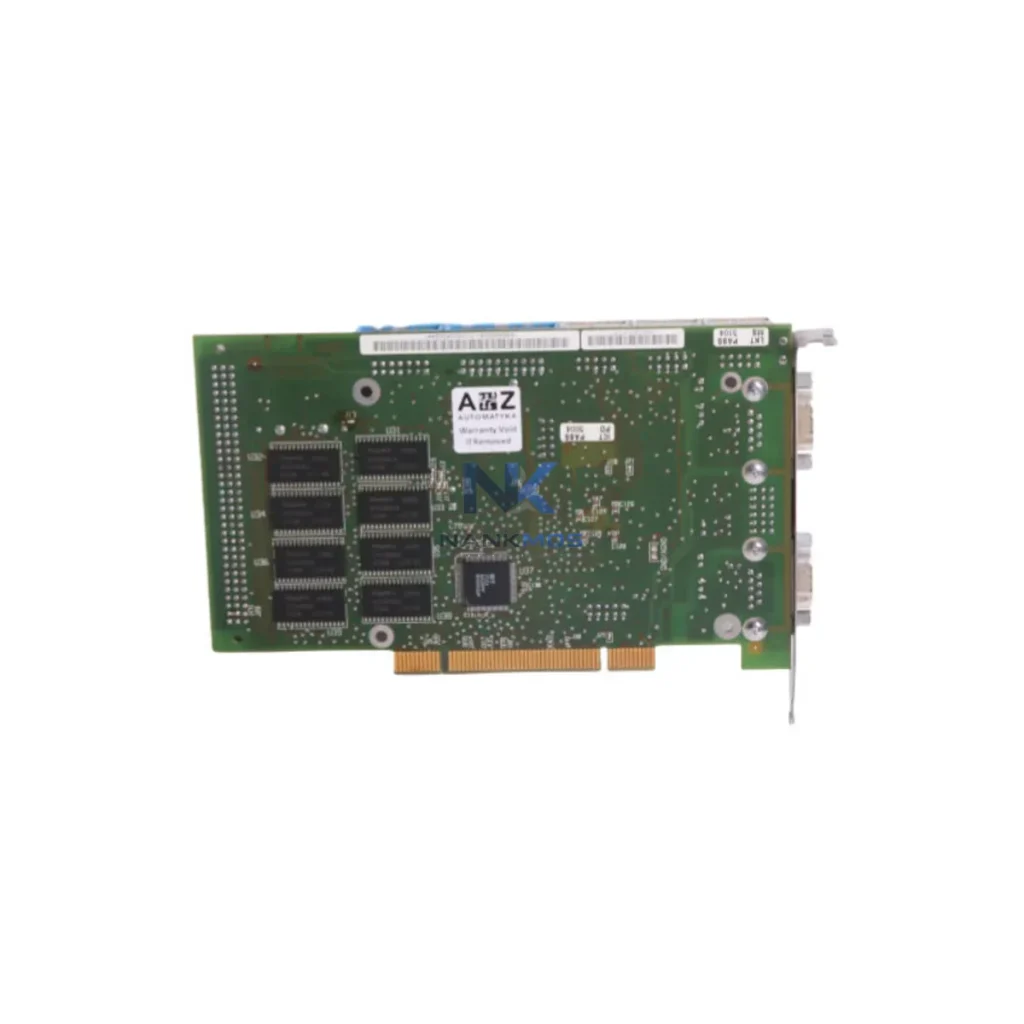

Eckelmann PNC55-CPU 4325600031LS PLC Processor Module

Product Details

PNC55-CPU 4325600031LS Product Description

The Eckelmann 4325600031LS (SKU: PNC55-CPU 4325600031LS) is a high-performance PLC processor module engineered for energy-aware industrial automation. As the computational core of the Eckelmann PNC55 control platform, this processor module delivers deterministic cycle execution, real-time load arbitration, and seamless integration with energy management systems — making it an essential component for factories targeting measurable reductions in energy consumption, thermal load, and unplanned downtime.

Designed for demanding process industries including manufacturing, energy & utilities, and continuous production environments, the PNC55-CPU 4325600031LS enables plant engineers to implement power-aware automation strategies without sacrificing throughput or production rhythm. Every unit in NANKMOS inventory undergoes pre-shipment functional testing and ships with a 12-month warranty, ensuring verified performance from day one.

The Eckelmann PNC55-CPU 4325600031LS is built to serve as the intelligence layer in a power-aware automation architecture. In a typical smart production line, this processor module coordinates directly with Eckelmann PNC55 I/O expansion modules to aggregate real-time field signals — motor current draw, actuator states, and sensor feedback — and uses that data to make cycle-level decisions that reduce unnecessary energy expenditure.

When paired with variable frequency drives (VFDs) such as those from the Siemens SINAMICS G120 series or ABB ACS880 drives, the PNC55-CPU enables speed-reference outputs that match actual load demand rather than running motors at fixed full speed. This alone can reduce motor energy consumption by 20–40% in variable-torque applications such as pumps, fans, and conveyors. The processor's fast scan cycle ensures that drive setpoint adjustments are issued within the control loop's response window, preventing energy spikes during load transitions.

For servo-driven axes, the PNC55-CPU interfaces with Eckelmann servo drive controllers and third-party servo amplifiers via standardized motion control protocols, enabling coordinated multi-axis positioning that minimizes regenerative energy waste and reduces mechanical stress on production equipment. Regenerative braking energy from servo axes can be fed back into the DC bus, and the PNC55-CPU's program logic can schedule deceleration events to align with peak demand windows — a key strategy in demand-side energy management.

Integration with power monitoring modules — such as dedicated energy metering I/O cards or external power analyzers communicating over Modbus RTU — allows the PNC55-CPU to log real-time kWh consumption per production zone. This data feeds directly into SCADA systems (e.g., Wonderware, Ignition, or Siemens WinCC) via OPC-UA or serial gateways, enabling plant-level energy dashboards and automated demand response actions. When consumption thresholds are exceeded, the PLC can automatically shed non-critical loads or defer energy-intensive operations to off-peak periods.

The PNC55 platform's modular architecture also supports Eckelmann communication modules for PROFIBUS DP and CANopen, enabling the CPU to act as a network master coordinating distributed I/O nodes, HMI panels, and remote sensor clusters across the production floor. Operators can monitor energy KPIs directly on connected HMI screens, with the PNC55-CPU providing the real-time data backbone for visualization and alarm management.

Factory energy waste most commonly originates from three sources: motors running at unnecessary speeds, equipment idling between production cycles, and thermal losses from poorly coordinated load sequencing. The Eckelmann 4325600031LS PNC55-CPU addresses all three through its deterministic program execution and flexible I/O coordination capabilities.

By implementing load scheduling logic within the PNC55-CPU's IEC 61131-3 program, engineers can stagger the startup sequences of high-inrush equipment — compressors, hydraulic power units, large conveyor drives — to prevent simultaneous peak demand events that inflate energy costs and stress the facility's power infrastructure. The processor's multi-tasking architecture allows background energy monitoring tasks to run concurrently with real-time motion and process control tasks, without compromising cycle time.

Thermal load reduction is achieved by coordinating cooling system activation with actual heat generation data from temperature sensors and thermal monitoring I/O modules. Rather than running cooling fans and HVAC systems on fixed timers, the PNC55-CPU can modulate cooling output in response to real measured thermal conditions — reducing cooling energy by 15–30% in typical panel and machine enclosure applications.

Production line rhythm (takt time) stability is another critical energy efficiency lever. Inconsistent takt times cause machines to accelerate and decelerate unnecessarily, wasting kinetic energy and increasing wear. The PNC55-CPU's deterministic scan cycle — with jitter measured in microseconds — ensures that motion commands, conveyor synchronization signals, and robot trigger outputs are issued with precise timing, maintaining stable production rhythm and eliminating the energy penalty of catch-up acceleration cycles.

For predictive maintenance integration, the PNC55-CPU can monitor motor current signatures, drive fault registers, and cycle time deviations over time. Gradual increases in motor current draw — a classic early indicator of bearing wear or mechanical friction — can be detected by the PLC program and flagged for maintenance before they escalate into unplanned downtime events. Preventing a single unplanned stoppage on a high-throughput line can save more energy (and cost) than months of incremental efficiency improvements, because restart sequences and production catch-up cycles are among the most energy-intensive events in manufacturing.

All NANKMOS-supplied Eckelmann PNC55-CPU 4325600031LS units are sourced from verified supply channels, tested prior to shipment, and backed by a 12-month warranty. In-stock availability means no extended lead times — replacement or expansion units can be dispatched promptly to minimize production disruption.

Q1: What energy savings can I realistically expect by integrating the Eckelmann PNC55-CPU 4325600031LS into my production line? Actual savings depend on your application, but customers using PNC55-based control platforms with coordinated VFD speed control and load scheduling logic typically report 15–35% reductions in motor energy consumption and measurable reductions in peak demand charges. The processor enables the control logic — the savings are realized through the strategies you implement within it.

Q2: Is the PNC55-CPU 4325600031LS compatible with third-party drives, HMIs, and SCADA systems? Yes. The PNC55 platform supports standard industrial communication protocols including PROFIBUS DP, CANopen, and serial interfaces (RS-232/RS-485), enabling integration with drives from Siemens, ABB, Parker, and other major vendors, as well as HMI panels and SCADA platforms that support these protocols or OPC-UA gateways.

Q3: What is the recommended replacement or upgrade path if my existing PNC55 CPU has failed? The 4325600031LS is a direct replacement for compatible PNC55 CPU slots. Before installation, verify the firmware version and I/O configuration backup from your existing system. NANKMOS recommends retaining the original program backup and performing a cold-start commissioning sequence after replacement. Contact our technical team at [email protected] for application-specific guidance.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing performed? Every Eckelmann PNC55-CPU 4325600031LS unit shipped by NANKMOS undergoes functional verification testing prior to dispatch — including power-on self-test, communication interface checks, and basic I/O response validation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or repaired at no additional cost. Contact [email protected] to initiate a warranty claim.
