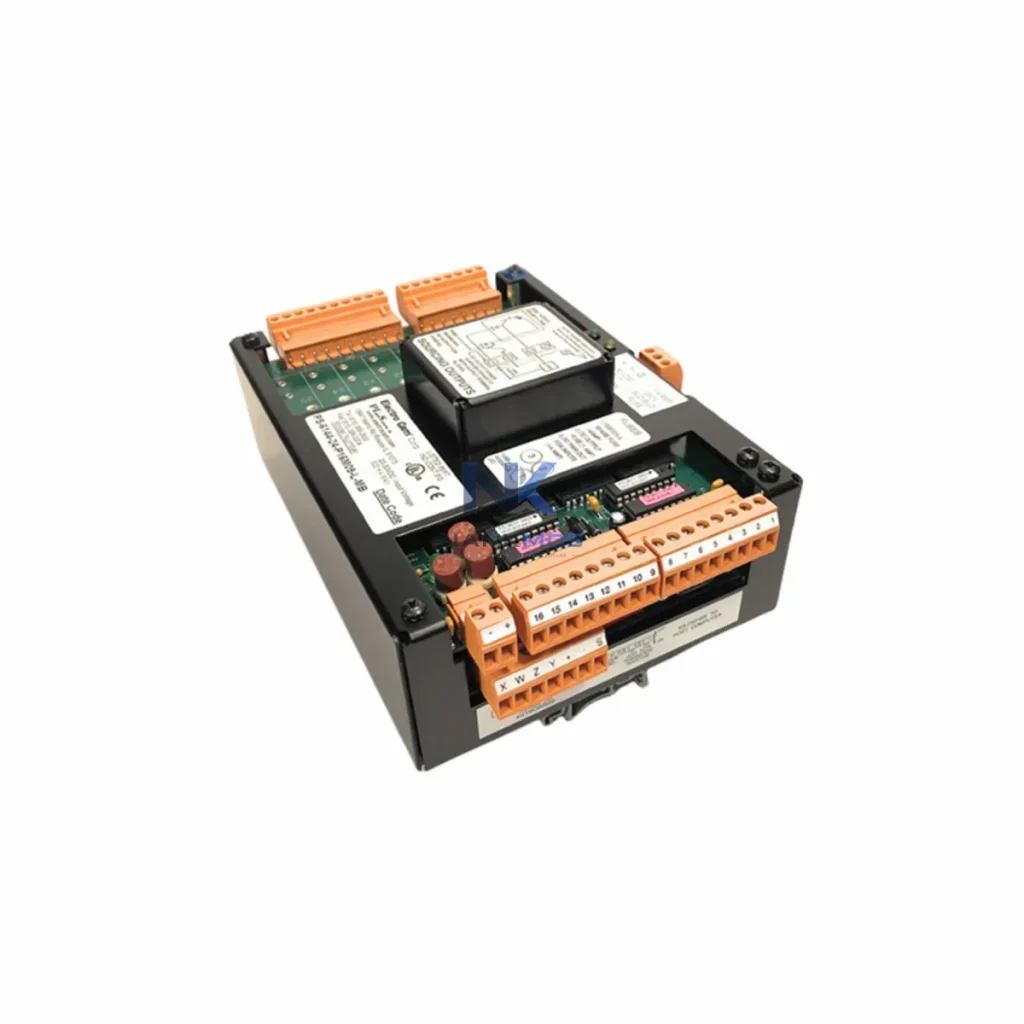

ELECTRO PS-6144-24-P16M09

Product Details

PS-6144-24-P16M09 Product Description

The ELECTRO PS-6144-24-P16M09 is a high-performance PROFINET DC transistor output module engineered for demanding industrial automation environments. As a core component of the ELECTRO PS Series, this module bridges the gap between field-level actuators and upper-level control systems, enabling seamless, real-time data exchange across the entire smart factory data chain. With 16 channels of 24 VDC transistor digital output, it delivers precise, low-latency signal switching that underpins reliable machine control, process automation, and remote diagnostics in modern Industry 4.0 architectures.

Designed for integration into PROFINET-based control networks, the PS-6144-24-P16M09 connects directly to Siemens S7-300/S7-400/S7-1500 PLC platforms and compatible PROFINET controllers, enabling engineers to extend digital output capacity without redesigning the network topology. Its compact DIN-rail form factor and robust industrial-grade housing make it suitable for panel installation in harsh manufacturing environments, including automotive assembly lines, food processing facilities, chemical plants, and energy management substations.

In a fully integrated smart factory, the PS-6144-24-P16M09 operates at the intersection of field devices and the control backbone. The data flow begins at the sensor and actuator layer, where proximity switches, photoelectric sensors, and solenoid valves generate discrete signals. These signals are captured and conditioned by companion modules such as the ELECTRO PS-6144-24-P16M00 digital input module, which feeds real-time process states upstream via the PROFINET backbone.

The PS-6144-24-P16M09 then receives control commands from the PLC — typically a Siemens S7-1500 or S7-300 controller running structured control logic in TIA Portal — and translates those commands into precise 24 VDC transistor switching actions at the field level. This closed-loop signal path ensures deterministic response times critical for motion control, conveyor sequencing, and valve actuation in high-throughput production lines.

Upstream, the PROFINET network connects to SCADA platforms such as Siemens WinCC or Ignition, where process data is aggregated, visualised, and archived. Operators at HMI terminals — including Siemens TP700 Comfort or KTP900 Basic panels — can monitor output channel states in real time, acknowledge alarms, and initiate remote control sequences without physical access to the panel. This capability is especially valuable in hazardous or geographically distributed production sites.

For multi-zone factory layouts, the PS-6144-24-P16M09 integrates with industrial managed Ethernet switches such as the SCALANCE X208 or similar PROFINET-certified switches, enabling ring topology redundancy (MRP) and ensuring network uptime even during cable faults. Edge gateway devices — including Siemens SINEMA Remote Connect or third-party IIoT gateways — can tunnel PROFINET diagnostic data over secure VPN connections to cloud-based monitoring dashboards, enabling remote engineers to track output channel health, cycle counts, and fault histories without on-site visits.

Variable frequency drives (VFDs) and servo amplifiers connected downstream of the PS-6144-24-P16M09 receive start/stop and direction commands via the transistor outputs, coordinating motor speed profiles with upstream PLC logic. In energy management applications, the module's output channels can control contactors and circuit breakers monitored by power metering modules within the same PS Series rack, creating a unified energy data chain from the field to the enterprise ERP layer.

Many industrial sites face persistent challenges: legacy equipment running proprietary protocols, isolated data islands that prevent cross-system visibility, and the inability to perform remote diagnostics without dispatching field engineers. The ELECTRO PS-6144-24-P16M09 directly addresses these pain points within a PROFINET-native architecture.

Protocol Fragmentation: Sites mixing older Modbus RTU or DeviceNet devices with modern PROFINET controllers often struggle with data translation bottlenecks. By standardising digital output control through the PS-6144-24-P16M09 within a PROFINET IO framework, engineers eliminate the need for protocol converters at the output layer, reducing latency and simplifying network diagnostics.

Data Silos and Production Transparency: Without unified I/O modules, output states are often invisible to SCADA and MES systems. The PS-6144-24-P16M09 exposes all 16 output channel states as PROFINET process data objects, making them directly readable by WinCC, Ignition, or FactoryTalk without additional middleware. This transparency enables production line dashboards that display real-time actuator states, cycle counts, and fault flags — turning raw output data into actionable operational intelligence.

Remote Monitoring and Alarm Tracking: Unplanned downtime caused by undetected output faults is a major cost driver in discrete manufacturing. The PS-6144-24-P16M09 supports PROFINET diagnostic alarms, automatically notifying the PLC and SCADA system when a channel short-circuit, overload, or wire-break condition is detected. These alarms are logged with timestamps in the SCADA historian, enabling root-cause analysis and predictive maintenance scheduling without manual inspection.

System Scalability: As production capacity grows, adding output channels to an existing PS Series rack is straightforward — additional PS-6144-24-P16M09 modules slot into the same backplane, and TIA Portal's hardware configuration wizard automatically recognises and maps the new I/O addresses. This modular scalability protects the initial network investment and reduces commissioning time for capacity expansions.

Q1: What is the communication latency of the PS-6144-24-P16M09 on a PROFINET IRT network?In PROFINET IRT (Isochronous Real-Time) mode, the PS-6144-24-P16M09 achieves cycle times as low as 250 µs, making it suitable for motion-synchronised applications where deterministic output switching is critical. In standard RT mode, typical cycle times range from 1 ms to 4 ms depending on network load and controller configuration.

Q2: Is the PS-6144-24-P16M09 compatible with third-party PROFINET controllers beyond Siemens?Yes. The module is certified to the PROFINET IO standard (IEC 61158 / IEC 61784) and is compatible with any PROFINET-compliant controller, including those from Beckhoff, Phoenix Contact, Rockwell (via PROFINET adapter), and Mitsubishi iQ-R series with PROFINET option modules. A standard GSDML device description file is provided for hardware configuration in any compliant engineering tool.

Q3: How does the module support remote diagnostics and predictive maintenance?The PS-6144-24-P16M09 continuously monitors each output channel for overcurrent, short-circuit, and open-load conditions. Diagnostic data is transmitted as PROFINET alarm messages to the controller and forwarded to connected SCADA or MES platforms. When integrated with an IIoT edge gateway, this diagnostic stream can be published to cloud dashboards via MQTT or OPC-UA, enabling remote engineers to monitor channel health, set threshold alerts, and schedule preventive maintenance without site visits.

Q4: What does the 12-month warranty cover, and what is the typical lead time?Every ELECTRO PS-6144-24-P16M09 unit is covered by a 12-month warranty from the date of shipment, covering manufacturing defects, component failures, and communication interface faults under normal operating conditions. Units are pre-tested prior to dispatch using functional output verification and PROFINET communication checks. Stock is maintained for immediate dispatch, with standard global shipping lead times of 3–7 business days depending on destination. For urgent requirements, expedited shipping options are available — contact us for availability confirmation.
