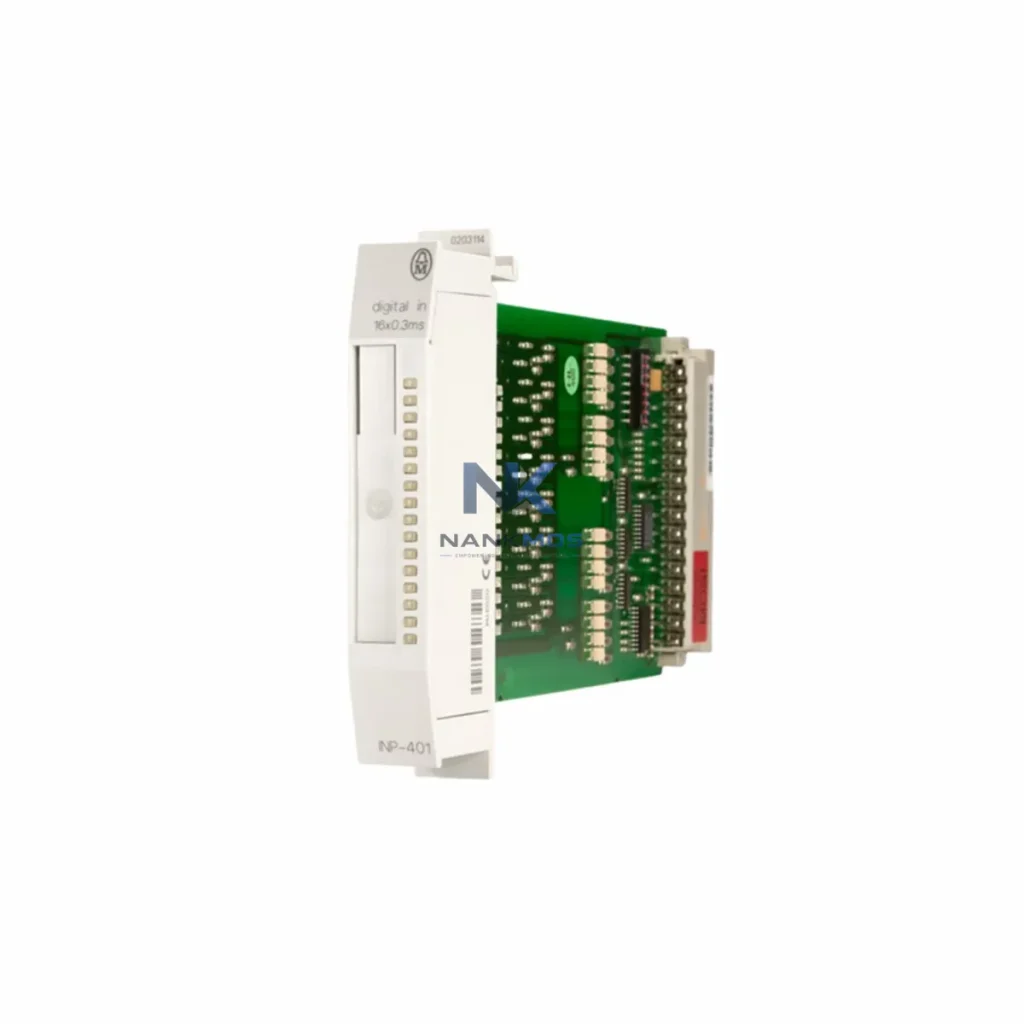

Moeller (Eaton) PS416-INP-401 Digital Input Module

Product Details

PS416-INP-401 Product Description

The Moeller PS416-INP-401 is a high-density digital input module engineered for seamless integration within the PS416 modular PLC platform developed by Moeller (now Eaton Automation). Designed to serve as the primary signal acquisition layer in distributed and centralised control architectures, the PS416-INP-401 delivers deterministic input scanning, robust electrical isolation, and full compatibility with the PS416 backplane bus — making it an indispensable component for engineers building scalable, fault-tolerant industrial automation systems across manufacturing, energy, process, and infrastructure sectors.

In modern industrial control architecture, the digital input layer is not merely a signal collector — it is the sensory foundation upon which every control decision is made. The PS416-INP-401 fulfils this role with precision, providing the control layer with clean, debounced, and electrically isolated digital signals from field devices including proximity sensors, limit switches, push buttons, relay contacts, and safety interlocks. Its tight integration with the PS416 CPU modules ensures minimal scan-cycle latency and consistent data integrity across the entire I/O subsystem.

The PS416-INP-401 is architected to operate as a cohesive element within the full Moeller PS416 automation platform, not as a standalone peripheral. Understanding its role within the broader system hierarchy is essential for engineers designing reliable, expandable control solutions.

At the control layer, the PS416-INP-401 interfaces directly with PS416 CPU modules such as the PS416-CPU-200 and PS416-CPU-400, which execute the IEC 61131-3 control programme and poll the input module's status registers on every scan cycle. The CPU's deterministic scan ensures that all 16 digital input channels are read synchronously, eliminating race conditions in time-critical interlocking logic.

At the power layer, the module draws its operating power from the PS416 backplane bus, which is fed by dedicated PS416 power supply modules (e.g., PS416-POW-100 series). Proper power budget calculation across all installed I/O modules — including the PS416-INP-401 — is a fundamental step in rack design, ensuring voltage stability under full load and during inrush events at system startup.

At the I/O expansion layer, the PS416-INP-401 coexists with complementary modules including PS416-OUT-401 digital output modules, PS416-ANA-401 analogue input modules, and PS416-ANA-OUT analogue output modules. This modular I/O architecture allows engineers to configure the exact signal mix required by the application — whether a discrete-heavy machine control panel or a mixed-signal process skid — without over-provisioning hardware.

At the communication layer, the PS416 platform supports integration with fieldbus and industrial Ethernet networks via dedicated PS416 communication modules, enabling the digital input data collected by the PS416-INP-401 to be transparently forwarded to SCADA systems, DCS platforms, or supervisory HMI stations via PROFIBUS-DP, Modbus RTU/TCP, or CANopen protocols. This communication transparency is critical for remote monitoring, alarm management, and data historian integration in large-scale plant environments.

At the HMI layer, operator stations running Eaton's XV-Series HMI panels or third-party SCADA platforms can visualise the real-time status of all 16 digital input channels, enabling operators to monitor field device states, acknowledge alarms, and initiate manual overrides without requiring direct access to the control cabinet. This HMI integration significantly reduces mean time to diagnose (MTTD) during fault conditions.

At the protection and safety layer, the PS416-INP-401's optocoupler isolation protects the CPU and backplane bus from field-side voltage transients, ground loops, and EMI-induced noise — common challenges in heavy industrial environments such as motor control centres, arc furnace control rooms, and high-voltage switchgear panels. When combined with PS416 safety CPU modules and TÜV-certified safety I/O modules, the platform can be extended to meet SIL 2 functional safety requirements for emergency stop, safety gate, and light curtain monitoring circuits.

At the maintenance layer, each PS416-INP-401 module features front-panel LED indicators for every input channel, providing immediate visual confirmation of signal state without requiring a laptop or programming tool. This feature dramatically accelerates commissioning, fault-finding, and routine maintenance activities, reducing engineering labour costs over the system's operational lifetime.

The PS416-INP-401 has been deployed across a broad spectrum of industrial sectors, each presenting unique demands on digital input performance, environmental resilience, and system integration depth.

In discrete manufacturing environments — including automotive assembly lines, electronics production, and precision machining centres — the PS416-INP-401 monitors conveyor position sensors, part-present detectors, tooling limit switches, and safety door interlocks. Its fast input response time ensures that the PS416 CPU can react to machine state changes within a single scan cycle, maintaining production throughput and preventing tooling collisions.

In electrical power distribution applications, the module monitors circuit breaker auxiliary contacts, transformer tap positions, busbar isolation switch states, and protection relay trip outputs. The optocoupler isolation is particularly valuable in high-voltage substations, where ground potential differences between field devices and the control panel can reach hundreds of volts during fault events.

In oil, gas, and petrochemical facilities, the PS416-INP-401 integrates with emergency shutdown (ESD) systems, monitoring valve position feedback, pressure switch outputs, and flame detector signals. When deployed within a redundant PS416 CPU architecture, the module's input data is simultaneously available to both the primary and standby CPUs, ensuring zero-interruption failover during planned maintenance or unplanned CPU faults.

In water and wastewater treatment plants, the module monitors pump run/fault status, level switch outputs, flow switch signals, and UV disinfection system interlocks. Its wide operating temperature range and IP20 protection rating make it suitable for installation in climate-controlled MCC rooms and process control buildings across diverse geographic locations.

In mining and mineral processing operations, the PS416-INP-401 monitors conveyor belt alignment switches, crusher overload contacts, and ventilation fan status signals. The module's robust electrical isolation protects the PS416 system from the high levels of electrical noise generated by large variable-frequency drives (VFDs) and DC motor controllers common in mining environments.

In marine and offshore applications, the module is used in vessel automation systems for monitoring bilge pump status, fire and gas detector outputs, and engine room safety interlocks. Its compliance with international marine certification standards (subject to project-specific classification society approval) makes it a viable choice for shipboard control panel integration.

Q1: How many PS416-INP-401 modules can be installed in a single PS416 rack, and what are the backplane bus loading constraints? The PS416 rack supports multiple I/O module slots, with the exact count depending on the rack model selected (e.g., PS416-RACK-08 or PS416-RACK-16). Each PS416-INP-401 consumes a defined amount of backplane bus current; engineers must calculate the total bus current draw of all installed modules — including CPU, power supply, communication, and I/O modules — to ensure it remains within the rack's rated bus capacity. NANKMOS recommends consulting the PS416 system manual's power budget worksheet during the design phase. Our technical team can assist with rack configuration validation prior to order placement.

Q2: Is the PS416-INP-401 compatible with both IEC Type 1 and Type 3 input sensors, and how is the input filter time configured? Yes, the PS416-INP-401 supports both IEC 61131-2 Type 1 and Type 3 digital input characteristics, making it compatible with the vast majority of 24 V DC field devices used in industrial automation. Input filter time — which determines the module's debounce behaviour and noise rejection capability — is configurable via the PS416 programming software (Sucosoft S40 or equivalent). Filter times can typically be set between 0.1 ms and several milliseconds per channel group, allowing engineers to optimise the trade-off between response speed and noise immunity for each application. Configuration is stored in the CPU programme and is retained across power cycles.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term spare parts availability for the PS416-INP-401? NANKMOS provides a 12-Month Warranty on all PS416-INP-401 modules supplied, covering manufacturing defects, premature component failure, and functional non-conformance under normal operating conditions. Each module undergoes pre-shipment functional testing to verify all 16 input channels, backplane communication integrity, and LED indicator operation before dispatch. For long-term maintenance planning, NANKMOS maintains strategic stock of PS416-INP-401 and related PS416 platform components, supporting customers with planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. Customers requiring extended warranty coverage or on-site commissioning support are encouraged to contact our technical sales team directly.
