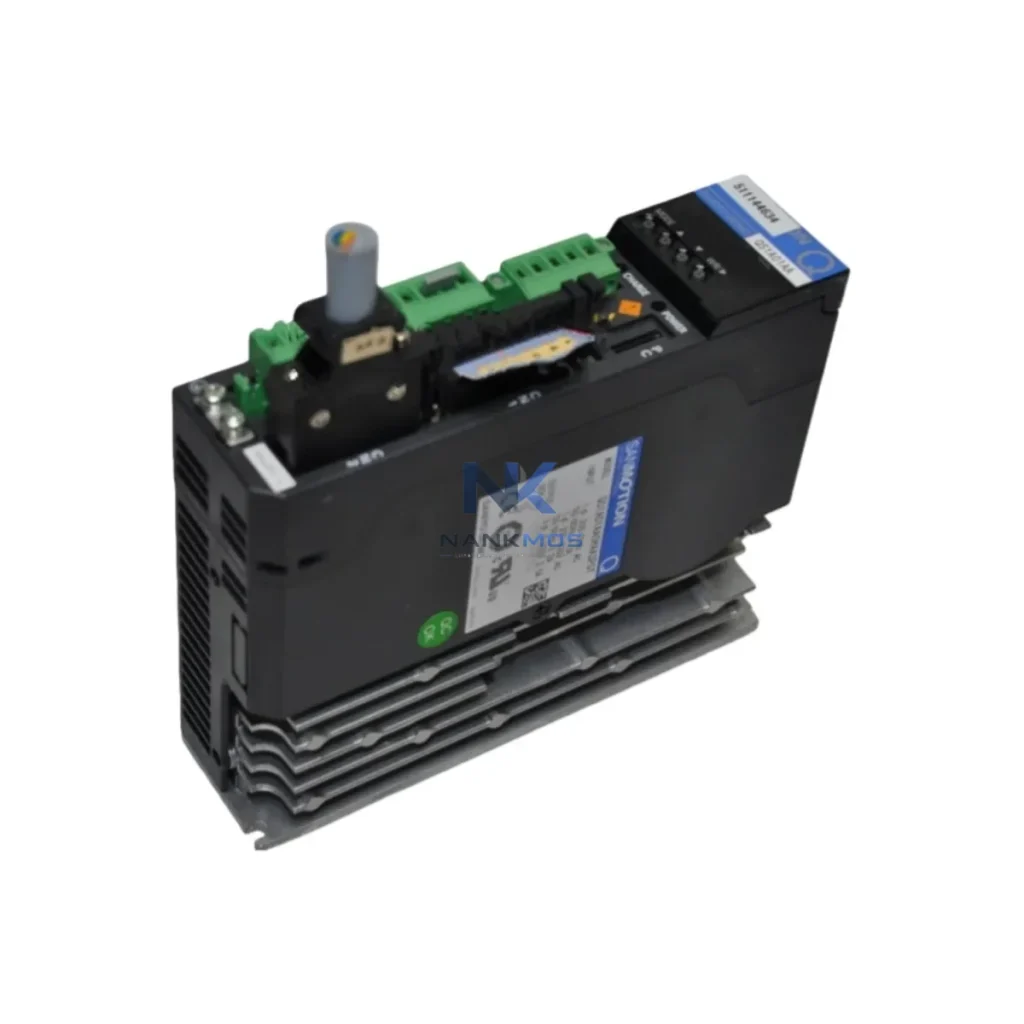

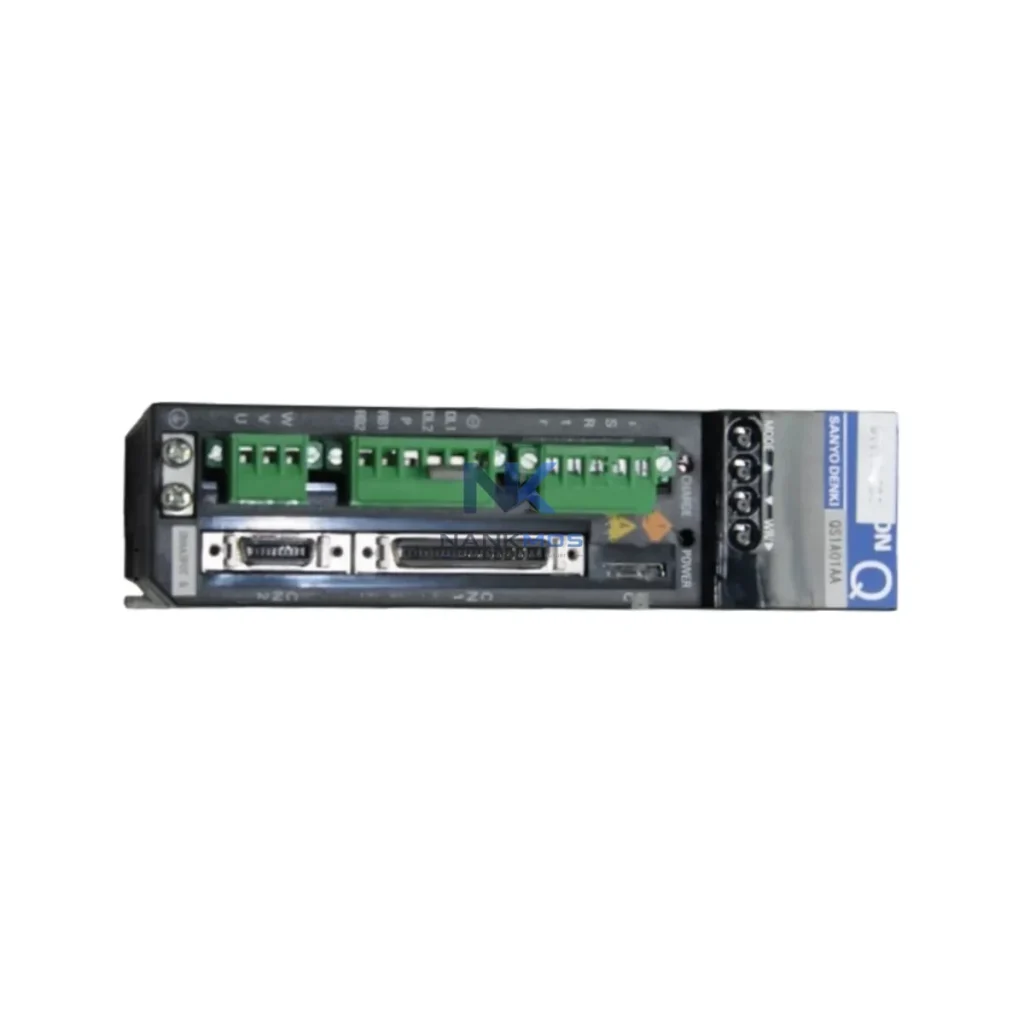

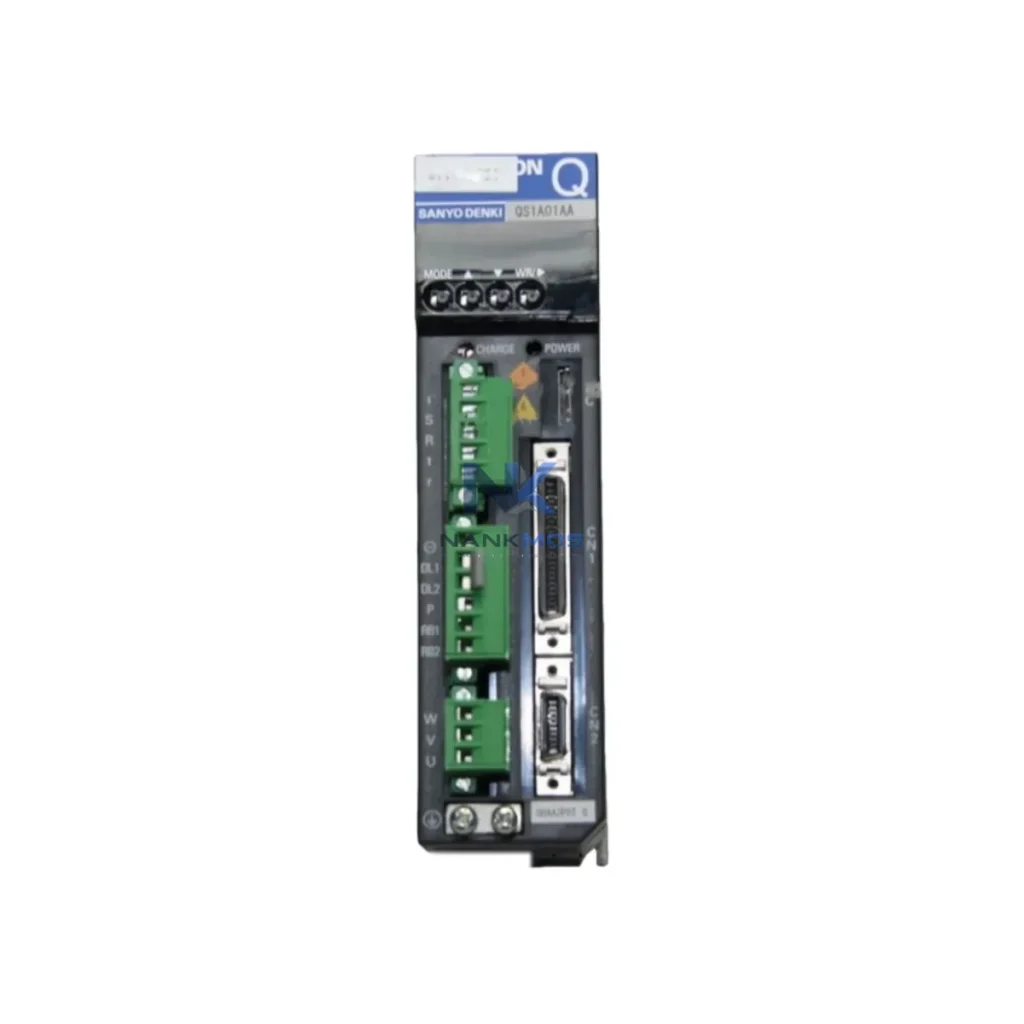

SANYO DENKI QS1E01AA0H6A3P0T Servo Driver

Product Details

QS1E01AA0H6A3P0T Product Description

The SANYO DENKI QS1E01AA0H6A3P0TC is a high-performance Q-Series servo driver engineered for energy-conscious industrial automation environments. Designed to deliver precise motor control with minimal power waste, this unit plays a central role in modern smart production lines where energy efficiency, load stability, and production rhythm are mission-critical. Whether deployed in continuous manufacturing, assembly automation, or process control, the QS1E01AA0H6A3P0TC enables operators to achieve measurable reductions in energy consumption while maintaining the dynamic response required for demanding servo applications.

As industrial facilities face increasing pressure to reduce carbon footprints and operating costs, the QS1E01AA0H6A3P0TC addresses these challenges through its advanced PWM control architecture, regenerative braking capability, and adaptive current management. These features collectively reduce thermal load on the drive cabinet, extend component service life, and lower the total cost of ownership across multi-axis production systems.

In a fully integrated smart production line, the QS1E01AA0H6A3P0TC servo driver does not operate in isolation — it functions as a precision energy-control node within a broader automation ecosystem. When paired with a SANYO DENKI Q-Series servo motor such as the P50B08020DXS00, the drive-motor combination achieves tightly matched torque-speed curves that eliminate over-current conditions and reduce unnecessary energy draw during acceleration and deceleration cycles.

At the control layer, the QS1E01AA0H6A3P0TC interfaces seamlessly with mainstream PLC platforms — including Mitsubishi MELSEC iQ-R series and Omron NJ/NX controllers — via pulse-train or network communication. When connected through an EtherCAT communication module or MECHATROLINK-III interface, the drive receives real-time position and velocity commands with microsecond-level synchronization, enabling coordinated multi-axis motion that eliminates energy-wasting mechanical conflicts between axes.

For facilities deploying variable frequency drives (VFDs) alongside servo systems — for example, a Mitsubishi FR-A800 series inverter managing pump or fan loads — the QS1E01AA0H6A3P0TC can be integrated into the same energy management backbone. A shared power monitoring module such as a Yokogawa WT series power analyzer or an inline Carlo Gavazzi EM24 energy meter provides real-time kWh data to the SCADA layer, allowing operators to benchmark servo drive efficiency against system-wide consumption targets.

On the I/O side, the drive accepts digital inputs from proximity sensors and photoelectric sensors to trigger position holds or controlled deceleration when workpieces are detected, preventing unnecessary full-speed operation during idle intervals. Integration with an HMI panel — such as a Proface GP4000 series or Weintek cMT series — gives line operators direct visibility into drive status, alarm codes, and energy consumption trends without requiring SCADA access, supporting faster response to efficiency anomalies on the shop floor.

The QS1E01AA0H6A3P0TC contributes to factory energy optimization across multiple dimensions. Its regenerative braking function converts deceleration energy back into usable DC bus power rather than dissipating it as heat through braking resistors. In high-cycle applications such as pick-and-place robots or reciprocating conveyor drives, this regenerative capability can meaningfully reduce net energy consumption per production cycle.

Thermal load management is another key benefit. By maintaining precise current control and avoiding over-excitation of the servo motor, the QS1E01AA0H6A3P0TC reduces heat generation within the drive enclosure. Lower thermal output means reduced reliance on cabinet cooling systems — a secondary energy saving that compounds over continuous multi-shift operations. This also extends the service life of adjacent components, including capacitors, IGBTs, and cooling fans, reducing unplanned downtime and maintenance costs.

From a production rhythm perspective, the drive's high-bandwidth current loop enables rapid torque response, allowing the servo axis to reach target velocity faster and settle more quickly at position. This tighter motion profile reduces cycle time variability, stabilizes production takt, and minimizes the energy consumed during extended settling periods that occur with lower-performance drives. In multi-axis systems coordinated through a motion controller, this responsiveness translates directly into higher throughput per unit of energy consumed.

Predictive maintenance integration is supported through the drive's built-in diagnostic outputs. Load factor data, overload history, and thermal status can be logged via the communication interface and fed into a SCADA or MES system for trend analysis. Early detection of mechanical load anomalies — such as increased friction in a ball screw or bearing wear in a servo motor — allows maintenance teams to intervene before a failure occurs, avoiding the energy waste and production loss associated with unplanned stops.

All units supplied by NANKMOS are sourced from verified distribution channels, undergo pre-shipment functional testing, and are covered by a 12-month warranty. In-stock inventory ensures short lead times for urgent replacement or new project deployment, supporting continuous production without extended procurement delays.

Q1: How does the QS1E01AA0H6A3P0TC reduce energy consumption compared to conventional servo drives?The QS1E01AA0H6A3P0TC employs adaptive PWM frequency control and regenerative braking to minimize reactive power loss and recover deceleration energy. In high-cycle applications, this can reduce net drive-level energy consumption compared to drives without regenerative capability. Actual savings depend on load profile, cycle rate, and system configuration.

Q2: Is the QS1E01AA0H6A3P0TC compatible with third-party PLCs and communication protocols?Yes. The Q-Series drive supports standard pulse-train command interfaces compatible with most industrial PLC platforms. With appropriate communication modules, EtherCAT and MECHATROLINK-III network integration is supported, enabling use within multi-vendor automation architectures including Mitsubishi, Omron, Siemens, and Beckhoff control platforms.

Q3: What is the recommended replacement or upgrade path for aging SANYO DENKI servo drives?For systems currently running earlier Q-Series or P-Series SANYO DENKI drives, the QS1E01AA0H6A3P0TC offers a compatible upgrade path with improved energy efficiency. Parameter migration should be performed by a qualified servo technician. NANKMOS can advise on cross-reference compatibility based on your existing motor and drive specifications.

Q4: What testing and warranty coverage is provided with each unit?Every QS1E01AA0H6A3P0TC unit shipped by NANKMOS undergoes pre-shipment functional testing to verify drive initialization, communication response, and basic motion output. Each unit is covered by a 12-month warranty against manufacturing defects. In-stock availability supports rapid dispatch for both replacement and new installation requirements.
