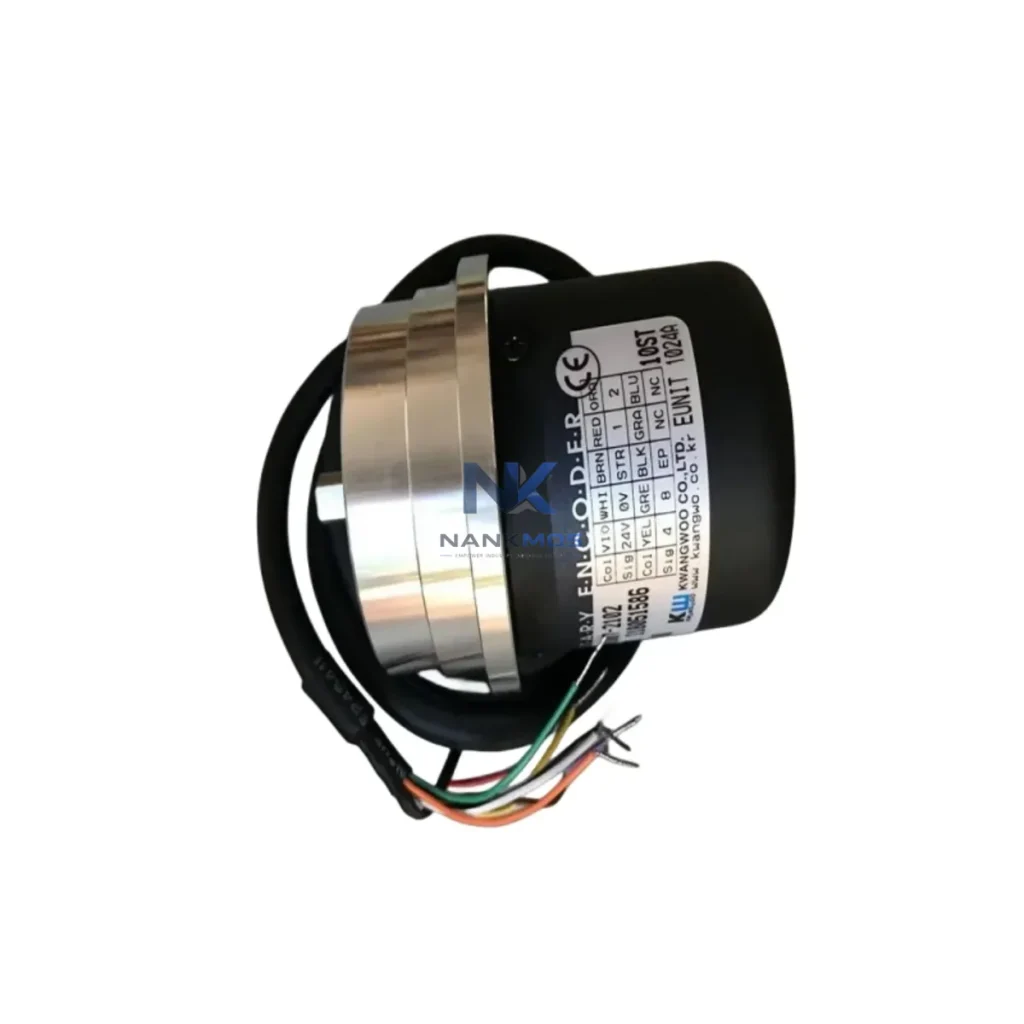

KWANGWOO RAA-001007-2102 Rotary Encoder

Product Details

RAA-001007-2102 Product Description

The KWANGWOO RAA-001007-2102 is a precision incremental rotary encoder engineered for demanding smart factory environments where real-time position feedback, reliable signal transmission, and seamless integration across industrial data networks are non-negotiable. As a core sensing element in the RAA Series product family, the RAA-001007-2102 bridges the gap between mechanical motion and digital control — delivering high-resolution pulse output that feeds directly into PLC controllers, motion control drives, SCADA systems, and edge computing gateways across the factory floor.

In modern industrial automation, the rotary encoder is far more than a position sensor. It is the origin point of a complete data chain: from shaft rotation on a servo motor or conveyor drive, through signal conditioning, into a Mitsubishi MELSEC Q-Series or Siemens S7-1500 PLC, and onward to an HMI panel or SCADA visualization platform. The RAA-001007-2102 is designed to anchor this chain with accuracy and durability, supporting continuous operation in environments subject to vibration, dust, and temperature variation typical of process manufacturing and discrete production lines.

The RAA-001007-2102 sits at the signal acquisition layer of a smart factory data architecture. When mounted on a servo motor shaft or drive roller, it generates high-frequency A/B/Z pulse trains that are captured by the high-speed counter modules of a Mitsubishi FX5U or Omron NJ-Series PLC. These PLCs process the positional data in real time, executing motion profiles, speed regulation, and synchronization logic across multi-axis production cells.

For facilities running distributed control architectures, the encoder signal is often routed through a remote I/O module — such as a Wago 750-Series or Phoenix Contact Axioline F node — before reaching the main controller. This approach reduces wiring complexity across large factory floors while maintaining sub-millisecond data latency. The RAA-001007-2102's wide voltage range (5–30 VDC) ensures compatibility with both legacy 24V industrial I/O systems and modern 5V logic interfaces without additional signal conversion hardware.

Where fieldbus integration is required, the encoder output is connected to a protocol gateway — for example, a Moxa MGate MB3170 or HMS Anybus X-Gateway — which translates the pulse signal into PROFINET or EtherNet/IP data frames. These frames are then consumed by SCADA platforms such as Ignition by Inductive Automation or Wonderware System Platform, enabling real-time visualization of shaft speed, position, and cumulative rotation count on operator dashboards. Alarm thresholds can be configured to trigger notifications when encoder counts deviate from expected motion profiles, supporting predictive maintenance workflows.

In variable-speed drive applications, the RAA-001007-2102 provides closed-loop speed feedback to Danfoss VLT or Yaskawa GA700 frequency inverters, enabling precise motor speed regulation without encoder signal degradation across cable runs up to 100 meters. For edge computing deployments, the encoder data is aggregated by an industrial edge gateway — such as a Siemens SIMATIC IPC or Advantech UNO-2484G — where local analytics process motion trends before forwarding summarized data to cloud-based MES or ERP systems via MQTT or OPC-UA.

The complete data chain — from RAA-001007-2102 pulse output, through PLC counter input, gateway protocol conversion, SCADA visualization, and edge analytics — forms the backbone of a transparent, connected production line where every axis of motion is monitored, logged, and available for remote diagnostic review.

Many industrial facilities operate with a mix of legacy equipment and modern control systems, creating protocol fragmentation that prevents unified data visibility. The RAA-001007-2102 addresses this challenge by providing a universal pulse output format compatible with virtually all PLC high-speed counter interfaces, eliminating the need for proprietary encoder protocols that lock users into single-vendor ecosystems.

Data island problems — where encoder feedback exists only within a local drive or controller and cannot be accessed by plant-level SCADA — are resolved by pairing the RAA-001007-2102 with a fieldbus gateway module. This allows position and speed data to flow upward through the network hierarchy, from field device to control layer to supervisory system, without manual data entry or batch reporting delays.

Remote monitoring of encoder health is supported through integration with PLC diagnostic function blocks that track pulse count consistency, signal loss events, and wiring fault conditions. When anomalies are detected, alarm records are automatically generated in the SCADA historian, enabling maintenance teams to investigate root causes remotely before dispatching field technicians — reducing unplanned downtime and improving overall equipment effectiveness (OEE).

For production line transparency, the RAA-001007-2102 enables real-time throughput tracking by correlating encoder pulse counts with production cycle times. This data feeds directly into MES dashboards, providing shift supervisors with live visibility into line speed, cycle count, and deviation from target output — all without additional instrumentation beyond the encoder itself.

System expansion is straightforward: additional RAA-001007-2102 encoders can be added to new axes or conveyor segments and integrated into the existing PLC program using standard high-speed counter configuration, with no changes required to the SCADA or HMI layer beyond adding new data tags.

Q1: What is the signal transmission distance for the RAA-001007-2102, and does cable length affect data accuracy?The RAA-001007-2102 supports cable runs up to 100 meters using shielded twisted-pair cable with HTL (push-pull) output. For longer distances, a signal repeater or differential line driver module is recommended to maintain pulse integrity and prevent communication latency caused by signal attenuation. Proper cable shielding and grounding are essential in environments with high electromagnetic interference from variable frequency drives or welding equipment.

Q2: Is the RAA-001007-2102 compatible with PROFINET or EtherNet/IP networks?The RAA-001007-2102 outputs standard A/B/Z pulse signals and does not natively support Ethernet-based industrial protocols. However, full PROFINET or EtherNet/IP integration is achieved by connecting the encoder to a compatible PLC high-speed counter module or through a dedicated encoder-to-fieldbus gateway. This approach is widely used in smart factory deployments and does not require any modification to the encoder itself.

Q3: How does the RAA-001007-2102 support remote diagnostics and predictive maintenance?When integrated with a PLC that supports diagnostic function blocks, the RAA-001007-2102's pulse output can be continuously monitored for signal consistency, unexpected count jumps, or loss-of-signal conditions. These diagnostic data points are logged in the SCADA historian and can trigger maintenance alerts via email or SMS through the SCADA alarm management system, enabling remote fault identification without requiring physical inspection of the encoder.

Q4: What warranty and pre-shipment testing does the RAA-001007-2102 include?Every RAA-001007-2102 unit is covered by a 12-month warranty from the date of shipment. Pre-shipment functional testing verifies pulse output accuracy, channel integrity (A, B, Z), and electrical insulation before dispatch. In-stock units are available for immediate shipment, and expedited logistics options are supported for urgent production line requirements. Contact our team for lead time confirmation and stock availability.
