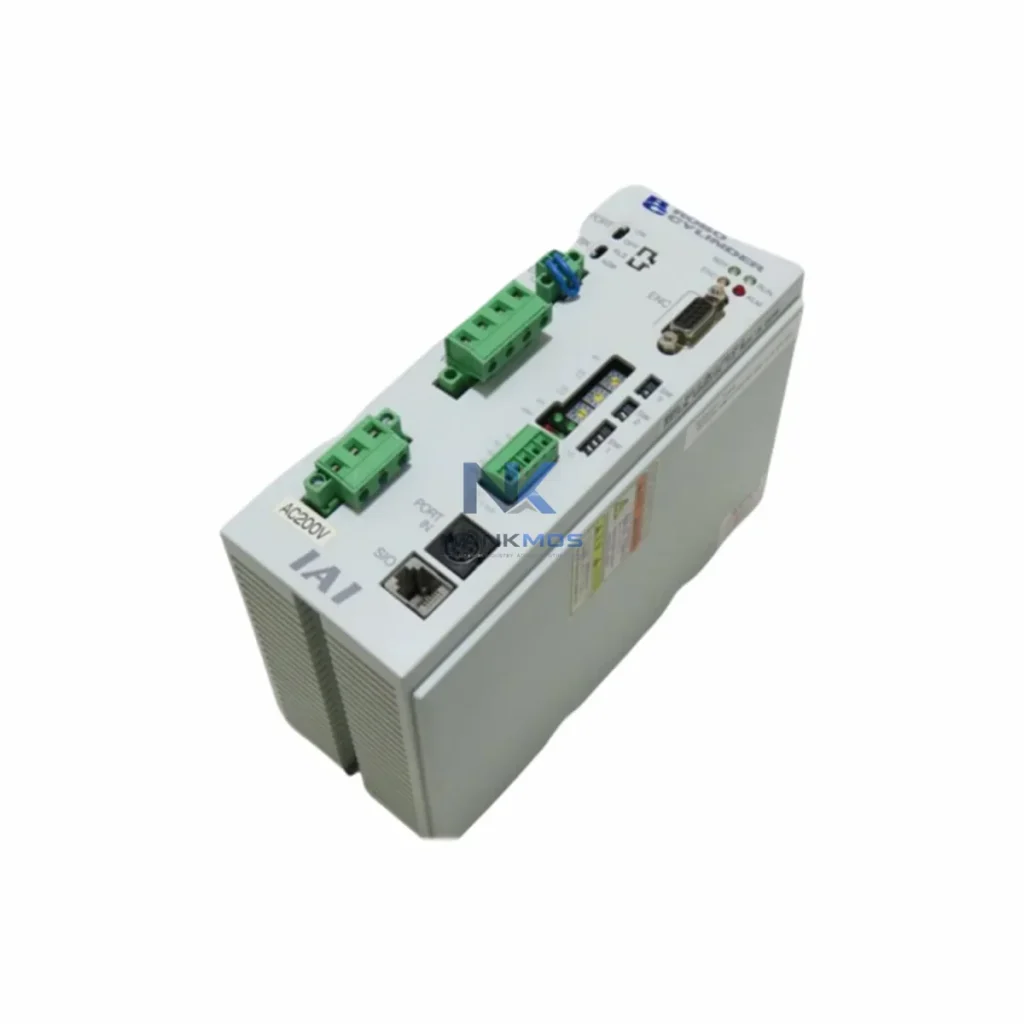

IAI RCS-C-SM-1-100-1-P AC Servo Controller

Product Details

RCS-C-SM-1-100-1-P Product Description

The IAI RCS-C-SM-1-100-1-P is a dedicated single-axis servo controller engineered for deployment within IAI's RCS-C multi-axis control architecture. Designed to deliver precise motion coordination across layered automation platforms, this controller integrates seamlessly into control cabinets where signal integrity, modular scalability, and long-term maintainability are primary engineering requirements. Whether deployed in standalone single-axis configurations or as part of a coordinated multi-axis RCS-C system, the RCS-C-SM-1-100-1-P provides the motion control backbone that modern industrial automation demands.

At NANKMOS, every unit of the RCS-C-SM-1-100-1-P is sourced directly from verified supply channels, pre-shipment tested, and backed by a 12-Month Warranty. Our Contextual Integration support ensures that your engineering team receives not just a component, but a fully validated solution matched to your control architecture requirements.

The RCS-C-SM-1-100-1-P does not operate in isolation — its engineering value is fully realised when positioned within a coherent, layered automation architecture. In a typical RCS-C multi-axis deployment, the controller occupies the motion control layer, receiving position commands from an upstream PLC or motion coordinator and translating them into precise actuator trajectories.

At the control layer, the RCS-C-SM-1-100-1-P interfaces with host PLCs such as the IAI PCON-CA or third-party controllers via RS-485 serial communication, enabling coordinated point-to-point motion sequencing across multiple axes. When multiple RCS-C-SM units are deployed in parallel — for example, alongside the RCS-C-SM-2-100-1-P (dual-axis variant) or the RCS-C-SM-3-100-1-P — the system achieves scalable multi-axis coordination without requiring a dedicated motion bus, reducing cabinet wiring complexity significantly.

At the I/O layer, digital input signals from upstream safety relays, proximity sensors, or PLC output modules are routed directly into the controller's I/O interface for position point selection and motion trigger logic. Signal isolation modules — such as those from the Phoenix Contact MINI Analog series or equivalent — are recommended in high-noise environments to protect signal integrity between the servo controller and field-level sensors.

The power layer supplying the RCS-C-SM-1-100-1-P typically includes a dedicated single-phase AC distribution circuit with appropriate circuit breakers and EMC line filters. In multi-axis cabinets, a shared IAI RCS-C power supply unit or equivalent DIN-rail power supply (e.g., 24 VDC logic supply from a MEAN WELL SDR series) provides stable auxiliary power for controller logic and I/O circuits, ensuring consistent operation across all axes.

At the HMI layer, operator interfaces such as the IAI PC software (RC PC Software) or compatible third-party HMI panels provide real-time position monitoring, alarm display, and parameter configuration. During commissioning, the RC PC Software is particularly valuable for axis tuning, position table programming, and diagnostic log review — reducing engineering time on-site.

The communication layer in RCS-C architectures typically relies on RS-485 multi-drop wiring, allowing a single host PLC to address multiple RCS-C-SM controllers on a shared serial bus. For systems requiring higher-speed or Ethernet-based integration, gateway modules such as the IAI PCON-CGB (CC-Link gateway) or equivalent PROFIBUS/PROFINET adapters can bridge the RCS-C serial network to plant-level fieldbus infrastructure, enabling SCADA visibility and remote diagnostics.

At the execution layer, the RCS-C-SM-1-100-1-P drives IAI RCS-C series electric rod or slider actuators, delivering repeatable linear positioning with sub-millimetre accuracy. In applications requiring coordinated multi-axis pick-and-place, the controller's push-motion function enables compliant force control at end-of-stroke — critical for assembly, press-fit, and insertion tasks.

The protection layer is addressed through the controller's built-in overcurrent protection, encoder feedback monitoring, and alarm output signals. Integration with upstream safety PLCs or safety relay modules — such as the Pilz PNOZ series or equivalent — ensures that axis faults trigger system-wide safe-state responses, protecting both equipment and personnel.

Finally, at the maintenance layer, the modular design of the RCS-C-SM-1-100-1-P allows individual axis controllers to be replaced without disturbing adjacent axes in the cabinet. NANKMOS maintains in-stock availability of RCS-C-SM series controllers, ensuring that spare-part logistics do not become a bottleneck in planned maintenance or emergency replacement scenarios.

Electronics & Semiconductor Manufacturing: In PCB assembly and semiconductor handling lines, the RCS-C-SM-1-100-1-P controls precision linear actuators for component placement, wafer transfer, and inspection positioning. Its sub-millimetre repeatability and push-motion capability make it well-suited for delicate handling tasks where force control is as important as positional accuracy.

Automotive Assembly: In body-in-white and powertrain assembly lines, multi-axis RCS-C systems coordinate door panel alignment, fastener insertion, and press-fit operations. The RCS-C-SM-1-100-1-P's ability to operate within a shared RS-485 network allows tight synchronisation with upstream robot controllers and downstream conveyor PLCs.

Food & Beverage Packaging: Hygienic packaging lines require reliable, low-maintenance actuator systems. The RCS-C-SM-1-100-1-P's electric actuator compatibility eliminates pneumatic components from positioning tasks, reducing compressed air consumption and simplifying maintenance schedules in cleanroom-adjacent environments.

Pharmaceutical & Medical Device Production: Validation-critical environments benefit from the RCS-C-SM-1-100-1-P's deterministic position control and comprehensive alarm logging. Integration with SCADA systems via serial gateways enables full audit-trail traceability of axis movements — a key requirement for GMP-compliant manufacturing.

Logistics & Warehouse Automation: In automated storage and retrieval systems (AS/RS) and conveyor sortation lines, the RCS-C-SM-1-100-1-P provides reliable linear positioning for diverter gates, lift mechanisms, and transfer units. Its compact DIN-rail form factor simplifies integration into distributed control cabinets across large warehouse footprints.

Q1: Can the RCS-C-SM-1-100-1-P be integrated with third-party PLCs, or is it limited to IAI host controllers? The RCS-C-SM-1-100-1-P communicates via RS-232C and RS-485 serial interfaces using IAI's standard communication protocol. It can be integrated with any PLC or motion controller capable of RS-485 serial communication, including Mitsubishi MELSEC, Omron SYSMAC, Siemens S7, and Allen-Bradley ControlLogix platforms, provided the host controller is programmed with IAI's communication command set. NANKMOS provides Contextual Integration guidance to assist engineering teams with protocol implementation and axis commissioning.

Q2: How many RCS-C-SM-1-100-1-P units can be networked on a single RS-485 bus, and what are the architectural constraints? IAI's RS-485 multi-drop architecture supports up to 16 axes per serial bus segment under standard configurations. For systems requiring more than 16 axes, additional serial ports or gateway modules are required. Cable length, termination resistors, and baud rate selection are critical parameters for signal integrity in multi-axis RS-485 networks. NANKMOS recommends a maximum bus length of 50 metres at 38,400 bps for reliable operation in industrial cabinet environments with moderate EMI exposure.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term spare-part availability for RCS-C-SM series controllers? The 12-Month Warranty covers manufacturing defects, component failures under normal operating conditions, and firmware-related malfunctions identified within the warranty period. NANKMOS maintains a dedicated inventory of RCS-C-SM series controllers to support both planned maintenance schedules and emergency replacement requirements. All units are pre-shipment tested and shipped with documentation confirming operational verification. For long-term projects, NANKMOS offers reserved stock arrangements to guarantee supply continuity across multi-year maintenance contracts.
