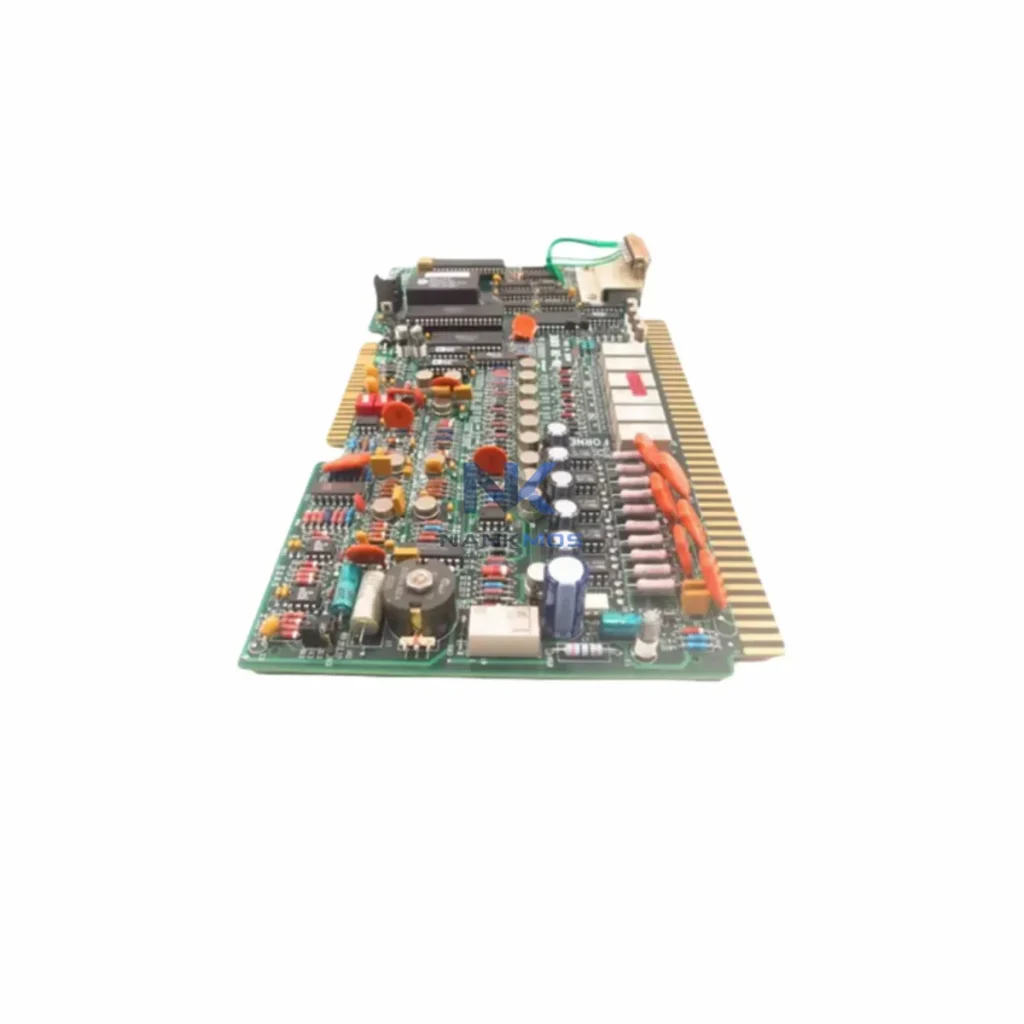

Forney RM DR6101E Flame Detection Amplifier

Product Details

RM DR6101E Product Description

The Forney RM-DR6101E is a precision flame detection amplifier card engineered for the DR6100 Series Burner Management System (BMS). Designed for continuous, high-reliability operation in combustion safety environments, this amplifier card processes ultraviolet (UV) and infrared (IR) flame sensor signals, converts them into standardised 4–20 mA analog outputs and discrete relay contacts, and delivers real-time flame status data across the full industrial data chain — from field-level sensors through to PLC controllers, SCADA platforms, and plant-wide HMI dashboards.

In smart factory environments where combustion safety is tightly integrated with process automation, the RM-DR6101E serves as a critical signal conditioning node. It bridges the gap between raw flame sensor outputs and the structured data formats required by modern distributed control systems (DCS), safety instrumented systems (SIS), and energy management platforms. Its dual-range signal processing capability ensures accurate flame discrimination across varying fuel types and burner configurations, making it equally suited to boiler management, thermal oxidiser control, and industrial furnace applications.

The RM-DR6101E occupies a pivotal position in the smart factory data flow architecture. At the field level, UV and IR flame detectors — such as those in the Forney DR6100 detector family — continuously monitor burner flame presence and intensity. The RM-DR6101E amplifier card receives these raw sensor signals, applies dual-range gain processing to eliminate noise and false trips, and outputs a clean 4–20 mA signal that represents real-time flame status with high fidelity.

This conditioned analog signal feeds directly into the Forney DR6100 BMS controller chassis, where it is evaluated against pre-configured flame-on and flame-fail thresholds. The BMS chassis communicates burner status to the plant's Siemens S7-300 or S7-400 PLC via hardwired relay contacts or, where a protocol gateway is installed, via Modbus RTU over RS-485. In larger installations, a Moxa MGate MB3480 Modbus-to-Ethernet gateway or equivalent device converts the serial Modbus data stream into Modbus TCP/IP, enabling the flame status data to traverse the plant Ethernet backbone and reach the Wonderware InTouch SCADA or Ignition SCADA platform in real time.

At the HMI layer, operators on the plant floor view live flame status, signal strength trends, and alarm histories on Siemens TP1200 Comfort Panel HMIs or equivalent touchscreen displays. Alarm events — such as flame failure, low signal, or sensor fault — are automatically logged with timestamps and forwarded to the plant's alarm management system, enabling rapid response and full audit traceability. Where OPC-UA connectivity is required, an edge gateway such as the Advantech WISE-5231 or similar industrial IoT gateway translates the Modbus data into OPC-UA tags, making flame status data available to MES and ERP systems for energy accounting and compliance reporting.

On the power and infrastructure side, the DR6100 chassis is typically powered by a Phoenix Contact QUINT 24 VDC industrial power supply, ensuring stable, regulated power to the RM-DR6101E card and all co-installed amplifier modules. Where multiple burner zones are monitored, additional RM-DR6101E cards are installed in parallel slots within the same chassis, each independently processing one flame detector channel. The chassis backplane distributes power and BMS bus communications across all installed cards, supporting scalable multi-burner configurations without additional wiring complexity.

For remote diagnostic access, the plant's industrial Ethernet switch — such as a Hirschmann RS20 managed switch — provides the network backbone that connects the BMS gateway, SCADA server, and remote engineering workstations. Maintenance engineers can remotely interrogate flame signal trends, review historical alarm data, and adjust amplifier sensitivity parameters without requiring physical access to the control panel, significantly reducing maintenance downtime and travel costs in geographically distributed plant environments.

Protocol Fragmentation: Many combustion safety systems use proprietary BMS protocols that cannot be directly read by modern PLC or SCADA platforms. The RM-DR6101E's standardised 4–20 mA and relay outputs provide a universal interface that any PLC analog input card or DCS I/O module can read without protocol conversion, eliminating integration barriers at the field level. Where higher-level protocol integration is required, a Modbus or PROFIBUS gateway bridges the BMS data into the plant automation network.

Data Silos: Flame detection data is often isolated within the BMS and never reaches the SCADA historian or MES system. By routing the RM-DR6101E's analog output through a PLC analog input module and then to the SCADA via Ethernet, flame status becomes a live process variable available for trending, reporting, and cross-system correlation with fuel flow, combustion efficiency, and emissions data.

Remote Monitoring Gaps: In unmanned or remotely operated facilities, real-time flame status visibility is critical for safe operation. The RM-DR6101E's relay output can trigger remote alarm annunciators or SMS/email notification systems via a connected alarm dialler, while its analog output feeds remote SCADA dashboards accessible over VPN, providing 24/7 flame status visibility without on-site personnel.

Production Line Transparency: Integrating flame detection data into the plant's overall OEE (Overall Equipment Effectiveness) dashboard allows production managers to correlate burner trips with production stoppages, quantify the impact of flame failures on throughput, and prioritise preventive maintenance on high-trip-rate burners — transforming safety data into actionable operational intelligence.

System Scalability: As plant capacity expands, additional RM-DR6101E cards can be installed in spare chassis slots without modifying the existing BMS wiring or SCADA configuration, providing a cost-effective and non-disruptive path to monitoring additional burner zones.

Q1: What communication protocols does the Forney RM-DR6101E support for SCADA integration? The RM-DR6101E outputs a standard 4–20 mA analog signal and discrete relay contacts, which are universally compatible with PLC analog input modules and DCS I/O cards. For higher-level SCADA integration via Modbus TCP/IP or OPC-UA, a protocol gateway (e.g., Modbus RTU-to-Ethernet gateway) is used to bridge the BMS data onto the plant Ethernet network. This approach ensures compatibility with all major SCADA platforms including Wonderware, Ignition, and Siemens WinCC.

Q2: How does the RM-DR6101E ensure network stability and minimise false flame trips in noisy industrial environments? The RM-DR6101E incorporates dual-range signal processing with configurable sensitivity thresholds, allowing the amplifier to discriminate between genuine flame signals and electrical noise or optical interference. The card's signal conditioning circuitry filters high-frequency noise from the detector input, and the relay output includes adjustable time delays to prevent nuisance trips caused by momentary signal fluctuations — ensuring stable, reliable flame status reporting even in electrically noisy plant environments.

Q3: Can the RM-DR6101E support remote diagnostics and predictive maintenance workflows? Yes. By routing the RM-DR6101E's 4–20 mA output to a SCADA historian, maintenance teams can trend flame signal strength over time and detect gradual detector degradation before it causes a nuisance trip or missed flame failure. Combined with remote SCADA access over VPN, engineers can review flame signal trends, alarm histories, and BMS status from any location, enabling condition-based maintenance scheduling without on-site visits.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the Forney RM-DR6101E? Every Forney RM-DR6101E supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification to confirm signal output integrity and relay operation. NANKMOS maintains in-stock inventory of the RM-DR6101E to support urgent replacement requirements, with global express shipping available to minimise plant downtime. For volume orders or project-specific lead time requirements, contact our technical sales team for a dedicated supply commitment.
