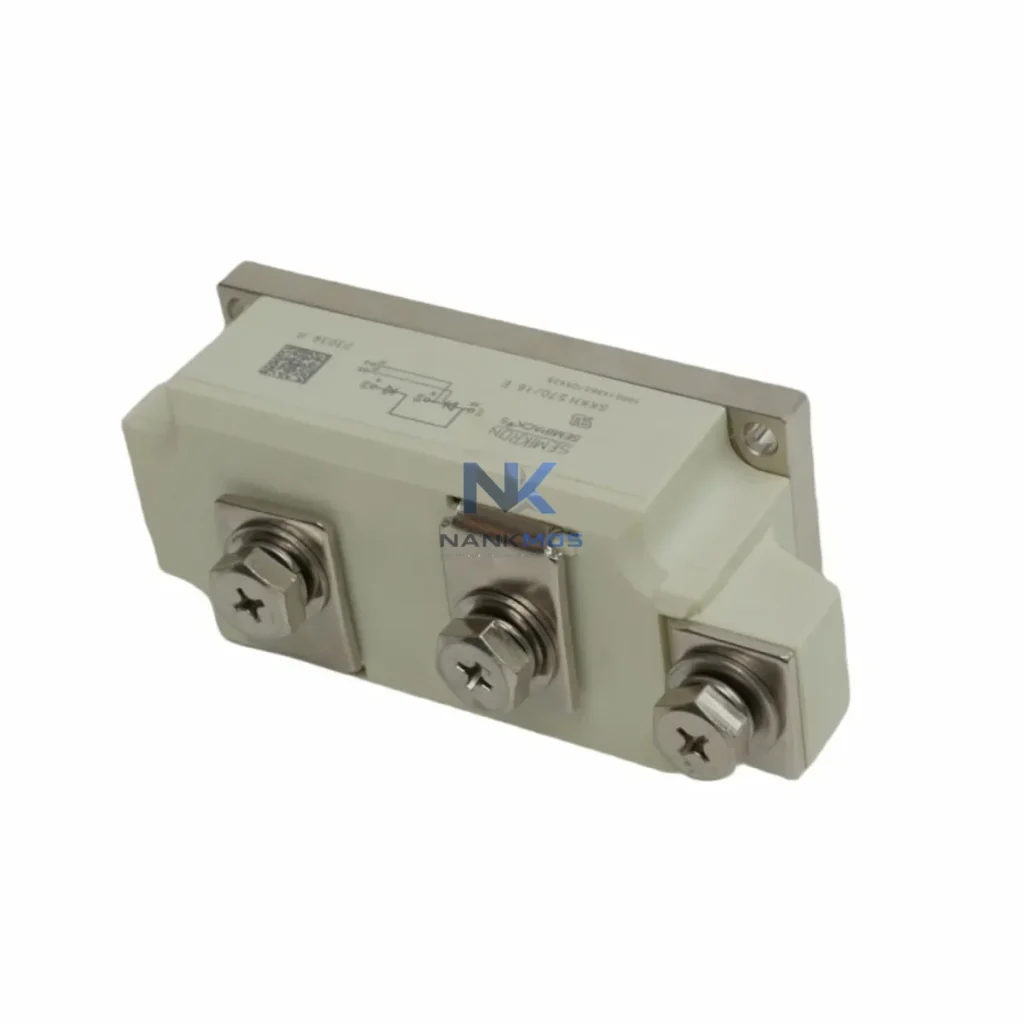

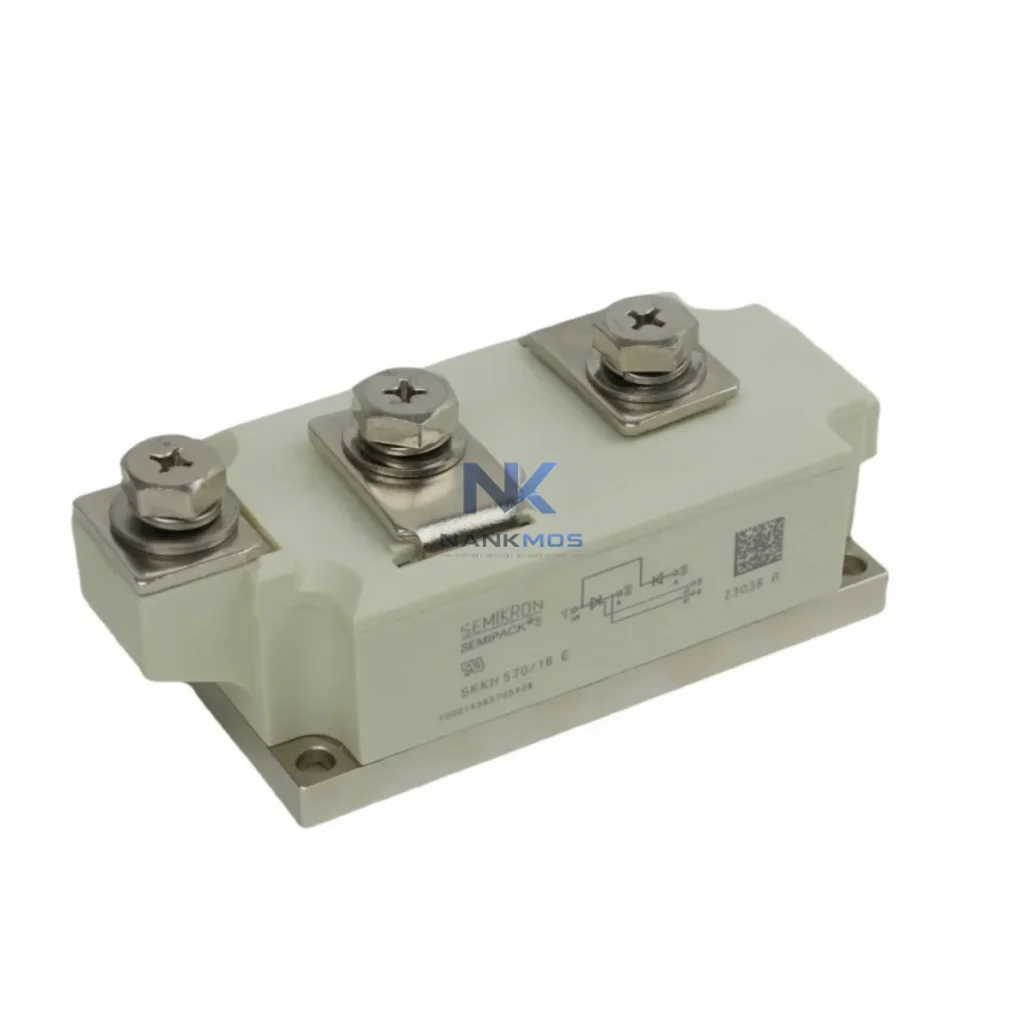

SEMIKRON SKKH570/16E Thyristor Power Module

Product Details

SKKH570/16E Product Description

The Semikron SKKH570/16E is a high-current, half-controlled thyristor power module from SEMIKRON's proven SKKH series, engineered to deliver precise energy control in demanding industrial environments. Rated at 570 A continuous current with a 1600 V blocking voltage, this module is purpose-built for AC motor soft-starting, DC drive regulation, resistance heating control, and reactive power compensation — all critical functions in modern energy-aware production lines. Whether integrated into a new drive cabinet or used as a direct replacement in an existing system, the SKKH570/16E provides the switching reliability and thermal stability that industrial energy optimization demands.

In a fully integrated smart production line, the SKKH570/16E operates as the core switching element within the power stage of a drive or soft-starter cabinet. Its role begins the moment a Siemens S7-1500 PLC or Mitsubishi MELSEC iQ-R series controller issues a motor start command. Rather than applying full voltage instantaneously — which causes inrush current spikes and mechanical stress — the thyristor module enables a controlled ramp-up, reducing peak demand on the upstream supply and protecting connected equipment.

When paired with a Schneider Electric ATV630 variable frequency drive or a Siemens SINAMICS G120 drive, the SKKH570/16E can serve as the rectifier stage input device, converting AC supply into a stable DC bus with minimal harmonic distortion. This directly reduces the reactive power burden on the facility's electrical infrastructure. A Carlo Gavazzi EM24 power monitoring module or Janitza UMG 96RM energy analyzer installed on the same panel bus can then log real-time kWh consumption, power factor, and harmonic content — giving the energy management system (EMS) or SCADA platform the data it needs to trigger load-shedding routines during peak tariff windows.

On the I/O side, a Beckhoff EL3403 power measurement terminal integrated into an EtherCAT I/O rack can monitor the current flowing through the SKKH570/16E in real time, feeding that data back to the PLC for closed-loop load management. If the module's junction temperature approaches its thermal limit — detectable via a PT100 or NTC thermistor sensor mounted on the heatsink — the PLC can automatically reduce the firing angle or switch to a lighter load profile, preventing thermal runaway without operator intervention.

For servo-driven axes sharing the same DC bus, a Yaskawa SGDV servo drive or Panasonic MINAS A6 series can regenerate braking energy back into the bus, which the SKKH570/16E's associated rectifier stage can then redistribute to other active loads — a closed-loop energy recycling strategy that measurably reduces net consumption per production cycle. Communication between these components is typically handled via PROFIBUS DP, PROFINET, or Modbus RTU, with an HMS Anybus communicator bridging legacy fieldbus devices to modern Ethernet-based SCADA systems.

Factory energy costs are rarely driven by peak machine ratings — they are driven by inefficiency: inrush events, idle-state losses, unbalanced phase loads, and unplanned downtime that forces cold restarts. The Semikron SKKH570/16E addresses each of these vectors directly.

By enabling phase-angle firing control, the module allows the drive system to match motor torque output precisely to the mechanical load demand at any given moment in the production cycle. A conveyor running at 30% load does not need to draw full-rated current — with proper thyristor control, it draws only what the process requires. This load-proportional power delivery is the foundation of production line energy optimization, and it is what separates a well-engineered drive cabinet from a simple on/off contactor system.

Thermal load reduction is equally significant. Because the SKKH570/16E's low thermal resistance (Rth(j-c) ≤ 0.045 K/W) allows efficient heat transfer to the heatsink, the module operates at lower junction temperatures under equivalent load conditions compared to lower-grade alternatives. Lower operating temperatures translate directly into longer MTBF, reduced cooling system energy consumption, and fewer unplanned maintenance events — all of which improve Overall Equipment Effectiveness (OEE) and reduce the total cost of ownership over the module's service life.

For predictive maintenance programs, the SKKH570/16E's stable switching characteristics make it straightforward to establish baseline current and temperature signatures. Any deviation from these baselines — detectable by the plant's condition monitoring system — can trigger a maintenance alert before a failure occurs, eliminating the energy waste and production loss associated with emergency shutdowns. Every unit supplied by NANKMOS undergoes full load testing and gate trigger verification prior to shipment, ensuring that the module's performance matches its datasheet from day one of installation.

Q1: What energy savings can I realistically expect by using the SKKH570/16E in a motor soft-start application? In typical AC motor soft-start applications, replacing a direct-on-line (DOL) starter with a thyristor-controlled soft-starter using the SKKH570/16E can reduce inrush current by 40–70%, lowering peak demand charges and reducing mechanical wear on couplings and gearboxes. Actual energy savings depend on motor size, duty cycle, and load profile, but facilities with multiple large motors commonly report measurable reductions in monthly electricity costs after conversion.

Q2: Is the SKKH570/16E compatible with my existing PLC and SCADA system? The SKKH570/16E is a power semiconductor module — it does not communicate directly with PLCs or SCADA systems. It is controlled by a firing circuit or gate driver board within the drive or soft-starter assembly. As long as your existing drive cabinet accepts a standard SKKH-footprint half-controlled bridge module at 570 A / 1600 V ratings, the SKKH570/16E is a direct drop-in replacement. Your PLC, HMI, and SCADA interfaces remain unchanged.

Q3: How do I verify the module is genuine and has been tested before shipment? All SKKH570/16E units supplied by NANKMOS are sourced from authorized distribution channels and undergo pre-shipment testing that includes gate trigger threshold verification, forward voltage drop measurement, and leakage current checks. A test report is available upon request. Each unit ships with original SEMIKRON packaging and full traceability documentation to support your incoming inspection process.

Q4: What does the 12-month warranty cover, and what is the replacement process? NANKMOS provides a 12-month warranty covering manufacturing defects and premature failure under normal operating conditions. If a module fails within the warranty period, contact us with your order number and a brief failure description. We will arrange a replacement shipment — typically within 3–5 business days — at no additional cost. Warranty claims resulting from installation errors, overvoltage events, or operation outside the rated parameters are evaluated on a case-by-case basis.
