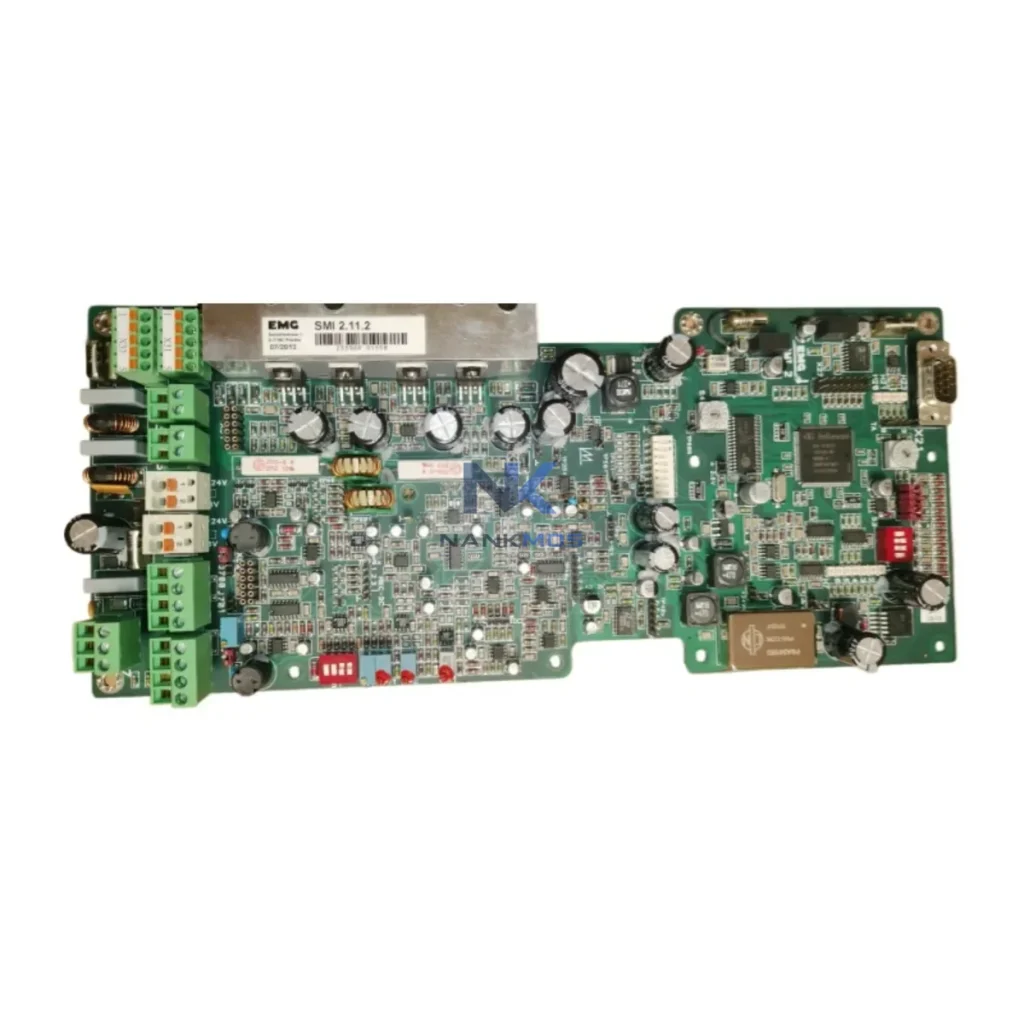

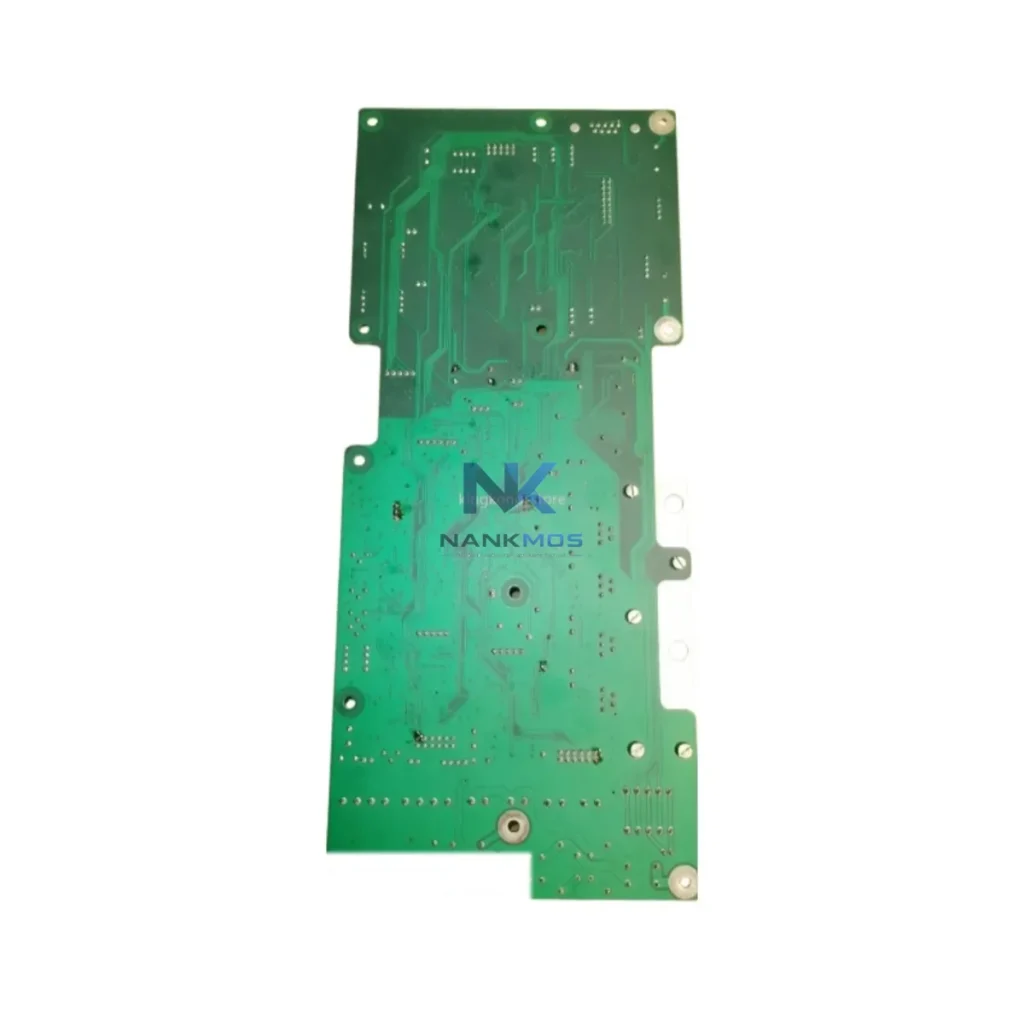

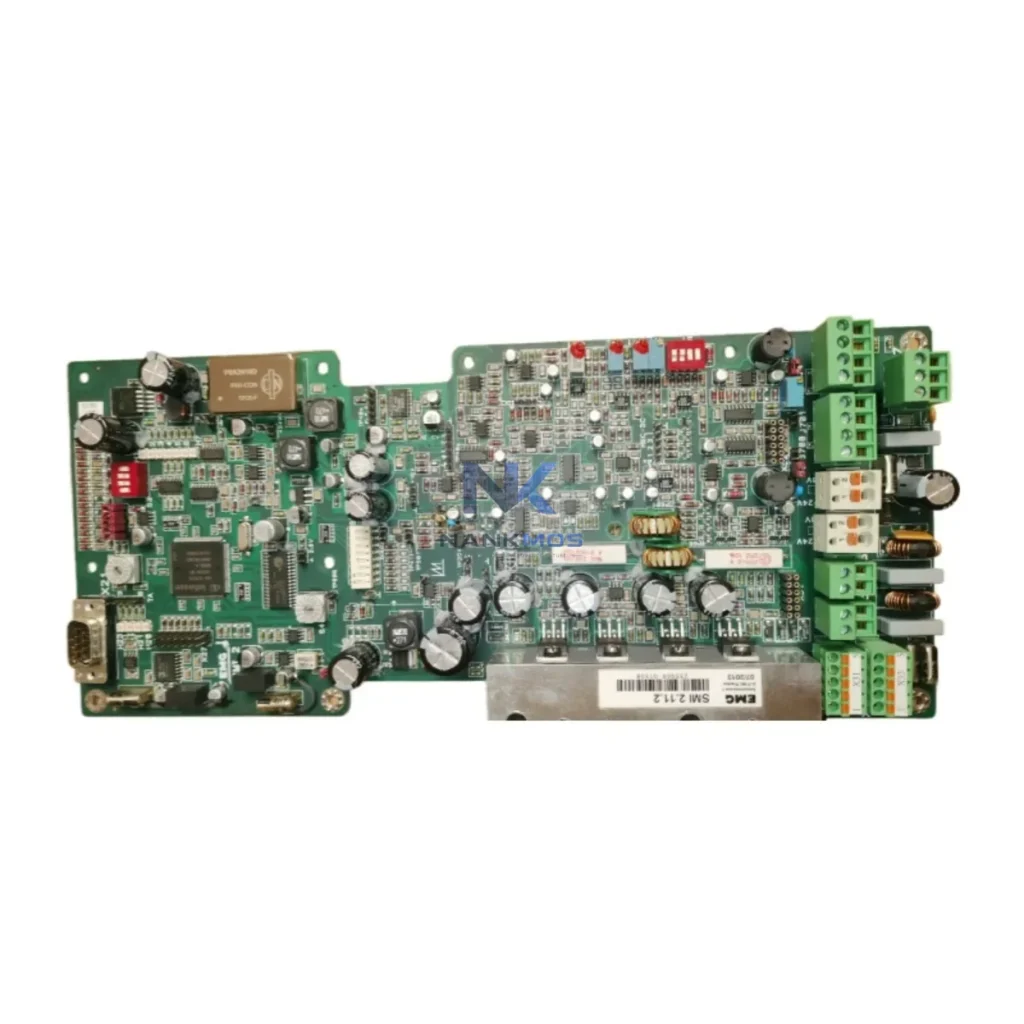

EMG SMI2.11.3 Control Board

Product Details

SMI2.11.3 Product Description

The EMG SMI2.11.3 is a precision-engineered control board designed for inductive strip measurement applications within rolling mill automation and continuous process control environments. As a dedicated signal acquisition and processing module, the SMI2.11.3 occupies a critical position in the measurement and control layer of the automation hierarchy, bridging raw inductive sensor signals with the supervisory control platform. Its role extends far beyond standalone measurement — it functions as a system-coherent component that enhances signal stability, diagnostic transparency, and long-term maintainability across the entire control architecture.

In modern rolling mill and strip processing lines, measurement accuracy at the strip edge and thickness level directly determines product quality and process yield. The SMI2.11.3 is engineered to deliver consistent, low-noise signal conditioning that feeds reliably into the higher-level control loop. When integrated alongside EMG's SMI2 series signal processing units and compatible rack-mounted backplane assemblies, the board enables a tightly coordinated measurement chain from sensor to controller — eliminating signal drift, reducing calibration intervals, and supporting real-time process adjustments without interrupting production continuity.

From a control architecture perspective, the SMI2.11.3 interfaces naturally with PLC-based control platforms such as Siemens S7-400 or S7-300 series controllers, which are commonly deployed in rolling mill drive and tension control applications. The board's analog output signals are compatible with standard I/O modules, allowing seamless integration into existing automation cabinets without requiring additional signal converters. This compatibility reduces engineering overhead during commissioning and simplifies future system expansions or upgrades.

At the communication layer, the SMI2.11.3 supports integration into PROFIBUS-DP and analog fieldbus environments, enabling the measurement data to be transmitted to SCADA systems, historian platforms, and HMI terminals such as Siemens TP700 or TP1500 panels. Operators gain real-time visibility into strip position, edge deviation, and measurement trends directly at the HMI level, supporting both manual intervention and automated closed-loop correction. This transparency is essential for quality assurance in high-speed strip processing where millisecond-level response is required.

The power supply layer supporting the SMI2.11.3 typically includes 24VDC regulated rail power from units such as Siemens SITOP PSU100S or equivalent DIN-rail power supplies, ensuring stable operating voltage across the measurement chain. In redundant architectures, dual-channel power feeds with automatic switchover protect measurement continuity during power disturbances — a critical requirement in continuous casting and hot rolling applications where unplanned downtime carries significant cost implications.

For I/O layer coordination, the SMI2.11.3 works in conjunction with analog input modules such as Siemens SM331 or equivalent multi-channel AI cards, which digitize the conditioned measurement signals for PLC processing. Terminal modules and marshalling panels within the control cabinet provide organized signal routing, reducing wiring complexity and improving fault isolation during maintenance. Structured cable management and labeled terminal blocks further support rapid troubleshooting and module replacement in production environments.

In the protection and diagnostics layer, the SMI2.11.3 contributes to system-level fault detection by providing stable reference signals that allow the control system to identify sensor failures, cable breaks, or measurement drift conditions. When paired with EMG's SMI2 series diagnostic modules and integrated into a PLC-based alarm management framework, the board enables predictive maintenance workflows that reduce unplanned downtime and extend the operational lifespan of the measurement system.

For modular deployment, the SMI2.11.3 is designed to fit within EMG's standard rack and backplane infrastructure, allowing multiple boards to be installed in a single cabinet for multi-channel strip measurement applications. This scalability is particularly valuable in wide-strip rolling mills where simultaneous edge and center measurement is required across multiple strip widths. The modular architecture also simplifies spare parts management, as individual boards can be replaced without disturbing adjacent modules or reconfiguring the entire measurement chain.

Long-term maintenance efficiency is a core design consideration for the SMI2.11.3. The board's standardized form factor and clearly documented calibration procedures reduce the skill threshold required for field service, enabling plant maintenance teams to perform routine checks and replacements without specialized EMG service support. Combined with NANKMOS's 12-Month Warranty and pre-shipment functional testing, customers receive a board that is verified operational before installation, minimizing commissioning risk and accelerating system startup.

NANKMOS maintains ready inventory of the EMG SMI2.11.3 to support urgent replacement requirements in active production environments. Each unit undergoes outgoing inspection and functional verification prior to dispatch, ensuring that the delivered board meets the original EMG performance specification. Our technical team is available to assist with integration guidance, system compatibility verification, and documentation support throughout the procurement and commissioning process.

The SMI2.11.3 achieves its full performance potential when deployed as part of a coordinated automation platform. In a typical rolling mill control cabinet, the board operates alongside the following system components: the EMG SMI2 series backplane rack provides the mechanical and electrical foundation for multi-board installations; Siemens S7-400 CPU modules (such as the CPU 414-3 or CPU 416-3) handle the supervisory control logic and closed-loop tension regulation; Siemens SM331 analog input modules digitize the conditioned strip measurement signals for PLC processing; SITOP PSU100S 24VDC power supplies deliver stable rail power to the measurement chain; Siemens ET200M distributed I/O stations extend the I/O layer to remote measurement points along the strip line; PROFIBUS-DP communication modules (CP443-5) integrate the measurement data into the plant-wide fieldbus network; Siemens TP1500 HMI panels provide operator visualization of strip position and measurement trends; EMG SMI2 series diagnostic modules enable system-level fault detection and predictive maintenance; DIN-rail terminal blocks and marshalling panels organize signal routing within the control cabinet; and industrial Ethernet switches (such as Siemens SCALANCE X series) connect the control system to the plant SCADA and historian infrastructure. Together, these components form a coherent, scalable automation platform in which the SMI2.11.3 serves as the precision measurement foundation.

The EMG SMI2.11.3 is deployed across a broad range of industrial sectors where precise strip or material measurement is critical to process quality and yield. In hot and cold rolling mills, the board provides real-time strip edge and position measurement that feeds directly into the automatic gauge control (AGC) and automatic width control (AWC) loops, ensuring dimensional consistency across coil lengths. In continuous casting lines, the SMI2.11.3 monitors strand position and guides the withdrawal and straightening unit, reducing surface defects and improving slab quality. In strip processing lines (including pickling, annealing, and galvanizing lines), the board supports tension control and strip tracking across multiple process sections, maintaining stable strip threading and reducing cobble risk. In power generation and transformer manufacturing, the SMI2.11.3 is used for precision measurement of electrical steel strip during slitting and winding operations, where dimensional accuracy directly affects core loss performance. In packaging and converting lines, the board provides web guiding measurement for film, foil, and paper substrates, supporting high-speed registration and reducing material waste. Across all these applications, the SMI2.11.3 delivers the measurement stability, signal integrity, and system integration capability required for demanding industrial process control environments.

Q1: Is the EMG SMI2.11.3 compatible with Siemens S7-400 and S7-300 PLC platforms? Yes. The SMI2.11.3 produces analog output signals that are directly compatible with Siemens SM331 and equivalent analog input modules used in S7-300 and S7-400 systems. No additional signal converters are required for standard integration. For PROFIBUS-DP environments, the board's measurement data can be transmitted via compatible CP modules, enabling seamless integration into existing Siemens-based control architectures. NANKMOS can provide integration guidance and wiring documentation upon request.

Q2: What does the 12-Month Warranty cover, and how does NANKMOS support long-term maintenance? NANKMOS's 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of delivery. Each SMI2.11.3 unit undergoes pre-shipment functional testing to verify performance against the original EMG specification before dispatch. For long-term maintenance, NANKMOS maintains ready inventory of the SMI2.11.3 and related EMG SMI2 series components, enabling rapid replacement in the event of board failure. Our technical team provides post-sale support including troubleshooting guidance, calibration documentation, and compatibility verification for system upgrades.

Q3: Can the SMI2.11.3 be installed in an existing EMG SMI2 rack without system reconfiguration? In most cases, yes. The SMI2.11.3 is designed for direct installation into the EMG SMI2 series backplane rack, using the standard board connector and mechanical mounting format. Replacement of a failed board with a new SMI2.11.3 unit typically requires only physical installation and calibration verification, without changes to the PLC program or fieldbus configuration. However, NANKMOS recommends verifying the firmware revision and hardware variant of the existing system before installation to ensure full compatibility. Our team can assist with pre-installation compatibility checks based on your system documentation.
