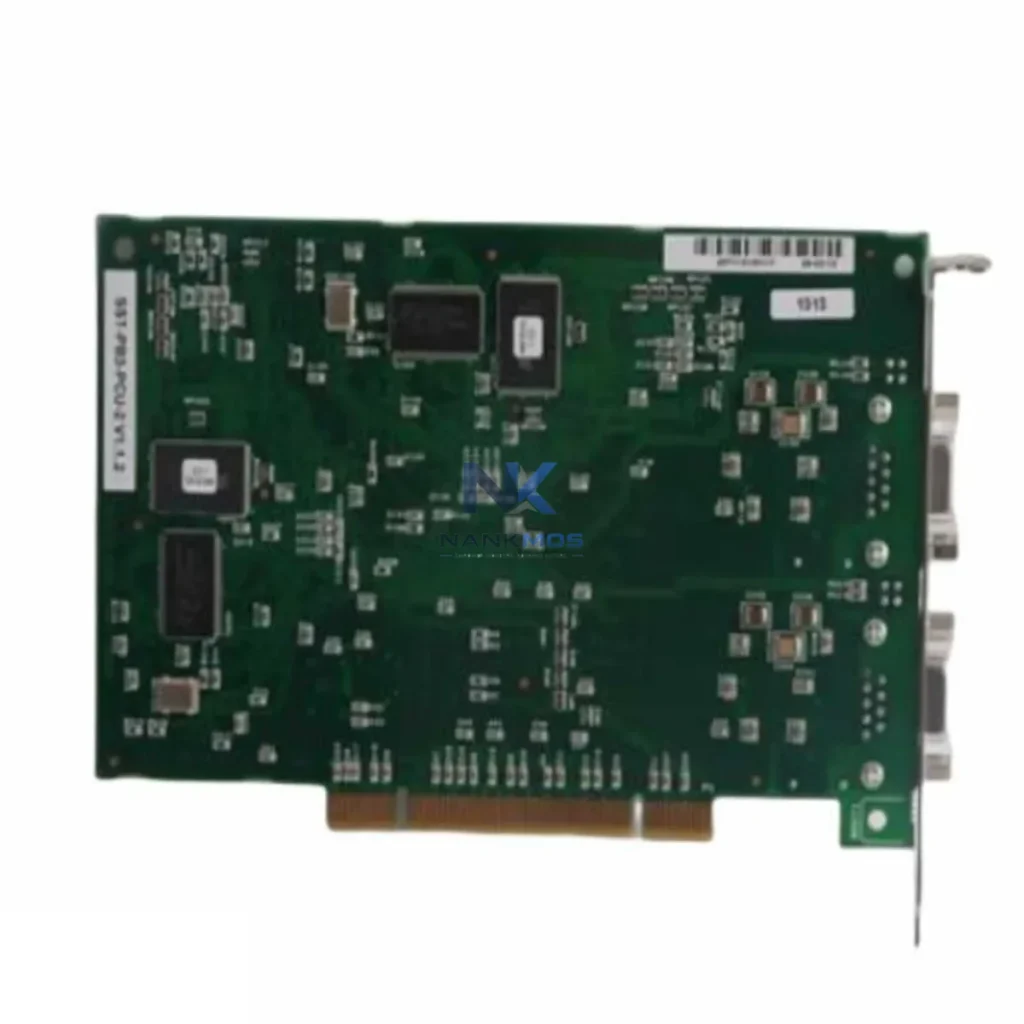

SST (Woodhead/Molex) SST-PB3-PCU PROFIBUS Interface Module

Product Details

SST-PB3-PCU Product Description

The SST SST-PB3-PCU is a high-performance PROFIBUS DP interface module engineered for energy-conscious industrial automation environments. Designed to integrate seamlessly into smart production lines, this module enables precise communication between host controllers and field devices, directly supporting load management, drive efficiency, and real-time energy monitoring across manufacturing cells. With its compact PCI/PCU form factor and robust SST-PB3 series architecture, the SST-PB3-PCU delivers deterministic PROFIBUS DP communication at up to 12 Mbps — ensuring that energy data, device status, and control commands are exchanged with minimal latency and zero redundant processing overhead.

In modern energy-optimized factories, every millisecond of communication delay translates into wasted motor run time, unnecessary heat generation, and degraded production throughput. The SST-PB3-PCU eliminates these inefficiencies by providing a stable, low-overhead PROFIBUS DP master/slave interface that keeps PLCs, variable frequency drives (VFDs), servo drives, and power monitoring modules tightly synchronized. When paired with a Siemens S7-300 or S7-400 PLC, or integrated into a Rockwell ControlLogix platform via gateway, the SST-PB3-PCU enables the controller to issue precise speed references and torque limits to connected drives — reducing motor energy consumption during partial-load cycles and idle states.

The SST-PB3-PCU sits at the communication backbone of a power-aware automation architecture. In a typical motor control center (MCC), the module connects a host PLC — such as a Siemens S7-315 or a Rockwell ControlLogix L73 — to a network of ABB ACS880 variable frequency drives, Siemens SINAMICS G120 drives, and Lenze i550 drives via PROFIBUS DP. By delivering real-time speed references and energy feedback with sub-millisecond cycle accuracy, the SST-PB3-PCU allows the control system to dynamically adjust motor output based on actual production demand, eliminating the energy waste associated with fixed-speed operation.

Beyond drive control, the SST-PB3-PCU integrates with Siemens SENTRON PAC3200 power monitoring modules and Janitza UMG 96RM energy meters connected on the PROFIBUS segment, enabling the SCADA system — such as Wonderware InTouch or Ignition by Inductive Automation — to collect granular power consumption data at the device level. This data feeds directly into energy management dashboards, allowing plant engineers to identify high-consumption assets, schedule maintenance windows, and implement demand-response strategies without interrupting production.

On the I/O side, the SST-PB3-PCU communicates with Siemens ET 200S distributed I/O stations and Phoenix Contact Inline I/O modules, consolidating sensor feedback — including temperature, vibration, and current draw — into a single PROFIBUS DP scan cycle. This reduces the number of separate communication transactions required, lowering CPU utilization on the host PLC and freeing processing capacity for energy optimization algorithms. Paired with a Siemens TP1200 Comfort HMI or a Weintek MT8000 series panel, operators gain a real-time view of energy consumption per production zone, enabling immediate corrective action when load anomalies are detected.

In high-throughput manufacturing environments — automotive body shops, food and beverage filling lines, pharmaceutical packaging cells — the SST-PB3-PCU contributes to measurable energy savings by enabling tighter synchronization between production rhythm and drive output. When a conveyor segment enters a low-demand phase, the PLC can issue a speed reduction command to the connected VFDs via PROFIBUS DP in real time, reducing motor power draw proportionally. This dynamic load management capability, facilitated by the SST-PB3-PCU's reliable high-speed communication, can reduce motor energy consumption by 20–40% during partial-load cycles compared to fixed-speed operation.

Thermal load reduction is another key benefit. By keeping drives operating at optimal speed rather than running at full capacity during idle or transition phases, the SST-PB3-PCU indirectly reduces heat generation in motor windings and drive power stages. Lower thermal stress extends the service life of connected drives and motors, reducing unplanned downtime and the energy cost of emergency replacements. Predictive maintenance routines — triggered by vibration and temperature data collected through the PROFIBUS DP network — can be scheduled during planned production pauses, further minimizing disruption to line throughput.

The SST-PB3-PCU also supports production line takt optimization. By providing the PLC with accurate, low-latency feedback from all connected field devices, the module enables the control system to fine-tune conveyor speeds, robot cycle times, and press intervals to match actual downstream demand. This eliminates buffer accumulation, reduces unnecessary motor starts and stops, and ensures that energy is consumed only when productive work is being performed. The result is a leaner, more energy-efficient production line with higher overall equipment effectiveness (OEE) and lower energy cost per unit produced.

All SST-PB3-PCU units supplied by NANKMOS are sourced from verified distribution channels, tested for communication integrity and power stability prior to shipment, and covered by a 12-month warranty. In-stock inventory ensures rapid deployment to support urgent project timelines and minimize production downtime during system upgrades or replacements.

Q1: How does the SST-PB3-PCU contribute to energy savings on a production line?The SST-PB3-PCU enables real-time PROFIBUS DP communication between the host PLC and connected variable frequency drives, servo drives, and power monitoring modules. This allows the control system to dynamically adjust motor speed and torque based on actual production demand, reducing energy consumption during partial-load and idle phases by up to 20–40% compared to fixed-speed operation.

Q2: Which PLC platforms and drive systems is the SST-PB3-PCU compatible with?The SST-PB3-PCU is compatible with Siemens S7-300/400 series PLCs, Rockwell ControlLogix platforms (via PROFIBUS gateway), and GE Fanuc Series 90 controllers. It supports PROFIBUS DP master and slave operation at baud rates up to 12 Mbps, making it suitable for integration with ABB ACS880, Siemens SINAMICS G120, and Lenze i550 drive families.

Q3: What is the recommended replacement or upgrade path for aging PROFIBUS interface cards?For systems currently using legacy SST-PB3 series cards or equivalent third-party PROFIBUS interface modules, the SST-PB3-PCU is a direct form-factor replacement. NANKMOS recommends verifying the host system's PCU slot compatibility and PROFIBUS DP configuration software version before installation. Our technical team can assist with compatibility assessment and configuration file migration.

Q4: What testing and warranty coverage is provided with each SST-PB3-PCU unit?Every SST-PB3-PCU unit supplied by NANKMOS undergoes communication integrity testing and power stability verification prior to shipment. Each unit is covered by a 12-month warranty against manufacturing defects and communication failures. In-stock availability ensures same-week dispatch for most orders, supporting rapid project deployment and minimizing production line downtime.
