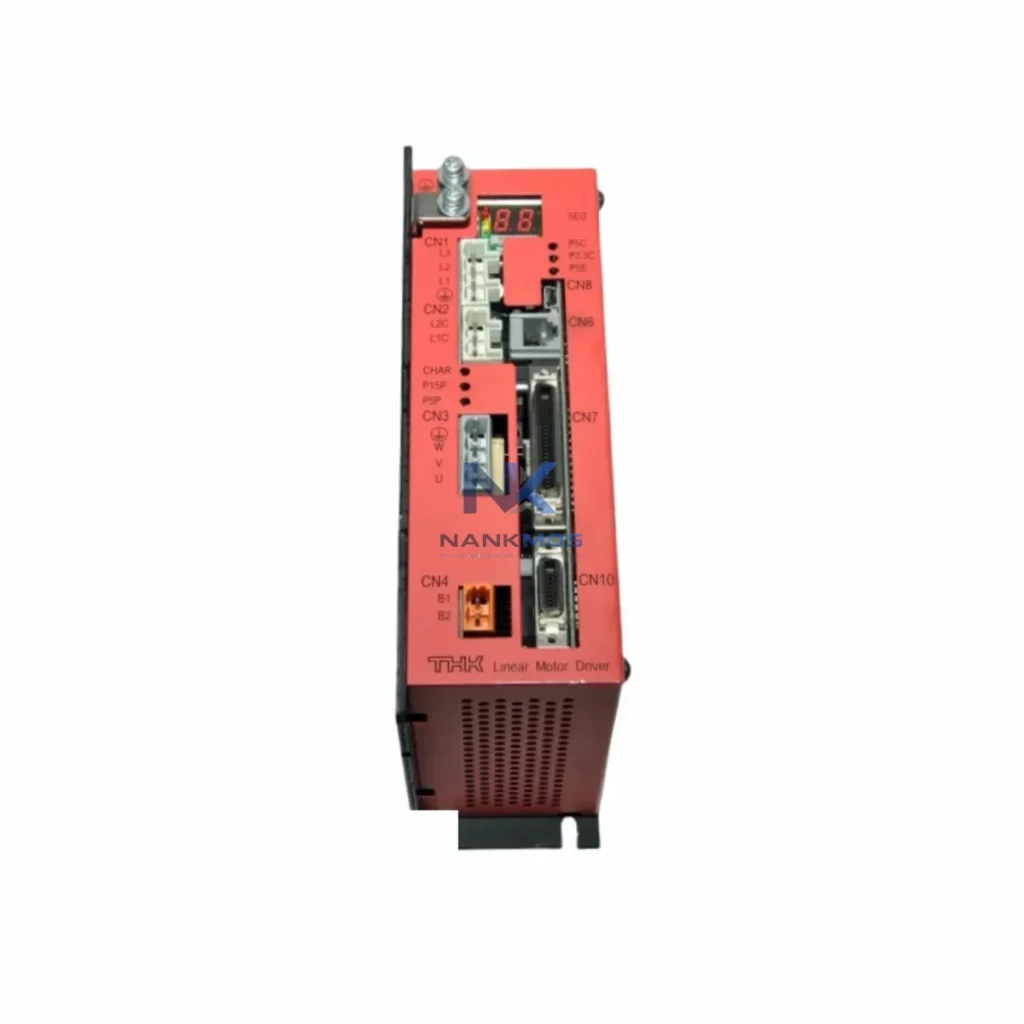

TD-300CU-200AC-G20L2-5U-J Product Description

The Nikki Denso TD-300CU-200AC-G20L2-5U-J is a precision-engineered energy-control linear motor driver designed for demanding industrial automation environments. Built to operate on a 200VAC input with a G20L2-5U-J drive configuration, this unit delivers accurate thrust control, real-time load feedback, and adaptive current regulation — making it a core component in energy-aware production line architectures. Whether integrated into semiconductor handling systems, precision assembly lines, or high-cycle pick-and-place platforms, the TD-300CU-200AC-G20L2-5U-J enables factories to reduce unnecessary energy draw while maintaining consistent motion throughput.

Sourced directly from Japan and subject to full pre-shipment functional testing, every unit is backed by a 12-month warranty and verified against Nikki Denso's original factory specifications. In-stock inventory ensures minimal lead time for MRO replacement and new system integration projects.

In modern smart factories, energy efficiency is not a feature — it is a system-level discipline. The Nikki Denso TD-300CU-200AC-G20L2-5U-J is engineered to participate actively in a plant's power-aware automation strategy by delivering precise, demand-matched thrust output that eliminates over-driving and idle-state energy waste.

When paired with a Mitsubishi MELSEC Q-series PLC or a Siemens S7-1500 controller, the TD-300CU-200AC-G20L2-5U-J receives real-time motion commands that are synchronized with production cycle timing — ensuring the linear axis accelerates and decelerates only when required by the process. This eliminates the energy penalty of continuous-run motor operation common in older drive architectures.

Integration with a Yokogawa WT series power monitoring module or a Hioki PW3390 power analyzer allows plant engineers to log per-axis energy consumption at the drive level, enabling granular load profiling across multi-axis gantry and transport systems. This data feeds directly into SCADA platforms such as Wonderware InTouch or Ignition by Inductive Automation, where energy KPIs are tracked against production output targets.

For multi-axis systems, the TD-300CU-200AC-G20L2-5U-J operates alongside Nikki Denso TD-200 series linear motor coil assemblies and compatible linear encoder feedback units, forming a closed-loop drive system that minimizes position error and eliminates corrective re-drive cycles — a significant source of hidden energy waste in high-precision applications. The driver's regenerative braking capability allows kinetic energy from deceleration phases to be returned to the DC bus, reducing net energy draw during high-cycle operations.

On the I/O side, connection to a Keyence CV-X series vision system or an Omron F3SG safety light curtain enables the drive to respond to machine-state signals — pausing thrust output during safety holds or inspection windows rather than maintaining standby torque. This event-driven power management approach, coordinated through the plant PLC and an EtherCAT or PROFINET communication module, reduces thermal load on the driver and extends component service life.

HMI integration via a Proface GP4000 series panel or Siemens TP1200 Comfort HMI gives operators real-time visibility into drive status, current draw, and fault diagnostics — enabling rapid response to abnormal load conditions before they escalate into unplanned downtime events.

The TD-300CU-200AC-G20L2-5U-J contributes to production line energy optimization across three primary dimensions: demand reduction, thermal management, and cycle efficiency.

Demand Reduction: By delivering only the thrust required for each motion profile — rather than operating at fixed output — the TD-300CU-200AC-G20L2-5U-J reduces peak current draw during acceleration phases. In multi-axis systems where several linear drives operate in coordinated sequence, staggered acceleration scheduling managed by the PLC further flattens the facility's power demand curve, reducing peak demand charges and transformer loading.

Thermal Load Management: Excess heat is one of the most damaging and energy-wasteful byproducts of inefficient drive operation. The TD-300CU-200AC-G20L2-5U-J's adaptive current regulation ensures that the motor coil receives only the current necessary for the commanded thrust level. This reduces I²R losses in the coil windings and lowers the thermal burden on both the driver and the surrounding control cabinet — reducing cooling system energy consumption and extending the mean time between failures (MTBF) for adjacent components.

Cycle Efficiency and Line Throughput: Precise position control and fast settling time allow the TD-300CU-200AC-G20L2-5U-J to complete motion cycles with minimal overshoot and re-positioning delay. In high-cycle applications such as chip bonding, PCB handling, or optical inspection transport, this translates directly into higher units-per-hour throughput without increasing energy input — improving the energy intensity ratio (energy per unit produced) across the production line.

Predictive Maintenance Readiness: Drive current signatures and thermal trends logged via the SCADA interface provide early indicators of coil degradation, mechanical friction increases, or encoder drift — allowing maintenance teams to schedule interventions during planned downtime windows rather than responding to catastrophic failures. This predictive posture reduces both energy waste from degraded drive performance and the production losses associated with unplanned stoppages.

All units supplied by NANKMOS undergo pre-shipment functional testing to confirm thrust output, encoder feedback integrity, and communication response before dispatch. In-stock availability supports both urgent MRO replacement and phased new-line commissioning schedules.

Q1: What energy savings can I expect by replacing an older linear motor driver with the TD-300CU-200AC-G20L2-5U-J? Actual savings depend on your existing drive generation and duty cycle, but facilities replacing first- or second-generation linear drivers with the TD-300CU series typically report measurable reductions in per-axis current draw due to improved current regulation efficiency and regenerative braking recovery. Pairing the driver with a power monitoring module allows you to baseline and track savings precisely after installation.

Q2: Is the TD-300CU-200AC-G20L2-5U-J compatible with my existing PLC and motion controller? The TD-300CU-200AC-G20L2-5U-J supports standard pulse/direction and analog command interfaces, making it compatible with most industrial PLC and motion controller platforms including Mitsubishi, Siemens, Omron, and Panasonic systems. For EtherCAT or PROFINET integration, confirm the communication option fitted to your specific unit. NANKMOS technical support can assist with compatibility verification prior to order.

Q3: What does the pre-shipment test cover, and how does it relate to the 12-month warranty? Every TD-300CU-200AC-G20L2-5U-J unit dispatched by NANKMOS undergoes a full functional test covering power-on initialization, command response, encoder feedback verification, and fault detection logic. Units that pass testing are shipped with a 12-month warranty covering defects in materials and workmanship under normal operating conditions. The warranty period begins from the date of shipment.

Q4: How quickly can I receive a replacement unit if my current driver fails unexpectedly? NANKMOS maintains in-stock inventory of the TD-300CU-200AC-G20L2-5U-J to support urgent MRO requirements. Express dispatch is available for time-critical production recovery situations. Contact our team with your site location and required delivery window for a lead time confirmation.
