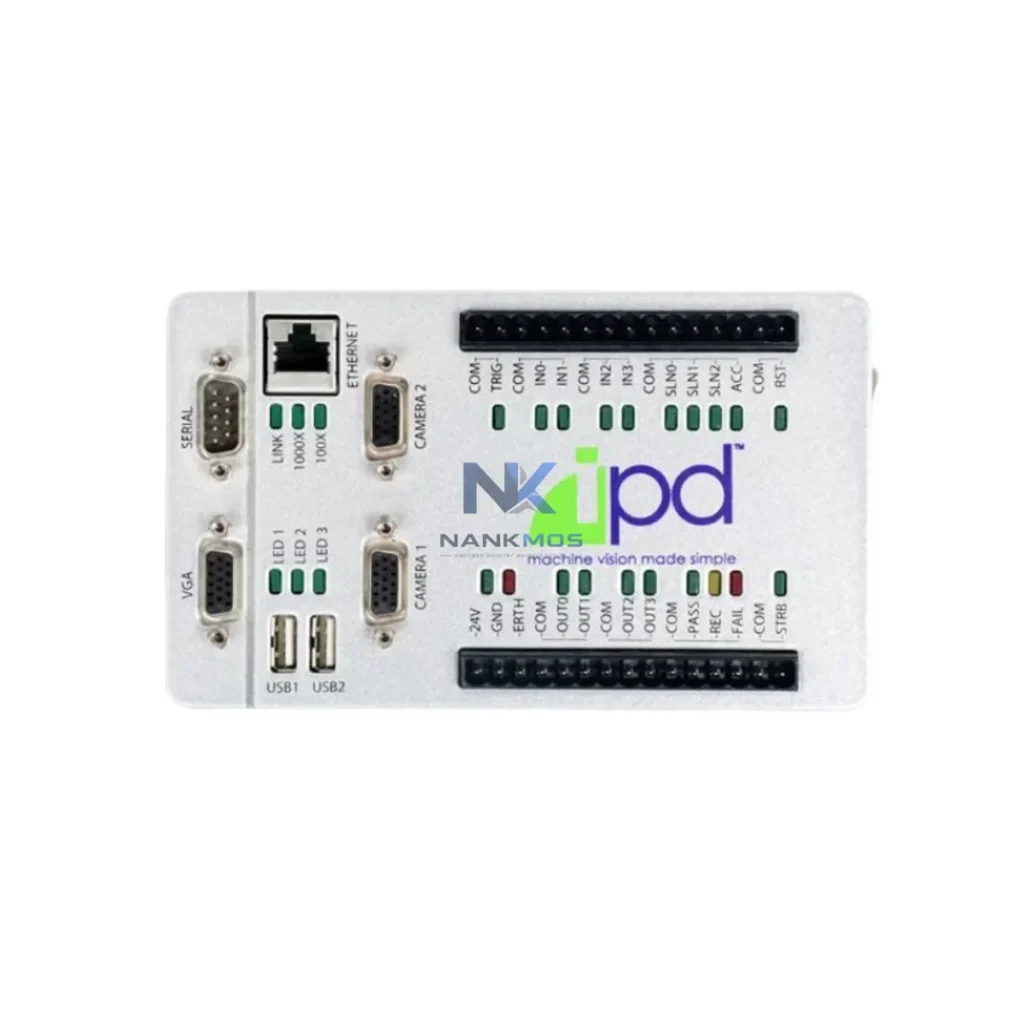

Dalsa VA20-03 Machine Vision Controller

Product Details

VA20-03 Product Description

The Dalsa VA20-03 is a high-performance, energy-control machine vision controller engineered for demanding industrial environments where production efficiency, thermal stability, and power-aware automation are non-negotiable. As part of the proven VA20 Series, the VA20-03 delivers dual-camera inspection capability with a compact, low-heat-dissipation architecture — making it an ideal component in energy-optimized smart factory deployments. Whether integrated into a discrete manufacturing cell or a continuous process line, the VA20-03 actively contributes to reducing unnecessary energy consumption while maintaining inspection throughput at full production tempo.

At NANKMOS, every VA20-03 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty — ensuring your production line receives a controller that performs from day one.

The VA20-03 is designed to operate as an intelligent node within a broader power-aware automation architecture. In a typical smart factory deployment, the controller interfaces directly with a Siemens S7-1500 PLC or Omron NX-series controller via Ethernet/IP, receiving trigger signals from upstream process steps and returning pass/fail inspection results without introducing latency into the production cycle. This tight integration eliminates redundant polling cycles and reduces the communication overhead that contributes to unnecessary CPU load — and by extension, unnecessary energy draw — across the control network.

On the drive side, the VA20-03 coordinates with ABB ACS880 variable frequency drives and Yaskawa Sigma-7 servo drives to synchronize inspection timing with motor deceleration events. Rather than running vision checks at fixed intervals regardless of machine state, the VA20-03 triggers inspections only when the driven axis reaches the correct position — a strategy that reduces both false triggers and the associated processing energy. When paired with a Schneider Electric PowerLogic PM8000 power monitoring module, plant engineers gain real-time visibility into the energy consumed per inspection cycle, enabling data-driven decisions about line speed, shift scheduling, and equipment utilization.

The VA20-03 also integrates cleanly with Beckhoff EK1100 EtherCAT I/O terminals for high-speed digital I/O coordination, and with Keyence IL-series laser displacement sensors for pre-inspection part positioning confirmation. On the human-machine interface layer, inspection status and energy KPIs can be surfaced through a Weintek cMT series HMI, giving operators immediate feedback without requiring a separate workstation. For facilities running Ignition SCADA or Wonderware System Platform, the VA20-03's Modbus TCP and OPC-UA-compatible outputs allow seamless data aggregation into plant-wide energy management dashboards.

One of the most significant sources of hidden energy waste in automated production lines is the mismatch between inspection system capacity and actual throughput demand. Legacy PC-based vision systems maintain full CPU and GPU utilization even during low-demand periods — consuming peak power regardless of whether parts are flowing. The Dalsa VA20-03 addresses this directly through its embedded, application-specific processing architecture, which scales active compute load in proportion to inspection demand. During scheduled downtime, shift changeovers, or upstream stoppages, the VA20-03 enters a low-power standby state without losing its configuration or network connection — eliminating the restart latency that often forces operators to keep systems running unnecessarily.

Thermal management is another area where the VA20-03 delivers measurable efficiency gains. By replacing a full industrial PC with a purpose-built vision controller, facilities reduce the heat load introduced into the control cabinet — which in turn reduces the duty cycle of cabinet cooling systems. In high-ambient-temperature environments such as foundries, automotive paint shops, or food processing areas, this thermal reduction can translate directly into lower HVAC energy consumption and extended service intervals for cooling components.

From a production tempo perspective, the VA20-03's deterministic inspection cycle time — typically sub-100ms per frame — ensures that vision checks never become the bottleneck in a high-speed line. Consistent cycle times allow line balancing engineers to tighten inter-station buffers, reduce work-in-progress inventory, and increase overall equipment effectiveness (OEE) without adding energy-intensive buffer conveyors or accumulation systems. When integrated with predictive maintenance platforms that monitor motor current signatures from connected VFDs and servo drives, the VA20-03's inspection data can also serve as an early indicator of tooling wear or fixture drift — enabling condition-based maintenance that prevents energy-wasting unplanned downtime.

Every VA20-03 shipped by NANKMOS undergoes pre-shipment functional verification, including power-on testing, communication interface validation, and inspection algorithm execution. Units are confirmed operational before dispatch, reducing the risk of installation delays and the associated production losses. Combined with a 12-month warranty and in-stock availability, the VA20-03 represents a low-risk, high-efficiency upgrade path for facilities looking to modernize their vision infrastructure without extended lead times.

Q1: What energy savings can I expect by replacing a PC-based vision system with the Dalsa VA20-03? Typical PC-based industrial vision systems consume 80–150W continuously. The VA20-03's embedded architecture operates at under 35W under full inspection load, representing a 55–75% reduction in vision system power draw. In multi-station lines with 10+ inspection points, this reduction compounds significantly across annual operating hours.

Q2: Is the VA20-03 compatible with my existing PLC and SCADA infrastructure? Yes. The VA20-03 supports Ethernet/IP, Modbus TCP, and RS-232/422/485 communication, making it compatible with major PLC platforms including Siemens, Allen-Bradley, Omron, and Mitsubishi, as well as SCADA systems such as Ignition, Wonderware, and iFIX. No gateway hardware is required for standard integration scenarios.

Q3: What is the recommended replacement or upgrade path for aging Dalsa VA20-series controllers? For facilities running earlier VA20-series units, the VA20-03 is a direct form-factor and software-compatible upgrade. Existing camera mounts, lighting configurations, and inspection programs can typically be migrated without mechanical rework. NANKMOS recommends a staged replacement approach — qualifying the VA20-03 on one station before rolling out across the line — to minimize production risk.

Q4: What does the 12-month warranty cover, and how does NANKMOS handle pre-shipment testing? The 12-month warranty covers hardware defects and functional failures under normal operating conditions. Prior to shipment, each VA20-03 unit is powered on, communication interfaces are verified, and basic inspection functionality is confirmed. A test report is available upon request. In the event of a warranty claim, NANKMOS provides advance replacement support to minimize line downtime.
