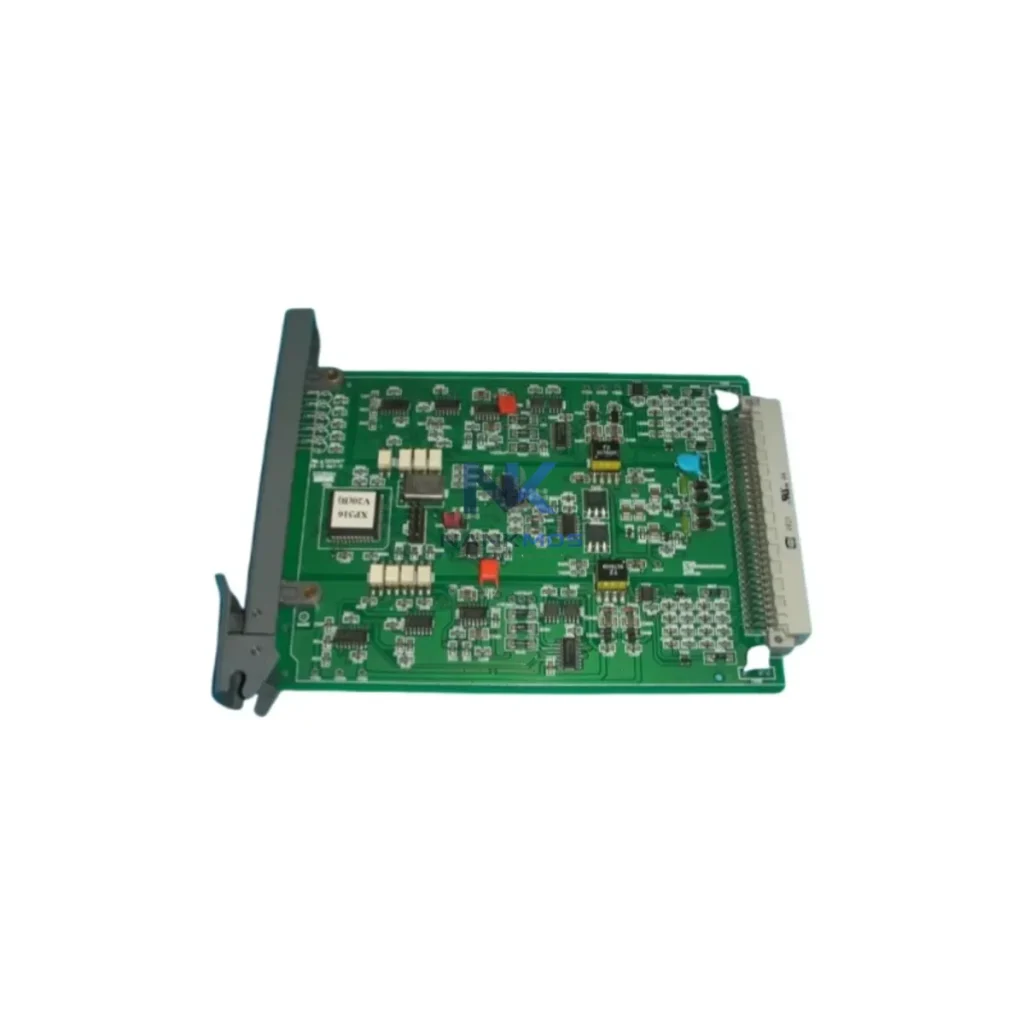

SUPCON XP316 DCS Analog Input Module

Product Details

XP316 Product Description

The SUPCON XP316 is a high-density analog input module engineered for deployment within the SUPCON XP300 Distributed Control System (DCS) architecture. Designed to serve as the primary signal acquisition layer in process-critical environments, the XP316 delivers stable, high-resolution measurement across 16 independent analog input channels. Its role within the XP300 platform extends beyond simple signal conversion — it functions as a foundational node in a layered control hierarchy that spans field instrumentation, I/O processing, controller logic, communication backbone, and operator interface. Every aspect of the XP316's design reflects SUPCON's commitment to system consistency, long-term maintainability, and engineering-grade reliability across demanding industrial applications.

Within the XP300 architecture, the XP316 occupies the I/O layer, receiving 4–20 mA or 1–5 V DC signals from field transmitters — including pressure, temperature, flow, and level instruments — and converting them into digital values that the XP300 series main controller processes in real time. This tight integration between the XP316 and the XP300 CPU module ensures deterministic scan cycles, minimal latency, and consistent data fidelity across all process variables. The module's hardware design supports hot-swap capability, enabling maintenance teams to replace or reconfigure I/O modules without interrupting the control loop — a critical requirement in continuous process industries such as petrochemicals, power generation, and water treatment.

The XP316 is not a standalone component — it is a precision instrument within a fully integrated automation platform. In a typical XP300 DCS cabinet, the XP316 occupies one or more I/O slots on the XP300 backplane, working in concert with the XP233 redundant power supply module that provides stable 24 V DC to the entire rack. The XP300 main controller (CPU module) executes the control strategy, reading analog values from the XP316 at each scan cycle and writing setpoints to the XP322 analog output module, which drives control valves and variable frequency drives in the field.

For digital signal management, the XP316 operates alongside the XP362 digital input module and XP363 digital output module, collectively forming a complete I/O layer that handles both continuous process variables and discrete switching signals. Communication between the DCS controller and upstream SCADA or MES systems is handled by the XP243 communication gateway module, which supports PROFIBUS DP, Modbus TCP, and OPC-UA protocols — ensuring that analog data acquired by the XP316 is available to plant-wide data historians and operator workstations without protocol conversion bottlenecks.

In redundancy-critical applications — such as power plant boiler control or refinery distillation column management — the XP251 redundancy module pairs with the CPU to provide hot-standby controller redundancy. The XP316's channel isolation architecture ensures that a fault on one analog input channel does not propagate to adjacent channels or to the backplane bus, preserving system integrity even under field wiring fault conditions. For installations requiring signal conditioning at the marshalling cabinet level, the XP316 is commonly paired with SUPCON signal isolator and terminal block assemblies, which provide surge protection and galvanic isolation before signals reach the I/O module inputs.

In larger plant architectures, multiple XP300 DCS cabinets are networked via SUPCON industrial Ethernet switches operating on a redundant ring topology, connecting field control stations to the central operator station network. The XP316's data — once processed by the XP300 CPU — flows through this network to SUPCON AdvanTrol-Pro SCADA/HMI workstations, where operators monitor process trends, configure alarm thresholds, and execute supervisory control actions. This end-to-end data path, from field transmitter through XP316 analog input to HMI display, represents the core value proposition of the XP300 integrated automation platform.

Petrochemical and Refinery Process Control: In refinery applications, the XP316 acquires analog signals from pressure transmitters, thermocouple transmitters, and flow meters distributed across distillation columns, heat exchangers, and reactor vessels. Its 16-channel density reduces cabinet footprint while maintaining full signal isolation, which is essential in hazardous area installations where intrinsic safety barriers are used at the field junction box level. The XP300 DCS platform, anchored by the XP316 I/O layer, supports continuous process optimization and regulatory compliance reporting in accordance with SIL 2 functional safety requirements.

Power Generation and Utility Control: Thermal power plants and combined-cycle gas turbine facilities deploy the XP316 for boiler drum level measurement, turbine exhaust temperature monitoring, and generator excitation feedback. The module's high-resolution 16-bit conversion ensures that small process deviations — critical for turbine protection logic — are captured accurately and transmitted to the XP300 CPU within the required scan cycle. Redundant power supply architecture via the XP233 module ensures uninterrupted I/O operation even during power supply maintenance events.

Water and Wastewater Treatment: Municipal water treatment plants and industrial effluent systems use the XP316 to monitor pH, dissolved oxygen, turbidity, and flow rate signals from field analyzers. The module's wide operating temperature range and humidity tolerance make it suitable for outdoor pump station enclosures and underground valve chamber installations. Integration with the XP243 communication module enables remote monitoring via Modbus TCP to SCADA systems, supporting unmanned operation and centralized alarm management.

Mining and Metallurgical Processing: In ore processing and smelting facilities, the XP316 handles analog inputs from belt scale transmitters, furnace temperature sensors, and hydraulic pressure transducers. The module's hot-swap capability is particularly valued in mining environments where planned maintenance windows are limited and unplanned downtime carries significant production cost penalties. The XP300 platform's modular architecture allows I/O expansion without controller reconfiguration, supporting phased plant capacity expansions.

Pharmaceutical and Fine Chemical Manufacturing: GMP-regulated manufacturing environments require precise analog signal acquisition for reactor temperature, jacket pressure, and agitator torque monitoring. The XP316's channel-to-channel isolation prevents cross-contamination of measurement signals, which is critical for batch process validation and electronic batch record integrity. The 12-Month Warranty and documented calibration traceability support regulatory audit requirements under FDA 21 CFR Part 11 and EU GMP Annex 11 frameworks.

Q1: Is the XP316 compatible with both new XP300 DCS installations and existing XP300 system expansions? Yes. The XP316 is fully compatible with all XP300 series backplanes and controller generations, including both current production systems and legacy XP300 installations. It occupies a standard I/O slot on the XP300 rack and is recognized automatically by the XP300 CPU during system initialization. For expansion projects, the XP316 can be added to an existing rack without modifying the controller configuration database, provided that available I/O slot capacity exists. SUPCON's AdvanTrol-Pro engineering software supports online I/O module addition with live system validation, minimizing commissioning risk during plant expansion.

Q2: What redundancy options are available for the XP316 analog input module in high-availability control architectures? The XP316 supports I/O redundancy through SUPCON's dual-module redundancy scheme, where two XP316 modules are configured as a primary/standby pair sharing the same field wiring via a redundancy terminal block assembly. In the event of a primary module failure, the standby XP316 assumes signal acquisition responsibility within one scan cycle, ensuring bumpless transfer of analog input data to the XP300 CPU. Controller-level redundancy is provided separately by the XP251 redundancy module paired with dual XP300 CPU modules. This layered redundancy architecture — covering both I/O and controller layers — is recommended for SIL 2 applications and critical process loops where sensor signal loss would trigger a plant shutdown.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time and stock availability for the XP316? The 12-Month Warranty covers manufacturing defects, component failures under normal operating conditions, and firmware-related functional anomalies identified within twelve months of the verified shipment date. Warranty service includes module replacement or repair, with return logistics coordinated through NANKMOS. Each XP316 unit undergoes pre-shipment functional testing — including channel accuracy verification, isolation resistance measurement, and backplane communication validation — before dispatch. Stock availability is maintained for prompt order fulfillment; standard lead time for in-stock units is 3–7 business days for international shipments. For project-volume orders or urgent requirements, please contact [email protected] or call +86 18359268345 to confirm current inventory status and expedited shipping options.
