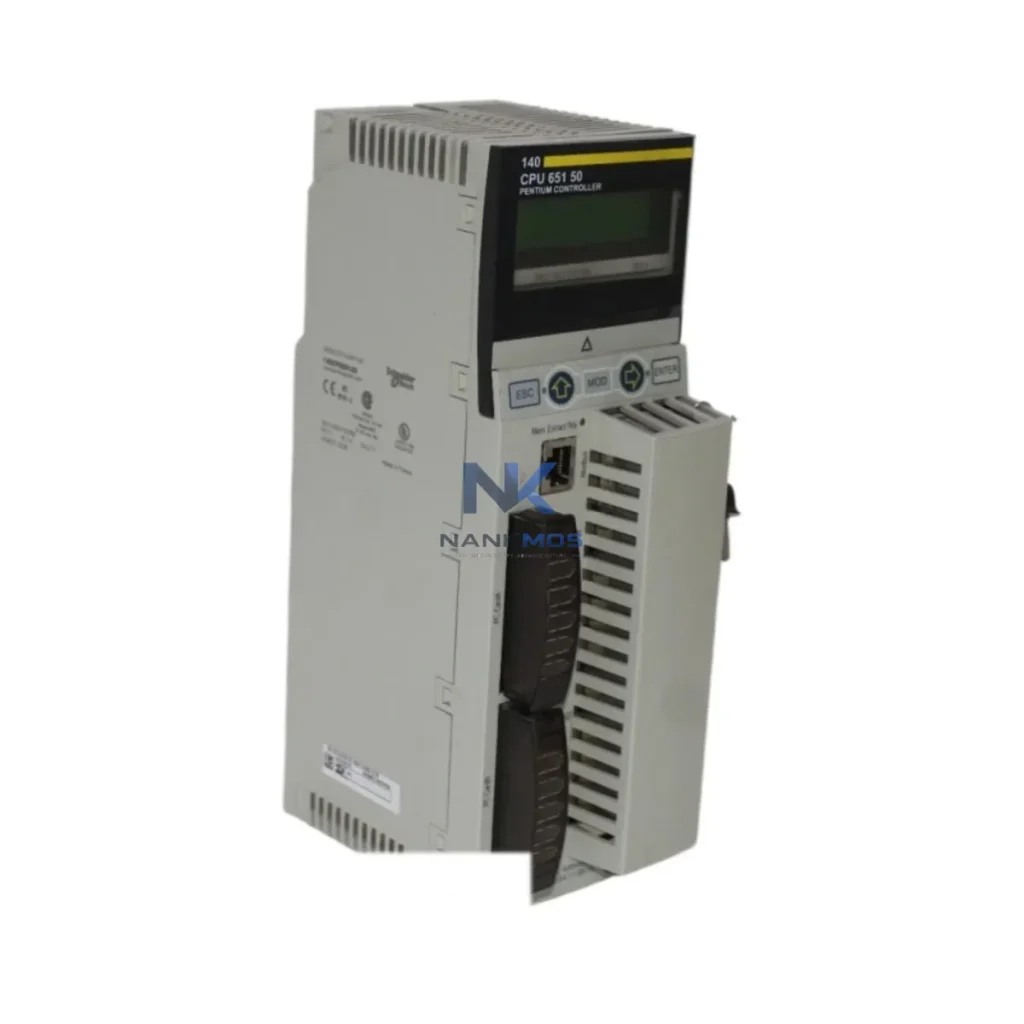

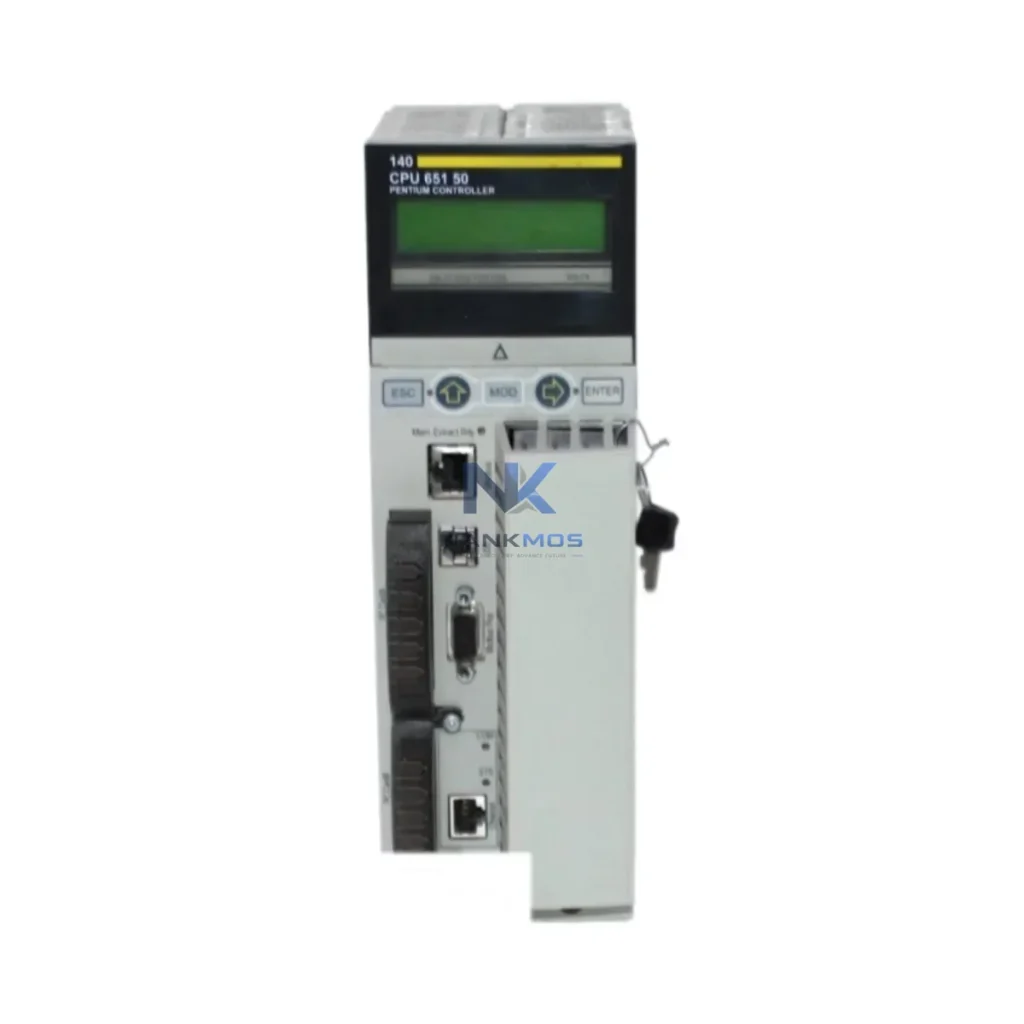

Schneider Electric 140CPU65150 PLC Processor

Product Details

140CPU65150 Product Description

The Schneider Electric 140CPU65150 is a high-performance Quantum series PLC processor engineered for industrial data link integrity and smart factory connectivity. Designed to serve as the computational and communication backbone of complex automation architectures, the 140CPU65150 enables seamless data flow across field devices, distributed I/O modules, HMI panels, SCADA platforms, and enterprise-level supervisory systems. Its native Modbus Plus communication capability, combined with support for Ethernet TCP/IP via integrated network interface modules, positions it as a critical node in any industrial data chain — from signal acquisition at the sensor level all the way to real-time visualization and remote diagnostics at the control room.

In a connected factory environment, data integrity begins at the field level. The 140CPU65150 interfaces directly with Quantum remote I/O drop adapters such as the 140CRA93100, collecting analog and digital signals from pressure transmitters, flow meters, temperature sensors, and proximity switches distributed across the production floor. These signals are processed in real time within the CPU's high-speed scan cycle, enabling deterministic control responses that are essential for process-critical applications in oil and gas, water treatment, power distribution, and discrete manufacturing.

The 140CPU65150 sits at the center of a layered industrial communication architecture. At the field level, sensors and actuators — including Telemecanique OsiSense inductive proximity sensors, Schneider Altivar 71 variable frequency drives, and Modicon analog input modules such as the 140AII33000 — feed real-time process data into the Quantum backplane via local I/O or remote drop connections. The CPU processes this data within its deterministic scan cycle and distributes control outputs back to field devices without latency gaps that could compromise process stability.

For distributed plant topologies, the 140CPU65150 communicates with remote I/O racks over Modbus Plus at up to 1 Mbps, using 140CRA93100 remote I/O adapters to extend the control network across large facilities. This architecture eliminates the need for point-to-point wiring between the control cabinet and remote process areas, reducing installation costs and improving fault isolation. When a remote I/O drop loses communication, the CPU's built-in diagnostics immediately flag the fault, enabling maintenance teams to pinpoint the affected segment without manual inspection of the entire cable run.

At the supervisory layer, the 140CPU65150 connects to SCADA and HMI systems through the 140NOE77101 Ethernet TCP/IP network option module, which plugs directly into the Quantum backplane and provides a 10/100 Mbps Ethernet port for integration with Wonderware InTouch, Schneider Electric Vijeo Citect, or third-party SCADA platforms via Modbus TCP. Magelis XBTGT series HMI panels can be connected directly over Modbus Plus or Ethernet, providing operators with real-time process visualization, alarm management, and trend logging at the machine level. This bidirectional data path ensures that both control commands and process feedback travel reliably between the CPU and the operator interface.

For inter-PLC communication and peer-to-peer data exchange, the 140CPU65150 leverages Modbus Plus global data tables, allowing multiple Quantum CPUs — such as the 140CPU67160 in a redundant hot-standby configuration — to share process variables across the network without polling overhead. This architecture is particularly valuable in large-scale process plants where multiple PLCs must coordinate production sequences, share setpoints, or synchronize batch operations across different process units.

Edge connectivity is achieved through Schneider Electric ConneXium industrial Ethernet switches, which provide managed Layer 2 switching with VLAN segmentation, port mirroring for network diagnostics, and redundant ring topology support. These switches connect the Quantum Ethernet network to plant-wide industrial Ethernet backbones, enabling data aggregation at the edge gateway level for forwarding to MES and ERP systems. The result is a complete, end-to-end data chain from field sensor to enterprise dashboard — with the 140CPU65150 as the processing and communication hub.

Many industrial sites operating legacy Quantum systems face persistent challenges: protocol fragmentation between Modbus Plus field networks and modern Ethernet-based supervisory systems, data silos caused by isolated PLC islands with no peer communication, and limited remote visibility into process conditions during off-hours or emergency situations. The 140CPU65150 directly addresses these challenges through its multi-protocol architecture and flexible network option module slots.

Protocol unification is achieved by pairing the 140CPU65150 with the 140NOM21100 Modbus Plus network option module for legacy device integration and the 140NOE77101 for Ethernet TCP/IP connectivity, allowing a single Quantum rack to bridge both network layers simultaneously. This eliminates the need for external protocol converters or gateway devices that introduce additional failure points and communication latency.

Remote monitoring and diagnostics are enabled through the CPU's built-in web server capability (when paired with the NOE module), which exposes real-time PLC status, I/O diagnostics, and communication health metrics to authorized users over standard web browsers — without requiring dedicated SCADA client software at the remote access point. Alarm events are logged with timestamps in the CPU's event buffer and forwarded to SCADA historian databases for post-event analysis and regulatory compliance reporting.

Production line transparency is achieved through structured data mapping between the 140CPU65150's register tables and SCADA tag databases, enabling OEE dashboards, downtime tracking, and production count visualization in real time. System expansion is straightforward: additional Quantum I/O modules, communication option modules, and remote I/O drops can be added to the existing backplane or network without modifying the core CPU program, protecting the automation investment as production requirements evolve.

Q1: What communication protocols does the Schneider Electric 140CPU65150 support?The 140CPU65150 natively supports Modbus Plus (MB+) with two onboard MB+ ports for peer-to-peer and remote I/O communication. Ethernet TCP/IP connectivity is added via the 140NOE77101 network option module, enabling Modbus TCP communication with SCADA systems, HMI panels, and other Ethernet-enabled devices. Modbus RTU is supported through the RS-232 programming port or dedicated serial communication modules.

Q2: How does the 140CPU65150 integrate with SCADA and HMI systems?The 140CPU65150 integrates with SCADA platforms such as Wonderware InTouch, Vijeo Citect, and iFIX via Modbus TCP over Ethernet (using the NOE module) or Modbus Plus direct connection. Magelis HMI panels connect via Modbus Plus or Ethernet. The CPU's register-based data model maps directly to SCADA tag databases, enabling real-time data exchange, alarm forwarding, and historian logging without custom middleware.

Q3: Can the 140CPU65150 support remote diagnostics and network health monitoring?Yes. When paired with the 140NOE77101 Ethernet module, the 140CPU65150 exposes a built-in web server for remote status monitoring, I/O diagnostics, and communication health checks over standard Ethernet. Modbus Plus network diagnostics are accessible through Schneider Electric's Concept or Unity Pro programming software, providing cable fault detection, node status, and traffic statistics for proactive network maintenance.

Q4: What warranty and supply assurance does NANKMOS provide for the 140CPU65150?NANKMOS provides a 12-month warranty on all 140CPU65150 units, covering hardware defects and communication interface failures. Each unit undergoes pre-shipment functional testing including power-on verification, communication port validation, and memory integrity checks. Stock availability is maintained for rapid dispatch, and technical support is available for integration guidance, protocol configuration, and system compatibility verification.
