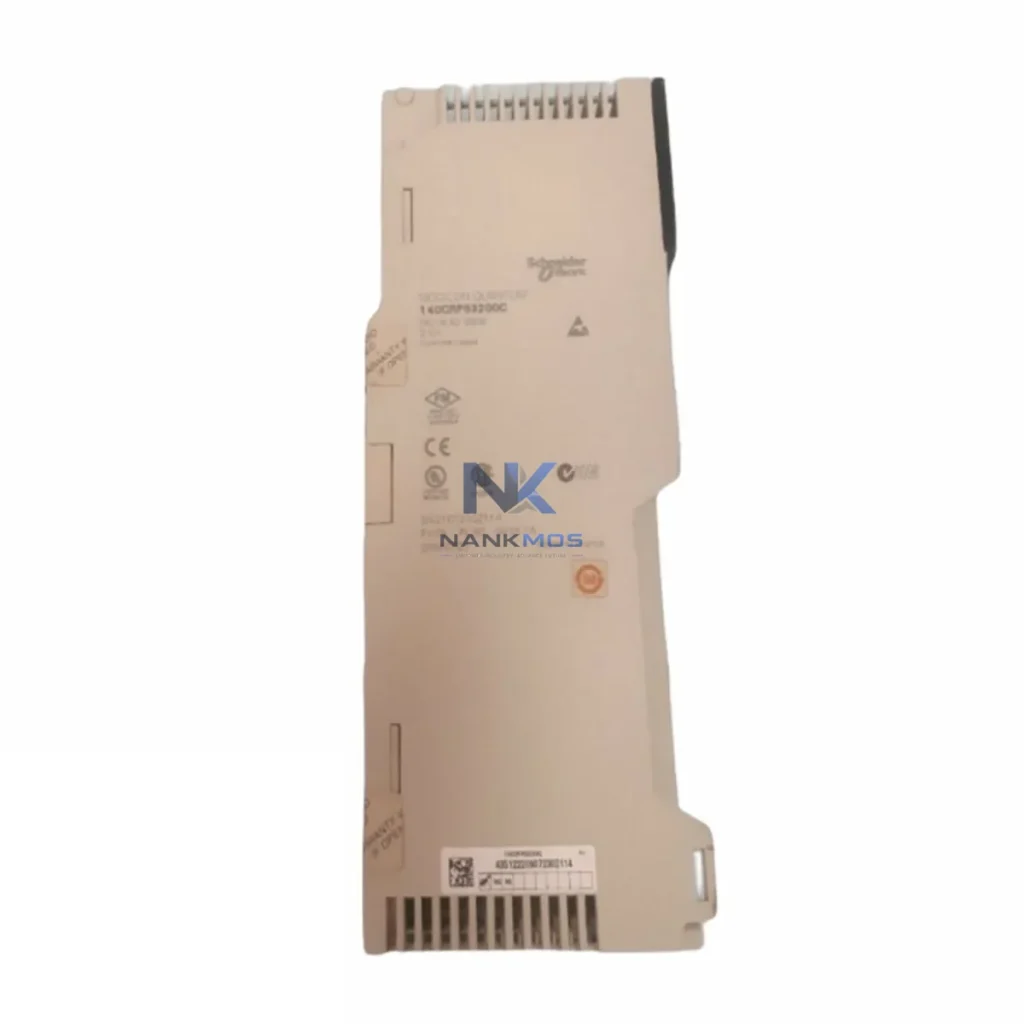

Schneider Electric 140CRP93200C Remote I/O Head Module

Product Details

140CRP93200C Product Description

The Schneider Electric 140CRP93200C is a Remote I/O Head Module engineered for the Modicon Quantum automation platform, serving as the critical communication bridge between the central control rack and distributed field I/O drops across large-scale industrial installations. Its role within the control architecture is not limited to signal routing — it defines the structural integrity of the entire distributed I/O layer, enabling deterministic data exchange, synchronized scan cycles, and fault-tolerant field connectivity across geographically dispersed process zones.

In a fully realized Quantum control architecture, the 140CRP93200C operates in close coordination with the Modicon Quantum CPU modules — such as the 140CPU65160 or 140CPU67160 — which serve as the central processing backbone managing ladder logic execution, PID loop control, and system-wide diagnostics. The RIO head module extends the reach of these CPUs beyond the local rack, allowing field I/O to be distributed across remote drops without sacrificing scan time consistency or communication reliability. This architecture is particularly valuable in large plant environments where control cabinets must be positioned close to field devices rather than centralized in a single control room.

The 140CRP93200C interfaces directly with Quantum I/O drop backplanes, which host discrete and analog I/O modules such as the 140DDI35300 digital input module, 140DDO35300 digital output module, 140ACI03000 analog current input module, and 140ACO02000 analog current output module. These modules populate the remote drop and are managed entirely through the RIO head, which handles all upstream communication to the primary rack via the S908 coaxial or fiber-optic remote I/O cable. This layered I/O architecture ensures that field signal integrity is maintained regardless of the physical distance between the control room and the process area.

Power distribution within the remote drop is managed by the 140CPS series power supply modules, which provide regulated 24 VDC or 5 VDC backplane power to all I/O modules installed in the drop. The 140CRP93200C coordinates with these power modules to ensure that the drop remains operational during partial power events, and its onboard diagnostics provide real-time status reporting back to the CPU for predictive maintenance and fault isolation. This tight integration between the RIO head, power supply, and I/O modules forms the foundation of a resilient, maintainable remote I/O drop.

For applications requiring high-availability control, the 140CRP93200C supports deployment in redundant RIO architectures alongside Quantum Hot Standby CPU configurations. In these setups, dual RIO cable paths ensure that a single cable fault does not interrupt field I/O communication, and the primary and standby CPUs maintain synchronized state data to enable bumpless switchover. This redundancy capability makes the 140CRP93200C a preferred choice for critical process industries where unplanned downtime carries significant operational and safety consequences.

At the HMI and SCADA layer, operator stations running Wonderware InTouch, Aveva System Platform, or Schneider Electric's own EcoStruxure Operator Terminal Expert connect to the Quantum system via Modbus TCP/IP or Ethernet I/O adapters such as the 140NOE77101, providing real-time visualization of all remote I/O drop statuses, including the health and communication state of each 140CRP93200C head module. This end-to-end visibility from field device to operator screen is a defining characteristic of a well-integrated Quantum control architecture.

In drive and motion control applications, the remote I/O drops managed by the 140CRP93200C often include digital output modules wired to Altivar 71 or Altivar 312 variable frequency drives, enabling centralized speed reference and run/stop command management from the Quantum CPU. The deterministic S908 scan cycle ensures that drive commands are delivered with consistent timing, which is critical for coordinated multi-drive applications such as conveyor synchronization, pump sequencing, and compressor staging.

The 140CRP93200C is deployed across a broad spectrum of industrial sectors where distributed I/O architecture is essential to operational efficiency and system reliability. In power generation and transmission facilities, remote I/O drops equipped with this head module monitor and control switchgear, transformer protection relays, and auxiliary systems distributed across large substation footprints. The S908 protocol's deterministic communication characteristics ensure that protection and control signals are delivered within defined scan windows, supporting the stringent timing requirements of electrical protection schemes.

In petrochemical and refinery environments, the 140CRP93200C enables the Quantum platform to extend its control reach into hazardous process areas where local control panels must be explosion-proof or intrinsically safe. Remote I/O drops positioned at the edge of the process area reduce the volume of field wiring routed back to the central control room, lowering installation costs and improving signal integrity by minimizing cable run lengths. The module's robust industrial design supports continuous operation in high-temperature, high-humidity environments typical of refinery process units.

Water and wastewater treatment plants rely on distributed I/O architectures to manage pump stations, aeration basins, clarifiers, and chemical dosing systems spread across large treatment facility footprints. The 140CRP93200C allows a single Quantum CPU to supervise dozens of remote I/O drops, each monitoring local instrumentation and controlling local actuators, while maintaining centralized alarm management and historical data logging through the SCADA system. This architecture reduces the number of PLCs required across the facility, simplifying maintenance and spare parts management.

In mining and minerals processing, the 140CRP93200C supports conveyor systems, crusher controls, and flotation cell management where I/O points are distributed across kilometers of process infrastructure. The fiber-optic variant of the S908 cable provides immunity to electromagnetic interference from large motors and variable frequency drives, ensuring reliable communication in electrically noisy mining environments. The module's compatibility with Quantum redundant CPU configurations provides the fault tolerance required for continuous mining operations where production stoppages are costly.

Packaging and material handling lines in food and beverage, pharmaceutical, and consumer goods manufacturing use the 140CRP93200C to distribute I/O across multi-zone production lines. Each zone's remote drop hosts the I/O modules required for local machine control, while the Quantum CPU coordinates inter-zone sequencing, recipe management, and production reporting. This modular architecture simplifies line extensions and reconfigurations, as new I/O drops can be added to the S908 network without modifying the central control rack.

Q1: How many 140CRP93200C RIO head modules can be connected to a single Modicon Quantum CPU? The Modicon Quantum platform supports up to 31 remote I/O drops per S908 RIO cable, with each drop requiring one 140CRP93200C head module. Depending on the CPU model and the number of S908 ports available — either onboard or via 140CRA93200 remote adapter modules — a single Quantum system can manage multiple independent RIO cable runs, significantly expanding the total number of remote I/O drops. This scalability makes the Quantum platform suitable for large process plants with hundreds of distributed I/O points. All units supplied by NANKMOS are pre-shipment tested and covered by a 12-Month Warranty.

Q2: Is the 140CRP93200C compatible with both coaxial and fiber-optic S908 RIO cable configurations? The 140CRP93200C is designed for use with the S908 coaxial RIO cable infrastructure. For fiber-optic RIO cable runs — which are preferred in high-EMI environments or for cable runs exceeding the coaxial distance limit — the 140CRA93200 fiber-optic remote adapter is used in conjunction with the appropriate fiber media converters. NANKMOS maintains stock of both coaxial and fiber-optic compatible Quantum RIO components, and our technical team can advise on the appropriate configuration for your specific installation environment and cable distance requirements.

Q3: What is the recommended maintenance strategy for 140CRP93200C modules in long-term plant operations? For long-term reliability, it is recommended to maintain at least one spare 140CRP93200C per S908 RIO cable run, particularly in critical process applications where a head module failure would result in loss of an entire remote I/O drop. The module's onboard diagnostics, accessible through the Quantum CPU's Unity Pro or ProWORX programming environment, provide continuous health monitoring including communication error counters, power supply status, and module configuration verification. NANKMOS supplies tested, warranty-backed 140CRP93200C modules with full documentation support, and our inventory availability ensures rapid replacement to minimize unplanned downtime. All modules are covered by a 12-Month Warranty from the date of shipment.
