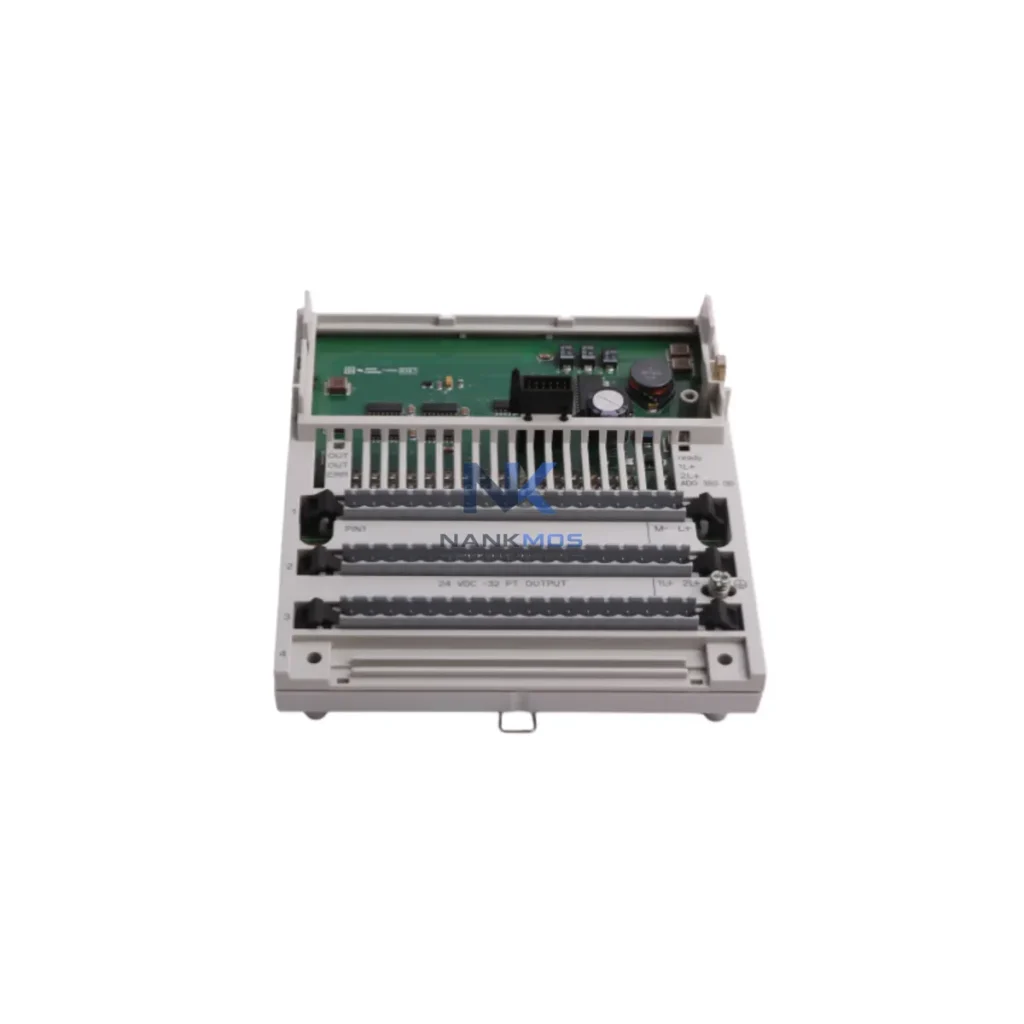

Schneider Electric 170ADO35000 Discrete Output Module

Product Details

170ADO35000 Product Description

The Schneider Electric 170ADO35000 is a high-performance discrete output module engineered for the Modicon Momentum distributed I/O platform. Designed to meet the rigorous demands of modern smart manufacturing, this module delivers precise load switching, reduced energy waste, and seamless integration with energy management architectures across process industries, utilities, and discrete manufacturing environments.

In energy-intensive production environments, every switching cycle matters. The 170ADO35000 provides 32 discrete output channels capable of driving actuators, solenoid valves, motor starters, and relay coils with consistent signal integrity. Its solid-state output design minimizes contact wear and thermal dissipation compared to conventional relay-based alternatives, directly contributing to lower heat loads in control panel enclosures and reduced HVAC energy demand at the cabinet level.

The 170ADO35000 is purpose-built to operate within a layered automation architecture where energy visibility and load control are first-class priorities. At the controller level, it interfaces directly with the Modicon Momentum M1E processor adapter (such as the 171CCC96030), which handles Modbus TCP/IP communication and coordinates output scheduling to prevent simultaneous load energization — a key technique for reducing inrush current peaks and stabilizing plant power demand.

On the field side, the module drives actuators and motor starters that are often supervised by Schneider Electric TeSys D contactors and TeSys U motor starters, enabling soft-start sequencing and load shedding routines managed directly from the PLC program. When paired with a Schneider PowerLogic PM5000 series power meter, the system gains real-time kWh, kVA, and power factor data that can be fed back into the control logic to dynamically adjust output duty cycles based on actual energy consumption — not just setpoints.

For variable-speed drive applications, the 170ADO35000 works alongside Schneider Altivar ATV320 or ATV630 variable frequency drives (VFDs), where discrete output signals from this module trigger drive enable, fault reset, and speed preset selection. This tight coupling between the output module and the VFD eliminates unnecessary motor run time, reduces reactive power draw, and extends motor insulation life by avoiding full-voltage starts.

In distributed I/O topologies, the module can be deployed alongside Modicon Momentum 170ANR12090 analog input modules and 170ADI35000 discrete input modules on the same Momentum backplane, creating a compact, energy-aware I/O node that handles both sensing and actuation without additional communication overhead. The 170ENT11001 Ethernet communication adapter provides the network backbone for SCADA integration, enabling the 170ADO35000's output states to be monitored and logged by Wonderware System Platform or Schneider EcoStruxure Power Monitoring Expert for energy audit trails and demand response reporting.

HMI visibility is equally important in energy-optimized plants. When connected through the Momentum network to a Schneider Magelis HMIGTO series HMI panel, operators gain real-time output status dashboards, alarm acknowledgment, and manual override capability — reducing the risk of outputs being left energized during idle production windows, which is one of the most common sources of avoidable energy waste on the plant floor.

Modern production lines face increasing pressure to reduce specific energy consumption (SEC) — the energy consumed per unit of output. The 170ADO35000 contributes to SEC reduction through several mechanisms that operate at both the device and system level.

Load scheduling and demand management: By coordinating output activation sequences through the Modicon Momentum PLC program, plant engineers can stagger motor starts, conveyor activations, and pneumatic valve operations to flatten the demand curve. This reduces peak kVA demand charges — often the largest component of industrial electricity bills — without any change to production throughput.

Idle-state output suppression: During planned downtime, changeover, or shift breaks, the PLC can systematically de-energize non-critical outputs through the 170ADO35000, cutting standby power consumption across actuators, solenoids, and auxiliary equipment. When integrated with a production scheduling system or MES, this de-energization can be automated based on production calendar data, eliminating reliance on manual operator action.

Thermal load reduction: Solid-state output modules generate significantly less heat than relay-based alternatives under equivalent switching loads. Lower panel temperatures reduce the duty cycle of panel air conditioning units, which in large facilities can represent a meaningful fraction of total auxiliary energy consumption. The 170ADO35000's thermal efficiency also reduces the risk of heat-related component degradation, extending the service life of adjacent modules and reducing unplanned maintenance events.

Predictive maintenance readiness: Output module diagnostics, when surfaced through the Momentum communication adapter and logged in the SCADA or EAM system, provide early indicators of output channel degradation — such as increased response latency or intermittent switching failures. Catching these signals before they cause production stoppages eliminates the energy and material waste associated with emergency shutdowns, scrap production during unstable process conditions, and expedited parts procurement.

Production rhythm stability: Consistent, low-latency output switching ensures that production line timing — conveyor indexing, robotic cell handshakes, press cycle initiation — remains synchronized. Timing drift caused by unreliable output modules forces operators to add buffer time between operations, reducing overall equipment effectiveness (OEE) and increasing energy consumption per unit produced. The 170ADO35000's deterministic switching behavior supports tight cycle time control and maximizes the productive fraction of each operating hour.

All units supplied by NANKMOS are drawn from verified inventory, subjected to pre-shipment functional testing, and covered by a 12-month warranty from the date of delivery. Fast global dispatch ensures minimal lead time for maintenance replacements and new project builds.

Q1: How does the 170ADO35000 contribute to measurable energy savings on a production line? The module enables PLC-controlled load scheduling that staggers motor and actuator starts to reduce peak demand charges. Combined with idle-state output suppression during non-production periods and lower panel heat generation compared to relay modules, facilities typically see reductions in both peak kVA demand and baseline auxiliary energy consumption. Exact savings depend on the number of outputs managed, switching frequency, and the connected load profile.

Q2: Is the 170ADO35000 compatible with current Schneider EcoStruxure and Unity Pro environments? Yes. The module operates within the Modicon Momentum I/O platform, which is supported by Unity Pro and EcoStruxure Machine Expert for programming and diagnostics. It communicates via Modbus TCP/IP or Modbus RTU through the Momentum communication adapter, making it compatible with EcoStruxure Power Monitoring Expert and third-party SCADA systems for energy data integration.

Q3: Can this module replace an older Momentum discrete output module in an existing installation? The 170ADO35000 is a direct form-fit-function replacement for compatible Modicon Momentum discrete output modules with equivalent channel count and voltage ratings. Before installation, verify the backplane slot assignment, output voltage class, and PLC I/O mapping in your Unity Pro or Concept project. NANKMOS recommends a bench-level functional test prior to live installation, which aligns with the pre-shipment QA process applied to all outgoing units.

Q4: What does the 12-month warranty cover, and how quickly can replacement units be dispatched? The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of delivery. NANKMOS maintains ready stock of the 170ADO35000 to support both planned project builds and urgent maintenance replacements. Replacement units are dispatched with pre-shipment functional test documentation. Contact [email protected] or +86 18359268345 for availability confirmation and lead time.
