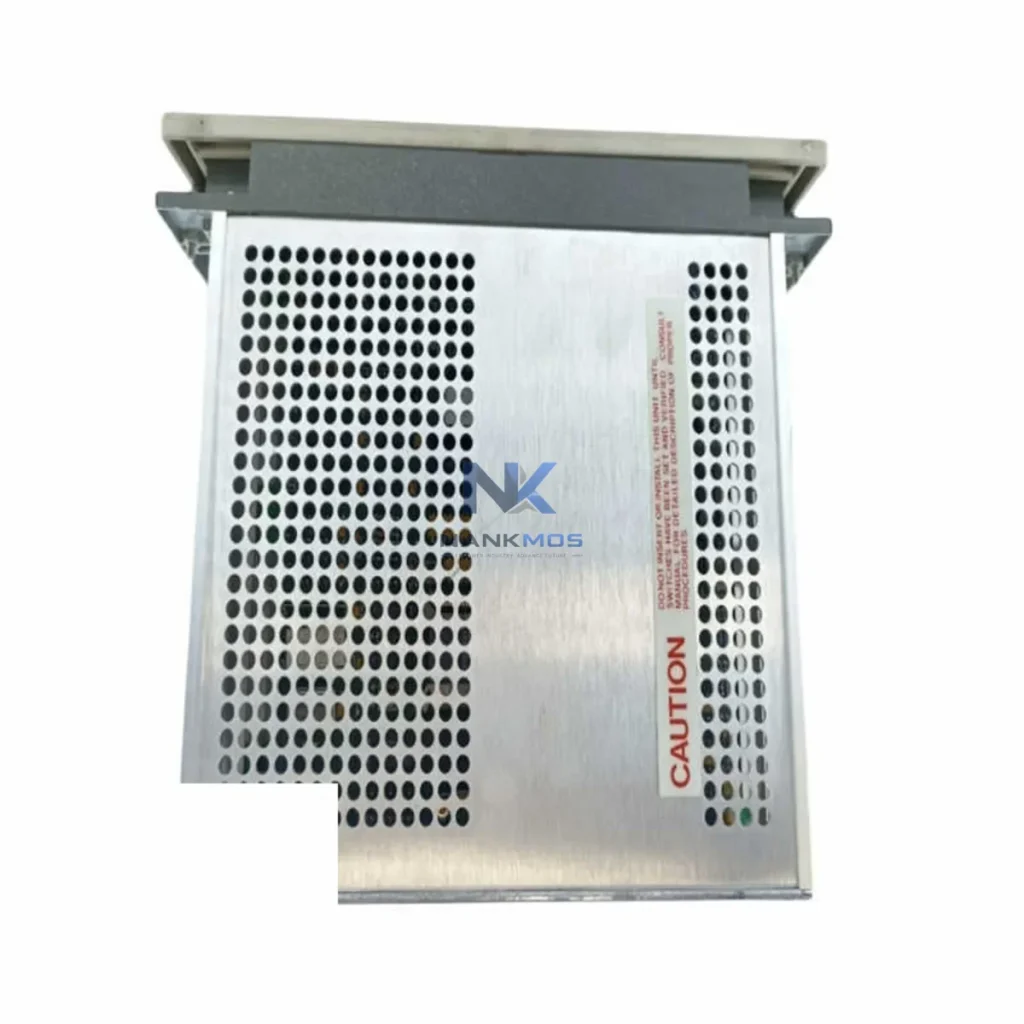

Schneider Electric AS-J890-101 I/O Processor

Product Details

AS-J890-101 Product Description

The Schneider Electric Modicon AS-J890-101 is a high-performance I/O Processor and network interface module engineered for the 984 Series PLC platform. Designed to serve as a critical node in the industrial data chain, the AS-J890-101 bridges field-level devices — sensors, actuators, and distributed I/O racks — with upper-layer control and monitoring systems including SCADA, HMI, and MES platforms. In smart factory environments where real-time data integrity and network stability are non-negotiable, this module delivers the protocol-level reliability that modern automation architectures demand.

From signal acquisition at the field level to data visualization at the supervisory layer, the AS-J890-101 participates in every stage of the automation data flow. It enables seamless communication between Modicon 984 Series CPUs and remote I/O drops, ensuring that process variables — temperature, pressure, flow, position — are captured, transmitted, and acted upon with minimal latency. When integrated alongside Modicon AS-B875-100 backplane assemblies and AS-MBPL-085 power supplies, the module forms a complete, rack-based control node capable of sustaining continuous industrial operation.

In a fully connected smart factory, the AS-J890-101 operates at the intersection of field instrumentation and supervisory control. At the lowest layer, field sensors — including thermocouple inputs, pressure transmitters, and proximity switches — feed analog and digital signals into Modicon AS-B828-002 or AS-B819-002 I/O modules mounted within the same rack. The AS-J890-101 processes these signals and places structured data onto the Modbus Plus network, where it becomes immediately accessible to the 984 Series CPU — such as the Modicon AS-B875-100 processor — for real-time logic execution.

Upstream, the processed data travels via Modbus Plus to SCADA gateways and HMI terminals. Wonderware InTouch or Ignition SCADA platforms poll the 984 Series network nodes through Modicon SA-85 or MBP-100 network adapters, pulling live process values for display, trending, and alarm management. Simultaneously, the AS-J890-101 supports peer-to-peer global data exchange between multiple 984 Series PLCs on the same Modbus Plus segment, enabling coordinated multi-zone control without routing every transaction through a central host.

For remote diagnostics, the AS-J890-101's network-linked architecture allows maintenance engineers to interrogate I/O status, module health, and communication statistics from any Modbus Plus node on the network — including from Modicon ProWORX NxT programming terminals or from SCADA-connected diagnostic workstations. This eliminates the need for on-site intervention during routine fault analysis, reducing mean time to repair (MTTR) and supporting predictive maintenance strategies.

In multi-tier architectures, the AS-J890-101 coexists with Modicon Quantum and Premium Series PLCs through Modbus TCP/IP gateways such as the Modicon 174 CEV 300 10 Ethernet gateway, which bridges legacy Modbus Plus segments to modern Ethernet-based SCADA and MES systems. Variable-speed drives — including Schneider Electric ATV Series frequency inverters — connected to the same Modbus Plus network can receive setpoint commands and return operational feedback through the same data path, enabling closed-loop speed and torque control from the SCADA layer.

Edge computing nodes and industrial IoT gateways, such as the Schneider Electric EcoStruxure Machine Advisor or third-party Modbus-to-MQTT converters, can tap into the Modbus Plus data stream to forward time-series process data to cloud analytics platforms. This positions the AS-J890-101 not merely as a legacy I/O processor, but as a viable data source node in hybrid smart factory architectures that blend proven 984 Series reliability with modern data infrastructure.

Many industrial facilities operating Modicon 984 Series systems face a common set of integration challenges: protocol fragmentation between legacy Modbus Plus segments and newer Ethernet-based systems, data silos where field-level I/O data never reaches the SCADA or MES layer, and limited remote visibility into distributed I/O rack health. The AS-J890-101 directly addresses these gaps.

By maintaining a stable, deterministic Modbus Plus communication link between the 984 Series CPU and its remote I/O drops, the AS-J890-101 eliminates the data latency and packet loss that can occur when aging I/O processors are left in service beyond their operational lifecycle. Replacing a degraded I/O processor with a tested AS-J890-101 unit restores full cyclic data exchange, ensuring that every I/O point — from discrete valve feedback to analog flow measurements — is accurately reflected in the PLC's data table and, by extension, in the SCADA historian.

For sites pursuing production line transparency, the AS-J890-101 enables alarm tracking at the I/O level: communication faults, module errors, and I/O discrepancies are surfaced as diagnostic bits within the 984 Series data table, where they can be mapped to SCADA alarm tags and routed to operator workstations or mobile notification systems. This closes the loop between field-level anomalies and supervisory response, reducing unplanned downtime and supporting continuous improvement initiatives.

System expansion is equally straightforward: additional I/O racks equipped with AS-J890-101 processors can be added to the Modbus Plus segment without disrupting existing network traffic, supporting phased capacity increases as production demands grow.

Q1: What communication protocol does the AS-J890-101 support, and is it compatible with modern SCADA systems?The AS-J890-101 operates natively on the Modbus Plus (MB+) peer-to-peer network, which is fully supported by major SCADA platforms including Wonderware, Ignition, and Citect via Modicon SA-85 or MBP-100 network adapters. For Ethernet-based SCADA integration, a Modbus Plus-to-Modbus TCP/IP gateway bridges the legacy segment to modern infrastructure without requiring PLC replacement.

Q2: How does the AS-J890-101 contribute to remote diagnostics and predictive maintenance?The module exposes I/O status, communication health, and module fault data as readable registers within the 984 Series data table. These registers can be polled by SCADA or HMI systems at configurable intervals, enabling remote fault detection, trend analysis, and maintenance scheduling without requiring physical access to the I/O rack.

Q3: What is the network communication latency for cyclic I/O data exchange on Modbus Plus?Modbus Plus supports deterministic token-passing communication with typical cycle times in the range of 1–5 ms per node for cyclic global data, depending on network load and the number of active nodes. The AS-J890-101 participates in this deterministic exchange, ensuring predictable I/O update rates suitable for real-time process control applications.

Q4: What warranty and pre-shipment testing does the AS-J890-101 include?Every AS-J890-101 unit supplied by NANKMOS is covered by a 12-Month Warranty and undergoes pre-shipment functional testing to verify communication integrity, I/O bus operation, and module identification. In-stock units are available for immediate dispatch, supporting urgent maintenance and unplanned replacement scenarios.
