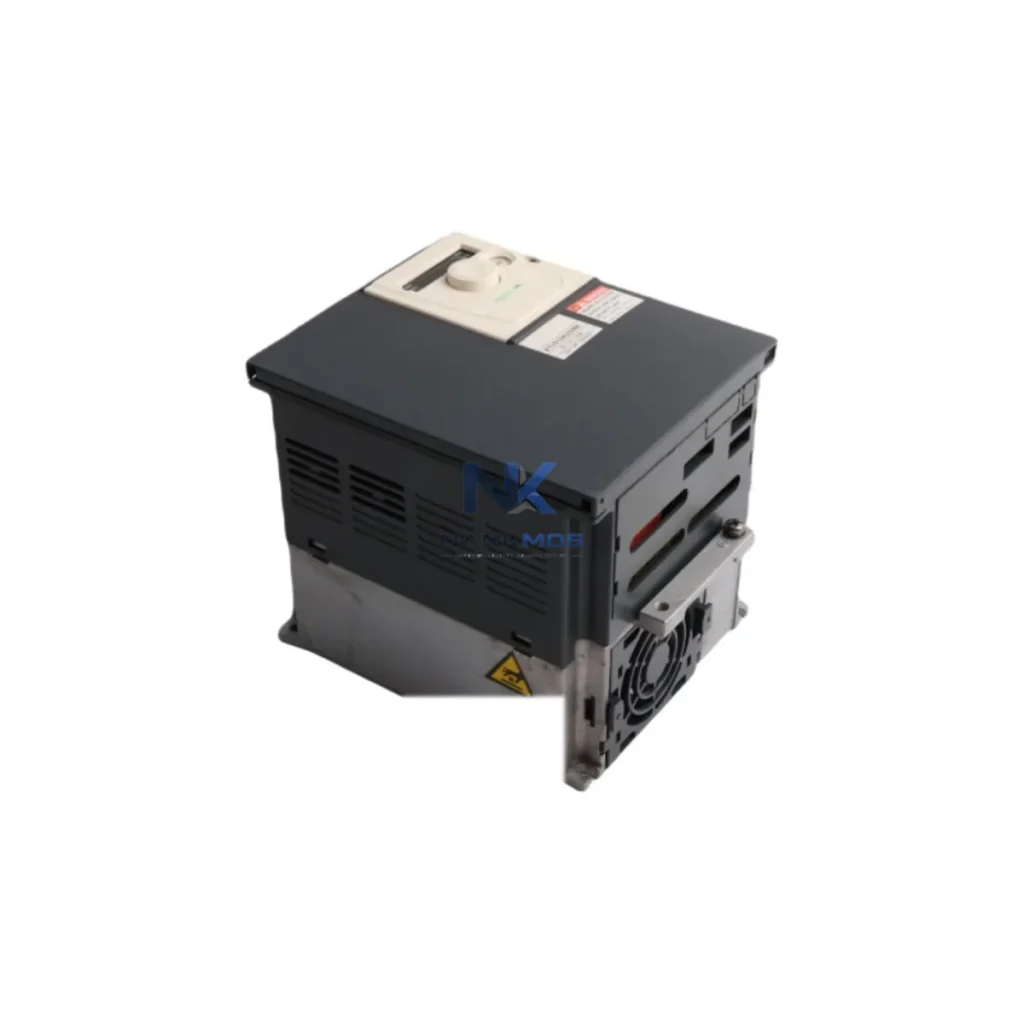

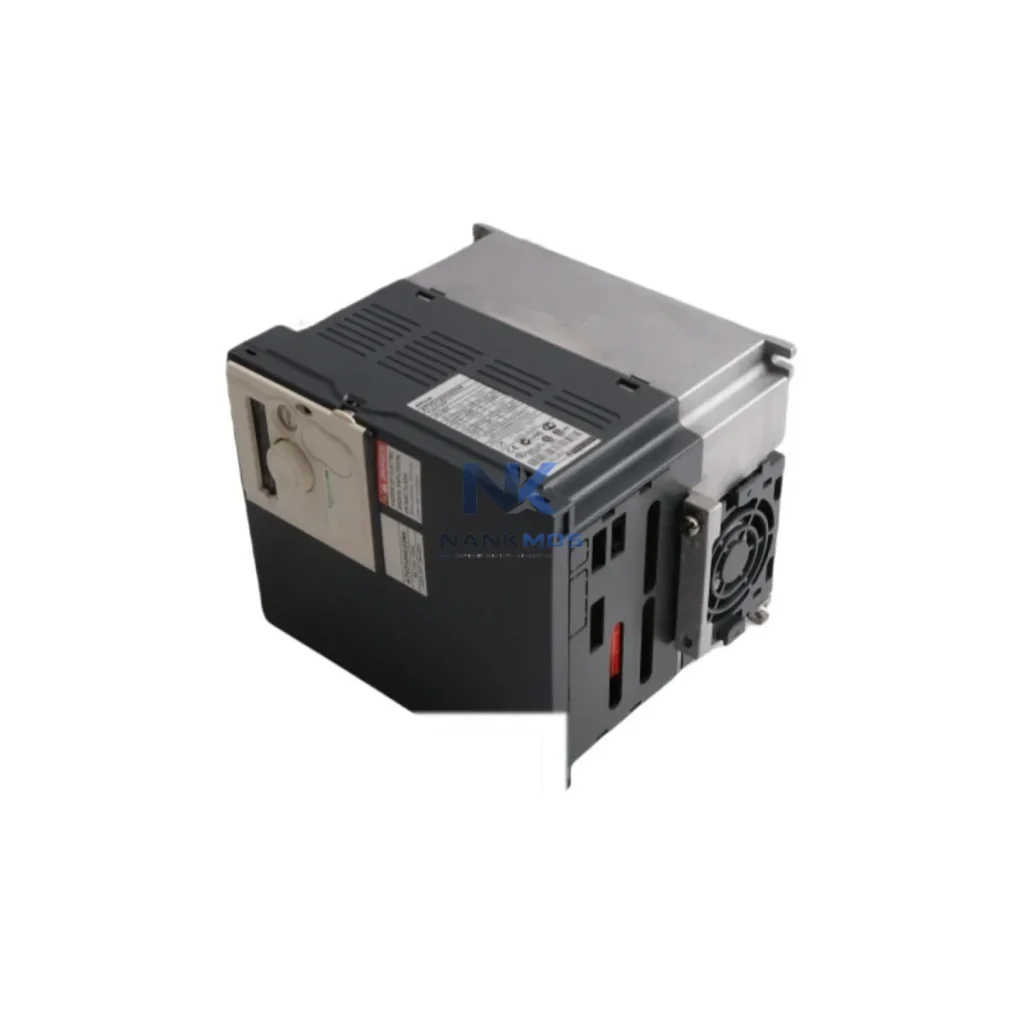

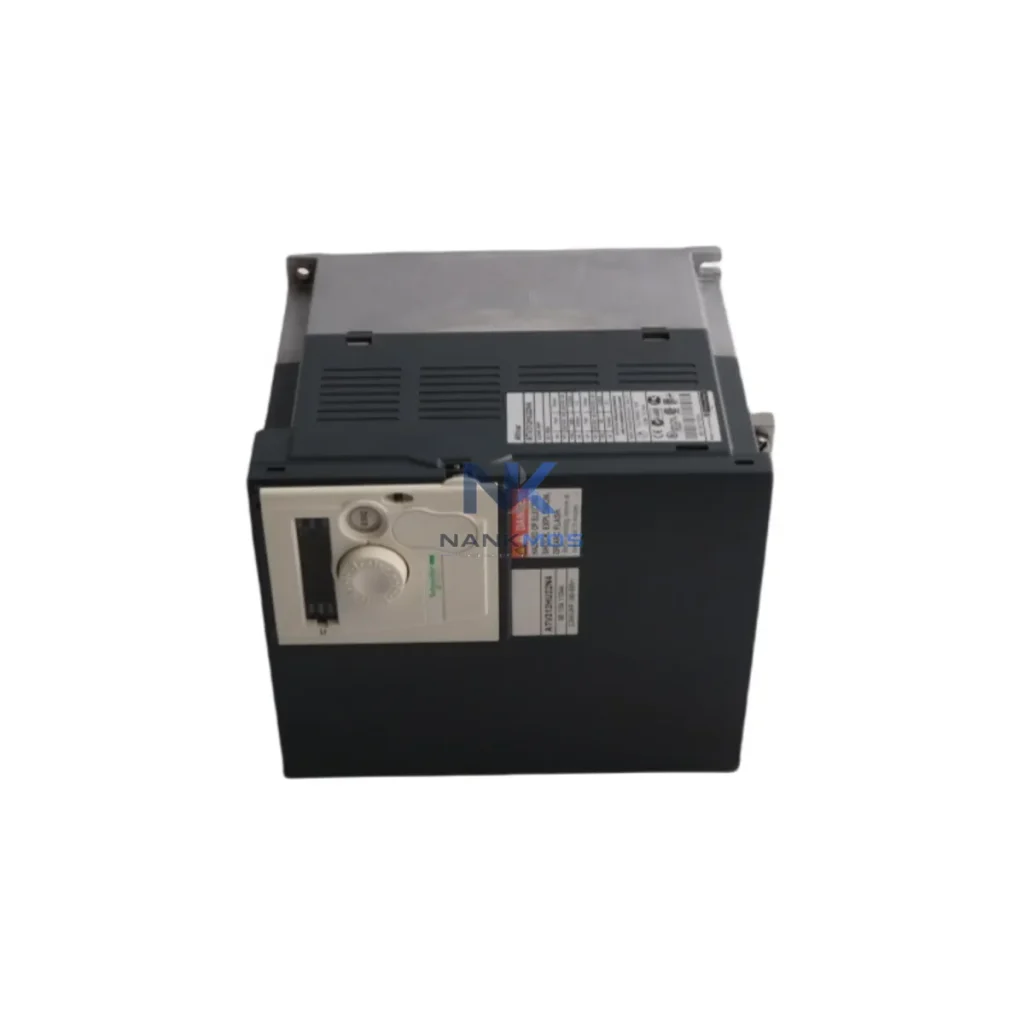

Schneider Electric ATV312HU22N4 Variable Speed Drive

Product Details

ATV312HU22N4 Product Description

The Schneider Electric ATV312HU22N4 is a 2.2 kW, 380–500 V three-phase variable speed drive from the Altivar 312 series, engineered for seamless integration into modern industrial communication architectures. Beyond its core motor control function, the ATV312HU22N4 serves as a critical data node in smart factory environments — bridging field-level motor signals with supervisory control systems through standardized industrial protocols. Whether deployed in conveyor systems, pump stations, HVAC units, or compressor lines, this drive delivers real-time operational data across the full automation stack: from sensor inputs and PLC commands to SCADA dashboards and cloud-based analytics platforms.

At the heart of its connectivity capability is native Modbus RTU support over RS-485, enabling direct integration with Schneider Electric Modicon M340 and M580 PLCs, as well as third-party controllers operating on the same serial bus. For Ethernet-based architectures, the ATV312HU22N4 can be paired with the VW3A3616 Modbus TCP/IP communication card, extending its reach into TCP/IP networks and enabling high-speed data exchange with SCADA systems such as Schneider Electric EcoStruxure, Wonderware, or Ignition. This dual-protocol flexibility makes the drive compatible with both legacy serial networks and modern Ethernet-based industrial backbones.

In a typical smart factory data flow, the ATV312HU22N4 sits between the physical motor and the digital control layer. Analog and digital I/O signals — speed references, run/stop commands, fault outputs — are captured locally and transmitted upstream via Modbus to a Modicon PLC or remote I/O module such as the TM3 expansion series. The PLC aggregates drive status, current draw, output frequency, and fault codes, then forwards structured data packets to an HMI panel (e.g., Magelis HMIGTO series) for operator visualization. Simultaneously, the same data stream feeds into a SCADA gateway or edge computing node, where it is normalized, timestamped, and routed to historian databases or cloud dashboards for trend analysis and predictive maintenance workflows.

The ATV312HU22N4 supports a comprehensive set of readable and writable Modbus registers, including motor speed (Hz), output current (A), DC bus voltage (V), drive temperature, active fault codes, and control word/status word for remote start/stop and direction control. This register map enables automation engineers to build closed-loop control logic directly from the SCADA or DCS layer without requiring local operator intervention — a key requirement for unmanned or remotely monitored production sites. When integrated with an industrial Ethernet switch such as the Schneider Electric ConneXium TCSESM series, the drive's data can be distributed across multiple network segments with VLAN isolation and redundancy support.

For sites operating mixed-protocol environments, the ATV312HU22N4 can interface with protocol gateways such as the Anybus X-gateway or HMS IXXAT series to bridge Modbus RTU/TCP data into PROFIBUS DP, EtherNet/IP, or PROFINET networks. This makes the drive compatible with Siemens S7-300/S7-1500 PLC platforms and Rockwell Automation ControlLogix systems operating on EtherNet/IP, ensuring cross-vendor interoperability in multi-brand automation environments. The gateway-mediated data path preserves register fidelity and supports cyclic data exchange at scan rates suitable for real-time motor supervision.

Remote diagnostics capability is a standout feature of the ATV312HU22N4 in networked deployments. Maintenance teams can poll drive fault history, thermal state, and run-hour counters remotely via Modbus without physical access to the control panel. When integrated with an EcoStruxure Asset Advisor or equivalent condition monitoring platform, the drive's operational parameters can trigger predictive maintenance alerts — for example, flagging abnormal current signatures that may indicate bearing wear or load imbalance before a fault trip occurs. This reduces unplanned downtime and supports OEE (Overall Equipment Effectiveness) improvement initiatives across the production floor.

All units are pre-shipment tested, verified in stock, and covered by a 12-month warranty. Each ATV312HU22N4 is inspected for parameter integrity, communication response, and I/O functionality prior to dispatch, ensuring plug-and-play readiness for integration into existing Modbus or Ethernet network topologies.

In a fully connected smart factory deployment, the ATV312HU22N4 operates as a networked motor controller at the field device layer. Motor speed references originate from a Modicon M580 PLC, transmitted via Modbus RTU over an RS-485 bus shared with other Altivar 312 drives on the same production line. Each drive responds with real-time feedback — output frequency, load current, and fault status — which the PLC aggregates into a structured data table. This table is then forwarded via Ethernet to a Magelis HMIGTO operator panel mounted at the machine station, providing operators with live drive status and manual override capability.

Upstream from the PLC, a ConneXium managed Ethernet switch routes data from multiple PLCs and remote I/O nodes — including TM3 digital and analog expansion modules — to a central SCADA server running EcoStruxure Control Expert. The SCADA layer maintains a historian of all drive parameters, enabling trend analysis and alarm management across the entire motor fleet. For sites requiring integration with ERP or MES platforms, an edge gateway such as the Schneider Electric EcoStruxure Machine Advisor aggregates drive data and exposes it via REST API or OPC-UA to higher-level business systems.

In mixed-protocol environments, an Anybus X-gateway bridges the Modbus TCP data from the ATV312HU22N4 into a PROFINET segment serving Siemens ET 200SP remote I/O and S7-1500 PLCs. This cross-protocol bridge ensures that the drive's operational data remains accessible regardless of the PLC platform in use, supporting multi-vendor automation architectures common in large-scale manufacturing and utility sites. Power quality monitoring is handled by a PM5000 series power meter on the same Modbus network, providing correlated energy consumption data alongside drive performance metrics for energy optimization reporting.

Industrial sites running legacy serial networks often face data silos where drive parameters are invisible to the SCADA layer. The ATV312HU22N4 resolves this by exposing a full Modbus register map that any compliant master device can poll — eliminating the need for proprietary software or dedicated communication modules in most Schneider Electric PLC environments. For sites transitioning from standalone drive operation to networked control, the drive's built-in Modbus RTU port provides an immediate integration path without hardware modification.

Protocol fragmentation — where different machine vendors use incompatible fieldbus standards — is addressed through gateway-mediated integration. By placing an Anybus or HMS protocol converter between the ATV312HU22N4's Modbus interface and a PROFIBUS or EtherNet/IP backbone, automation engineers can unify drive data with sensors, actuators, and controllers from other vendors into a single SCADA namespace. This approach supports production line transparency, where every motor's speed, load, and fault state is visible in real time on a unified HMI dashboard.

Remote monitoring and alarm tracking are enabled by the drive's Modbus fault register, which stores the last eight fault codes with timestamps. Maintenance teams can retrieve this history remotely, correlate faults with process events logged in the SCADA historian, and identify root causes without dispatching field technicians. For sites with strict uptime requirements, this remote diagnostic capability directly reduces mean time to repair (MTTR) and supports proactive maintenance scheduling based on actual drive condition rather than fixed time intervals.

Q: What is the communication latency of the ATV312HU22N4 over Modbus RTU?A: At a baud rate of 19,200 bps with standard Modbus RTU framing, typical register read latency is under 10 ms per transaction. For multi-drive networks sharing a single RS-485 bus, total scan time scales linearly with the number of nodes; a 16-drive network at 19,200 bps typically achieves full-scan cycle times under 200 ms, suitable for supervisory monitoring applications.

Q: Is the ATV312HU22N4 compatible with PROFINET or EtherNet/IP networks?A: The drive does not natively support PROFINET or EtherNet/IP. However, protocol compatibility can be achieved by adding a Modbus TCP/IP communication card (VW3A3616) and pairing the drive with an Anybus X-gateway or equivalent protocol converter. This configuration enables full cyclic data exchange with Siemens S7 or Rockwell ControlLogix PLCs on PROFINET or EtherNet/IP networks.

Q: How is network stability maintained in multi-drive Modbus RTU deployments?A: RS-485 network stability depends on correct termination resistors at both ends of the bus (typically 120 Ω), proper cable shielding, and unique node addressing for each drive. The ATV312HU22N4 supports configurable Modbus addresses (1–247) and baud rates (4,800–19,200 bps). For networks exceeding 32 nodes or 1,200 m cable length, RS-485 repeaters are recommended to maintain signal integrity.

Q: Does the unit come pre-tested and what warranty is provided?A: Yes. Every ATV312HU22N4 unit undergoes pre-shipment functional testing covering parameter initialization, communication response verification, and I/O channel checks. Units are verified in stock and dispatched with a 12-month warranty covering manufacturing defects and communication module integrity. For warranty claims or technical support, contact [email protected] or +86 18359268345.
