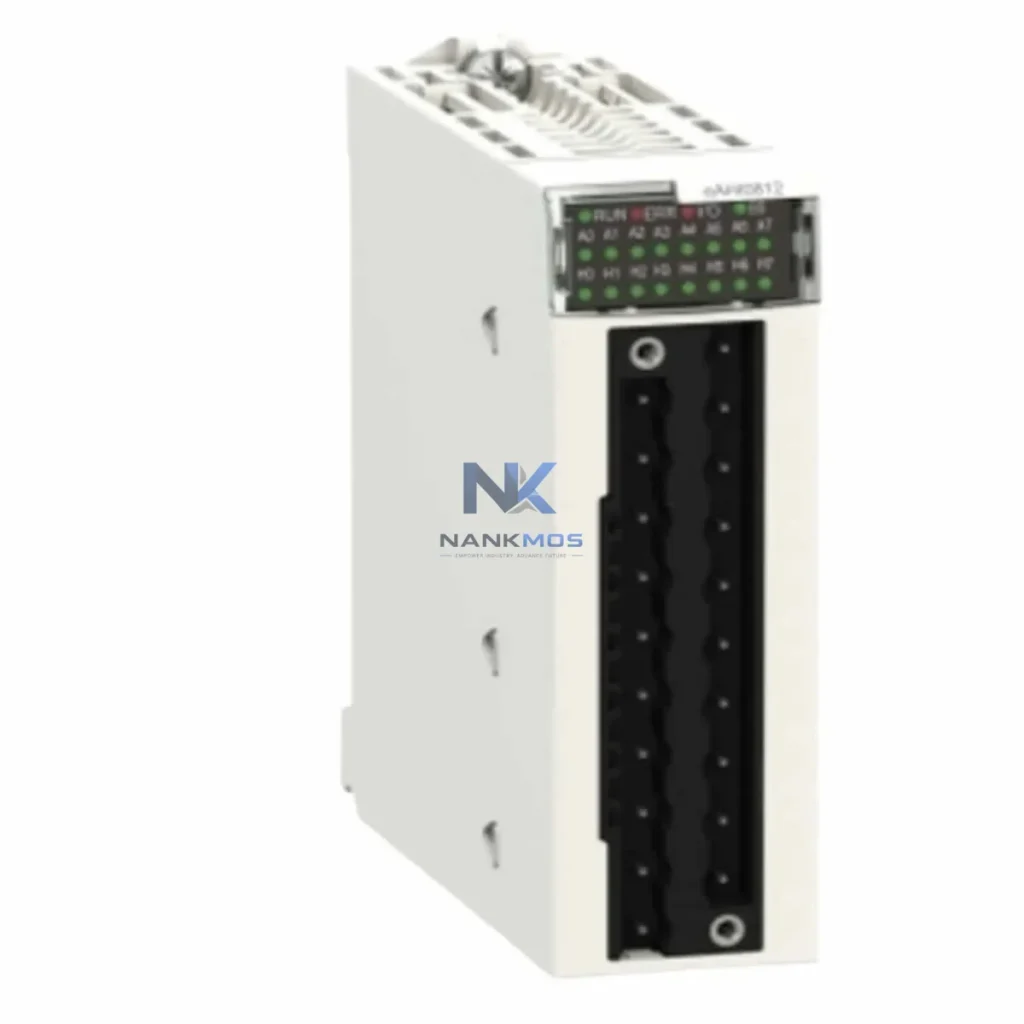

Schneider Electric BMEAHI0812 HART Analog Input Module

Product Details

BMEAHI0812 Product Description

The Schneider Electric BMEAHI0812 is an 8-channel HART Analog Input Module engineered for the Modicon M580 Ethernet PAC platform, delivering seamless integration between field instrumentation and the industrial data backbone of modern smart factories. Designed to bridge the gap between legacy 4–20 mA field devices and high-level SCADA, DCS, and MES systems, the BMEAHI0812 enables real-time signal acquisition, HART protocol communication, and transparent data flow across every layer of the automation hierarchy. With native support for HART 5, 6, and 7 protocol revisions, this module transforms conventional analog loops into intelligent, diagnostics-rich data channels — making it a cornerstone component for facilities pursuing IIoT readiness, predictive maintenance, and full production transparency.

In a connected factory architecture, the BMEAHI0812 sits at the critical junction between physical process variables and digital control logic. Field sensors — including pressure transmitters, temperature sensors, flow meters, and level gauges — transmit both primary process values and rich HART diagnostic data simultaneously over the same two-wire loop. The module captures this dual-layer signal stream and delivers it directly into the Modicon M580 CPU backplane via the X Bus, ensuring zero-latency data availability for the PAC's control programs. From there, process values and device health indicators are forwarded upstream through the M580's Ethernet backbone to SCADA platforms such as Schneider Electric EcoStruxure SCADA Expert Vijeo Citect or third-party systems via OPC-UA, enabling operators to monitor field device status, calibration drift, and loop integrity from a centralized HMI or remote dashboard without interrupting the live process.

The BMEAHI0812 operates as the primary analog-to-digital intelligence gateway within a Modicon M580-based control architecture. In a typical smart factory deployment, field instruments such as Rosemount 3051 pressure transmitters or Endress+Hauser Promag flow meters connect directly to the module's input channels. The BMEAHI0812 simultaneously reads the 4–20 mA primary variable and polls HART secondary variables — including device temperature, loop current, and diagnostic status bytes — at configurable scan rates. This dual-channel data acquisition eliminates the need for separate HART multiplexers or handheld communicators for routine diagnostics, reducing maintenance overhead and accelerating fault isolation.

Within the M580 rack, the BMEAHI0812 shares the X Bus backplane with the BMEP582040 or BMEP584020 CPU modules, transferring process data at deterministic cycle times aligned with the PAC's task scheduler. The CPU then routes this data over the onboard Ethernet port — supporting both Modbus TCP and EtherNet/IP — to upstream systems. A BMENOS0300 network option switch or a ConneXium industrial managed switch can segment the control network from the supervisory network, ensuring that SCADA polling traffic from platforms like Wonderware System Platform or Ignition SCADA does not interfere with real-time control loops. For facilities using EcoStruxure Asset Advisor, HART device health data extracted by the BMEAHI0812 feeds directly into the asset management layer, enabling condition-based maintenance scheduling without manual field walks.

In multi-rack or distributed architectures, the BMEAHI0812 can be deployed in remote racks connected via the BMECRA31210 remote I/O adapter over a dedicated Ethernet ring, providing geographic flexibility for large process plants. Edge gateway devices such as the Schneider Electric EcoStruxure Edge Control or third-party IIoT gateways can subscribe to HART data published by the M580 via OPC-UA, forwarding device diagnostics to cloud-based analytics platforms for fleet-wide predictive maintenance. HMI panels running Vijeo Designer or EcoStruxure Operator Terminal Expert display real-time loop values and HART alarm states, giving operators immediate visibility into field device health. The complete data chain — from sensor signal through BMEAHI0812 acquisition, M580 processing, network transmission, SCADA visualization, and edge analytics — forms a closed-loop diagnostic ecosystem that supports both operational continuity and long-term asset optimization.

Many industrial facilities operate with a persistent blind spot: analog field devices transmit process values but reveal nothing about their own health until a failure occurs. The BMEAHI0812 directly addresses this data gap by surfacing HART diagnostic information — including device status, sensor degradation indicators, and loop integrity flags — alongside the primary process variable, all within the standard 4–20 mA wiring infrastructure already in place. This eliminates the need for costly rewiring or parallel HART communication networks.

Protocol fragmentation is another common challenge in brownfield automation sites where legacy 4–20 mA instruments coexist with newer HART-capable devices. The BMEAHI0812 handles both transparently, allowing engineers to migrate instrumentation incrementally without disrupting the control system. For facilities struggling with data silos — where field device data never reaches the SCADA or MES layer — the module's native integration with the M580 Ethernet backbone and EcoStruxure software suite provides a direct, standards-based path to full production transparency. Remote monitoring capabilities mean that maintenance engineers can assess field device status, acknowledge HART alarms, and initiate diagnostic routines from the SCADA workstation or a remote VPN connection, reducing the frequency and cost of physical site visits. As production lines expand, additional BMEAHI0812 modules can be added to existing M580 racks or new remote racks without architectural changes, providing a scalable, future-proof analog input strategy aligned with IIoT and Industry 4.0 objectives.

Q1: Does the BMEAHI0812 support simultaneous HART communication and 4–20 mA signal acquisition without interrupting the control loop?Yes. The BMEAHI0812 uses the HART FSK overlay protocol, which superimposes digital HART communication on the existing 4–20 mA analog signal without affecting the primary variable transmission. HART polling occurs in the background at configurable intervals, ensuring that real-time control loop performance is never compromised.

Q2: Which SCADA and asset management platforms are compatible with HART data extracted by the BMEAHI0812?The BMEAHI0812 delivers HART device data into the M580 CPU memory, from where it can be accessed by any SCADA or asset management system connected via Modbus TCP, EtherNet/IP, or OPC-UA. Validated integrations include EcoStruxure SCADA Expert Vijeo Citect, EcoStruxure Asset Advisor, Wonderware System Platform, Ignition SCADA, and OSIsoft PI System.

Q3: How does the BMEAHI0812 support network stability and deterministic data delivery in high-channel-count installations?The module communicates over the M580 X Bus backplane, which provides deterministic, high-speed data exchange isolated from the Ethernet network. HART polling is managed by the module's onboard processor independently of the CPU scan cycle, preventing HART communication latency from affecting control task execution. Network segmentation via managed industrial switches further isolates control traffic from supervisory and IT network loads.

Q4: What does the 12-Month Warranty cover, and how is pre-shipment testing conducted?Every BMEAHI0812 unit supplied by NANKMOS undergoes full functional testing prior to shipment, including channel-by-channel signal verification, HART communication handshake testing, and backplane interface validation. The 12-Month Warranty covers hardware defects and functional failures under normal operating conditions. Units are shipped with test documentation and are available from in-stock inventory for fast global dispatch.
