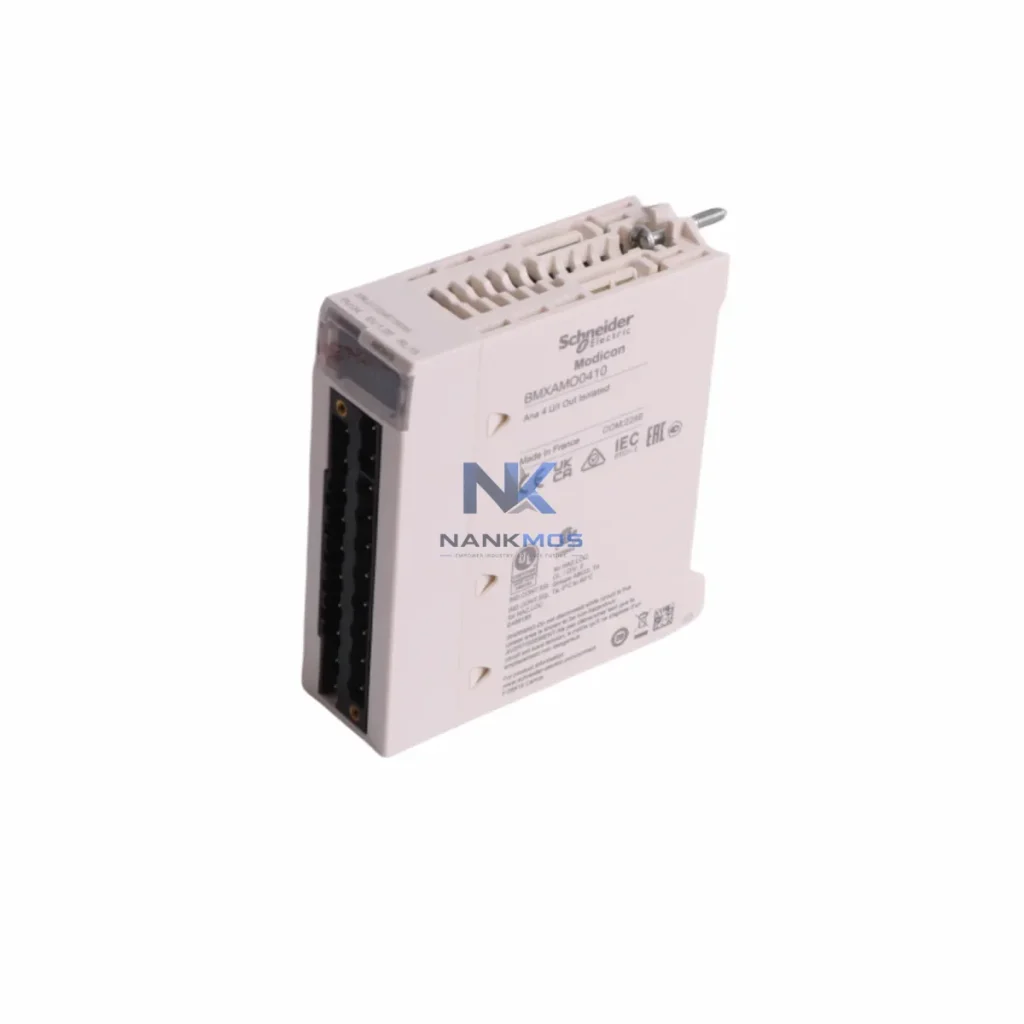

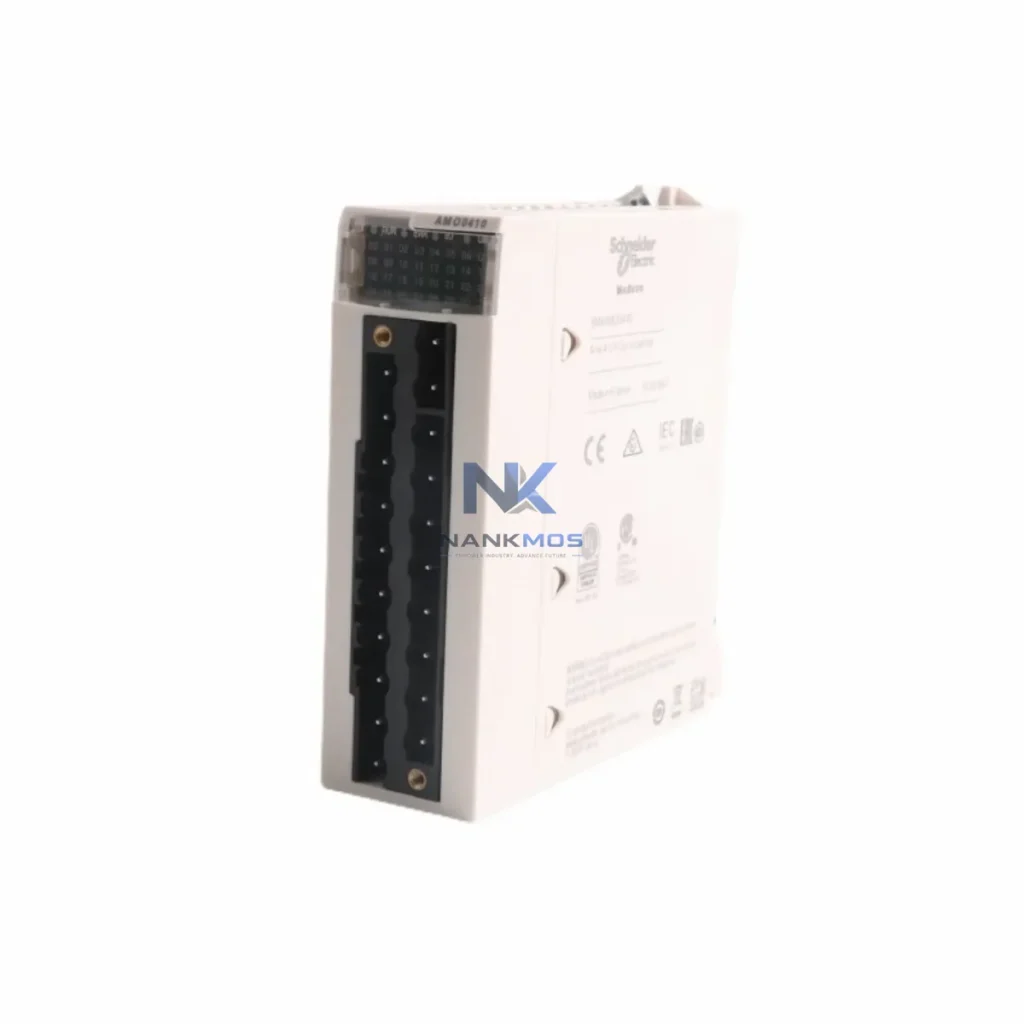

Schneider Electric BMXAMO0410 Analog Output Module

Product Details

BMXAMO0410 Product Description

The BMXAMO0410 is engineered as a native analog output resource within the Schneider Electric Modicon M340 automation platform. Its value is best understood not as a standalone component, but as a precision signal-delivery node within a layered control architecture — one that spans the CPU layer, I/O layer, communication layer, power layer, HMI layer, and field execution layer simultaneously.

At the control layer, the BMXAMO0410 operates under direct command of the BMXP342020 or BMXP342030 CPU modules. These processors execute IEC 61131-3 logic in Unity Pro / EcoStruxure Control Expert and issue real-time analog setpoints to the BMXAMO0410 via the X-Bus backplane — eliminating any external wiring between the CPU and the output module and ensuring deterministic scan-cycle response.

At the I/O layer, the BMXAMO0410 works in close coordination with analog input modules such as the BMXAMI0410 (4-channel analog input) and BMXAMI0800 (8-channel analog input). Together, these modules form a closed-loop signal chain: the AMI modules acquire process variables from field transmitters, the CPU processes the control algorithm, and the BMXAMO0410 delivers the corrected analog command signal to actuators, control valves, or variable-frequency drives. This closed-loop architecture is fundamental to PID control, cascade control, and ratio control strategies in process industries.

At the communication layer, the M340 rack hosting the BMXAMO0410 typically integrates a BMXNOE0100 or BMXNOE0110 Ethernet communication module. These modules enable the rack to participate in EtherNet/IP or Modbus TCP supervisory networks, allowing SCADA systems, historians, and MES platforms to monitor analog output setpoints and channel diagnostics in real time. For fieldbus-based architectures, the BMXEIA0100 INTERBUS master or Profibus DP adapters can extend the M340 platform into distributed I/O topologies.

At the power layer, the BMXAMO0410 draws its operating power from the rack backplane, which is supplied by a dedicated BMXCPS2000 or BMXCPS3500 power supply module. Proper power budget calculation across all installed modules — including the BMXAMO0410's backplane current draw — is essential during rack design to ensure stable analog output accuracy and prevent voltage droop on the 5 VDC bus.

At the HMI layer, operator stations running Vijeo Designer or EcoStruxure Operator Terminal Expert display real-time analog output values sourced from the BMXAMO0410 channels. Panels such as the HMIGTO2310 or HMISCU6A5 provide operators with setpoint adjustment, trend visualization, and alarm acknowledgment — all linked to the analog output channels managed by the BMXAMO0410.

At the execution layer, the 4–20 mA or ±10 V signals generated by the BMXAMO0410 drive field devices including control valves, electro-pneumatic positioners, variable-frequency drives (VFDs), and proportional solenoid valves. In pump control applications, the BMXAMO0410 output directly commands a Schneider Altivar ATV320 or ATV630 drive speed reference input, enabling smooth, energy-efficient flow regulation without relay-based step control.

At the protection and redundancy layer, signal integrity from the BMXAMO0410 is preserved through proper shielded cable routing, grounding discipline, and — where required — external signal isolators or loop-powered barriers. In safety-critical applications, the M340 architecture supports hot-standby CPU redundancy via the BMXCRA31210 remote I/O adapter, allowing the BMXAMO0410 to remain in service even during CPU switchover events.

At the maintenance layer, the BMXAMO0410 supports channel-level diagnostics accessible through Unity Pro online mode. Engineers can read channel status, detect open-loop faults, and verify output accuracy without removing the module from service — reducing mean time to repair (MTTR) and supporting predictive maintenance strategies aligned with IIoT and EcoStruxure Asset Advisor frameworks.

Process Manufacturing & Chemical Plants: The BMXAMO0410 delivers precise 4–20 mA setpoints to control valves regulating flow, pressure, temperature, and level loops. Its 12-bit resolution supports tight PID loop performance in continuous process environments where analog accuracy directly impacts product quality and yield.

Power Generation & Utilities: In power plant auxiliary systems — boiler feedwater control, turbine bypass valve positioning, and cooling tower fan speed regulation — the BMXAMO0410 provides the analog command interface between the M340 DCS-style controller and field actuators. Its native backplane integration eliminates signal conversion latency critical in fast-response power control loops.

Water & Wastewater Treatment: Pump speed control, chemical dosing pump regulation, and aeration blower modulation are typical applications. The BMXAMO0410 interfaces directly with VFD speed reference inputs, enabling energy-optimized variable-speed operation across multiple pump stations managed from a single M340 rack.

Oil, Gas & Petrochemical: In wellhead control panels, compressor anti-surge systems, and pipeline pressure regulation stations, the BMXAMO0410 provides the analog output backbone for continuous process control. Its compliance with IEC 61131-2 and operation within the Modicon M340 platform — widely certified for hazardous area panel integration — makes it a preferred choice for upstream and midstream automation projects.

Mining, Metallurgy & Heavy Industry: Conveyor speed regulation, furnace temperature profiling, and hydraulic press pressure control benefit from the BMXAMO0410's robust analog output performance. In high-vibration, high-EMI environments, the module's backplane-powered design and shielded rack architecture provide superior noise immunity compared to distributed analog I/O solutions.

Packaging & Discrete Manufacturing Lines: Tension control, web speed synchronization, and servo amplifier analog command interfaces are supported by the BMXAMO0410's ±10 V voltage output mode. Integration with M340 motion control applications via Unity Pro enables coordinated multi-axis analog command distribution from a single rack.

Q1: Is the BMXAMO0410 compatible with all Modicon M340 rack configurations, and can it be mixed with digital I/O modules in the same rack? Yes. The BMXAMO0410 is fully compatible with all standard BMX racks (BMXXBP0400, BMXXBP0800, BMXXBP1200) and can be installed in any available I/O slot alongside digital input modules (BMXDDI1602), digital output modules (BMXDDO1602), and other analog modules. Slot assignment is configured in Unity Pro / EcoStruxure Control Expert hardware configuration editor. No special slot restrictions apply to the BMXAMO0410 beyond standard M340 rack power budget compliance.

Q2: What commissioning steps are required to verify BMXAMO0410 analog output accuracy after installation? After physical installation and Unity Pro hardware configuration download, each channel should be verified using a calibrated loop calibrator or precision milliammeter. In Unity Pro online mode, force each channel output to 4 mA, 12 mA, and 20 mA reference points and measure the actual field signal. Channel diagnostics in the I/O module object browser will flag open-loop conditions if the field wiring is disconnected. For ±10 V voltage outputs, verify with a precision voltmeter at 0 V, ±5 V, and ±10 V setpoints. All four channels should be verified independently before commissioning the control loop.

Q3: What does the 12-Month Warranty cover for the BMXAMO0410, and what is the recommended long-term maintenance strategy? The 12-Month Warranty covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions from the date of shipment. Warranty claims are supported with proof of purchase and failure documentation. For long-term maintenance, Schneider Electric recommends periodic firmware compatibility checks via EcoStruxure Control Expert update cycles, annual visual inspection of backplane connector contacts, and maintaining a spare BMXAMO0410 module on-site for critical process applications. NANKMOS maintains in-stock inventory of the BMXAMO0410 to support rapid replacement under both warranty and post-warranty maintenance scenarios, with pre-shipment functional testing performed on every unit.
