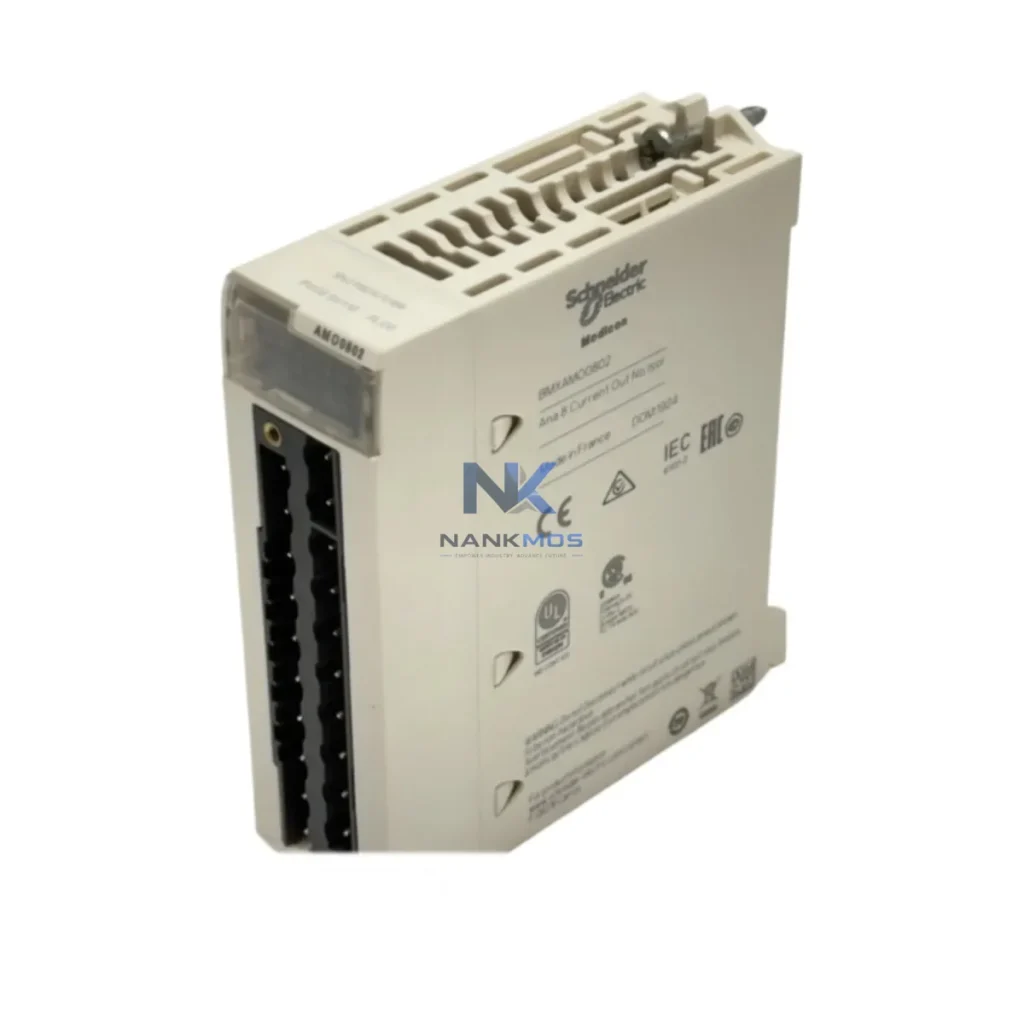

Schneider Electric BMXAMO0802 Analog Output Module

Product Details

BMXAMO0802 Product Description

The Schneider Electric BMXAMO0802 is an 8-channel analog output module engineered for the Modicon M340 PLC platform, delivering precise signal control that underpins energy-efficient automation across demanding industrial environments. Designed to interface seamlessly with variable frequency drives, servo drive systems, and power monitoring infrastructure, the BMXAMO0802 translates digital control commands into accurate 0–10 V or 4–20 mA analog signals, enabling granular regulation of motor speed, valve position, and actuator torque — all critical levers for reducing unnecessary energy consumption on modern production lines.

In a power-aware automation architecture, the BMXAMO0802 sits at the intersection of the control layer and the drive layer, making it a pivotal component for energy optimization. When integrated with a Modicon M340 CPU module such as the BMX P34 2020, the BMXAMO0802 receives setpoint commands from the PLC program and converts them into precise analog reference signals dispatched to downstream equipment. A typical deployment routes these signals to Schneider Electric Altivar ATV320 or ATV630 variable frequency drives, where the 4–20 mA reference directly governs motor speed — eliminating the energy waste associated with fixed-speed operation and mechanical throttling.

For servo-driven axes, the BMXAMO0802 analog output can serve as a velocity or torque reference to Lexium 32 servo drives, enabling smooth, energy-proportional motion profiles that reduce peak current draw during acceleration phases. This is particularly valuable in packaging lines and CNC transfer machines where repeated start-stop cycles account for a disproportionate share of total energy consumption.

On the power monitoring side, the BMXAMO0802 works alongside PowerLogic PM5000 series power meters and BMXNOM0200 communication modules to close the energy feedback loop. Real-time power data collected by the PM5000 is fed back to the M340 CPU, which dynamically adjusts the analog output setpoints of the BMXAMO0802 to trim drive speed during low-demand windows — a strategy that can yield measurable reductions in kWh consumption without impacting throughput targets.

The module also integrates naturally with BMXDDI3202 digital input modules and BMXDDO3202K digital output modules within the same M340 rack, enabling coordinated load-shedding sequences. When a BMXDDI input detects a production pause signal from a line sensor or RFID gate, the CPU can instruct the BMXAMO0802 to ramp down drive references across multiple axes simultaneously, reducing idle power draw across the entire cell. BMXCPS2000 power supply modules within the rack are sized to support this dynamic load profile, ensuring stable backplane voltage even during rapid output transitions.

For facilities running EcoStruxure Plant or a third-party SCADA system over Modbus TCP, the BMXNOE0110 Ethernet communication module provides the network bridge that exposes BMXAMO0802 channel values as readable and writable registers, enabling supervisory energy management systems to log output trends, detect drift, and trigger maintenance alerts before efficiency degrades.

Factory energy audits consistently identify variable-speed drive under-utilization and analog signal inaccuracy as two of the largest sources of avoidable energy waste. The BMXAMO0802 addresses both. Its 12-bit resolution ensures that drive speed references are delivered with sufficient granularity to prevent the hunting behavior — small, repeated speed corrections — that inflates motor energy consumption and accelerates mechanical wear. By stabilizing the reference signal, the module helps drives operate closer to their optimal efficiency curve, reducing both electrical losses and heat generation in motor windings and drive heatsinks.

Thermal load management is a secondary but significant benefit. In densely packed control panels and machine enclosures, excess heat from inefficient drives and overworked actuators forces HVAC systems to work harder, compounding energy costs. The BMXAMO0802's precise output control reduces the frequency of drive over-current events, lowering the thermal burden on both the drive cabinet and the production environment. This contributes to longer mean time between failures (MTBF) for connected equipment and reduces the frequency of unplanned downtime events that disrupt production rhythm.

From a production line cadence perspective, the BMXAMO0802 enables smooth speed ramping profiles that synchronize conveyor speeds, pump flow rates, and actuator positions across multi-station lines. Consistent analog references prevent the micro-stoppages caused by drive faults triggered by abrupt setpoint changes, keeping overall equipment effectiveness (OEE) metrics stable. Predictive maintenance strategies benefit as well: by logging analog output values over time through the SCADA layer, maintenance teams can detect gradual drift in drive response — an early indicator of bearing wear or winding degradation — before it escalates into a costly breakdown.

Every BMXAMO0802 unit supplied by NANKMOS undergoes pre-shipment functional testing, verifying channel accuracy, output linearity, and backplane communication integrity. Units are shipped with full documentation and are backed by a 12-month warranty, with in-stock availability supporting rapid deployment for both new installations and emergency replacement scenarios.

Q1: How does the BMXAMO0802 contribute to measurable energy savings on a production line?By delivering high-resolution 4–20 mA or 0–10 V references to variable frequency drives and servo systems, the BMXAMO0802 eliminates the speed hunting and over-correction cycles that waste energy. Precise setpoint control allows drives to operate at the minimum speed required for the task, directly reducing kWh consumption. When combined with power monitoring feedback from a PowerLogic PM5000, the M340 PLC can implement dynamic load management routines that further trim energy use during low-demand periods.

Q2: Is the BMXAMO0802 compatible with my existing Modicon M340 rack and Unity Pro / EcoStruxure Control Expert software?Yes. The BMXAMO0802 is a native Modicon M340 backplane module, fully supported in Unity Pro and EcoStruxure Control Expert. It is recognized automatically during hardware configuration, and each channel can be individually configured for voltage or current output mode. No additional drivers or adapters are required for standard M340 rack installations.

Q3: Can the BMXAMO0802 replace an older or discontinued Schneider analog output module?The BMXAMO0802 is the current-generation 8-channel analog output module for the M340 platform and is the recommended replacement for earlier TSX Quantum or Momentum analog output modules when migrating to M340 architecture. Channel count, signal range, and rack slot compatibility should be verified against the existing installation before substitution. NANKMOS technical support can assist with compatibility assessment.

Q4: What is the warranty coverage and how quickly can the BMXAMO0802 be shipped?All BMXAMO0802 units supplied by NANKMOS are covered by a 12-month warranty against manufacturing defects and functional failure. Units are held in stock and are available for same-day or next-business-day dispatch, supporting urgent maintenance and production continuity requirements. Pre-shipment testing is performed on every unit to verify analog output accuracy and backplane communication before delivery.
