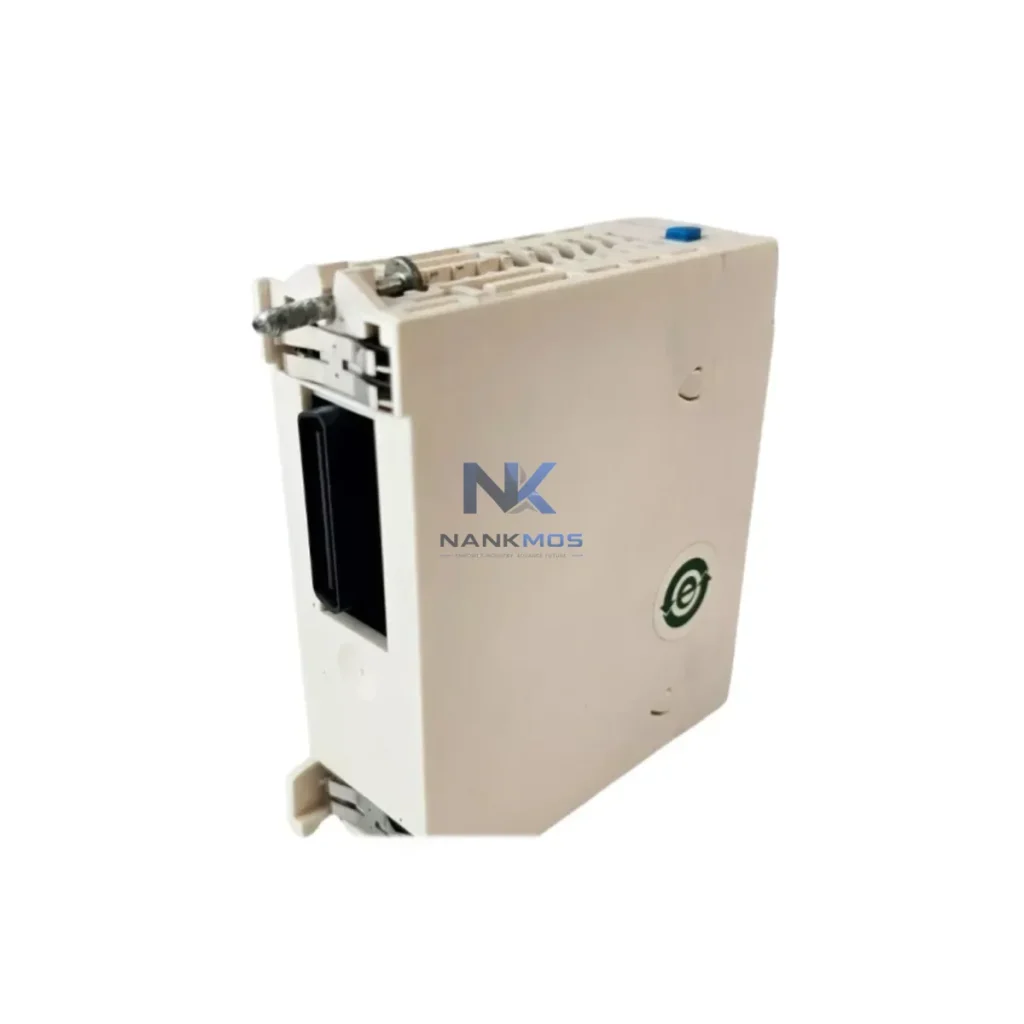

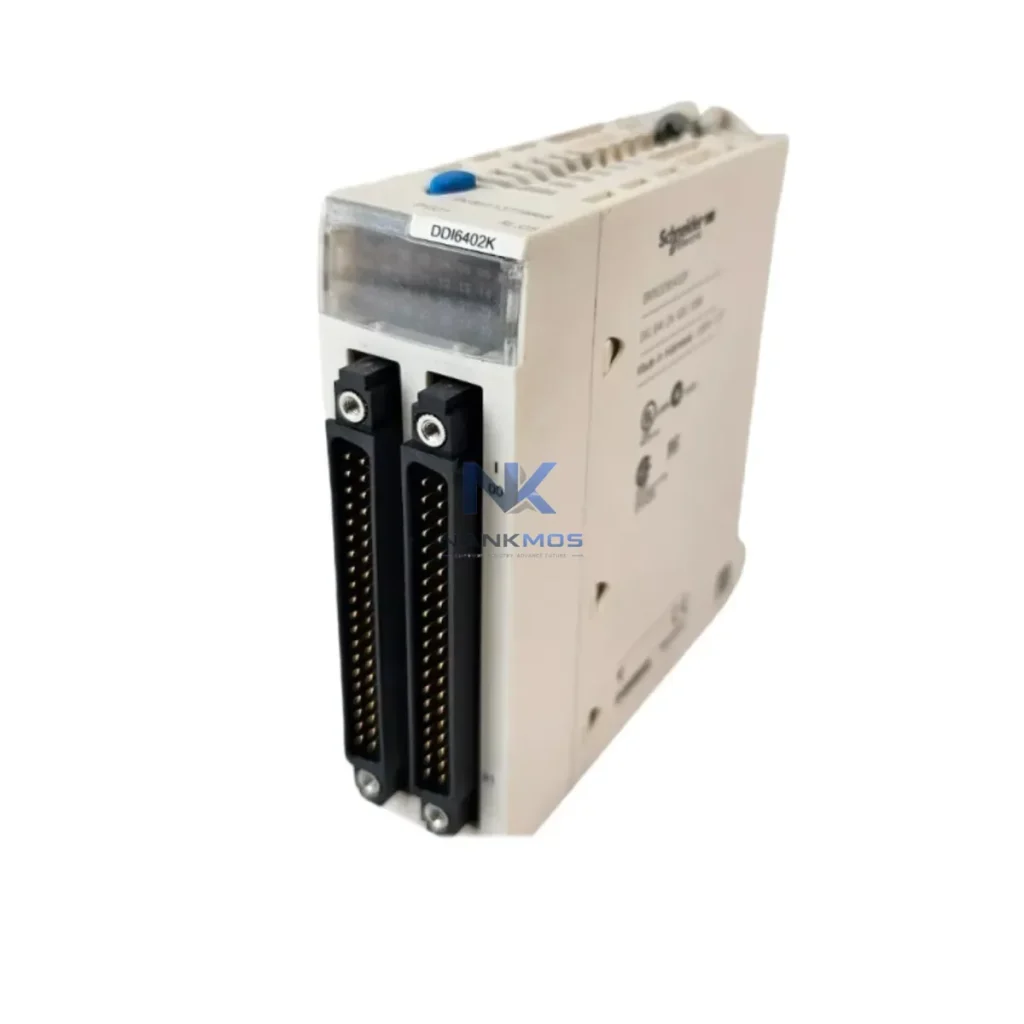

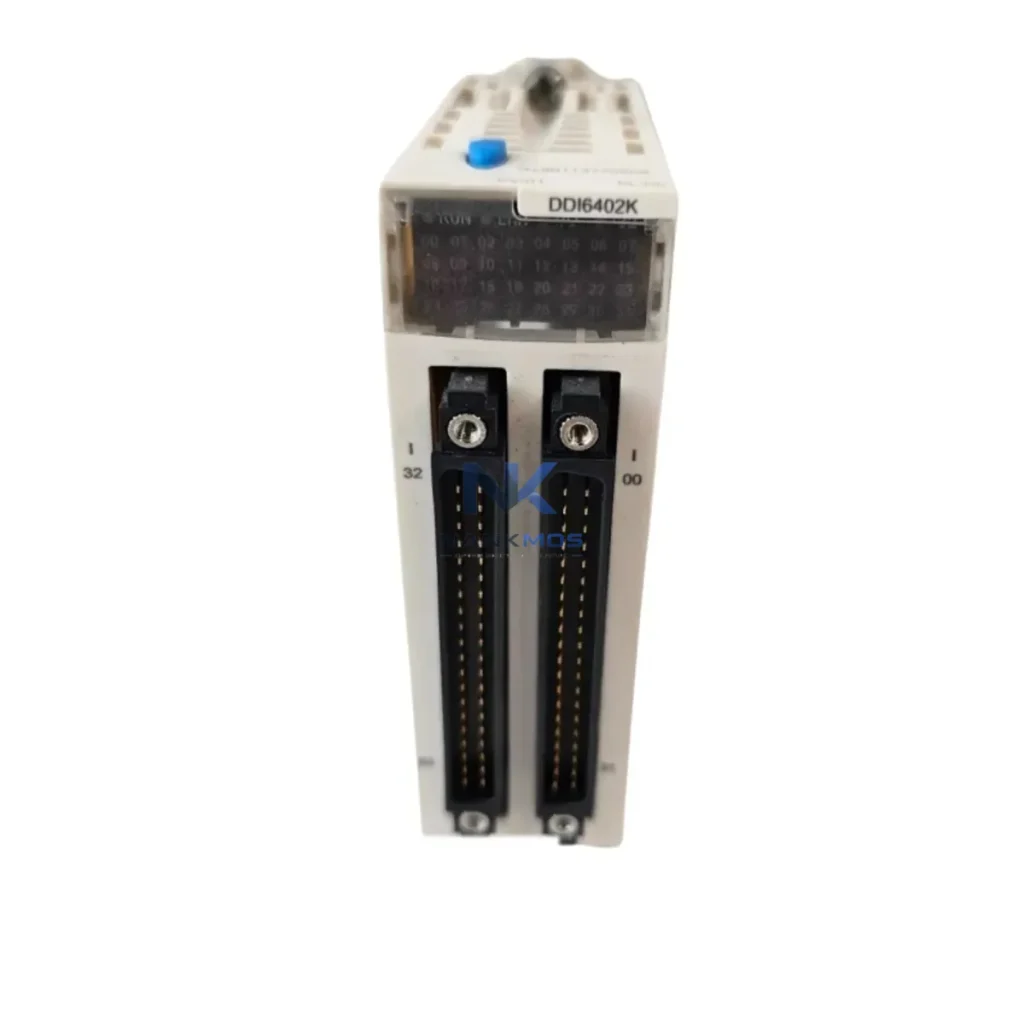

Schneider Electric BMXDDI6402K Discrete Input Module

Product Details

BMXDDI6402K Product Description

The Schneider Electric BMXDDI6402K is a 64-channel discrete input module engineered for the Modicon M340 programmable automation controller platform. Designed to meet the demands of energy-conscious industrial environments, this module delivers precise digital signal acquisition with minimal power consumption, making it a cornerstone component in smart production line architectures focused on load management, energy efficiency, and real-time equipment status feedback.

In modern manufacturing facilities — spanning power generation, petrochemical processing, water treatment, and discrete assembly — the ability to monitor hundreds of field-level signals without inflating the electrical load budget is critical. The BMXDDI6402K addresses this directly: its 64-channel capacity consolidates signal acquisition into a single rack slot, reducing the number of modules required, lowering the aggregate heat load on the control cabinet, and simplifying wiring infrastructure. Fewer modules mean lower standby power draw, reduced thermal management overhead, and a measurable improvement in overall panel energy efficiency.

The BMXDDI6402K integrates seamlessly into a layered automation architecture built around energy awareness. At the controller level, it connects directly to the Modicon M340 BMX CPS 2000 power supply module, which provides regulated 24 VDC backplane power with built-in diagnostics for load monitoring. The M340 CPU — such as the BMX P34 2020 — executes the control logic that interprets the 64 discrete input states, enabling the PLC to make real-time decisions about motor start/stop sequences, drive enable signals, and load-shedding routines that directly reduce peak energy demand.

On the drive side, the discrete inputs captured by the BMXDDI6402K feed status signals from Schneider Electric Altivar ATV320 variable frequency drives, allowing the PLC to monitor drive fault states, ready signals, and speed-reference confirmations without additional communication overhead. This tight integration between the input module and the VFD layer ensures that motor control decisions are based on verified field conditions, preventing unnecessary restart cycles that waste energy and accelerate mechanical wear.

For servo-driven axes, the module captures position-limit and home-sensor signals from Lexium 32 servo drive systems, enabling coordinated motion sequences that minimize dwell time and optimize production cycle energy consumption. The BMX ART 0414 analog input module, often deployed alongside the BMXDDI6402K in the same M340 rack, handles continuous process variables such as temperature and pressure, while the discrete module manages on/off field devices — together forming a complete field-signal acquisition layer.

Power quality and energy metering data from Schneider Electric PowerLogic PM5000 series power monitoring units are communicated upstream via Modbus TCP/IP through the M340 CPU, while the BMXDDI6402K provides the complementary discrete-state layer: breaker positions, contactor feedback, and interlock status. This combination gives the energy management system a complete picture of both analog power flow and discrete equipment state, enabling accurate load profiling and demand forecasting.

At the field device level, the module interfaces with inductive proximity sensors, photoelectric barriers, and limit switches — including Schneider Electric XS series inductive sensors — providing debounce-filtered digital inputs that eliminate spurious switching events that could trigger unnecessary actuator cycles. On the HMI side, Magelis HMIGTO operator panels connected to the M340 CPU display real-time input states and energy KPIs, giving operators visibility into equipment utilization and enabling manual load-balancing decisions during peak tariff periods.

In a smart production line context, the BMXDDI6402K contributes to energy optimization at multiple levels. By providing the PLC with accurate, low-latency discrete input data, it enables the implementation of energy-aware sequencing logic: machines are started only when upstream stations confirm readiness, conveyors are stopped during buffer-full conditions, and auxiliary systems such as cooling fans and lubrication pumps are activated only when equipment operating states — confirmed via discrete inputs — require them. This event-driven approach to auxiliary load management can yield measurable reductions in standby energy consumption across a production shift.

The module's high channel density also supports predictive maintenance strategies. By monitoring discrete feedback signals from motor contactors, valve actuators, and safety relays, the M340 PLC can detect abnormal switching patterns — such as a contactor that takes longer than expected to close — and flag these as early indicators of mechanical degradation. Addressing these issues proactively prevents unplanned downtime, which is one of the most energy-inefficient events in a production environment: restart sequences, scrap generation, and recovery heating all represent significant energy penalties that predictive maintenance helps avoid.

From a thermal management perspective, consolidating 64 input channels into a single BMXDDI6402K module rather than distributing them across multiple smaller modules reduces the total number of active electronic components in the control cabinet. Fewer active components mean lower aggregate heat dissipation, which in turn reduces the duty cycle of cabinet air conditioning or heat exchanger systems — a secondary but meaningful contribution to overall facility energy efficiency.

All units supplied by NANKMOS are in-stock, pre-shipment tested against Schneider Electric factory specifications, and covered by a 12-month warranty. This ensures that the energy optimization benefits delivered by the BMXDDI6402K are backed by supply reliability and quality assurance from day one of deployment.

Q1: How does the BMXDDI6402K contribute to measurable energy savings on a production line? By consolidating 64 discrete input channels into a single rack module, it reduces the total module count in the M340 rack, lowering standby power draw and cabinet heat load. When integrated with PLC energy-aware logic, it enables event-driven load management that eliminates unnecessary auxiliary equipment run time, directly reducing kWh consumption per production cycle.

Q2: Is the BMXDDI6402K compatible with EcoStruxure and Modbus TCP/IP SCADA systems? Yes. The module operates on the Modicon M340 backplane and its input data is accessible to the M340 CPU, which supports Modbus TCP/IP, EtherNet/IP, and EcoStruxure Machine Expert / Control Expert software environments. This makes the discrete input states fully available to SCADA, MES, and energy management systems via standard industrial protocols.

Q3: Can this module replace older Modicon Quantum or Premium discrete input modules? The BMXDDI6402K is designed specifically for the M340 platform and is not directly interchangeable with Quantum (140DDI) or Premium (TSX DEY) series modules. For migration projects, a rack and wiring adaptation is required. NANKMOS can advise on compatible M340 migration pathways based on your existing I/O count and application requirements.

Q4: What is the supply and warranty status for the BMXDDI6402K? NANKMOS maintains in-stock inventory of the BMXDDI6402K, with pre-shipment functional testing performed on every unit prior to dispatch. All units are covered by a 12-month warranty from the date of shipment, providing assurance for both project commissioning timelines and long-term operational reliability.
