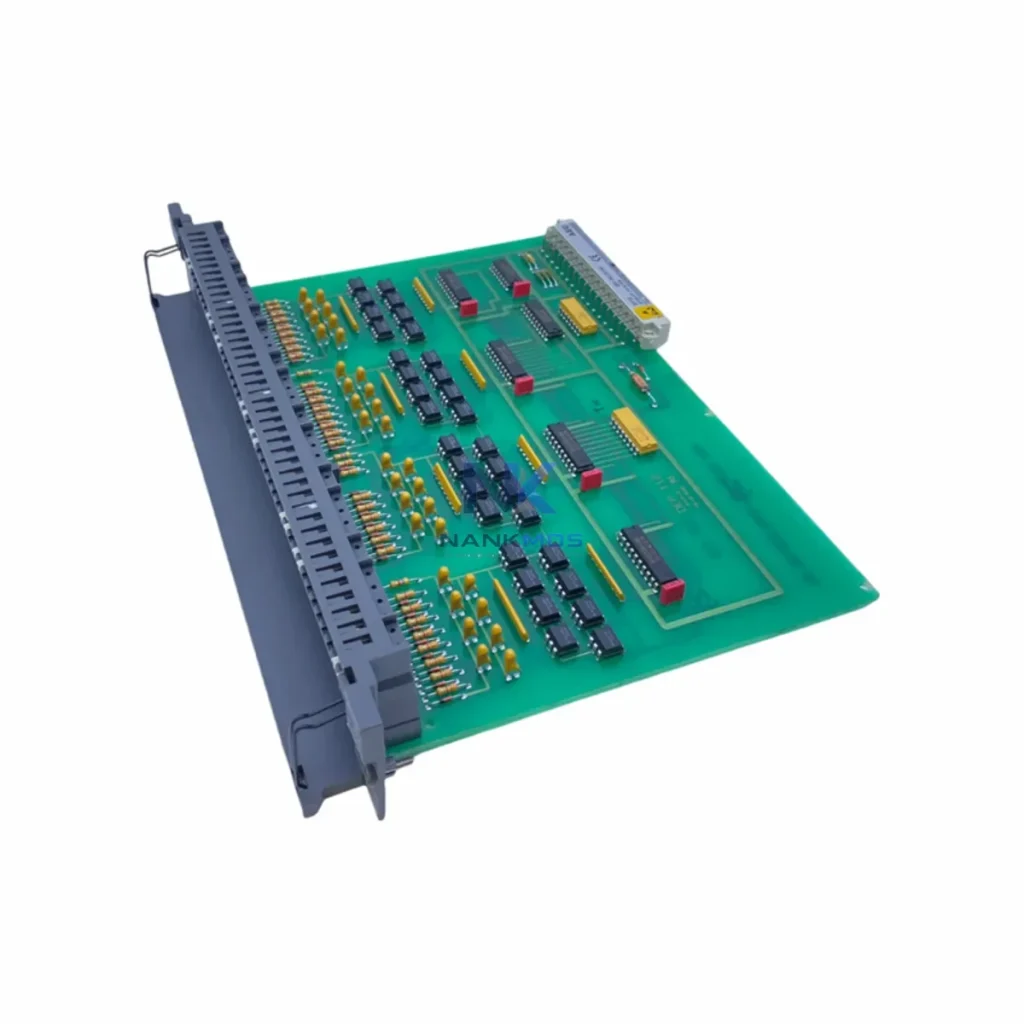

Schneider Electric DEP112 Digital Input Module

Product Details

DEP112 Product Description

The Schneider Electric DEP112 is a high-reliability digital input module engineered for the Modicon Premium PLC platform — one of Schneider Electric's most widely deployed industrial control architectures across process automation, discrete manufacturing, and smart factory environments. Designed to serve as a critical node in the field-level data acquisition layer, the DEP112 captures discrete on/off signals from sensors, limit switches, proximity detectors, and push-button stations, converting raw field events into structured digital data that flows upward through the automation hierarchy to PLC controllers, SCADA systems, and HMI dashboards.

In modern industrial connectivity architectures, the DEP112 operates at the intersection of physical signal acquisition and network-level data transmission. Its integration within the Modicon Premium rack enables seamless communication via Modbus RTU, FIPIO, and Uni-Telway protocols — the backbone communication standards of the Schneider Electric Modicon ecosystem. This protocol versatility ensures that field-level digital signals are reliably transported across the automation network without data loss, latency spikes, or protocol conversion overhead, making the DEP112 a foundational component in any deterministic, real-time control loop.

The DEP112's role in a connected factory begins at the field device layer. Proximity sensors, inductive detectors, photoelectric barriers, and mechanical limit switches feed discrete 24 VDC signals directly into the DEP112's input terminals. These signals are immediately scanned by the Modicon Premium TSX P57 CPU — the central processing unit that orchestrates the entire control logic — at deterministic cycle times, ensuring that no field event is missed and that the PLC's internal data table reflects the true state of the production floor in real time.

From the CPU, process data is transmitted upstream via the FIPIO fieldbus or Modbus RTU serial link to supervisory systems. A TSX ETY 110 Ethernet module installed in the same Premium rack bridges the Modicon backplane to the plant's industrial Ethernet network, enabling the DEP112's acquired data to reach Vijeo Citect SCADA or Wonderware InTouch HMI platforms over TCP/IP. Operators at the control room level gain live visibility into every digital input state — conveyor running, valve open, door closed, motor tripped — without any manual data polling or communication delay.

For distributed I/O architectures where field devices are located far from the main control cabinet, the DEP112 can be complemented by Schneider TBX DMS 16P22 remote I/O modules connected via FIPIO drop cables. These remote drops extend the Premium network's reach across large plant floors, warehouses, or multi-zone production lines, while the DEP112 continues to handle local high-density input acquisition at the main rack. The TSX SCY 21601 communication module further extends connectivity to legacy serial devices, ensuring that older field instruments remain integrated within the modern data flow architecture.

At the edge layer, a Moxa MGate MB3180 Modbus gateway or a Schneider EGX300 Ethernet gateway can be deployed to bridge the Modicon Premium network to cloud-based IoT platforms or MES systems. This edge-to-cloud pathway allows the DEP112's digital input data — representing machine states, production counts, and safety interlocks — to be aggregated, historized, and analyzed in real time by manufacturing intelligence platforms. Alarm events triggered by specific input state changes are automatically forwarded to maintenance teams via email or SMS through the SCADA alarm management layer, enabling rapid response and minimizing unplanned downtime.

Variable frequency drives such as the Schneider ATV312 series receive start/stop and speed reference commands that are ultimately derived from the digital input states captured by the DEP112. When a field sensor signals a process condition change — a tank reaching high level, a conveyor jam, or a safety gate opening — the DEP112 delivers that signal to the Premium CPU, which then executes the appropriate control logic and issues output commands to the drive, actuator, or alarm relay. This closed-loop signal chain, from field sensor through DEP112 to CPU to drive, represents the fundamental data flow of a deterministic, real-time automation system.

Protocol Fragmentation: Many industrial sites operate a mix of legacy serial devices alongside modern Ethernet-based systems. The DEP112, as part of the Modicon Premium platform, supports both FIPIO and Modbus RTU natively, allowing it to coexist with older Schneider TSX 37 Micro PLCs or third-party Modbus devices without requiring protocol converters at every node. This native multi-protocol support eliminates the data silos that arise when incompatible communication standards prevent field devices from sharing data with supervisory systems.

Data Island Elimination: In facilities where digital input data is trapped in standalone PLCs with no network connectivity, the DEP112 — integrated within a networked Modicon Premium rack — provides the pathway to break down these data islands. By connecting the Premium rack to the plant Ethernet backbone via a TSX ETY module, every input state captured by the DEP112 becomes accessible to SCADA, MES, and ERP systems, transforming isolated machine data into enterprise-wide operational intelligence.

Remote Monitoring and Diagnostics: The DEP112 supports module-level diagnostics accessible through the Modicon Premium CPU's diagnostic buffer and Unity Pro / PL7 Pro programming software. Maintenance engineers can remotely interrogate the module's status — checking for blown fuses, wiring faults, or input channel failures — without physically accessing the control cabinet. This remote diagnostic capability reduces mean time to repair (MTTR) and supports predictive maintenance strategies by flagging anomalies before they escalate into production stoppages.

Production Line Transparency: By feeding real-time digital input states into SCADA trend displays and historian databases, the DEP112 enables production managers to track machine cycle counts, uptime ratios, and shift-level output metrics with precision. Alarm tracking is fully integrated: when a critical input changes state unexpectedly, the SCADA system logs the event with a timestamp, operator acknowledgment record, and duration, providing a complete audit trail for quality management and regulatory compliance.

System Scalability: The Modicon Premium platform supports up to 31 I/O modules per local rack extension, and multiple racks can be interconnected via FIPIO or Ethernet remote I/O drops. As production capacity grows, additional DEP112 modules can be added to the existing rack infrastructure without modifying the network architecture or replacing the CPU, protecting the capital investment in the existing automation system.

Q1: What communication protocols does the Schneider DEP112 support, and is it compatible with third-party SCADA systems? The DEP112 operates within the Modicon Premium rack and communicates via the Premium backplane bus, with upstream connectivity provided by dedicated communication modules supporting Modbus RTU, FIPIO, and Ethernet TCP/IP (via TSX ETY modules). This makes it fully compatible with any SCADA or HMI platform that supports Modbus or OPC-DA/OPC-UA drivers, including Vijeo Citect, Wonderware, iFIX, and WinCC, ensuring broad system integration flexibility.

Q2: How does the DEP112 handle network stability and communication latency in high-speed production environments? The DEP112 is scanned at the Modicon Premium CPU's deterministic cycle time — typically 1 to 10 milliseconds depending on program complexity — ensuring that input state changes are captured and acted upon within a single scan cycle. The backplane bus communication is hardware-timed and immune to Ethernet network congestion, providing the sub-millisecond input response times required for high-speed discrete manufacturing, packaging lines, and safety interlock applications.

Q3: Can the DEP112 be used in a remote I/O configuration, and how does it support system expansion? The DEP112 is designed for local rack installation within the Modicon Premium platform. For remote I/O expansion, Schneider Electric's TBX and ABE remote I/O families — connected via FIPIO drops — extend the network's reach to distributed field locations. The DEP112 at the main rack and remote I/O modules at field stations form a unified I/O network managed by a single Premium CPU, supporting seamless system expansion without architectural redesign.

Q4: What pre-shipment testing and warranty coverage does NANKMOS provide for the DEP112? Every DEP112 unit supplied by NANKMOS undergoes functional verification testing prior to dispatch, confirming module identification, channel integrity, and communication readiness. All units are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. In-stock units are available for immediate dispatch with full documentation support. Contact [email protected] or +86 18359268345 for RFQ and lead time confirmation.
