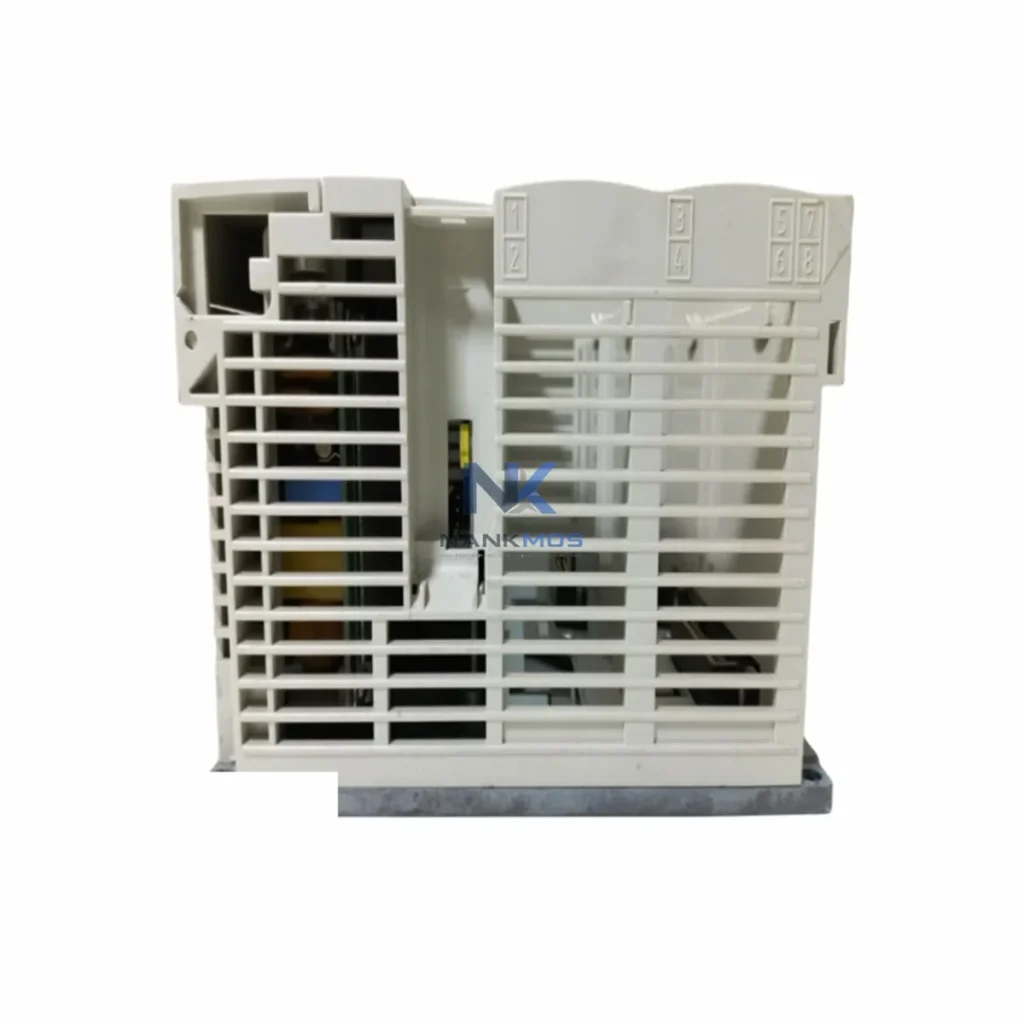

Schneider Electric TSX3710001 CPU Processor Module

Product Details

TSX3710001 Product Description

The Schneider Electric TSX3710001 is a compact, high-reliability CPU module engineered for the TSX37 micro-PLC platform — a proven control architecture widely deployed across discrete manufacturing, process automation, building management, and utility infrastructure. As the computational core of the TSX37 rack system, the TSX3710001 governs program execution, I/O scanning, communication management, and real-time diagnostic reporting across the entire control node. Its role within a layered automation architecture extends far beyond standalone logic processing: it serves as the integration anchor that synchronizes field-level signals, supervisory commands, and inter-device communication into a coherent, deterministic control loop.

Designed for environments demanding long-term operational stability, the TSX3710001 supports structured ladder logic and instruction list programming via PL7 software, enabling engineers to implement modular, maintainable control programs that scale with production complexity. Its onboard memory architecture supports both application programs and data retention across power cycles, ensuring process continuity in the event of supply interruptions — a critical requirement in continuous-process industries such as petrochemical refining, water treatment, and pharmaceutical manufacturing.

The TSX3710001 CPU achieves its full operational potential when deployed within a complete TSX37 automation platform. System architects integrating this module should consider the following layered component ecosystem to ensure signal integrity, communication reliability, and long-term maintainability across the control architecture.

At the power layer, the TSX PSY2600M or TSX PSY5500M rack power supply modules provide regulated 24 VDC and 5 VDC backplane power, ensuring stable voltage delivery to the CPU and all co-resident I/O modules. Proper power supply sizing is essential when expanding the rack with additional analog or specialty modules that carry higher current demands.

For digital I/O integration, the TSX DEY16D2 16-channel 24 VDC discrete input module and the TSX DSY16T2 16-channel transistor output module are the standard companions for the TSX3710001 in high-density discrete control applications. These modules communicate with the CPU via the TSX37 backplane bus, delivering deterministic scan-cycle I/O updates that support time-critical interlock and sequencing logic.

Analog signal acquisition is handled by the TSX AEY414 4-channel analog input module, which supports 4–20 mA and 0–10 V process signals — essential for PID loop control in temperature regulation, flow management, and pressure monitoring applications. Pairing the TSX3710001 with analog I/O modules transforms the TSX37 platform from a discrete controller into a full process automation node.

At the communication layer, the TSX3710001 supports PCMCIA-format communication cards including the TSX MBP0100 MODBUS Plus card and the TSX FPP20 FIPIO fieldbus card, enabling integration into plant-wide SCADA networks, distributed I/O architectures, and peer-to-peer PLC communication topologies. For Ethernet connectivity in modernized installations, the TSX ETZ410 Ethernet TCP/IP module provides transparent factory communication between the TSX37 node and higher-level MES or historian systems.

In applications requiring operator interface, the TSX3710001 is routinely paired with Magelis XBT-N series HMI terminals connected via the TER port or a dedicated MODBUS serial link. These compact HMI panels provide real-time process visualization, alarm acknowledgment, and parameter adjustment without requiring a full SCADA workstation — ideal for machine-level operator stations in packaging lines, conveyor systems, and injection molding cells.

For installations requiring motion coordination, the TSX3710001 can supervise axis positioning via the TSX CAY series motion control modules, which support stepper and servo drive interfaces within the same TSX37 rack. This integration eliminates the need for a separate motion controller in applications with moderate positioning requirements, reducing panel footprint and simplifying inter-system communication.

Discrete Manufacturing: In automotive assembly, electronics production, and metal fabrication environments, the TSX3710001 manages conveyor sequencing, robotic cell interlocking, and quality inspection gate control. Its deterministic scan cycle and robust I/O bus architecture ensure that production line timing remains consistent across multi-shift operations, minimizing unplanned downtime caused by control system latency or communication errors.

Process Industries: In chemical processing, pharmaceutical batch manufacturing, and food and beverage production, the TSX3710001 executes PID control loops for temperature, pressure, and flow regulation. Its analog I/O compatibility and structured programming environment support recipe-driven batch sequences that comply with FDA 21 CFR Part 11 and IEC 61511 functional safety frameworks when integrated with appropriate safety relay and interlock modules.

Water and Wastewater Treatment: Municipal water treatment facilities deploy the TSX3710001 for pump station automation, chemical dosing control, and filtration cycle management. The module's battery-backed memory retention ensures that control programs and setpoints survive power outages — a critical requirement for unattended remote pump stations operating under SCADA supervision.

Building Automation and Utilities: HVAC control, chiller plant management, and electrical substation automation represent established application domains for the TSX37 platform. The TSX3710001's compact form factor and DIN rail-compatible rack mounting make it well-suited for electrical panel integration in building management system (BMS) architectures where space constraints limit the use of larger PLC platforms.

Mining and Metals: In ore processing, conveyor drive control, and smelting operations, the TSX3710001 provides reliable control in high-vibration, high-temperature environments. Its industrial-grade construction and Schneider Electric's global service network ensure that replacement modules and technical support remain accessible throughout the operational lifecycle of the installation.

Q1: Is the TSX3710001 compatible with existing TSX37 racks and I/O modules already installed in the field?Yes. The TSX3710001 is fully compatible with the TSX37 rack backplane and all standard TSX37-series I/O modules, including discrete, analog, and specialty function modules. No rack or wiring modifications are required when replacing an existing TSX37 CPU with the TSX3710001, provided the replacement module carries the same or compatible firmware revision. Engineers should verify the PL7 application program version against the target CPU firmware to ensure seamless program transfer and execution.

Q2: What communication options are available for integrating the TSX3710001 into a modern Ethernet-based SCADA or MES network?The TSX3710001 supports communication expansion via PCMCIA card slots, accommodating MODBUS Plus, FIPIO, and serial MODBUS RTU/ASCII communication cards. For Ethernet TCP/IP integration, the TSX ETZ410 Ethernet gateway module can be installed in the same rack to provide transparent MODBUS TCP communication with SCADA servers, historian platforms, and OPC-DA/UA middleware. This approach preserves the existing TSX37 control architecture while enabling connectivity to modern industrial IoT and data acquisition infrastructure.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS ensure module quality before shipment?Every TSX3710001 unit supplied by NANKMOS is subject to pre-shipment functional testing, including power-on verification, communication port integrity checks, and memory read/write validation. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. NANKMOS maintains verified stock of TSX37-series CPU and I/O modules to support rapid replacement requirements for production-critical installations. For warranty claims or technical support inquiries, contact [email protected] or call +86 18359268345.
