Schneider Electric TSXAEZ414 PLC Analog Input Module

Product Details

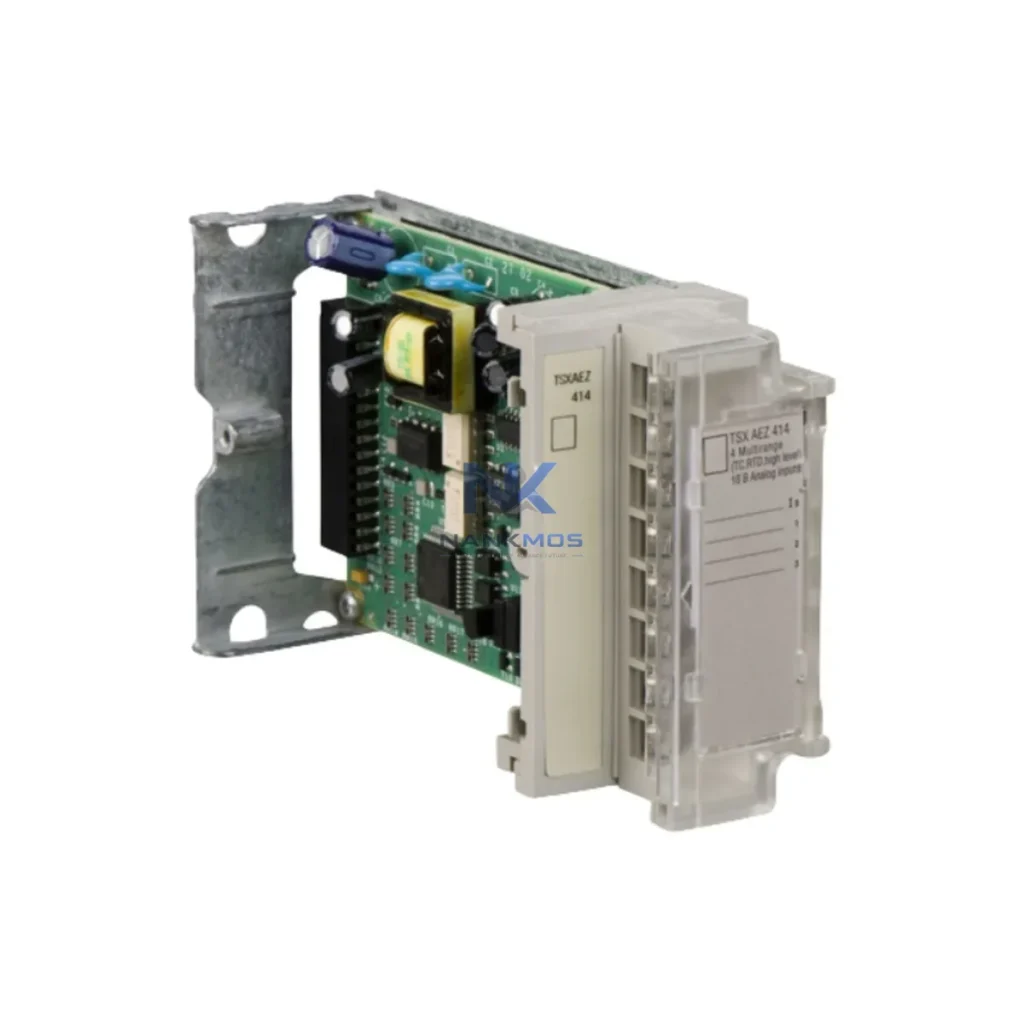

TSXAEZ414 Product Description

The Schneider Electric TSXAEZ414 is a 4-channel analog input module engineered for the TSX Premium PLC platform, delivering high-resolution signal acquisition and energy-aware process control across demanding industrial environments. Designed to support continuous monitoring of voltage and current signals from field devices, the TSXAEZ414 enables production engineers to capture real-time load data, reduce unnecessary energy draw, and maintain stable machine cycles — all within a compact, rack-mounted form factor that integrates seamlessly into existing TSX Premium backplane architectures.

In modern manufacturing facilities where energy costs and equipment uptime are equally critical, the TSXAEZ414 serves as a foundational sensing layer. By converting analog field signals into precise digital values for the TSX Premium CPU — such as the TSXP57454M or TSXP57304M — the module enables the controller to make informed decisions about drive output, motor load, and thermal management. When paired with Schneider ATV71 or ATV312 variable frequency drives, the analog feedback loop established through the TSXAEZ414 allows the drive to modulate motor speed in direct response to actual process demand, eliminating fixed-speed overconsumption and reducing heat generation in motor windings and drive enclosures.

Effective energy management in industrial automation begins at the signal level. The TSXAEZ414 collects analog measurements from current transformers, pressure transducers, flow sensors, and temperature transmitters — translating physical process variables into actionable data for the TSX Premium CPU. This data stream is the backbone of any power-aware control strategy.

When integrated with a Schneider PM710 or PM800 series power monitoring module, the TSXAEZ414 analog inputs can be mapped to energy consumption trends, allowing the PLC program to correlate production throughput with real-time power draw. If a production line segment draws excessive current during a specific machine phase, the CPU can issue corrective commands to the ATV71 drive — reducing output frequency, adjusting torque limits, or triggering a controlled ramp-down — all based on the analog signal data captured by the TSXAEZ414.

On the I/O side, the TSXAEZ414 works alongside digital I/O modules such as the TSXDEY32D2K and TSXDSY32T2K to form a complete sensing and actuation layer. While the digital modules handle discrete on/off states — conveyor start/stop, valve open/close — the TSXAEZ414 handles the nuanced analog signals that reflect actual energy load conditions. Together, they give the TSX Premium CPU a full picture of machine state, enabling smarter scheduling of high-energy operations during off-peak periods.

For human-machine interface visibility, the TSXAEZ414 data is readily surfaced through Schneider Magelis HMI panels (such as the HMIGTO series) via the Unity Pro application layer. Operators can monitor live analog values, set energy thresholds, and receive alerts when load conditions deviate from optimal ranges — without requiring additional instrumentation hardware. Communication to SCADA systems or energy management platforms is handled through the TSX Premium's integrated Modbus TCP or Ethernet I/P ports, ensuring that the TSXAEZ414's measurements are available across the plant network in real time.

Production line energy optimization is not a single-point solution — it requires coordinated sensing, control, and feedback across every stage of the manufacturing process. The TSXAEZ414 contributes to this coordination by providing the TSX Premium PLC with continuous, high-resolution analog data that reflects the true energy state of connected equipment.

In motor-driven applications — conveyors, pumps, compressors, and fans — the TSXAEZ414 monitors the 4–20 mA output of current sensors installed on motor supply lines. When the PLC detects that a motor is drawing current above its optimal operating band, it can command the associated ATV312 or ATV71 drive to reduce speed, preventing thermal stress on motor windings and reducing energy waste during low-demand periods. This closed-loop approach, enabled by the TSXAEZ414's precise analog acquisition, can meaningfully reduce energy consumption during partial-load production phases.

Thermal load management is another key benefit. By monitoring temperature transmitter outputs through the TSXAEZ414, the TSX Premium CPU can regulate cooling system operation — activating fans or chillers only when thermal thresholds are approached, rather than running them continuously. This demand-driven cooling strategy reduces auxiliary energy consumption and extends the service life of thermal management equipment.

For production line rhythm (takt time) stability, the TSXAEZ414 supports predictive maintenance workflows. Gradual drift in analog signal baselines — such as slowly increasing motor current draw or declining pressure in a pneumatic circuit — can be detected early by the PLC program and flagged for maintenance before a failure occurs. This reduces unplanned downtime, keeps production cycles consistent, and avoids the energy spikes associated with emergency restarts and cold-start sequences.

All TSXAEZ414 units supplied by NANKMOS are sourced from verified channels, subjected to functional testing prior to dispatch, and covered by a 12-month warranty. In-stock availability ensures that replacement or expansion modules can be deployed rapidly, minimizing production interruption and supporting continuous energy optimization programs.

Q1: How does the TSXAEZ414 contribute to measurable energy savings on a production line? The TSXAEZ414 provides the TSX Premium PLC with real-time analog data from current sensors, pressure transducers, and temperature transmitters. This data enables closed-loop control of variable frequency drives (such as the ATV71 or ATV312), allowing motor speeds to be matched precisely to process demand. By eliminating fixed-speed overconsumption during partial-load conditions, facilities typically achieve significant reductions in motor energy draw — often 15–30% depending on the application profile.

Q2: Is the TSXAEZ414 compatible with both Unity Pro and PL7 Pro programming environments? Yes. The TSXAEZ414 is fully supported within both Unity Pro and PL7 Pro software environments, which are the standard programming platforms for TSX Premium PLCs. Module configuration, channel scaling, and analog value mapping are handled directly within the software's I/O configuration editor, with no additional drivers or middleware required.

Q3: Can the TSXAEZ414 be used as a direct replacement for other TSX Premium analog input modules? The TSXAEZ414 is designed for the TSX Premium backplane and is compatible with the standard rack slot assignments used across the TSX Premium family. For applications currently using earlier-generation analog input modules, the TSXAEZ414 offers equivalent or improved resolution and channel density. Configuration migration within Unity Pro or PL7 Pro is straightforward, and NANKMOS technical support can assist with compatibility verification prior to procurement.

Q4: What does the 12-month warranty cover, and what is the typical lead time for in-stock units? Every TSXAEZ414 unit supplied by NANKMOS is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. All in-stock units undergo functional testing before dispatch. Lead time for in-stock units is typically 1–3 business days for standard international shipments, with expedited options available for urgent project requirements. Contact [email protected] for specific availability and shipping timelines.
