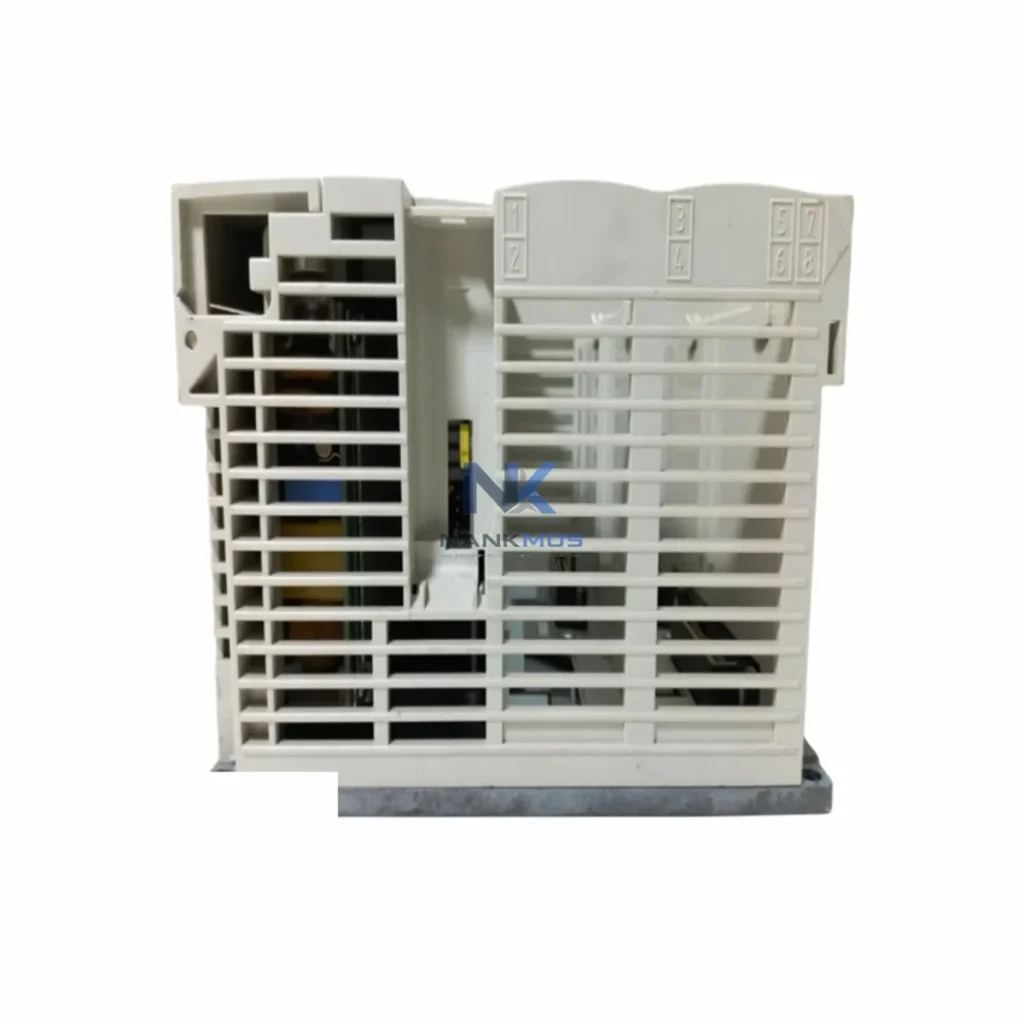

Schneider Electric TSXDEY16D2 Discrete Input Module

Product Details

TSXDEY16D2 Product Description

The Schneider Electric TSXDEY16D2 is a 16-point 24VDC discrete input module engineered for the Modicon Premium PLC platform, delivering high-density signal acquisition at the field device layer of smart factory architectures. In modern industrial environments where every millisecond of data latency matters, the TSXDEY16D2 serves as the foundational sensing interface that bridges physical process signals — from proximity sensors, limit switches, pushbuttons, and photoelectric detectors — into the digital data backbone of the automation system. Its role in the connected factory data chain is not merely signal collection; it is the first critical node in a continuous data flow that extends from field instrumentation through PLC logic, industrial Ethernet networks, SCADA platforms, and ultimately to enterprise-level MES and ERP systems.

Designed to slot directly into the Modicon Premium TSX57 rack backplane, the TSXDEY16D2 communicates natively with the Premium CPU modules — including the TSXP574634M and TSXP575634M — via the internal rack bus, ensuring deterministic, low-latency data exchange without additional protocol conversion overhead. This tight integration with the Premium platform means that all 16 discrete input channels are immediately accessible to the PLC's Unity Pro programming environment, enabling ladder logic, function block diagrams, and structured text programs to act on real-time field status with sub-millisecond cycle consistency.

In a fully integrated smart factory deployment, the TSXDEY16D2 anchors the signal acquisition layer. Field devices — including inductive proximity sensors, mechanical limit switches, safety door interlocks, and photoelectric barriers — connect directly to the module's 16 input channels. Each channel's 24VDC signal state is scanned at the PLC cycle rate and made available to the Modicon Premium CPU for real-time logic execution.

From the CPU, processed data travels across the rack backplane to communication modules that extend the data chain outward. The TSX ETY 110 Ethernet module or the TSXETY5103 Modbus TCP/IP module enables the Premium rack to participate in plant-wide Ethernet networks, pushing I/O status data to SCADA servers running platforms such as Vijeo Citect or Wonderware InTouch. Simultaneously, the TSX PBY 100 PROFIBUS DP master module can relay field device status to distributed remote I/O stations — such as the TM5 I/O island or STB island modules — extending the data reach to remote production zones without additional wiring infrastructure.

For HMI visualization, the TSXDEY16D2's input states are mapped to Magelis XBTGT or XBTGK touchscreen panels via the Premium CPU's serial or Ethernet port, providing operators with real-time process status dashboards. Alarm conditions — such as a limit switch open fault or a sensor signal loss — are immediately flagged in the HMI alarm log and simultaneously forwarded to the SCADA historian for trend analysis and root-cause investigation.

At the edge layer, an EcoStruxure Machine Advisor gateway or a compatible industrial edge device can subscribe to the Premium CPU's data table via OPC-UA or Modbus TCP, enabling cloud-based remote diagnostics and predictive maintenance analytics. This architecture ensures that the discrete input states captured by the TSXDEY16D2 are not siloed within the PLC rack but flow continuously through the entire data chain — from sensor to cloud — supporting the transparency and responsiveness demands of Industry 4.0 smart factory operations.

Power integrity across the rack is maintained by the TSXPSY2600M or TSXPSY5500M Premium power supply modules, which provide stable 24VDC bus voltage to the TSXDEY16D2 and co-installed modules, ensuring consistent input signal thresholds and eliminating false triggering caused by power rail fluctuations. For applications requiring high-speed discrete event capture — such as conveyor jam detection or press cycle counting — the TSXDEY16D2's fast input response time ensures no production event is missed in the data record.

Protocol Fragmentation: Many legacy automation sites operate with a mix of Modbus RTU, PROFIBUS DP, and proprietary fieldbus protocols. The TSXDEY16D2, integrated within the Modicon Premium platform, resolves this fragmentation by serving as a unified discrete input point that feeds data to the Premium CPU — which then acts as a protocol gateway, translating field-level signals into Modbus TCP/IP or Ethernet/IP frames consumable by modern SCADA and MES systems. This eliminates the need for standalone protocol converters at the field level.

Data Islands and Production Blind Spots: In facilities where discrete I/O modules are not networked to the SCADA layer, production events — machine stops, door interlocks, cycle completions — remain invisible to plant management systems. The TSXDEY16D2's integration with the Premium CPU's network stack ensures all 16 input channels are continuously mapped to the SCADA data server, eliminating blind spots and enabling real-time OEE (Overall Equipment Effectiveness) calculation.

Remote Monitoring and Diagnostics: Unplanned downtime caused by undetected sensor failures or wiring faults is a persistent challenge in distributed automation sites. The TSXDEY16D2 supports channel-level diagnostics accessible via Unity Pro's online monitoring mode and the Premium CPU's diagnostic buffer. Remote maintenance engineers can interrogate input channel status, detect open-circuit faults, and verify signal integrity without physical site visits — reducing mean time to repair (MTTR) and minimizing production losses.

Production Line Transparency and Alarm Tracking: The module's 16-channel density allows a single rack slot to monitor an entire production cell's discrete event landscape — from conveyor position sensors to safety relay outputs. All channel states are time-stamped in the PLC's event log and forwarded to the SCADA alarm management system, providing a complete audit trail for quality investigations, safety compliance reporting, and continuous improvement initiatives.

System Scalability: As production capacity expands, additional TSXDEY16D2 modules can be added to the Premium rack without system reconfiguration, leveraging the platform's modular I/O architecture. Combined with the Premium CPU's large memory and multi-task programming capability, this scalability supports phased smart factory rollouts without requiring platform migration.

Q1: What communication protocols does the TSXDEY16D2 support for SCADA integration? The TSXDEY16D2 itself communicates via the Modicon Premium internal rack bus. SCADA integration is achieved through the Premium CPU's communication ports, which support Modbus RTU, Modbus TCP/IP, PROFIBUS DP (via TSX PBY 100), and Ethernet/IP (via NOE modules). This multi-protocol capability ensures compatibility with all major SCADA platforms including Vijeo Citect, Wonderware, and iFIX.

Q2: How does the TSXDEY16D2 support remote diagnostics and predictive maintenance? Channel-level diagnostic data — including input state, signal validity, and wiring fault detection — is accessible via Unity Pro's online monitoring interface and the Premium CPU's diagnostic buffer. Remote engineers can access this data via Modbus TCP/IP or OPC-UA through an edge gateway, enabling real-time fault detection and predictive maintenance without on-site intervention.

Q3: Can the TSXDEY16D2 be integrated into a network with high-speed data transmission requirements? Yes. The module's internal rack bus communication is synchronous with the Premium CPU scan cycle, ensuring deterministic data updates. For plant-wide high-speed Ethernet transmission, the TSXETHERNET NOE modules provide 100Mbps Ethernet connectivity, supporting real-time data streaming to SCADA historians and MES systems with minimal latency.

Q4: What warranty and pre-shipment testing does the TSXDEY16D2 include? Every TSXDEY16D2 unit supplied by NANKMOS is covered by a 12-Month Warranty and undergoes pre-shipment functional testing to verify all 16 input channels, backplane communication integrity, and LED indicator operation. In-stock units are available for immediate dispatch with full traceability documentation.
